Motor Horsepower 1-1/2 HP
Motor Amps 13.3/6.7
Motor Volts 115/230V, 60Hz
Motor RPM 1,720
Swing 17”
Chuck Size 5/8”
Chuck Taper JT3
Drilling Capacity 1”

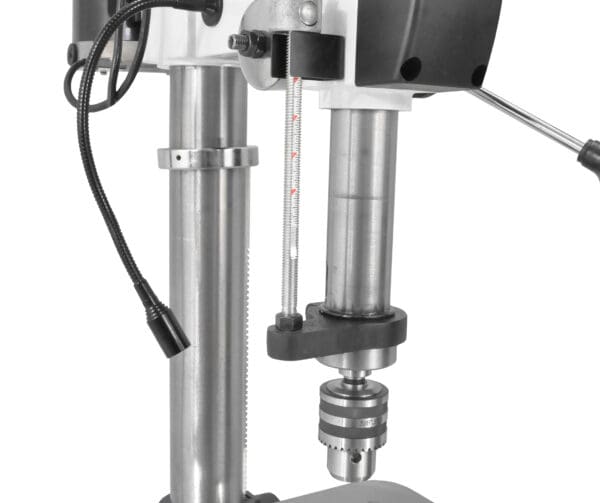

Spindle Travel 6”
Spindle Taper MT2
Head Rotates 360°
Head Tilts –

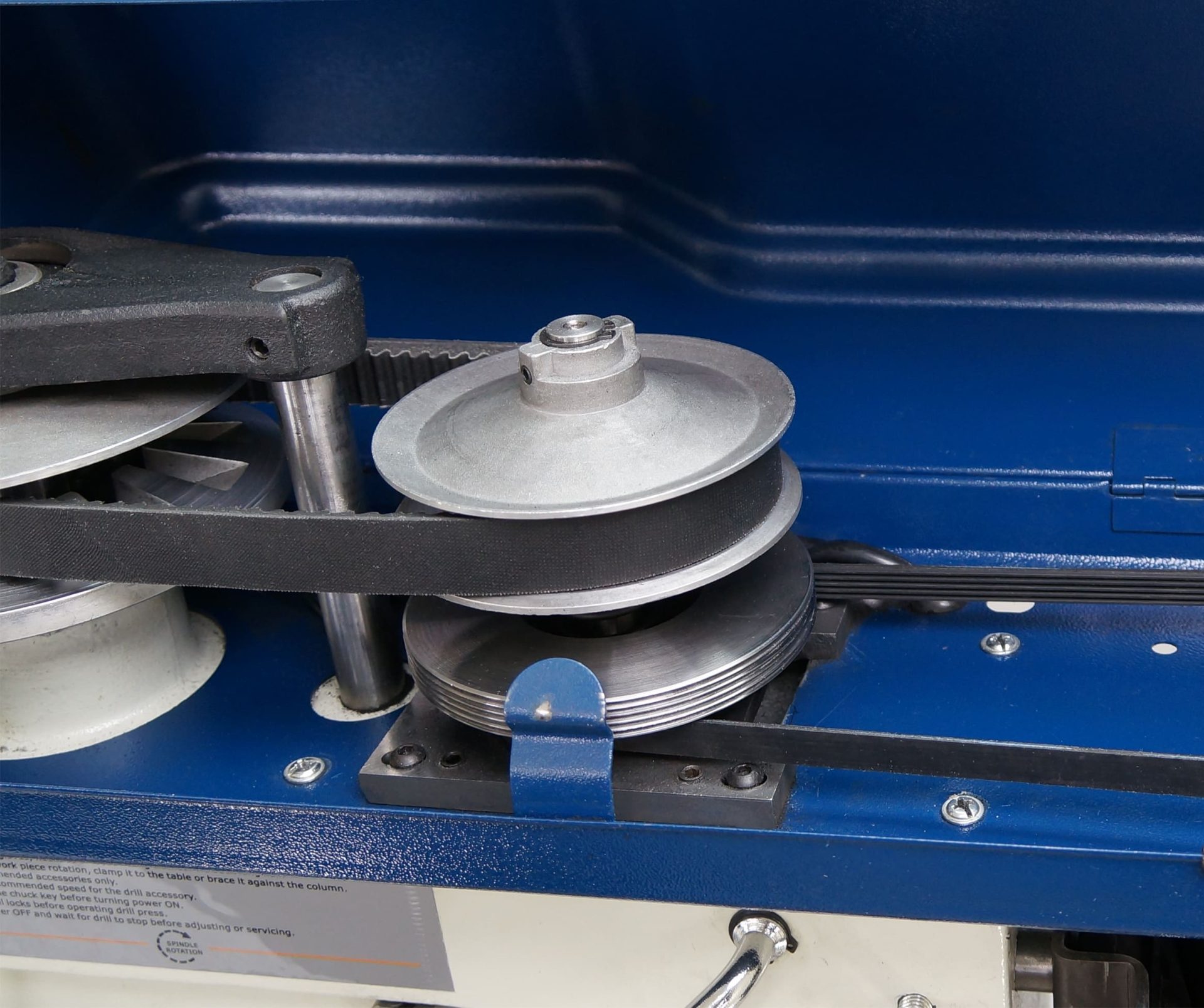

Speeds Variable
Speed Range (RPM) 200 – 700 / 600 – 2,200
Quill Diameter 2-5/8”

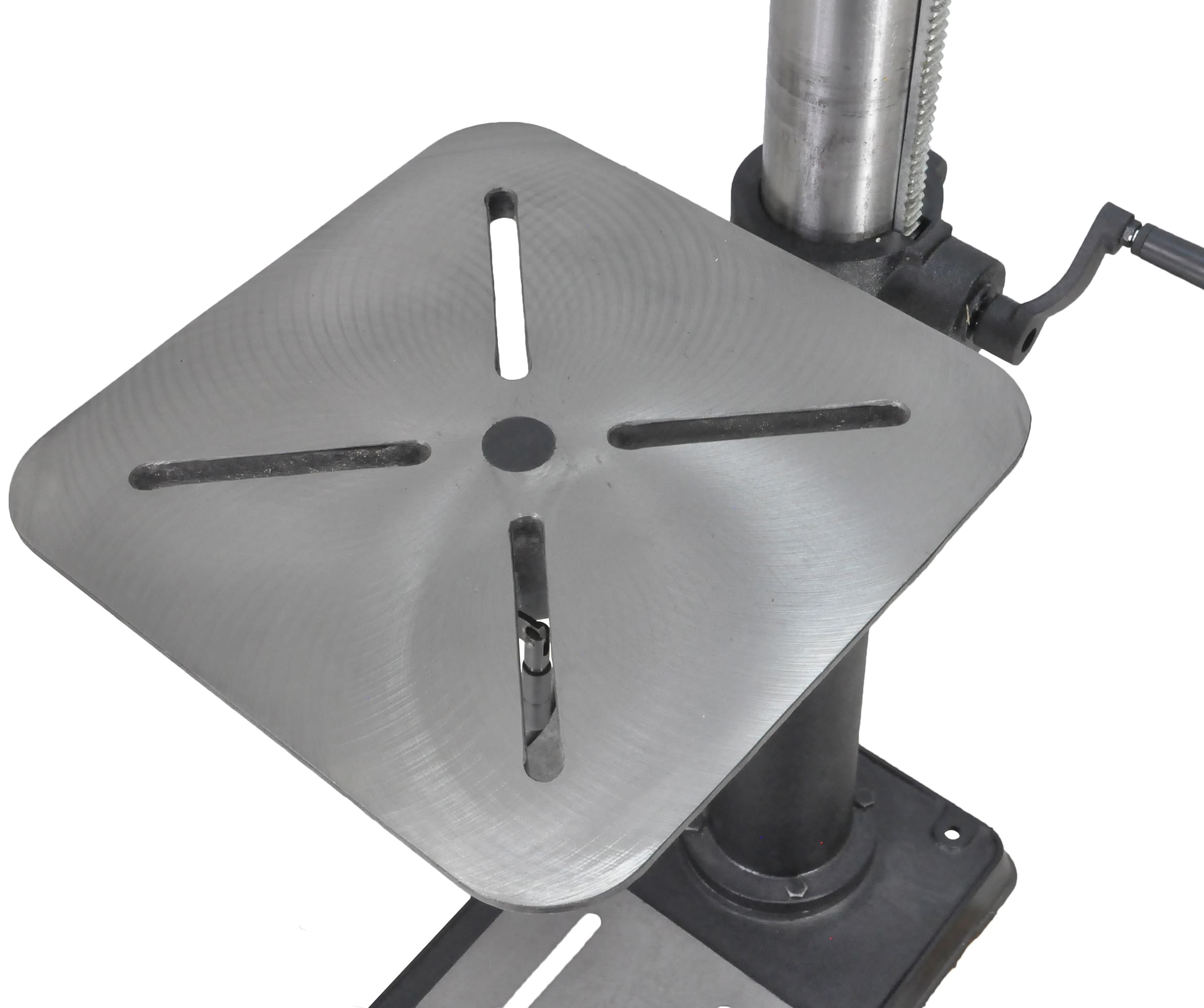

Table Dimensions 14” x 14”
Table Tilts 90°
Table Rotates 360°
Maximum Chuck to Table 27-3/4”
Maximum Chuck to Base 46-5/16”
Column Diameter 3-1/8”
Overall Height 70-1/8”
Overall Base Size 19-7/8”x13-1/2”
Overall Net Weight 192 lbs.
Warranty 5 Years
