JET JDP-17MF 17″ Drill Press

JET JDP-17MF 17″ Drill Press


In stock!

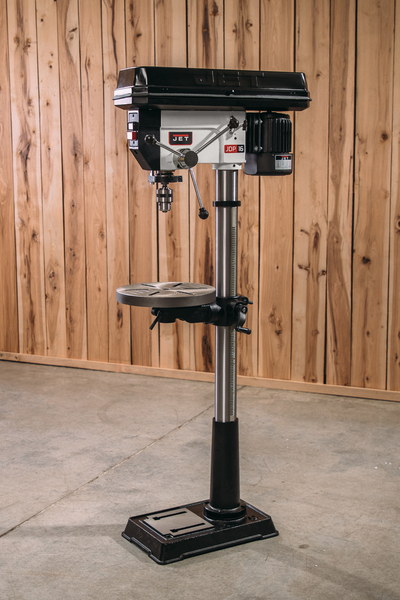

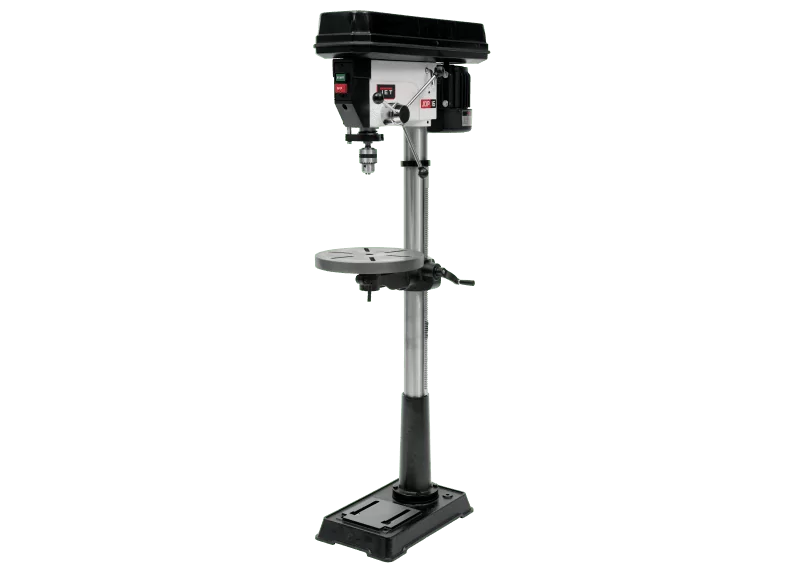

The JET JDP-17MF Floor Drill Press is a robust choice for woodworkers. With 16 adjustable speeds, it allows you to select the optimal speed for your projects. This versatile drill press features a quick-release crank-operated worktable, an integrated work light, X-pattern mounting grooves, a depth stop, and an adjustable tension spindle return spring. Ideal for repetitive drilling tasks, it combines precision and convenience.

SKU: JT9-354169 Categories: , , ,
  • X pattern mounting grooves in table allow mounting a fence when table is in reverse position
  • 16 Speeds lets you choose the best speed for the job
  • Adjustable tension spindle return spring
  • Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
  • Built-in work light (bulb not included) provides additional visibility of your work

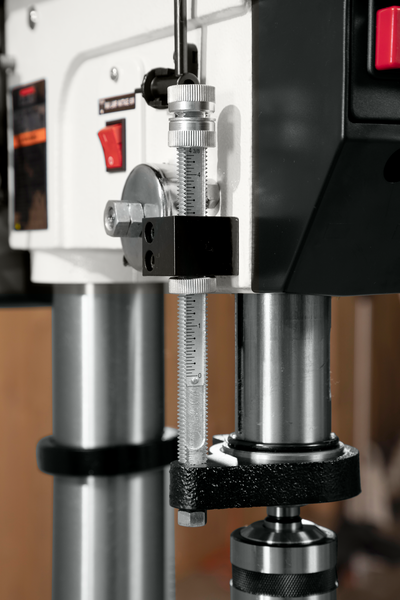

  • Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
  • Hinged metal belt and pulley cover
  • Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes

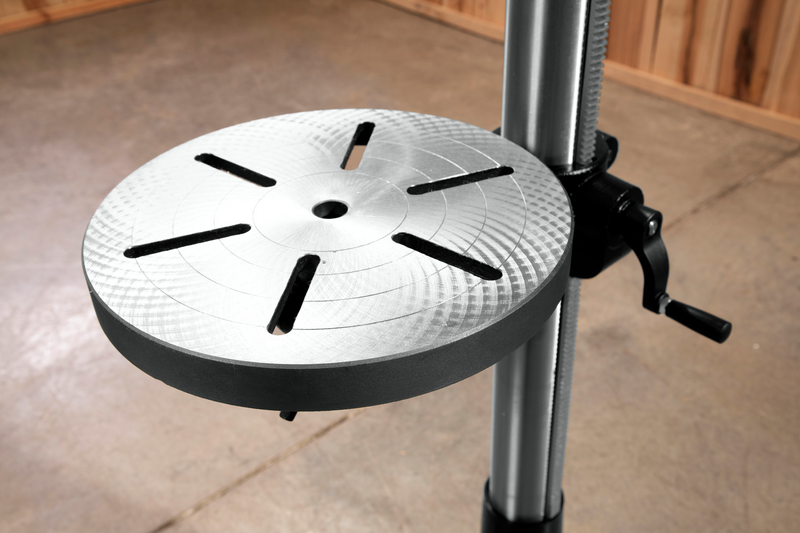

  • Quick release crank operated worktable height adjustment rotates + or – 45° for versatility
  • Spindle has high-quality ball bearing construction for long life
Machine Specs

Stock Number JT9-354169
Chuck Size (In.) 5/8
Column Diameter (In.) 3-1/8
Model Number JDP-17MF
Motor Amps 9/4.5
Motor Power (HP) 3/4
Number of Spindle Speeds 16
Prop 65 Cancer and Reproductive Harm
Spindle Distance to Table (Max.) (In.) 29-1/8
Spindle Travel (In.) 4-3/8
Style (Type) Floor standing Model
Swing (In.) 16-1/2
Table Size (L x W) (In.) 13-3/4
Warranty 5 Year
Gross Weight 209.0
