Motor Horsepower 1/3 HP
Motor Amps 2.5
Motor Volts 120V, 60Hz
Motor RPM 1,720
Swing 8”

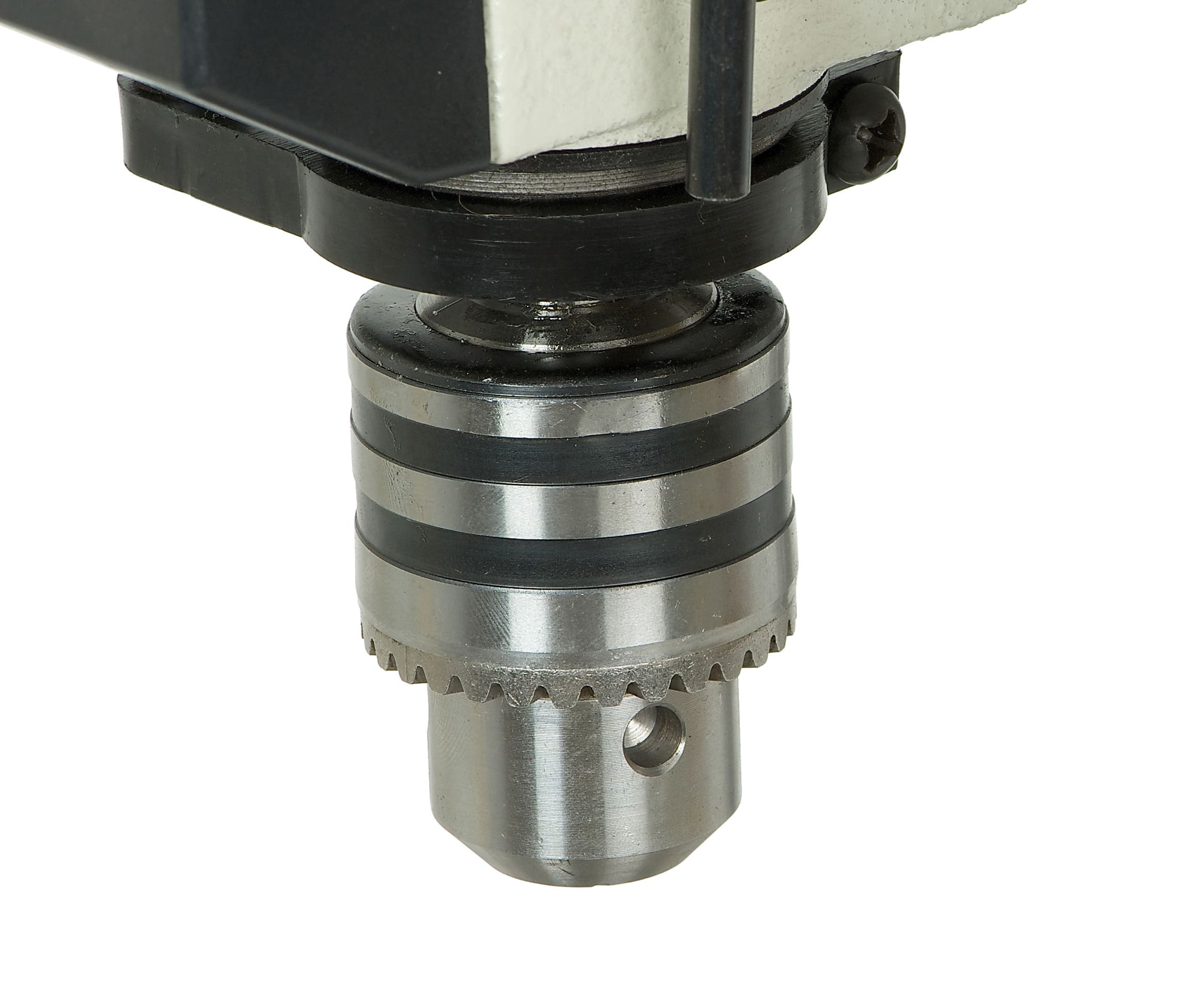

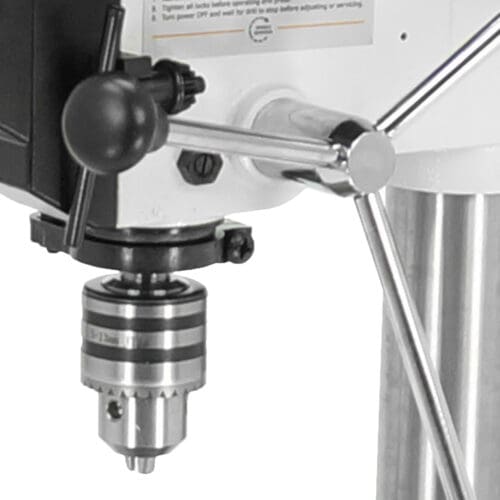

Chuck Size 1/2”
Chuck Taper JT33
Drilling Capacity 1/2”
Spindle Travel 2”
Spindle Taper JT33
Head Rotates 360°
Head Tilts –

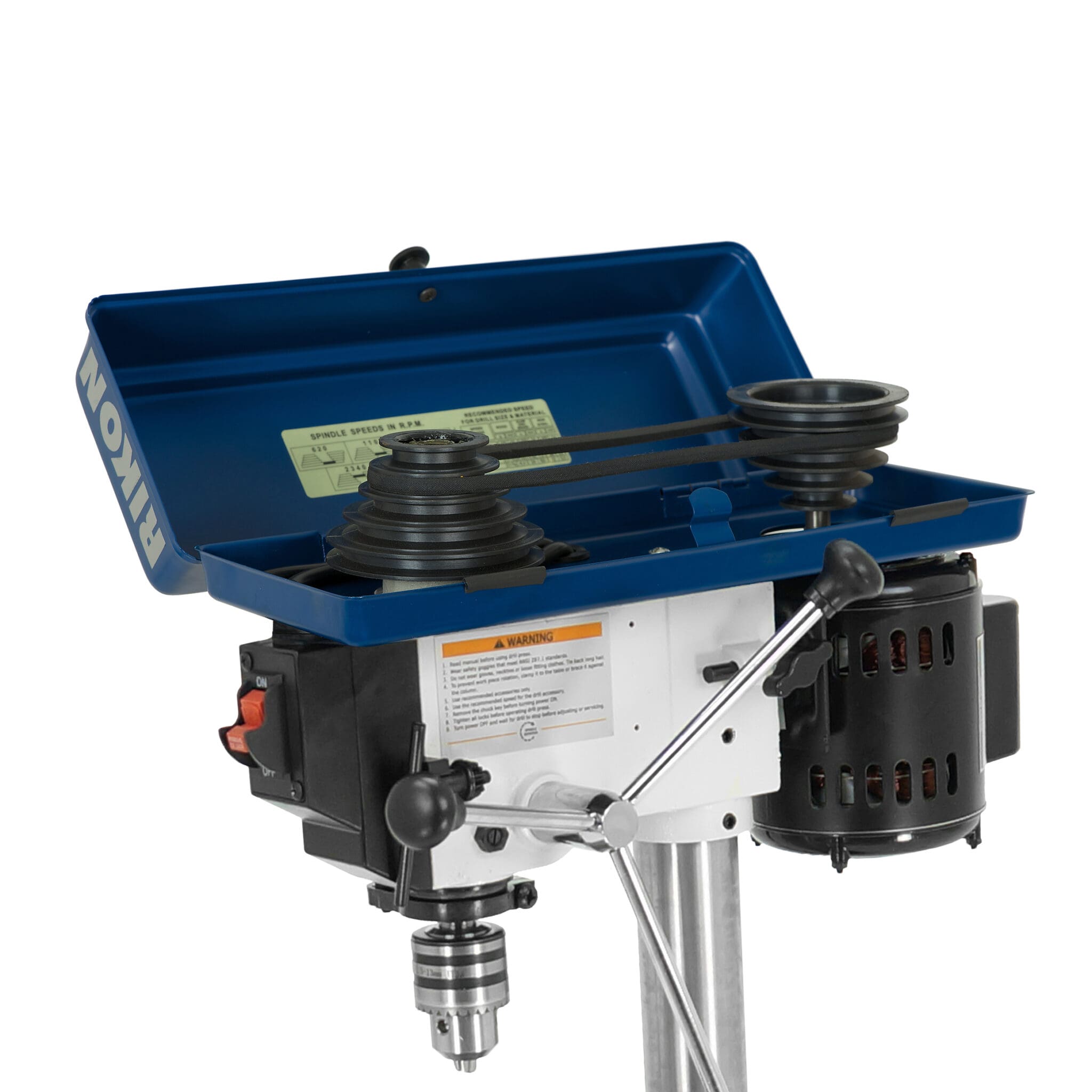

Speeds 5
Speed Range (RPM) 620 – 3,100
Quill Diameter 1-1/2”

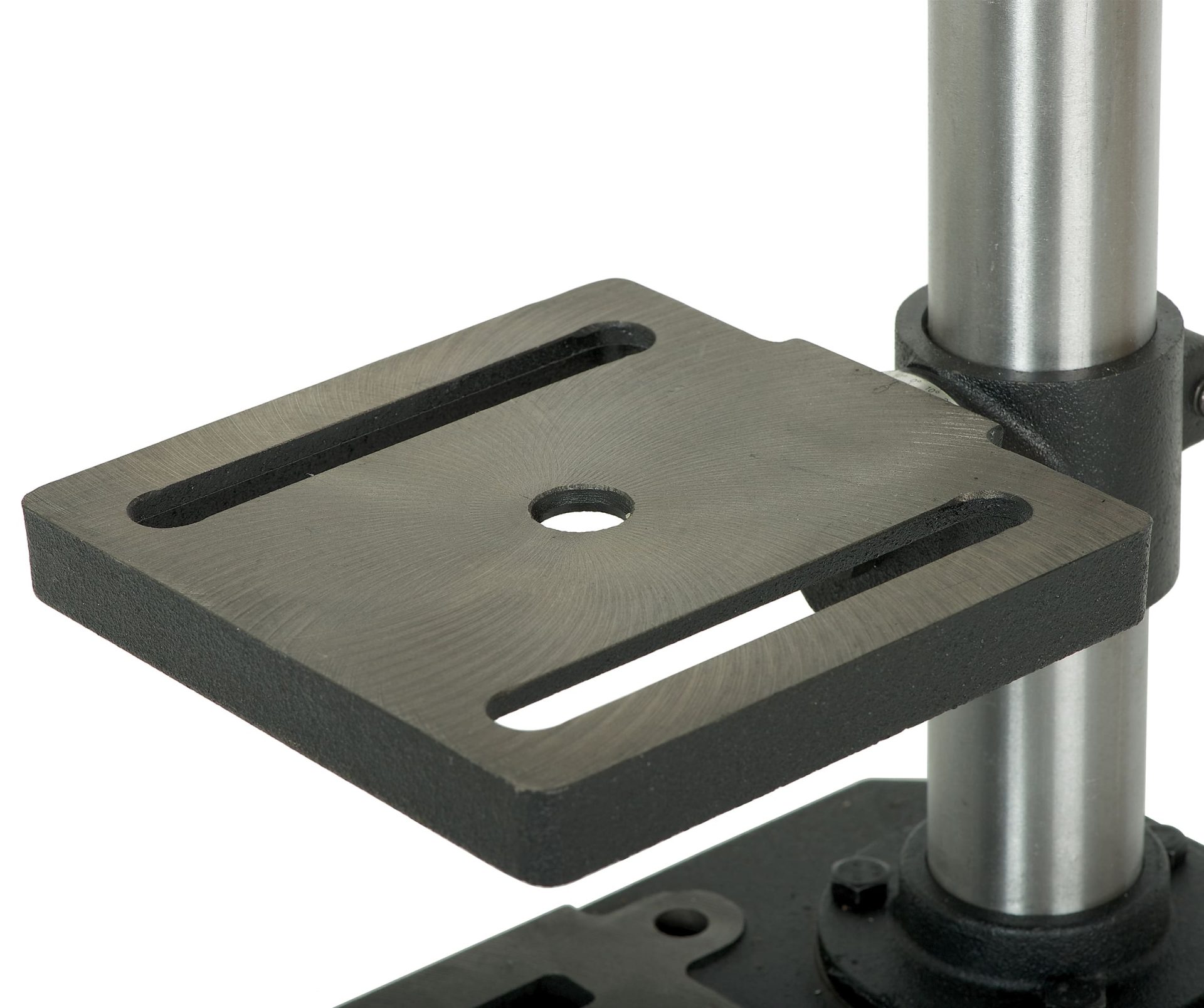

Table Dimensions 6-5/8” x 6-3/8”
Table Tilts 90°
Table Rotates 360°
Maximum Chuck to Table 7-1/16”
Maximum Chuck to Base 10-1/4”
Column Diameter 1-7/8”
Overall Height 22-3/4”

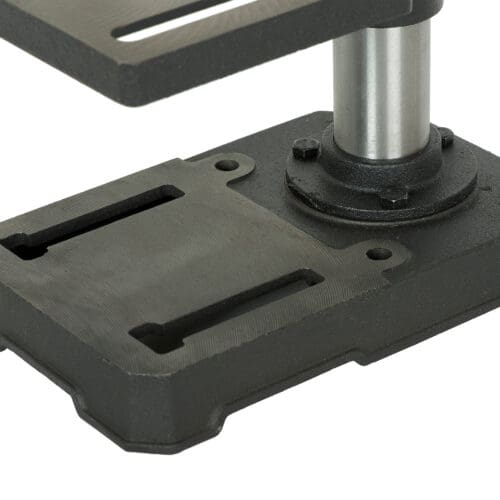

Overall Base Size 11” x 7-1/8”
Overall Net Weight 32 lbs.
Warranty 5 Years
