Laguna – FUSION F3 52″ RIP 3HP 220V

Laguna – FUSION F3 52″ RIP 3HP 220V

$2,999.00

Out of Stock

Ships for $199

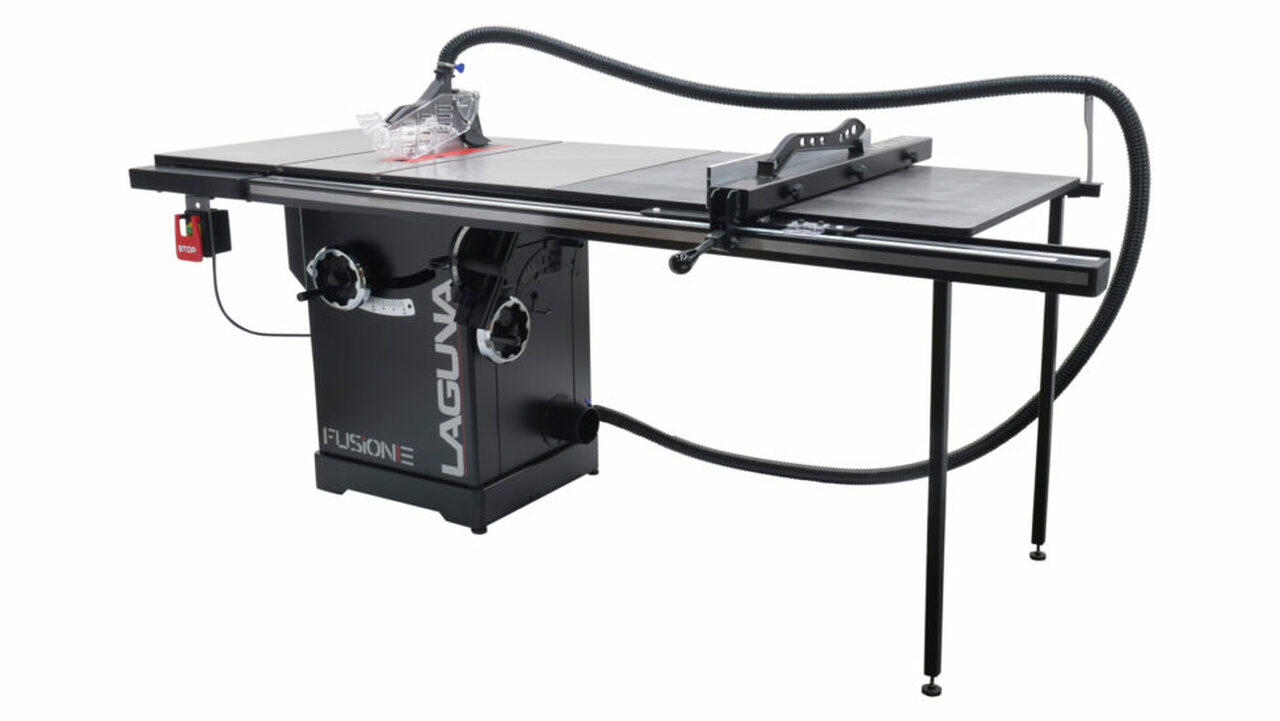

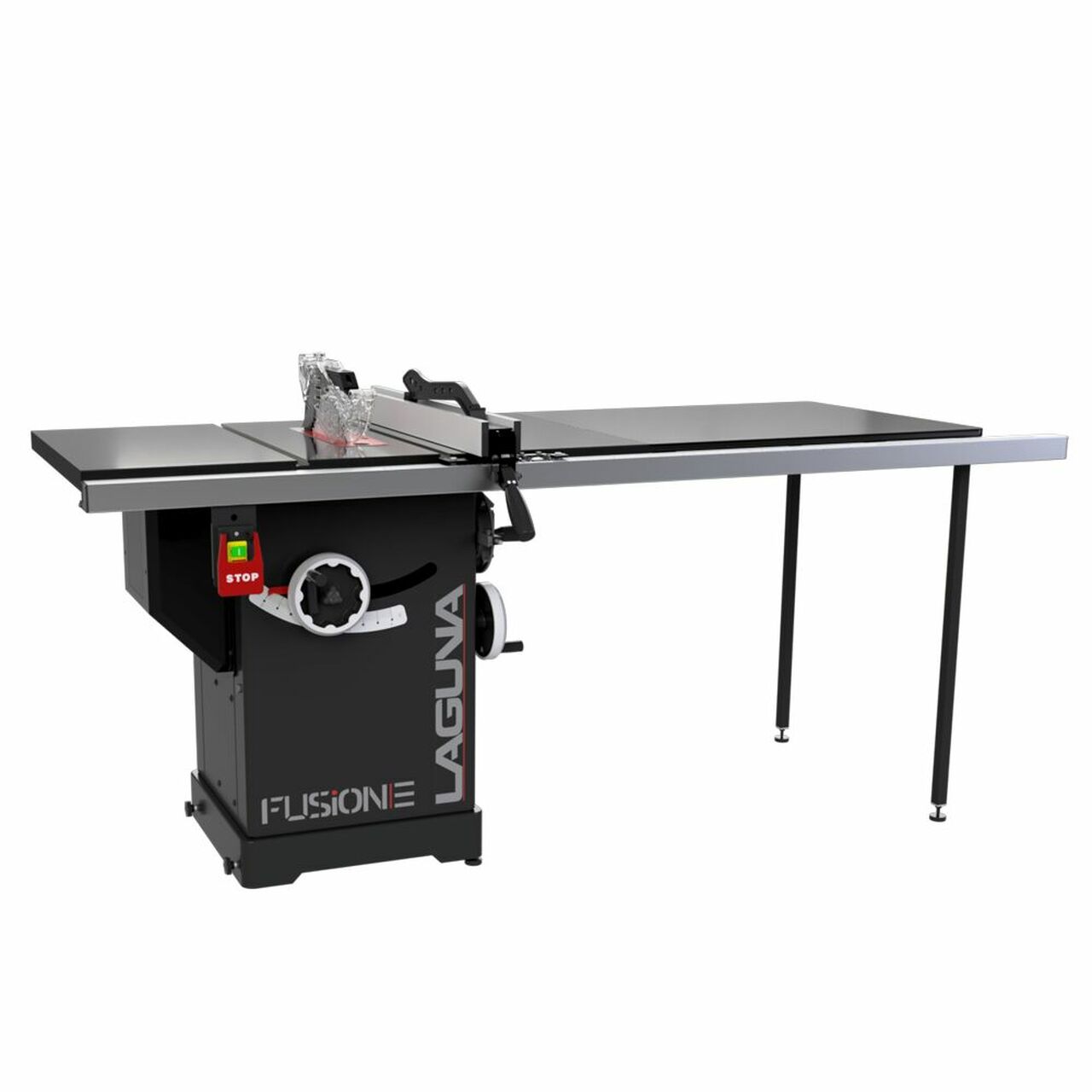

F3 Fusion Tablesaw 52″

The new Laguna Fusion Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the new fusion line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years.

SKU: MTSF3362203-0130-52 Categories: , ,

Features

  • 52″ Rip Capacity
  • Fusion Dust Collection System
  • Industrial Cabinet, Fence & Trunnions
  • Included Tools, Tables & Integrated Tool Storage
  • Included 10 x 60T Carbide-Tipped Blade

 F3 52″ FEATURES

  • 52″ Rip Capacity
  • Industrial 14 Gauge Cabinet
  • Accessory Tables (Outfeed & Rip)
  • Industrial Fence Rail
  • Industrial Fusion Fence
  • Premium Electrical & Hardware Components
  • Premium Miter Gauge
  • Cast Iron Fusion Trunnions
  • Cabinet Mounted Arbor
  • Cast Iron Table & Wings
  • European Hi-Lo Fence
  • Premium Zero Clearance Throat Plate
  • Fusion Hi-Lo Dust Collection
  • Magnetic Contactor Switch
  • Quick-Release Blade Guard and Spreader
  • Riving Knife Included
  • Push Stick Included
  • Miter Gauge Included
  • Blade Changing Tool Included
  • Integrated Tool Storage
  • 10 x 60T Carbide-Tipped Blade Included
  • Premium Arbor and Motor Bearing
Machine Specs

Horsepower: 3HP
Phase: Single-Phase
Amps: 15A (220V)
Speed: 3450 RPM
Type: TEFC Capacitor-Start Induction
Power Transfer: Poly-V Belt Drive
Horsepower: 3HP
Phase: Single-Phase
Amps: 15A (220V)
Speed: 3450 RPM
Type: TEFC Capacitor-Start Induction
Power Transfer: Poly-V Belt Drive
Bearings: Sealed & Permanently Lubricated
Maximum Blade Diameter: 10 in. (254 mm)
Max Rip Right of Blade w/Included Fence & Rails: 52 in. (1320.8 mm)
Power Requirement: 220V, Single-Phase, 60 Hz
Prewired Voltage: 220V
Fence Type: Camlock T-Shape w/European Hi-Lo Face
Table: Precision-Ground Cast Iron
Wings: Precision-Ground Cast Iron
Cabinet: 14 Ga. Steel
Trunnions: Cast Iron
Dust Port Size: 4 in. (101.6 mm)
Blade Guard Dust Port Size: 1.5 in. (38.1 mm)
Weight, Gross: 533.58 lbs. (242 Kg)
Weight, Net: 405 lbs. (184 Kg)
Overall Width (side-to-side): 84.94 in. (2157.47 mm)
Overall Depth (front-to-back): 56.1 in. (1425 mm)
Overall Height: 42.91 in. (1090 mm)
Power Requirement: 220V, Single-Phase, 60 Hz
Horsepower: 3HP
52″ Rip Capacity
Industrial 14 Gauge (2mm) Cabinet
Accessory Tables (Outfeed & Rip)
Industrial Fence Rail
Industrial Fusion Fence
Premium Electrical & Hardware Components
Premium Miter Gauge
Cast Iron Fusion Trunnions
Cabinet Mounted Arbor
Cast Iron Table & Wings
European Hi-Lo Fence
Premium Zero Clearance Throat Plate
Fusion Hi-Lo Dust Collection
Magnetic Contactor Switch
Quick-Release Blade Guard and Spreader
Riving Knife Included
Push Stick included
Miter Gauge Included
Blade Changing Tool Included
Integrated Tool Storage
Included 10 x 60T Carbide-Tipped Blade
Premium Arbor and Motor Bearings

Shipping Dimensions:

Carton Number: 1
Carton Type: Wood Crate
Content: Tablesaw
Weight, Gross: 482 lbs. (219 Kg)
Length: 51.18 in. (1300 mm)
Width: 29.92 in. (760 mm)
Height: 42.71 in. (1085 mm)
Must Ship Upright: YES

Carton Number: 2
Carton Type: Wood Crate
Content: 52″ Fence Rails
Weight: 51.58 lbs. (23.4 Kg)
Length: 69.88 in. (1775 mm)
Width: 4.13 in. (105 mm)
Height: 3.93 in. (100 mm)
Must Ship Upright: YES
