Laguna – FUSION F3 36″ RIP 3HP 220V

Sale!

Laguna – FUSION F3 36″ RIP 3HP 220V

$2,339.10

In stock!

Ships for $199

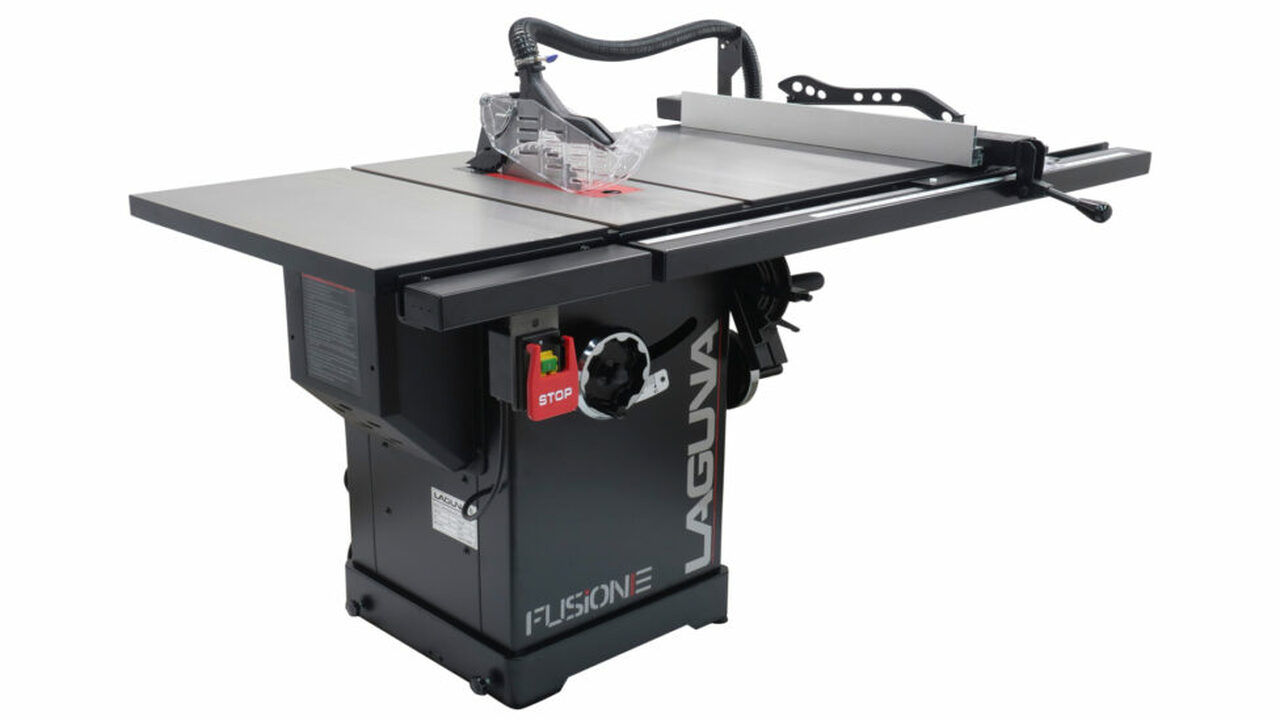

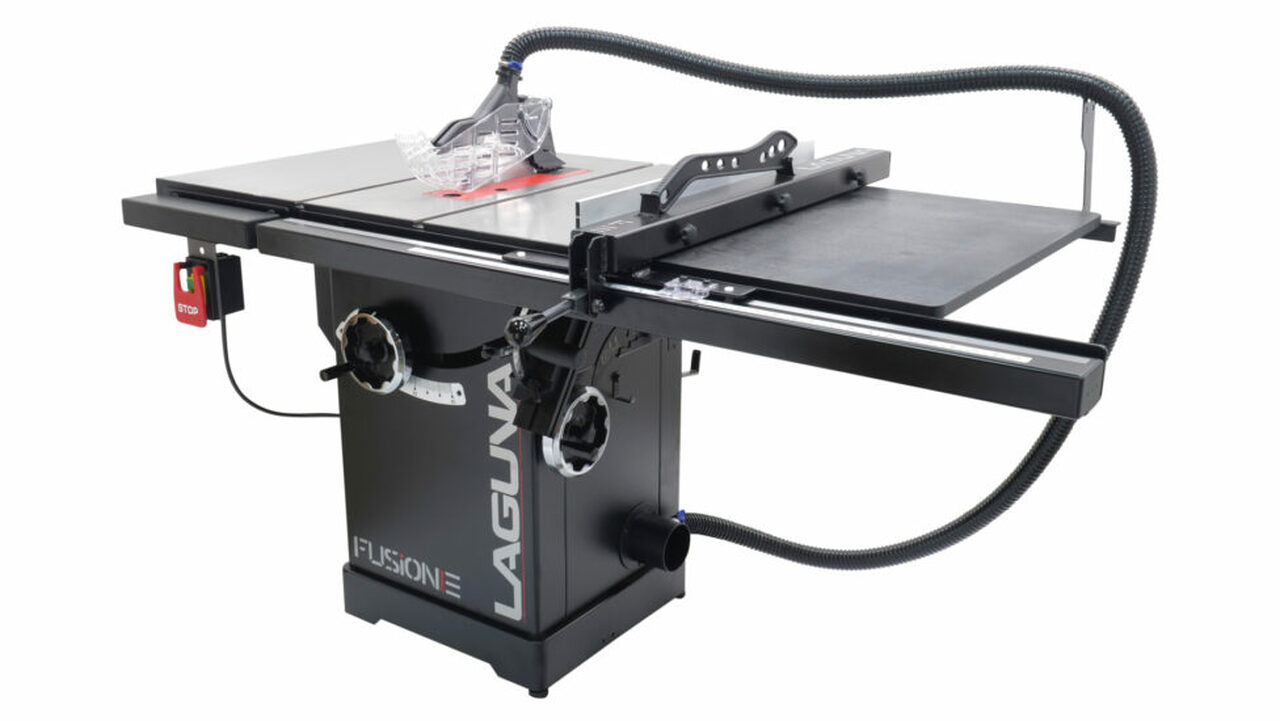

F3 Fusion Tablesaw

The new Laguna Fusion Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the new fusion line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years.

SKU: MTSF3362203-0130 Categories: , ,

Features

  • 3HP TEFC Motor
  • Fusion Dust Collection System
  • Industrial Cabinet, Fence & Trunnions
  • Included Tools, Tables & Integrated Tool Storage
  • Included 10 x 60T Carbide-Tipped Blade

F3 FEATURES

  • Industrial 14 Gauge Cabinet

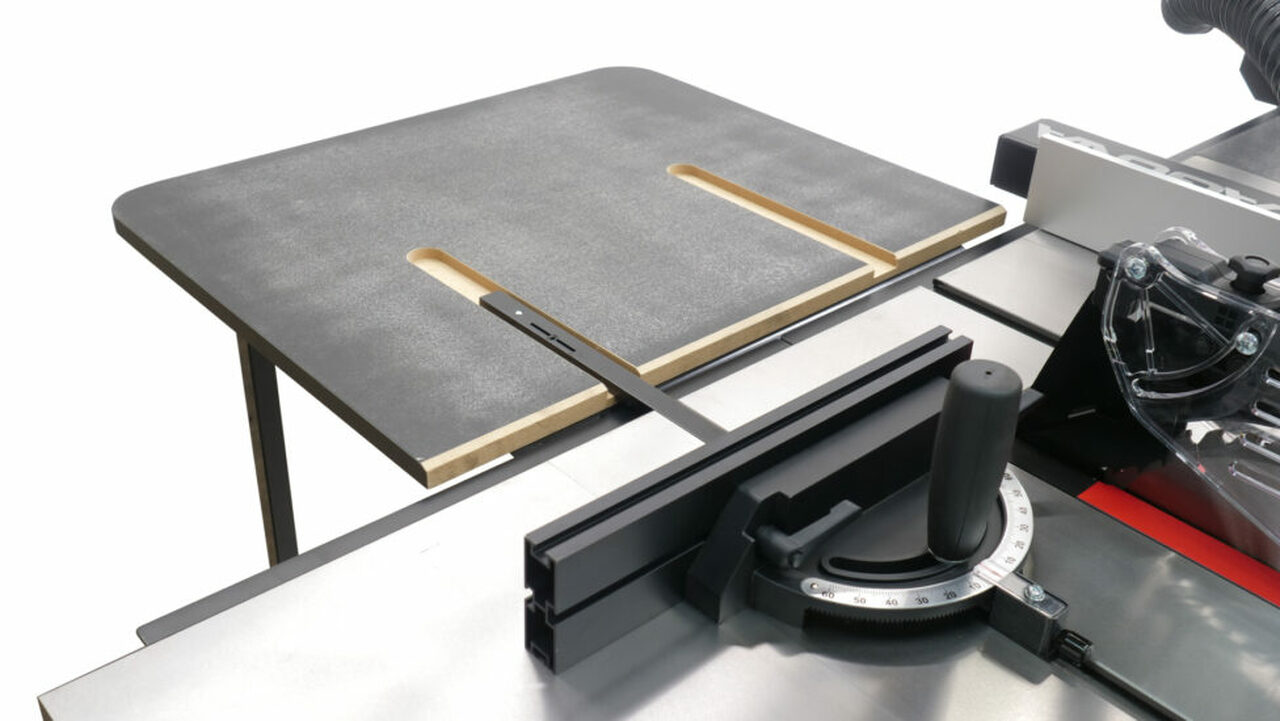

  • Accessory Tables (Outfeed & Rip)
  • Industrial Fence Rail

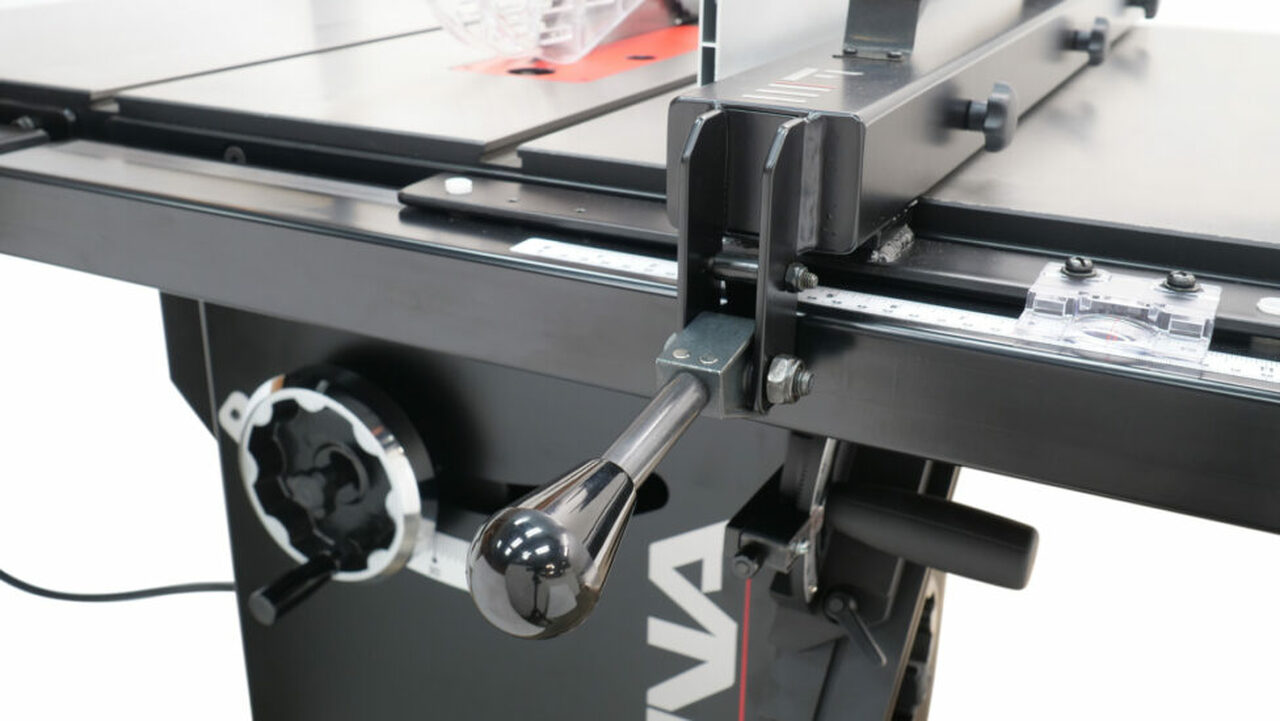

  • Industrial Fusion Fence
  • Premium Electrical & Hardware Components
  • Premium Miter Gauge

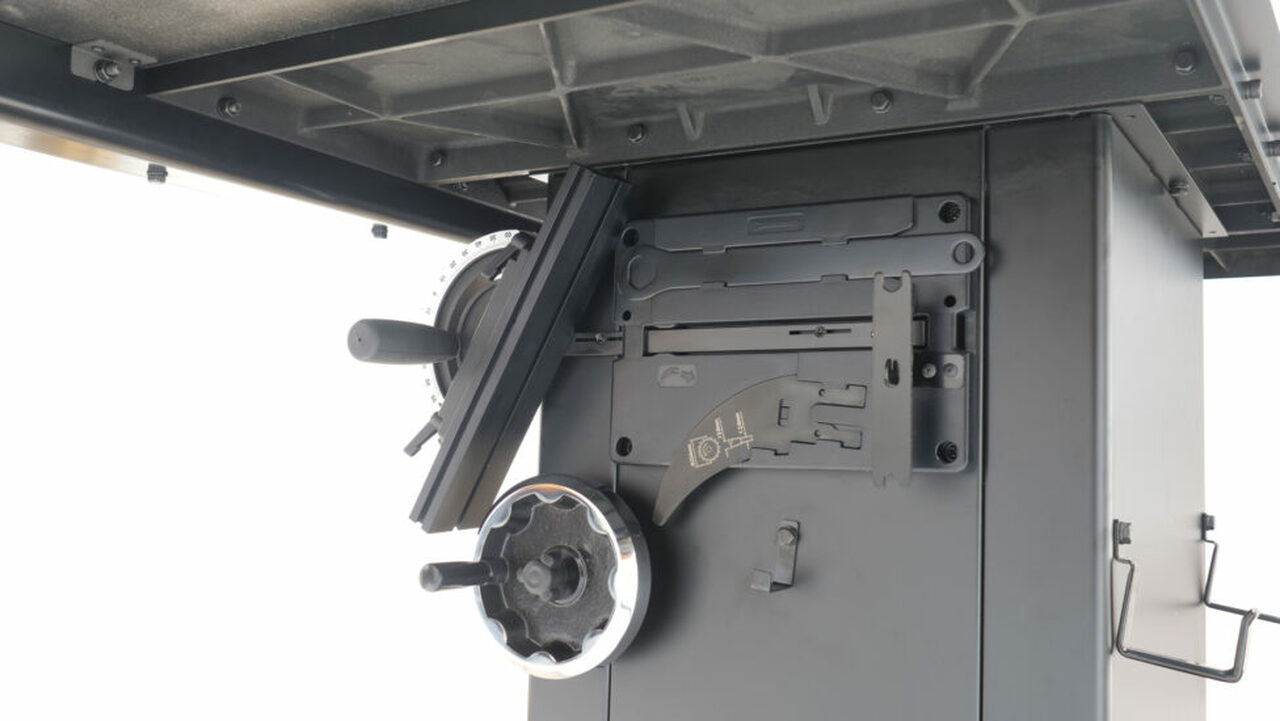

  • Cast Iron Fusion Trunnions
  • Cabinet Mounted Arbor
  • Cast Iron Table & Wings
  • European Hi-Lo Fence
  • Premium Zero Clearance Throat Plate
  •  Fusion Hi-Lo Dust Collection
  • Magnetic Contactor Switch
  • Quick-Release Blade Guard and Spreader

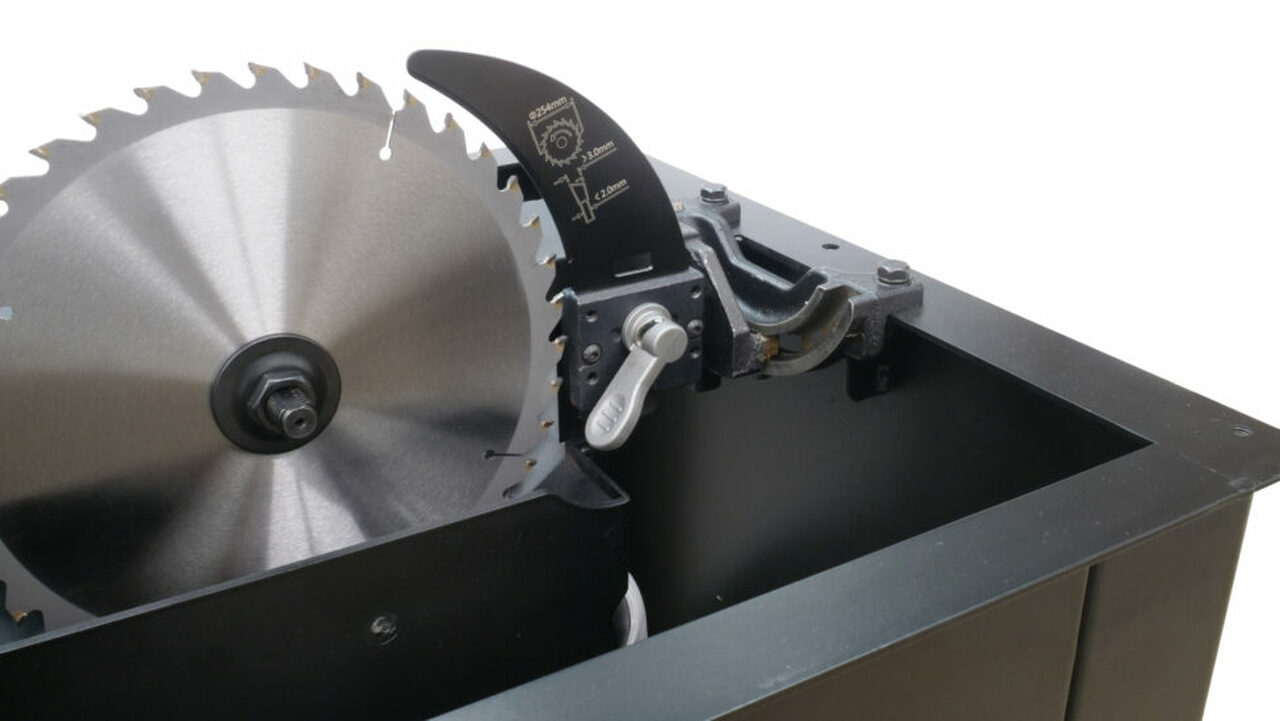

  • Riving Knife Included
  • Push Stick Included
  • Miter Gauge Included
  • Blade Changing Tool Included
  • Integrated Tool Storage
  • 10 x 60T Carbide-Tipped Blade Included
  • Premium Arbor and Motor Bearing

Machine Specs

Electrical:
Power Requirements: 220V-1PH-60HZ
Amperage (FLA): 14 AMP
Motor Power: 3 HP
Motor Speed: 3450 RPM
Starter Switch: Magnetic
Plug Included: 6-15
Circuit Breaker Req.: 220V – 25 AMP
Receptacle Req. : 6-15

General :
Certification: CSA C/US 175370
Net Weight: 290 lbs (132 Kgs)
Shipping Weight: 390 lbs (177 Kgs)
Shipping Dimensions: L29-3/4″ W46-5/8″ H42-5/8″
Overall Size: L39-3/4″ W65-5/8″ H38″

Tablesaw:
Rip Capacity: 36″ STD, 52″ OPTION
Blade Size: 10″
Vertical Cut Height: 3 1/8”
45° Cut Height: 2 1/8″
Tilt: 0-45° Left
Min. Kerf: 3mm ~1/8″ (actual: 0.1875″)
Max. Kerf (Dado Blade): 13/16″
Arbor Speed: 4500 RPM
Arbor Diameter: 5/8″
Mitre Slot: 3/4″ to 1″ T
Throat Plate: Zero Clearance Square Composite, w/ adjustment
Fence: Double Rail Cam Action

Dimensions:
Overall Size: L39-3/4″ W65-5/8″ H38″
w/ 52″ Extension: +16″ to W in Overall Size
Base: L18-5/8″ W19-1/4″
Floor to To Table: H34-3/4″
Table: L27″ W20″
Extension Wing: L27″ W12″ (x2)
Throat Plate: L14-5/8″ W4-1/16″ th1/2″

Dust Collection:
Dust Port Outer Diameter: 3-7/8″
CFM Requirement: 350 CFM
Dust Port Outer Diameter: 3-7/8″

Materials:
Table: Cast Iron
Table Wing: Cast Iron
Cabinet Thick: Sheet Steel
Throat Plate: Composite
Arbor Wheels: Premium Iron
Fence: Aluminum Rail, Steel Body
Upper Trunnion : Cast Iron
Lower Trunnion : Cast Aluminum Alloy
