Laguna – Fusion F2 36″ RIP 1.75HP 110V

Laguna – Fusion F2 36″ RIP 1.75HP 110V

$1,799.00

In stock!

Ships for $199

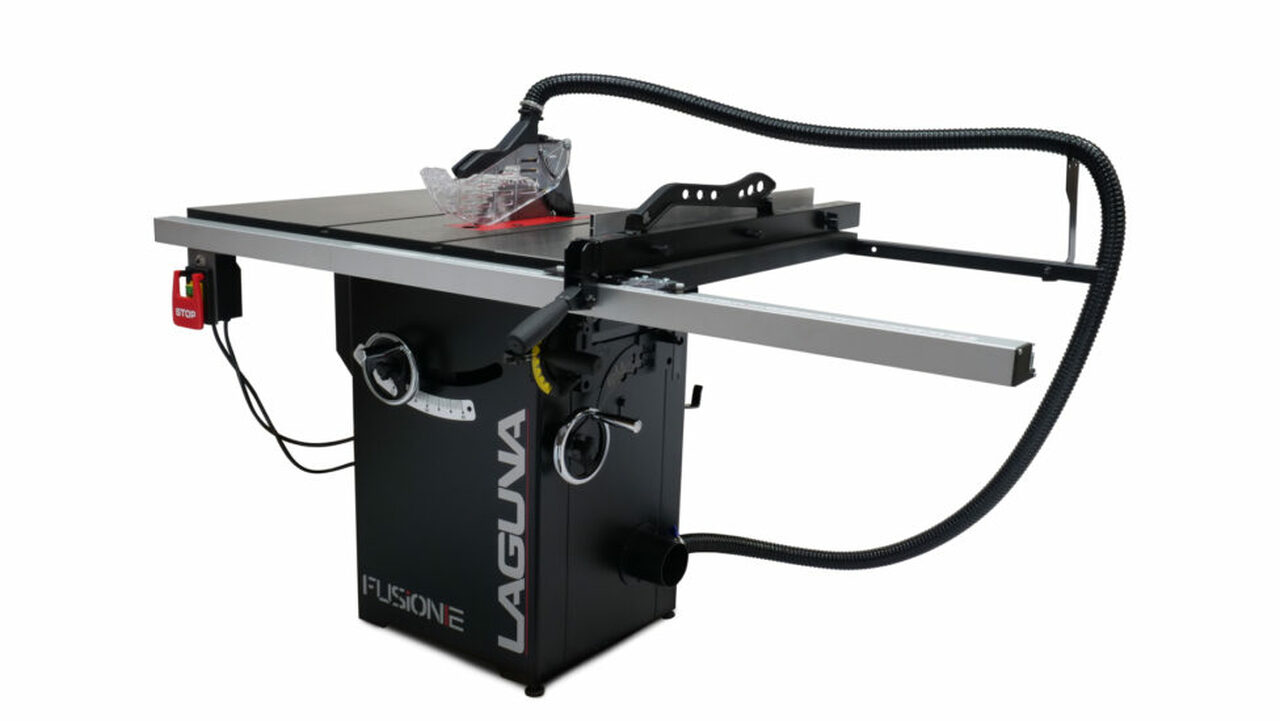

F2 Fusion Tablesaw

The new Laguna F2 and F3 Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the new fusion line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years.



SKU: MTSF236110175-0130 Categories: , ,

Features

  • 1.75HP TEFC Motor
  • Fusion Dust Collection System
  • Cabinet Mounted Design
  • Included Tools & Integrated Tool Storage
  • Included 10 x 60T Carbide-Tipped Blade

F2 FEATURES

  • Full Cabinet Body
  • Cabinet Mounted Arbor
  • Cast Iron Table & Wings
  • European Hi-Lo Fence
  • Premium Zero Clearance Throat Plate
  • Fusion Hi-Lo Dust Collection
  • Fusion Over-Under Trunnions
  • Reset Switch
  • Quick-Release Blade Guard and Spreader
  • Riving Knife Included
  • Push Stick Included
  • Miter Gauge Included
  • Blade Changing Tool Included
  • Integrated Tool Storage
  • Premium Handles
  • Included 10 x 60T Carbide-Tipped Blade
  • Premium Arbor and Motor Bearings
Machine Specs

Electrical:
Power Requirements: 110V-1PH-60HZ*
Amperage (FLA) :14 AMP
Motor Power: 1.75 HP
Motor Speed: 3450 RPM
Starter Switch: Magnetic
Plug Included: 5-15
Circuit Breaker Req.: 110V – 25 AMP
Receptacle Req. : 5-15

General :
Certification: CSA C/US 175370
Net Weight: 275 lbs (125 Kgs)
Shipping Weight: 368 lbs (167 Kgs)
Shipping Dimensions: L29-3/4″ W46-5/8″ H42-5/8″
Overall Size: L39-3/4” W65-5/8” H38”

Tablesaw:
Rip Capacity: 36″ STD, 52″ OPTION
Blade Size: 10″
Vertical Cut Height: 3 1/8”
45° Cut Height: 2 1/8″
Tilt: 0-45° Left
Min. Kerf: 3mm ~1/8″ (actual: 0.1875″)
Max. Kerf (Dado Blade): 13/16″
Arbor Speed: 4500 RPM
Arbor Diameter: 5/8″
Mitre Slot: 3/4″ to 1″ T
Throat Plate: Zero Clearance Square Composite, w/ adjustment
Fence: Double Rail Cam Action

Dimensions:
Overall Size: L39-3/4″ W65-5/8″ H38″
w/ 52″ Extension: +16″ to W in Overall Size
Base: L18-5/8″ W19-1/4″
Floor to To Table: H34-3/4″
Table: L27″ W20″
Extension Wing: L27″ W12″ (x2)
Throat Plate: L14-5/8″ W4-1/16″ th1/2″

Dust Collection:
Dust Port Outer Diameter: 3-7/8″
CFM Requirement: 350 CFM
Dust Port Outer Diameter: 3-7/8″

Materials:
Table: Cast Iron
Table Wing: Cast Iron
Cabinet: Sheet Steel
Throat Plate: Composite
Arbor Wheels: Iron
Fence: Aluminum Rail, Steel Body
Upper : Trunnion Cast Aluminum Alloy
Lower Trunnion : Cast Aluminum Alloy
