Ironwood TS750

$11,490.00

In stock!

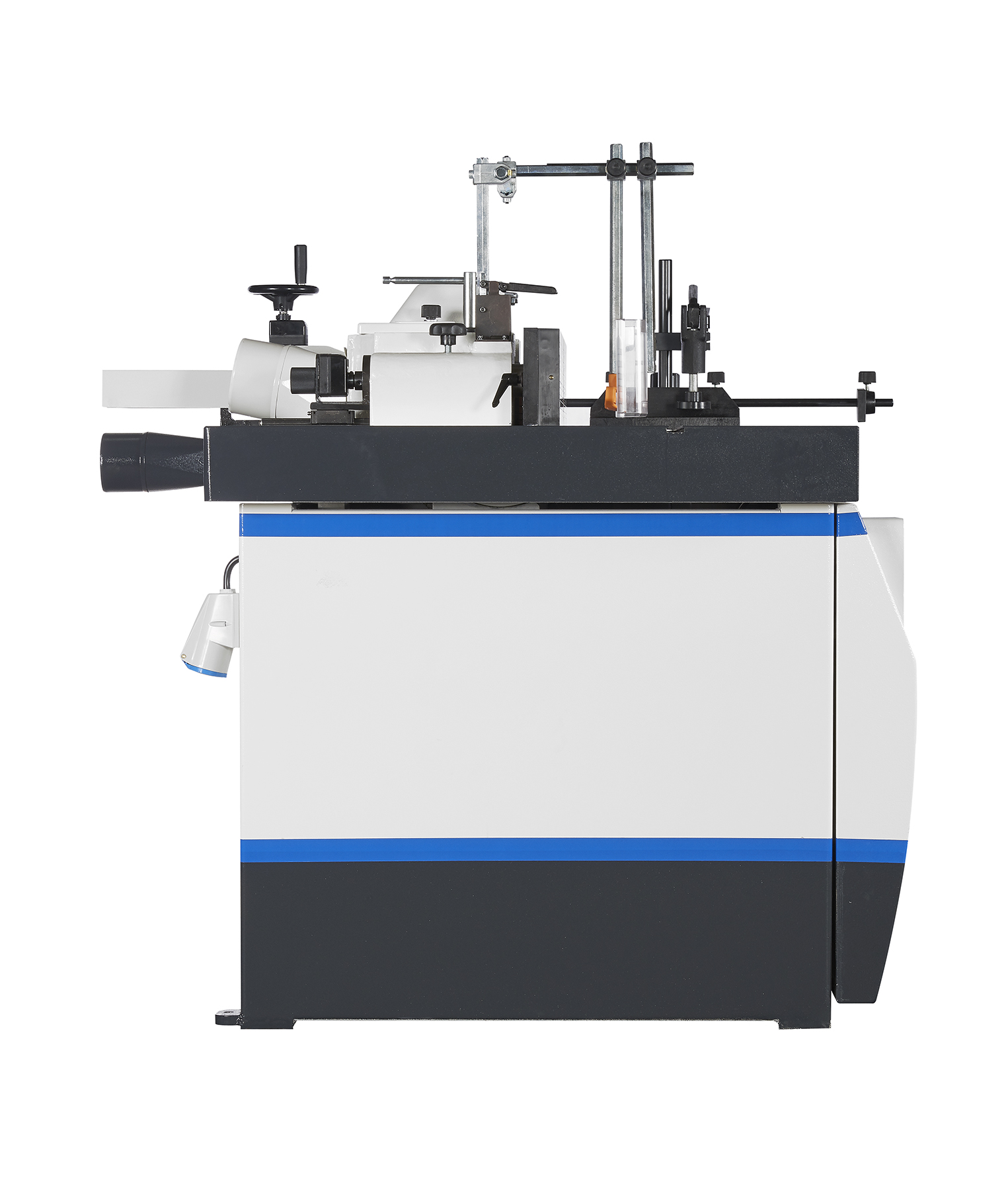

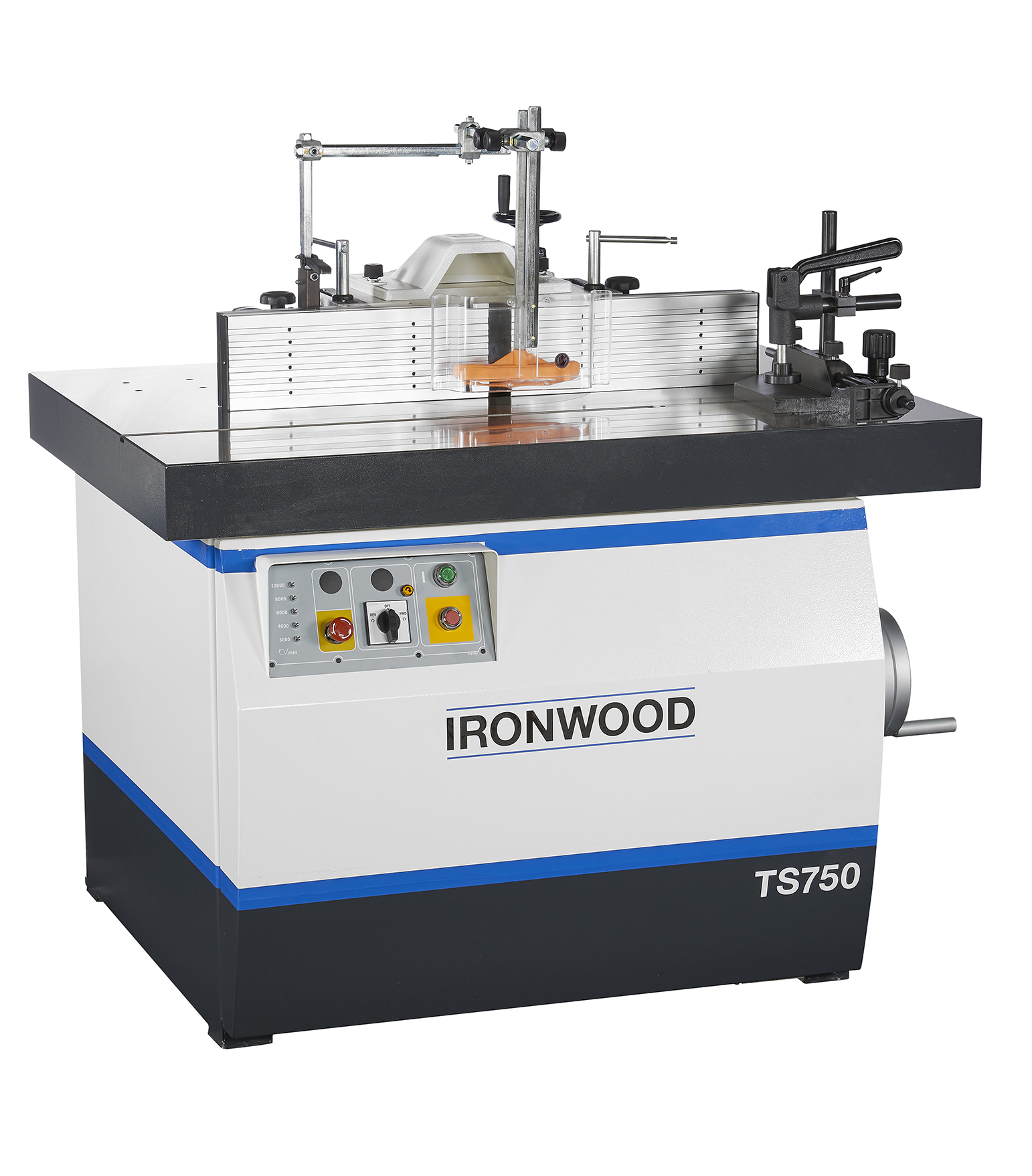

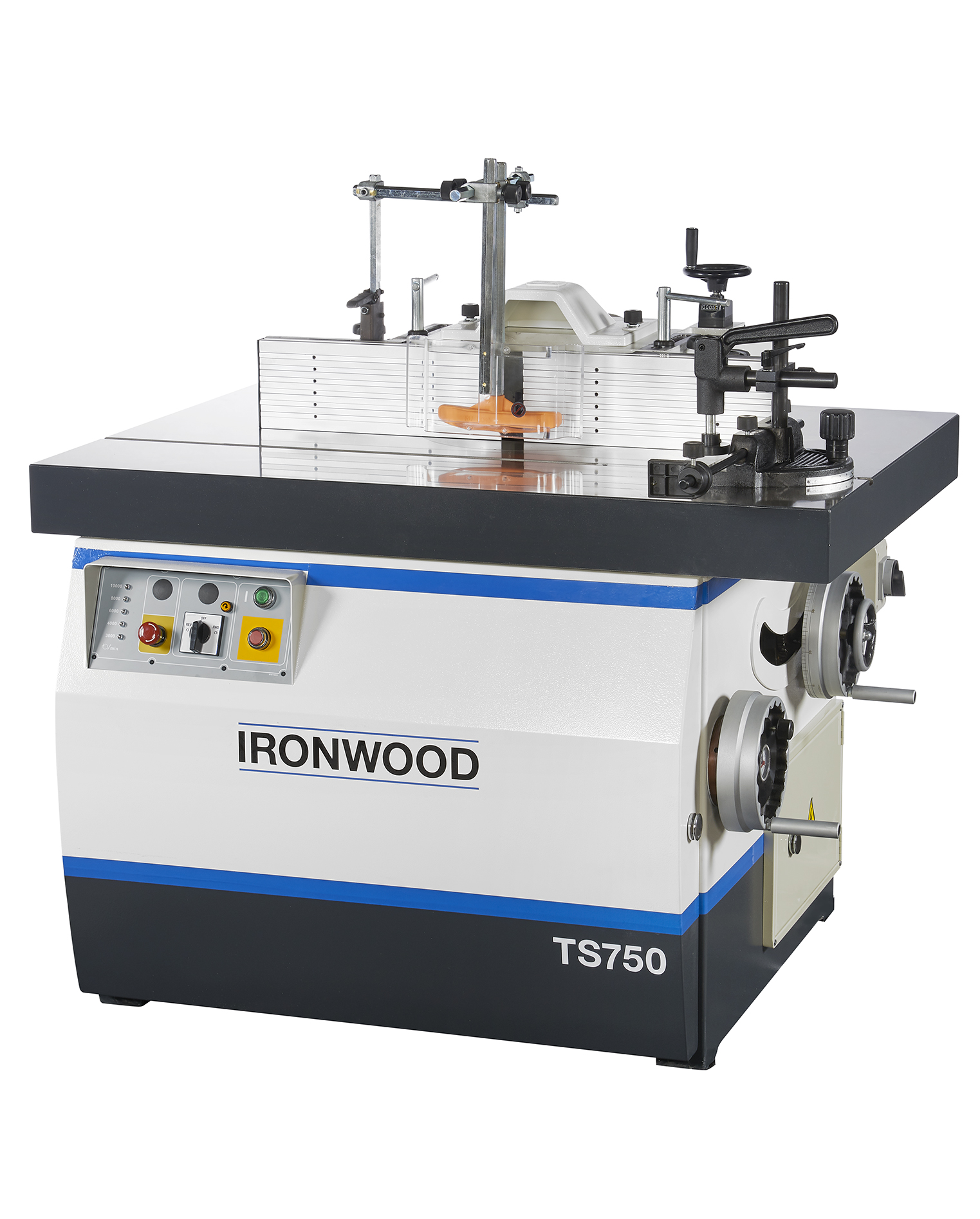

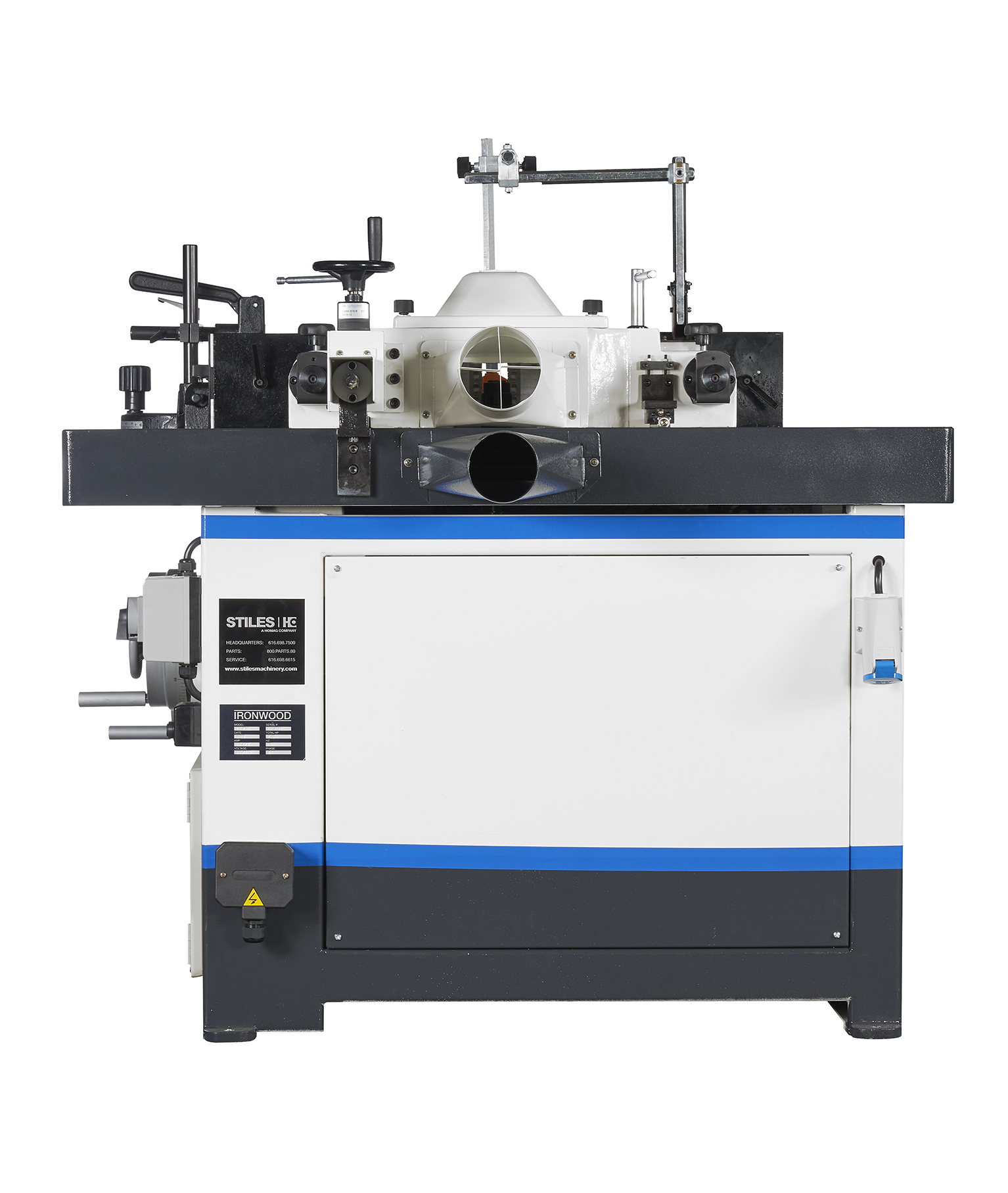

The Ironwood TS750 Tilting Spindle Shaper caters to the American craftsman as it offers unparalleled smooth cutting operations and performance. This machine features a backward tilting interchangeable spindle, a large heavy- duty cast iron ground and polished table to ensure maximum rigidity and stability for heavy cutting operations.

Categories: , ,

ADVANCED FEATURES

  • Backward tilting spindle feature provides angled cutting from -10° to 45°
  • 5 insert rings suitable for a wide variety of tooling configurations to accommodate custom cutting applications

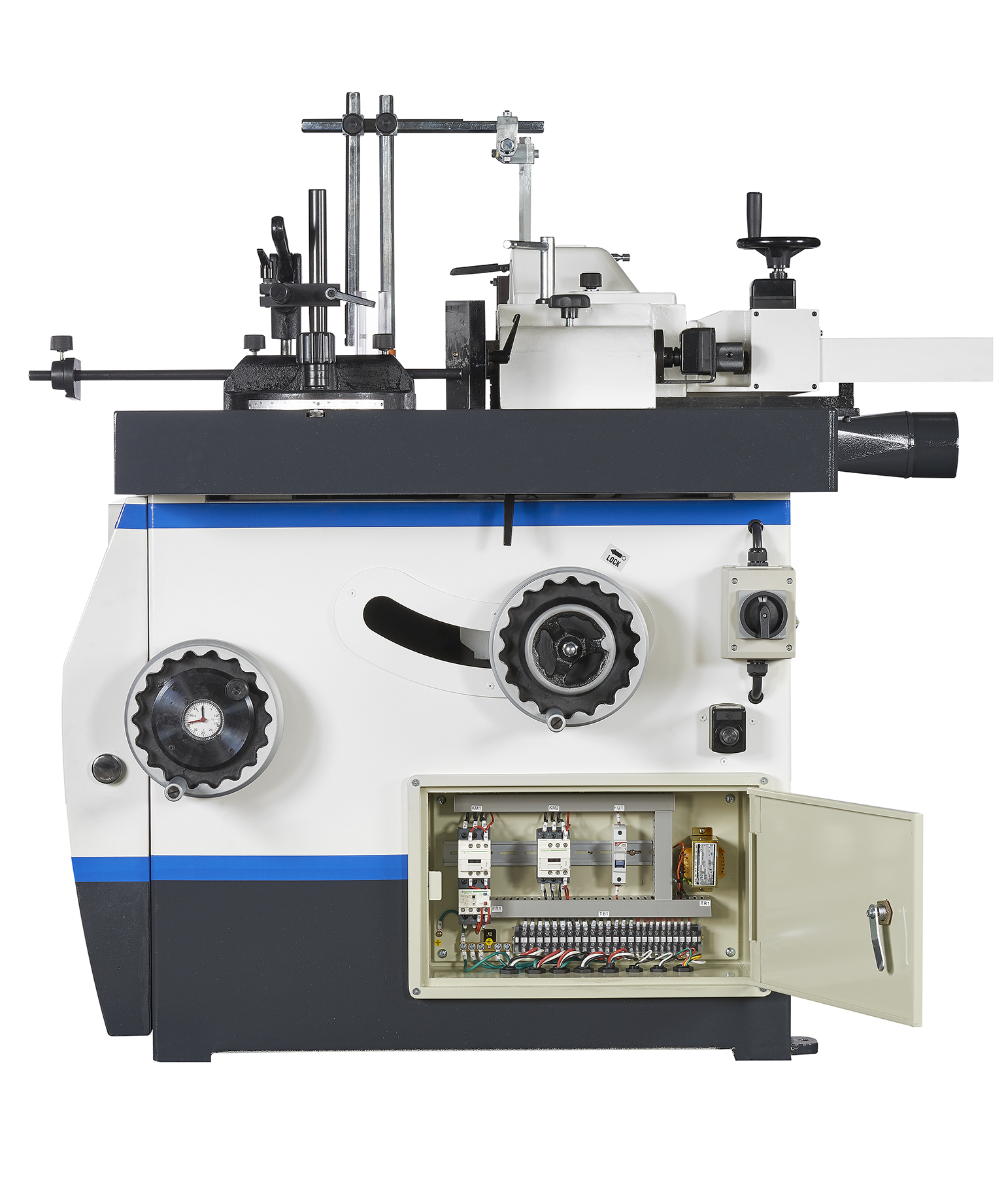

  • Convenient operator hand wheel controls height and tilt adjustments of the spindle
  • Digital readouts for the spindle position ensure consistent accuracy

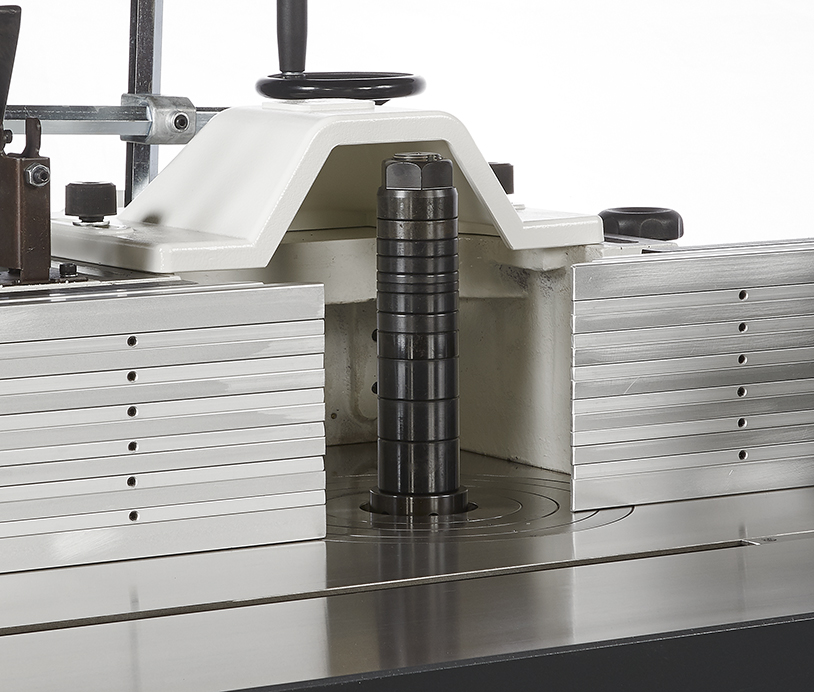

  • ¼” interchangeable spindle, with over 6 ¼” of spindle capacity below the nut and a quick tool changing system

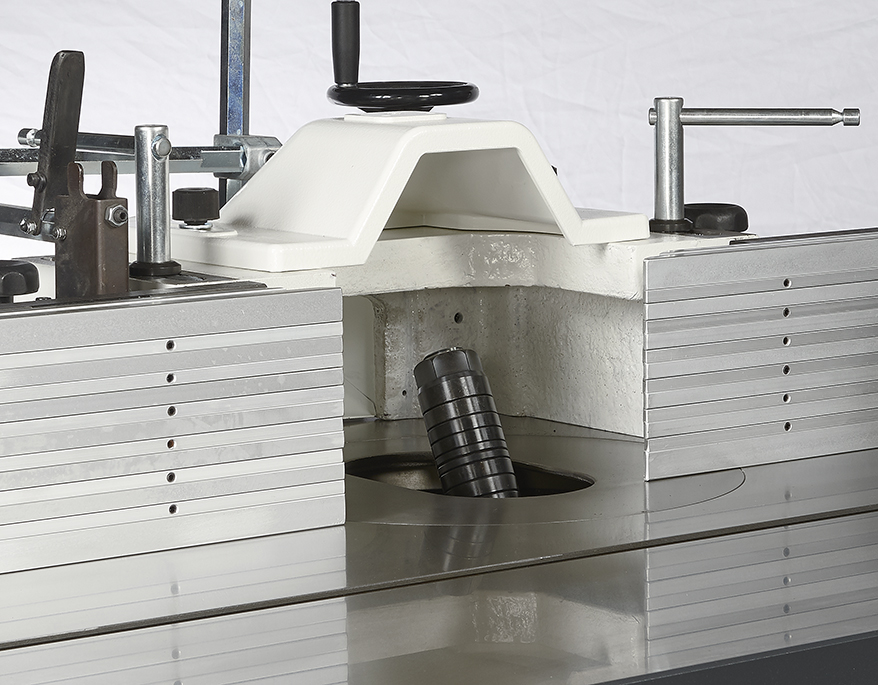

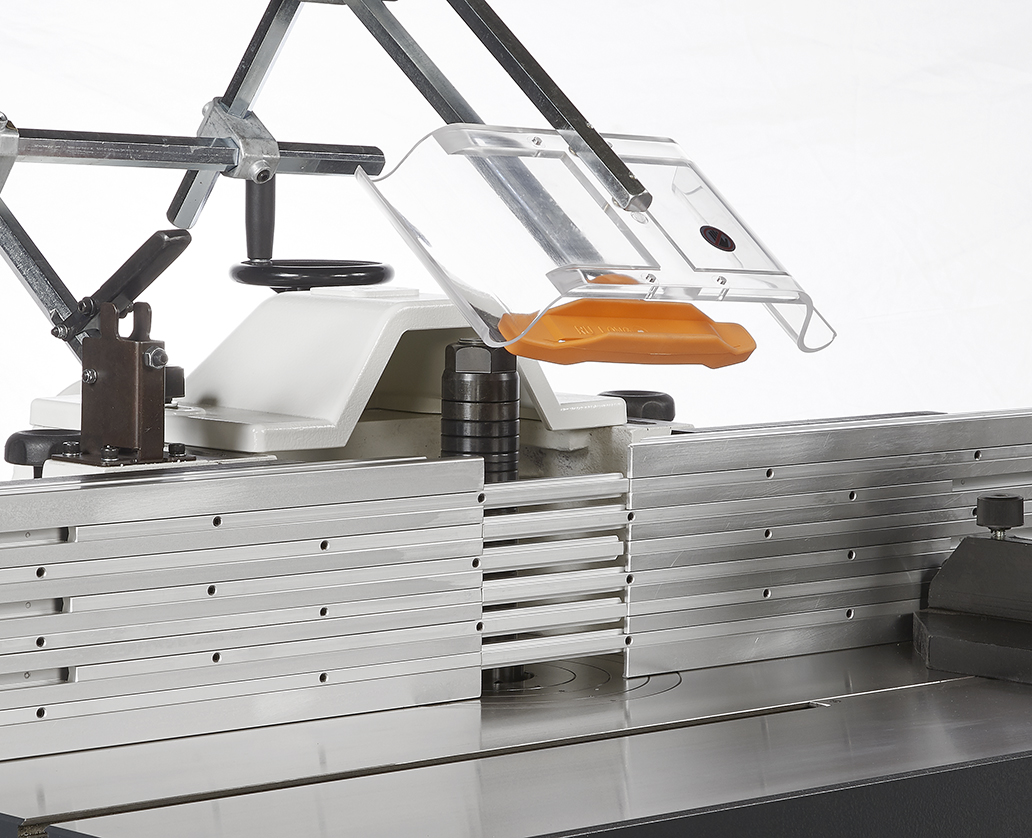

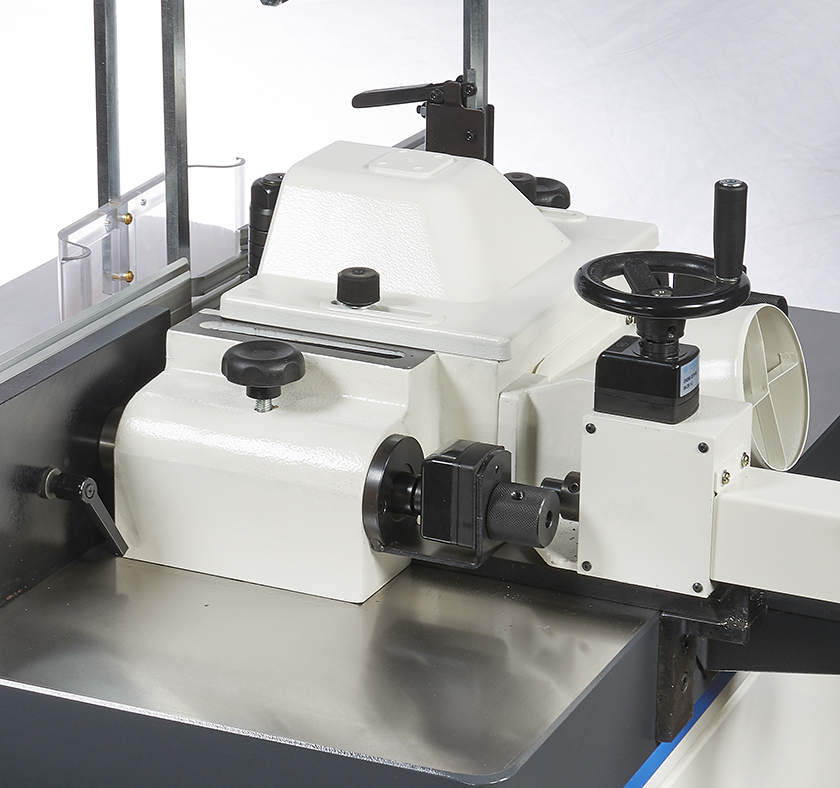

  • Cast iron fence assembly offers independent fineadjustments with micrometers and digital readouts for the infeed and outfeed fence positions
  • Forward and reverse spindle rotation control
  • Electric spindle brake, spindle locks with safety limit switches, and adjustable fingers.
Technical Specifications TS750
Working Table 37.8 x 51.2 (960mm x 1300mm)
Table Height 35.4 (900mm)
Capacity Under the Nut 6.3 (160mm)
Vertical Spindle Stroke 7.1 (180mm)
Speeds 5 Speeds
Spindle Height Adjustment Hand Wheels
Spindle Position Display Mechanical Readout
Tilt Adjustment Hand Wheel
Programmable N/A
Spindle Tilt 10° to 45° (back)
Spindle Size 1.25 x 6 (31.75mm x 152.4mm)
Spindle Rotation Forward or Reverse
Max Tool Ø (below table) 12.2 (310mm)
Max Tool Ø (above table) 14.2 (360mm)
Motor 7.5 HP

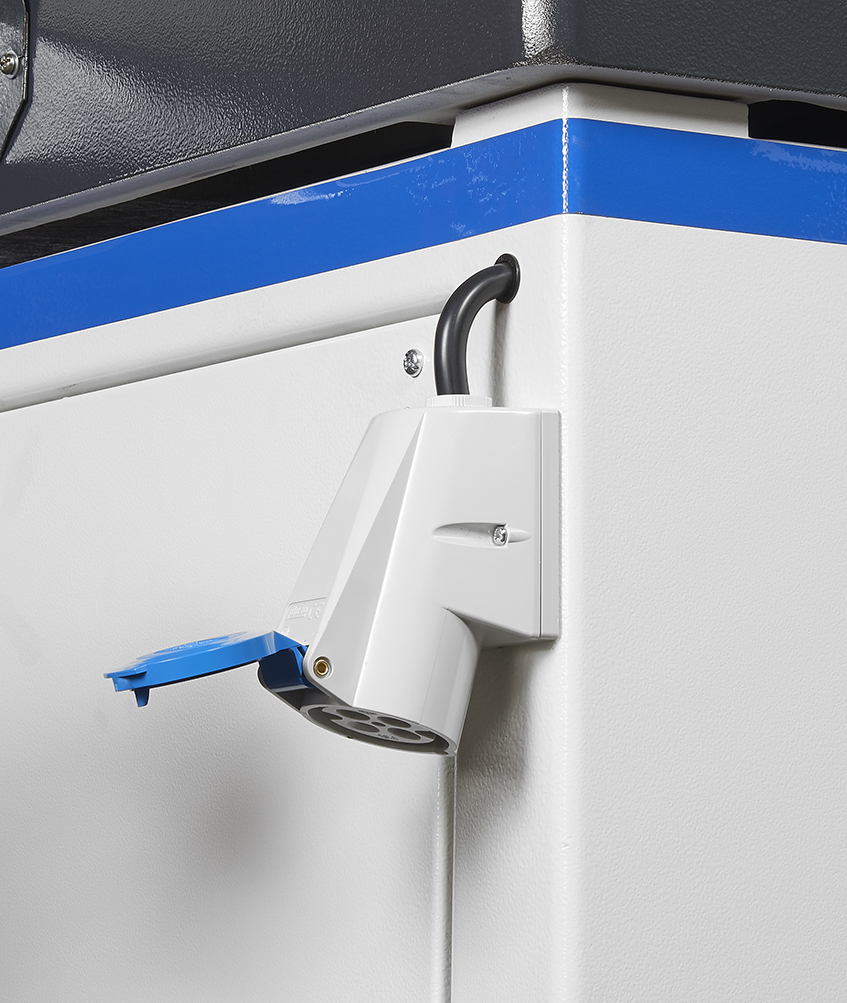

Electrical Connections 230V or 460V | 3Phase | 60Hz.
Amperage 230V: 18.5A | 460V: 9.2
Machine Weight 1650 lbs. (749 kg)
Shipping Size (L x W x H) 55.11 x 50.86 x 55.11 1400mm x 1292mm x 1400mm
Weight 1650 lbs
Dimensions 55.11 × 50.86 × 55.11 in
