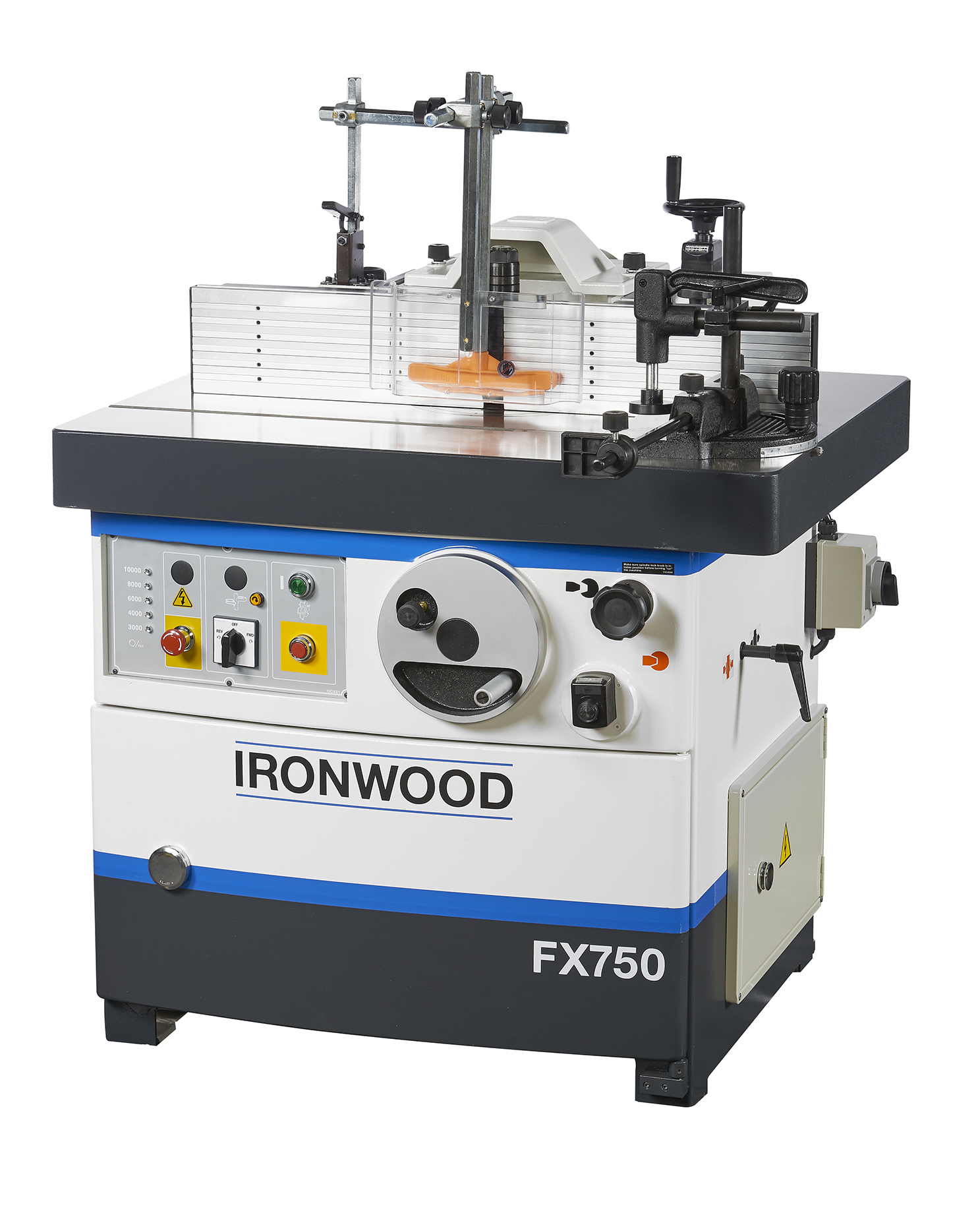

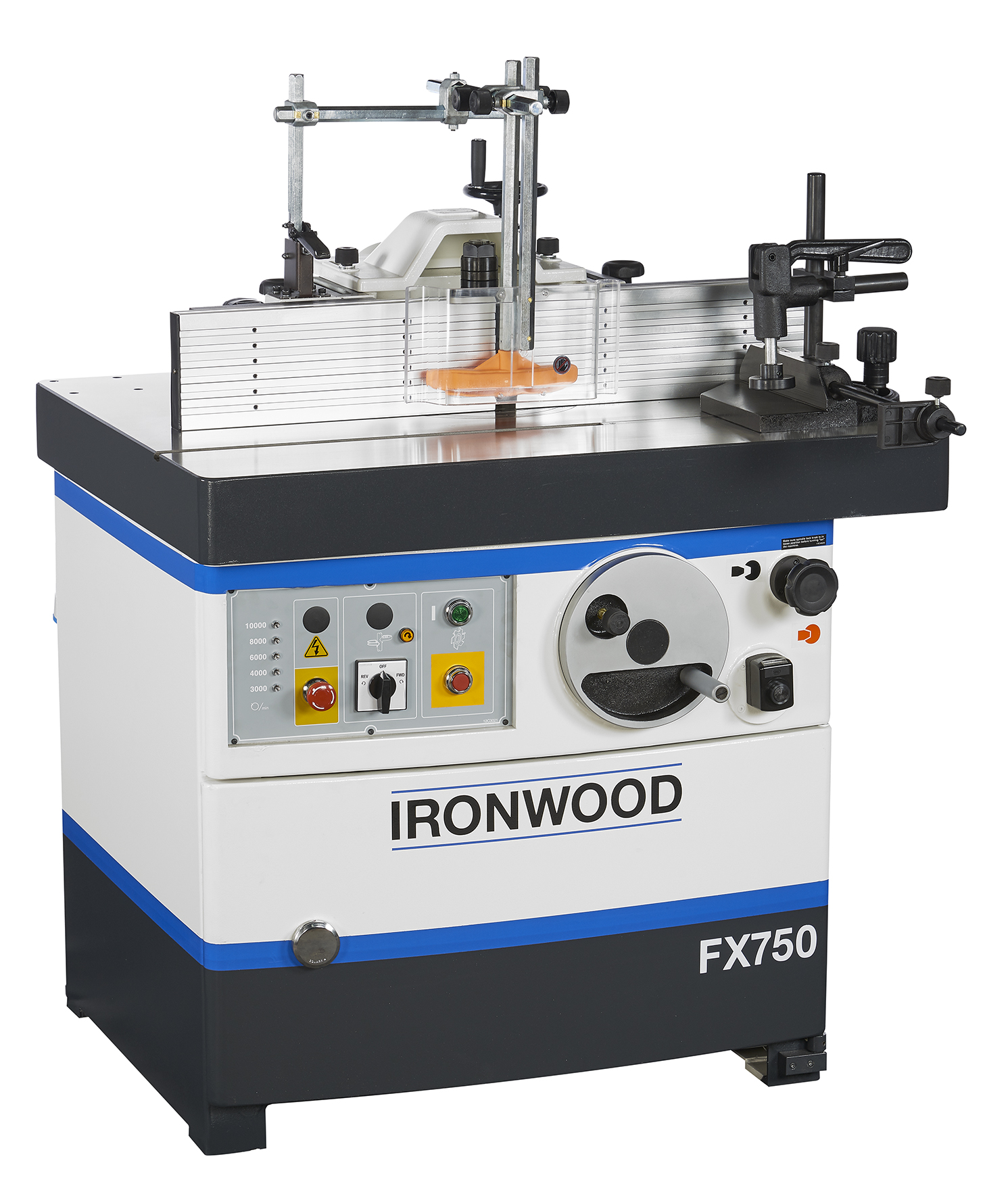

Ironwood FX750

$10,290.00

In stock!

The Ironwood FX750 Shaper features unbeatable value. Rugged cast iron construction, adjustable fences for versatility, and easy-to-use controllers are all packaged at value price points. This spindle shaper highlights an interchangeable spindle, quick set-up and adjustments, and maximum stability and precision.

Categories: , ,

ADVANCED FEATURES

  • 1 ¼” interchangeable spindle, with over 6 ¼” of spindle capacity below the nut. Other tooling diameters are also available
  • Large cast iron ground and polished table ensures maximum rigidity for heavy cutting operations

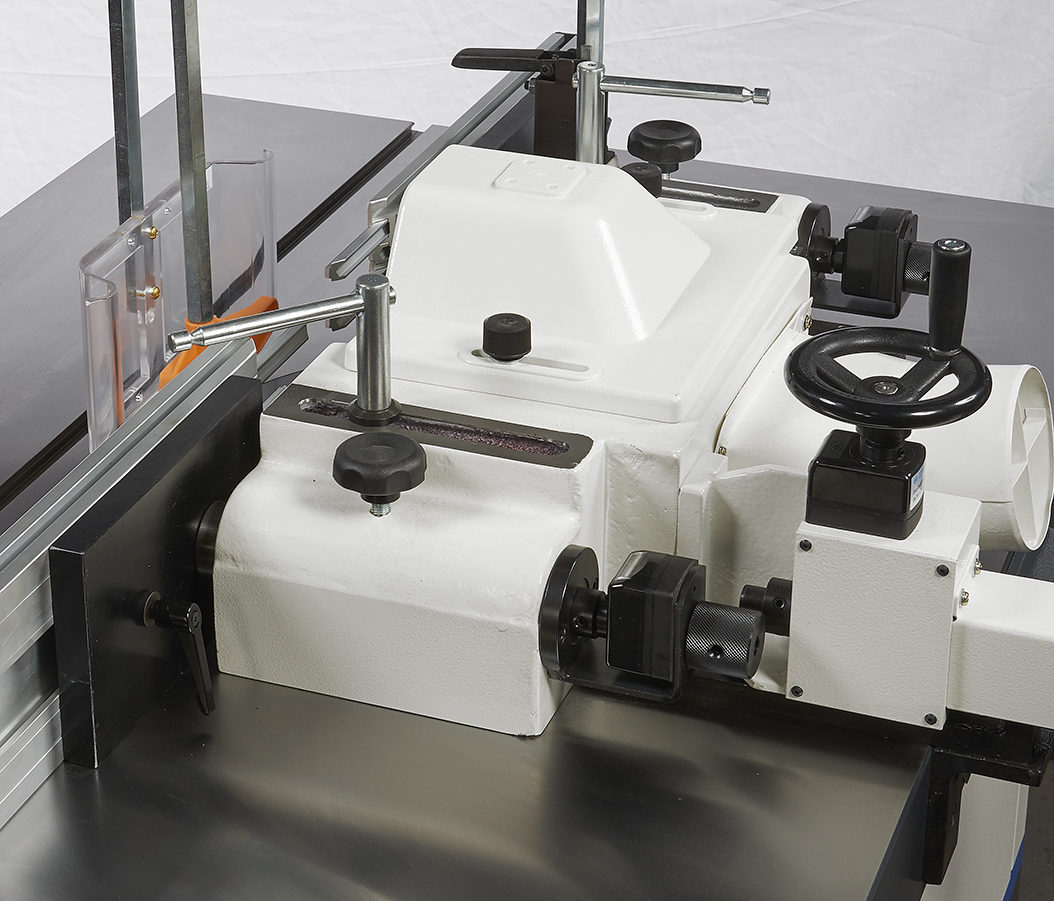

  • Cast iron fence assembly offers independent fineadjustments with micrometers for the infeed and outfeed fence positioning
  • Electric spindle brake, spindle locks with safety limit switches, and adjustable fingers to both protect the operator from the cutter as well as providing additional support for the workpiece.

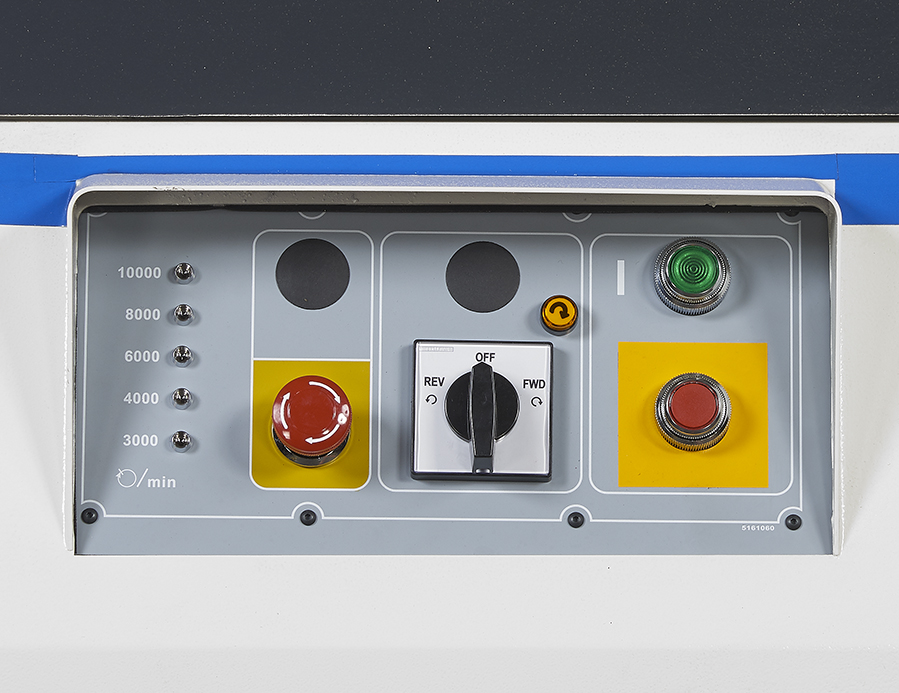

  • Forward and reverse spindle rotation control includes a directional indicator light to ensure safe operations in clockwise and counter-clockwise applications
  • Spindle is fitted with three (3) insert rings suitable for a wide variety of tooling configurations to accommodate custom cutting applications.
Technical Specifications FX750
Working Table 31.5 x 39.4 (800mm x 1000mm)
Table Height 35.4 (900mm)
Capacity Under the Nut 6.3 (160mm)
Vertical Spindle Stroke 6.5 (165mm)
Speeds 5 Speeds
Spindle Height Adjustment Hand Wheels
Spindle Position Display Mechanical Readout
Tilt Adjustment N/A
Programmable N/A
Spindle Tilt N/A
Spindle Size 1.25 x 6 (31.75mm x 152.4mm)
Spindle Rotation Forward or Reverse
Max Tool Ø (below table) 8.26 (210mm)
Max Tool Ø (above table) 13.20 (225mm)
Motor 7.5 HP

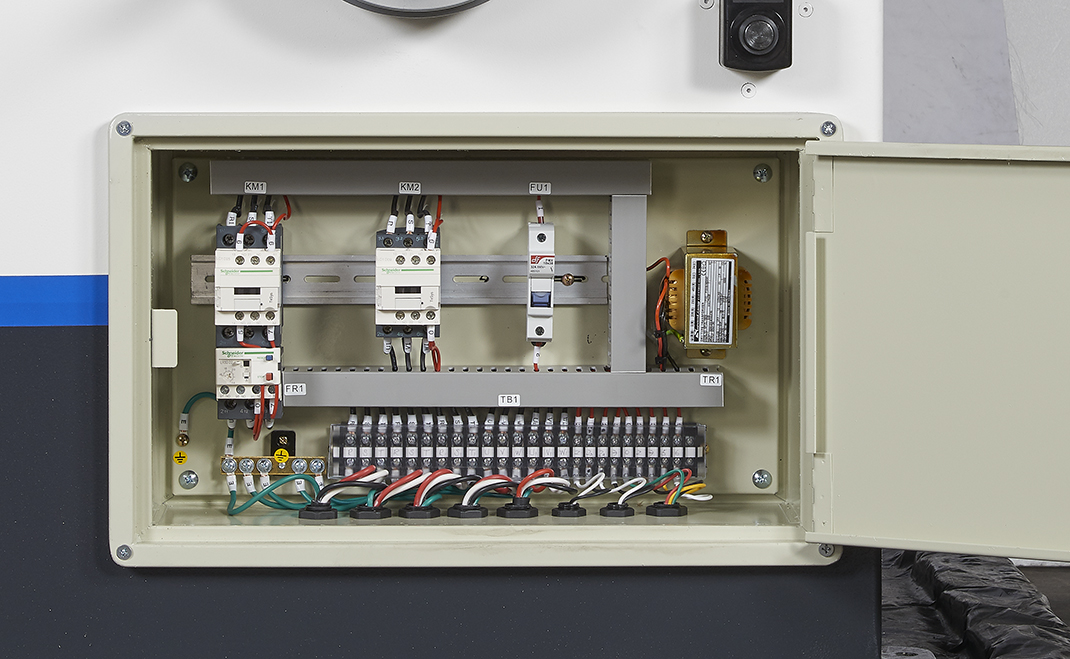

Electrical Connections 230/460V | 3Phase | 60Hz.
Amperage 230V: 18.5A | 460V: 9.2
Machine Weight 1170 lbs. (420 kg)
Shipping Size (L x W x H) 43.3 x 44.88 x 42.9 1100mm x 1140mm x 1090mm
Weight 1170 lbs
Dimensions 43.3 × 44.88 × 42.9 in
