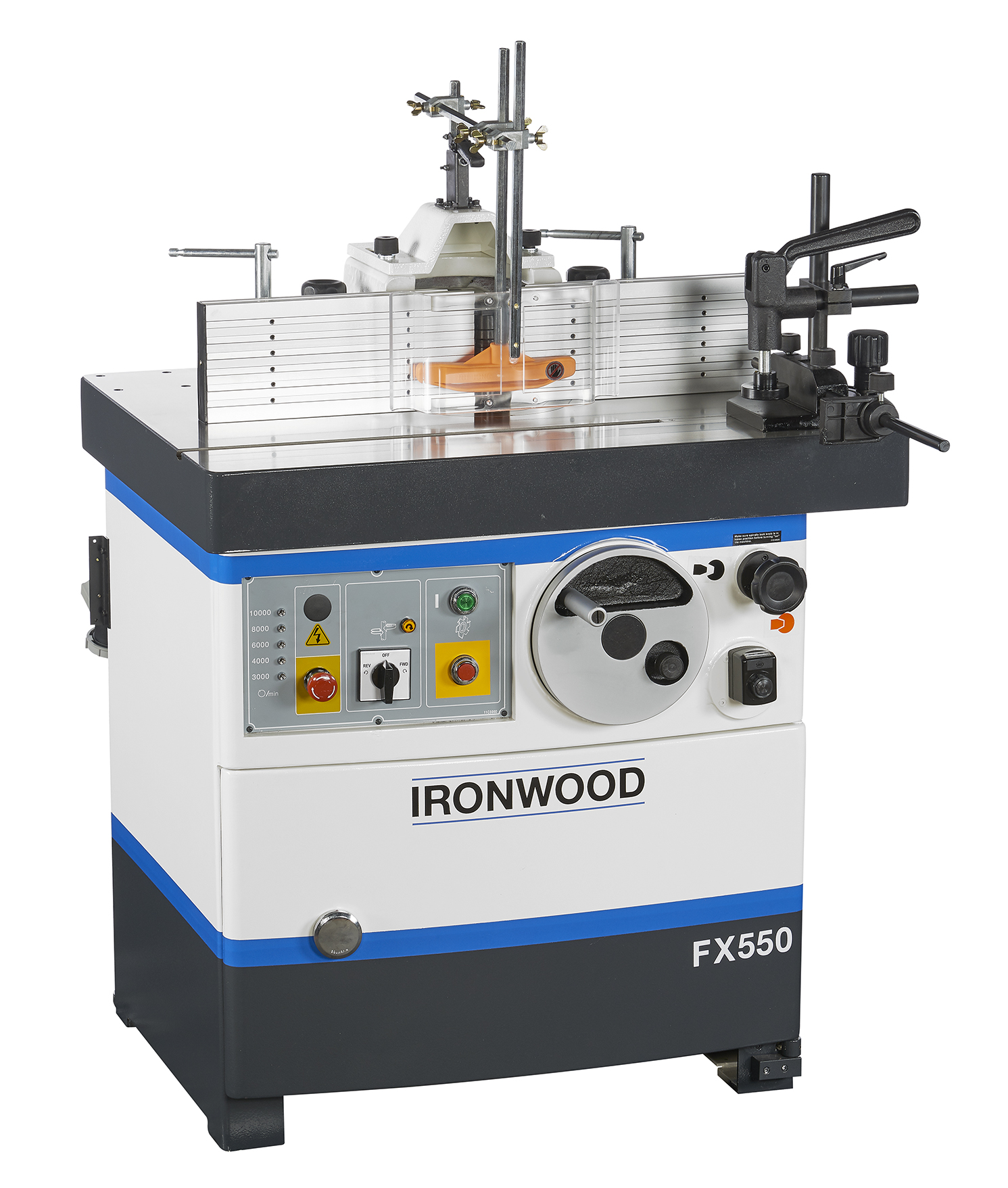

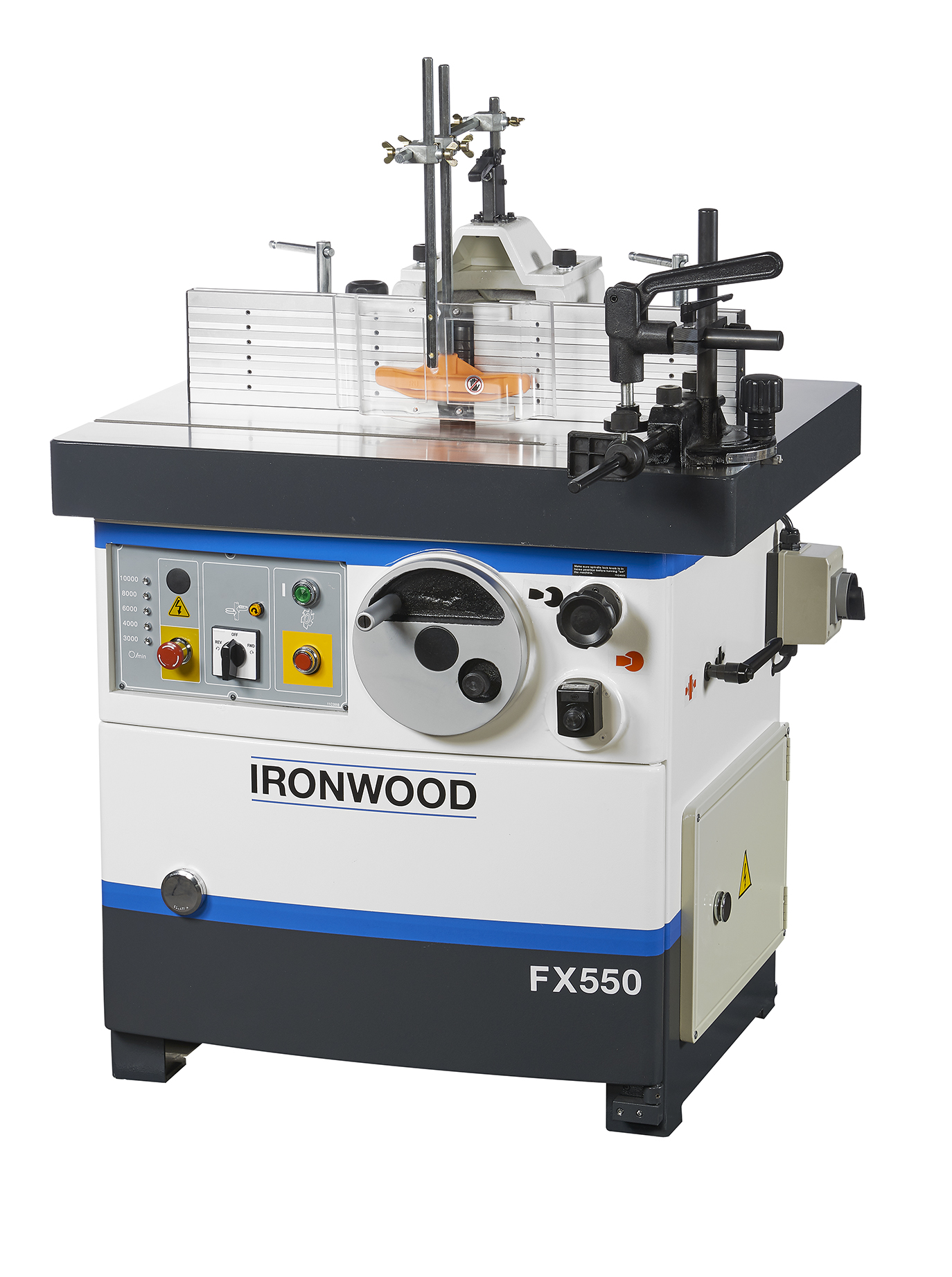

Ironwood FX550

$8,490.00

In stock!

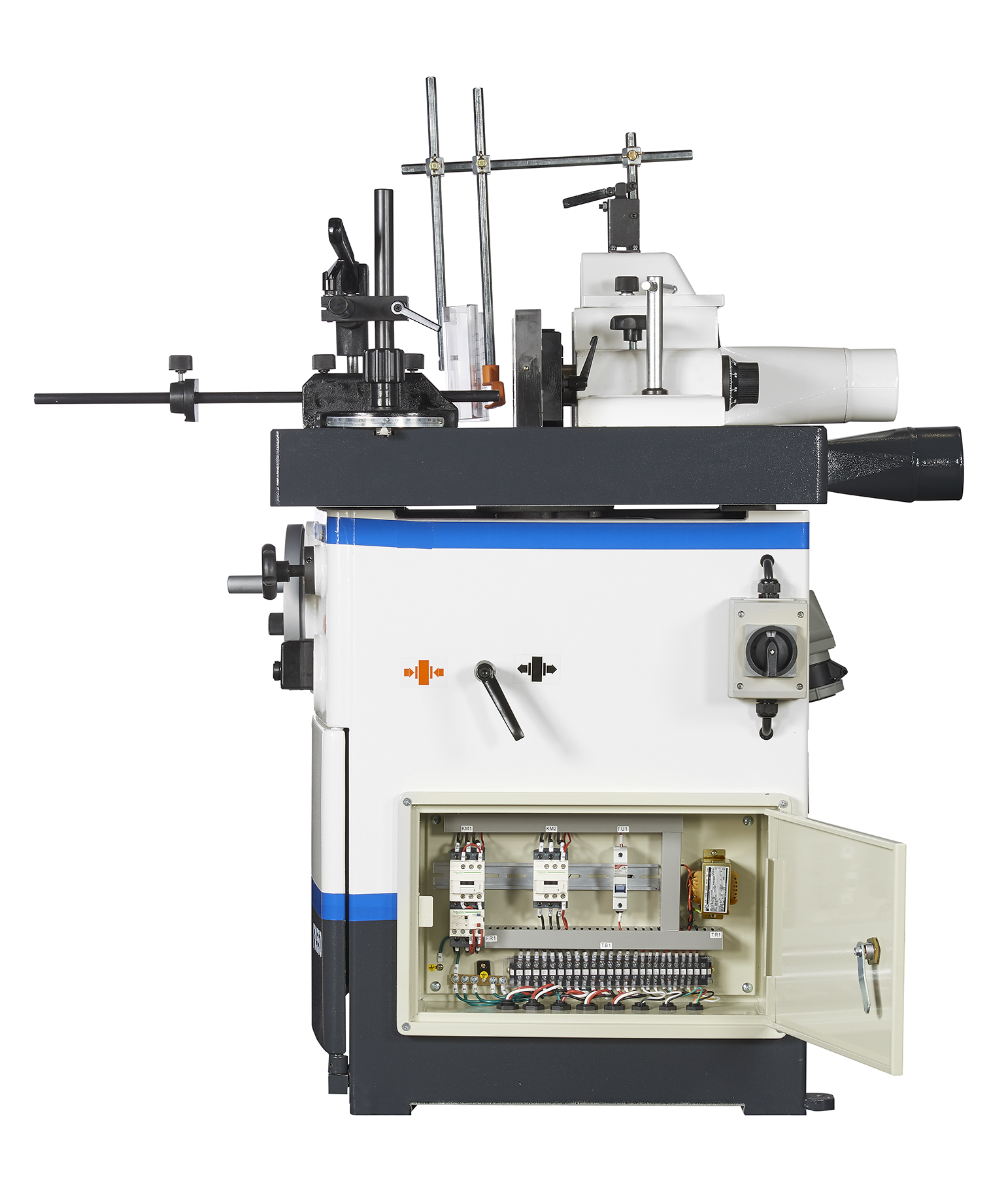

The IRONWOOD FX550 Shaper features unbeatable value. Rugged cast iron construction, adjustable fences for versatility, and easy-to-use controllers are all packaged at value price points. This spindle shaper highlights an interchangeable spindle, quick set-up and adjustments, and maximum stability and precision.

Categories: , ,

ADVANCED FEATURES

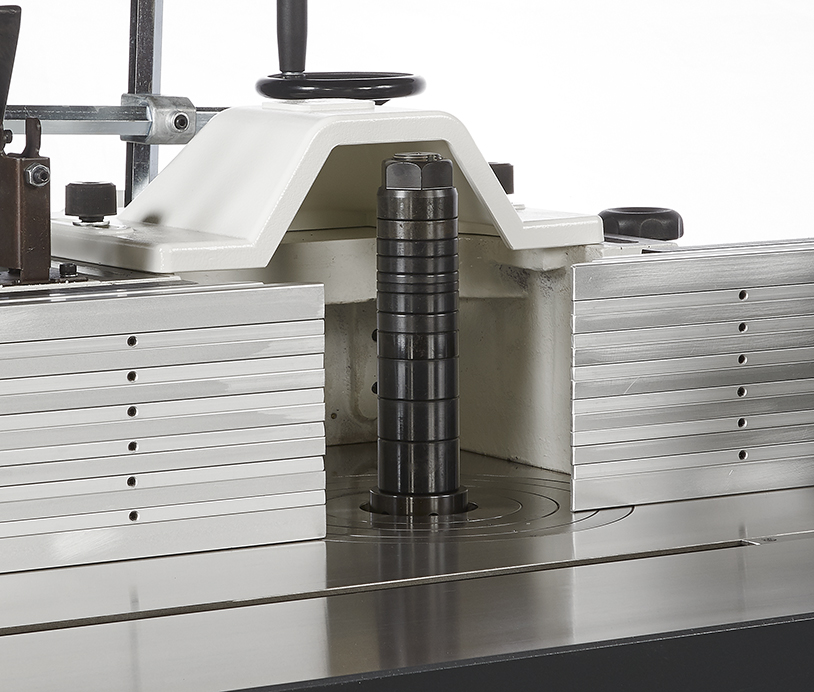

  • 1 ¼” interchangeable spindle, with over 6 ¼” of spindle capacity below the nut. Other tooling diameters are also available.
  • Large cast iron ground and polished table ensures maximum rigidity for heavy cutting operations

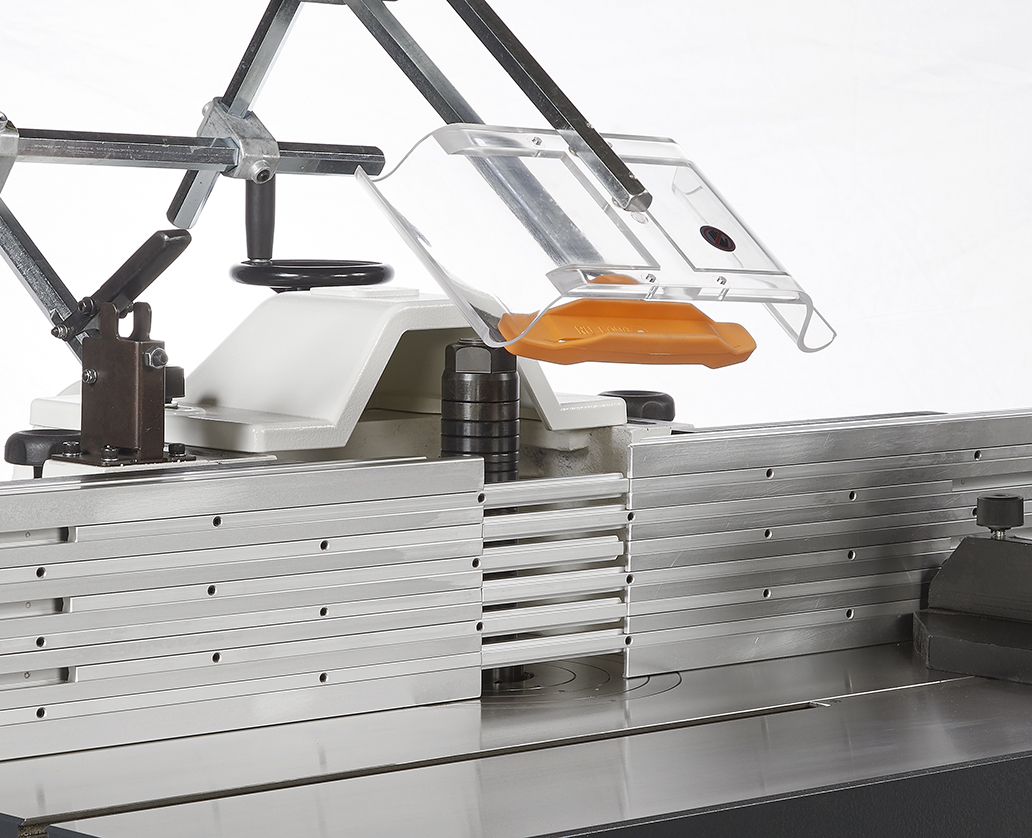

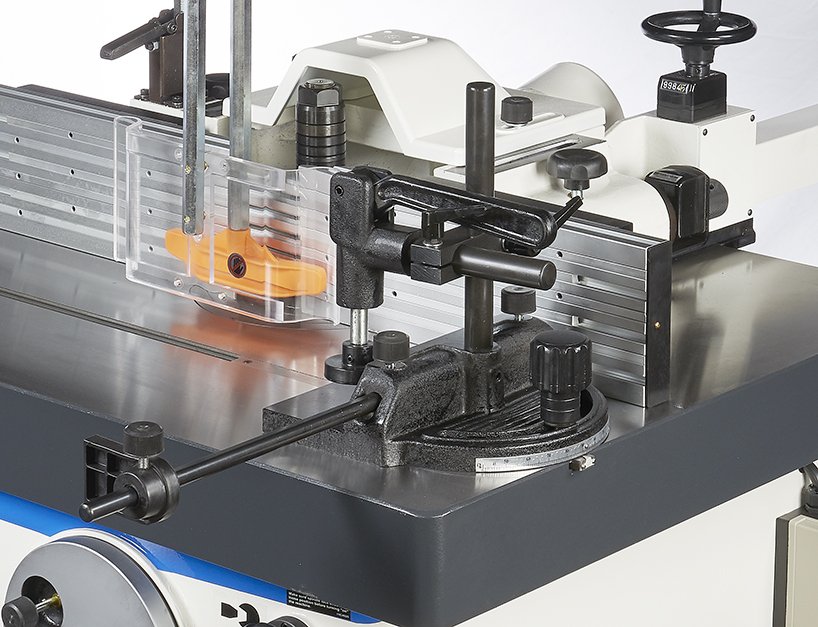

  • Cast iron fence assembly offers independent fineadjustments with micrometers for the infeed and outfeed fence positioning

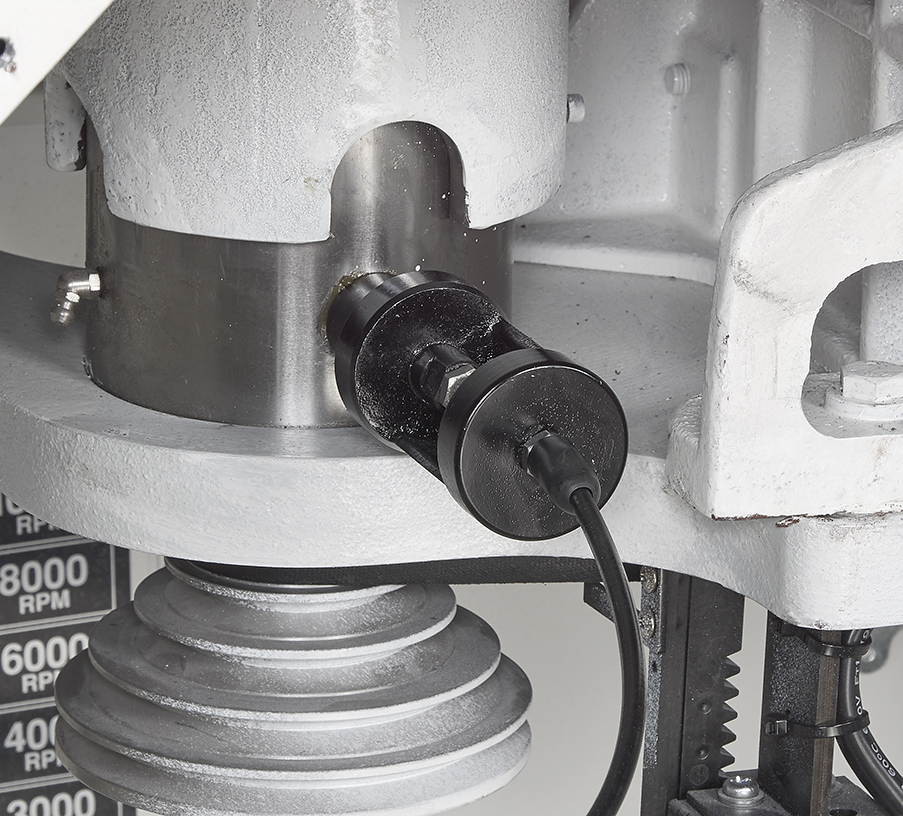

  • Electric spindle brake, spindle locks with safety limit switches, and adjustable fingers to both protect the operator from the cutter as well as provide additional support for the workpiece.

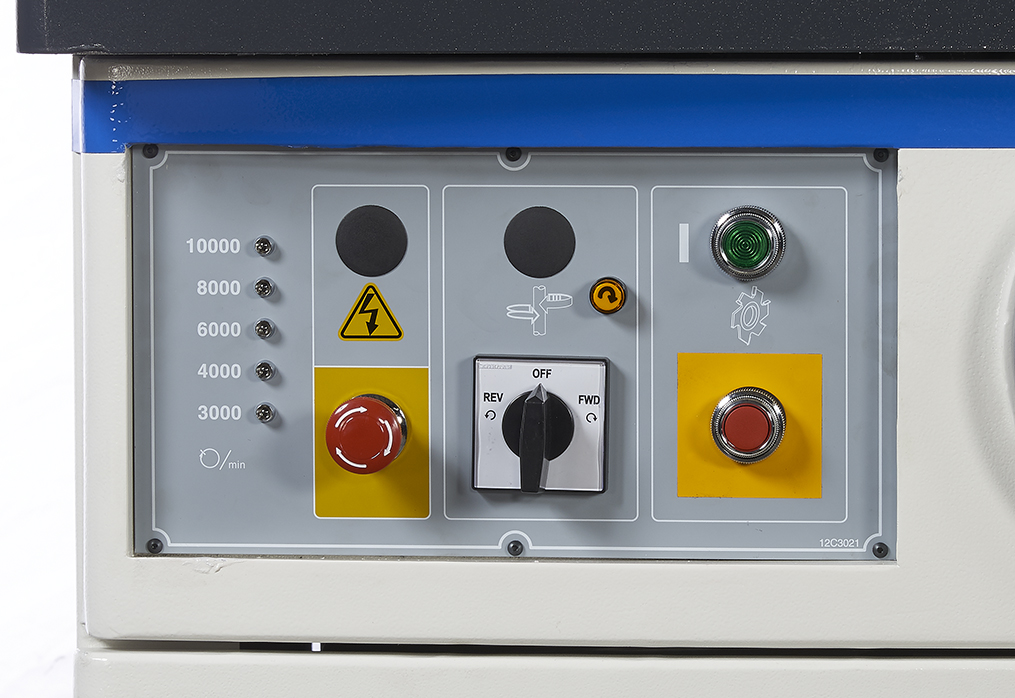

  • Forward and reverse spindle rotation control includes a directional indicator light to ensure safe operations in clockwise and counter-clockwise applications
  • Spindle is fitted with three (3) insert rings suitable for a wide variety of tooling configurations to accommodate custom cutting applications
Technical Specifications FX550
Working Table 27.5” x 35.4 (700mmx900mm)
Table Height 35.4 (900mm)
Capacity Under the Nut 6.3 (160mm)
Vertical Spindle Stroke 5.5 (140mm)

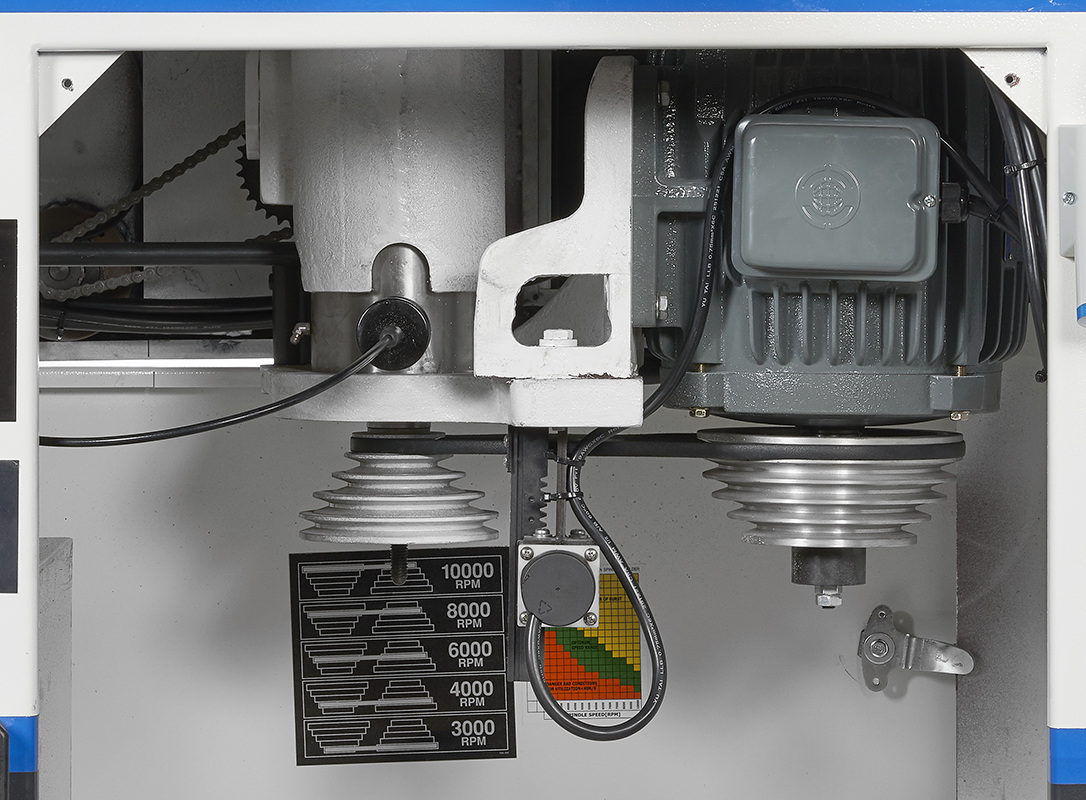

Speeds 5 Speeds

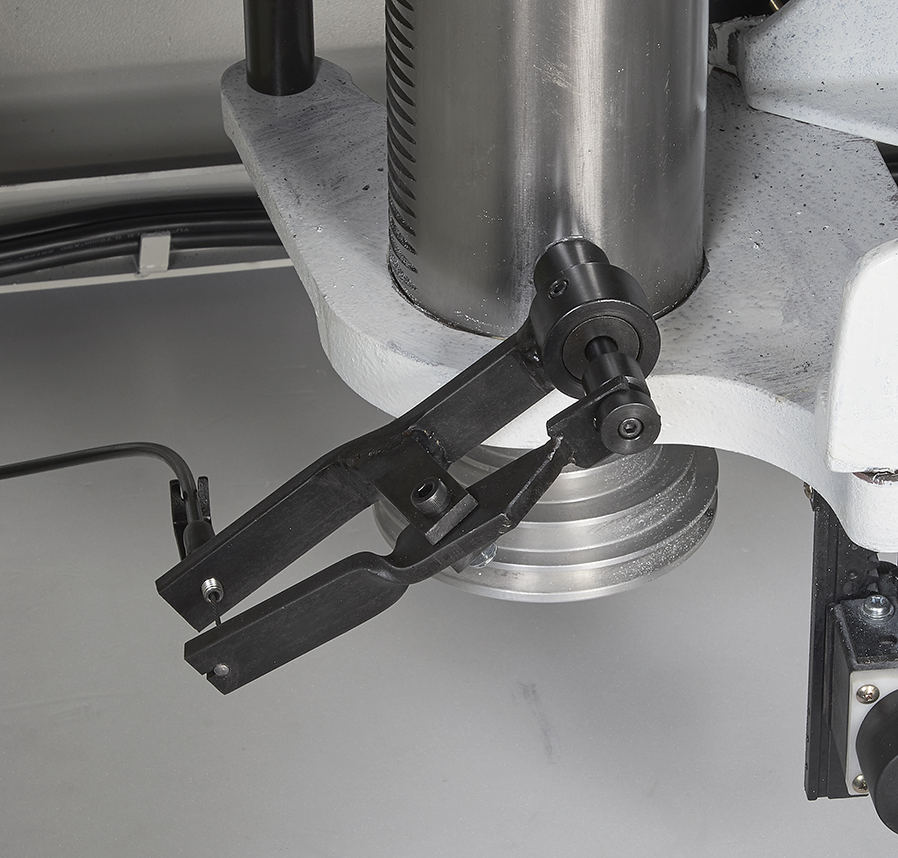

Spindle Height Adjustment Hand Wheels
Spindle Position Display Mechanical Readout
Tilt Adjustment N/A
Programmable N/A
Spindle Tilt N/A
Spindle Size 1.25” x 6” (31.75 x 152.4mm)
Spindle Rotation Fwd / Rev
Max Tool Ø (below table) 7.08” (180mm)
Max Tool Ø (above table) 8.86” (225mm)

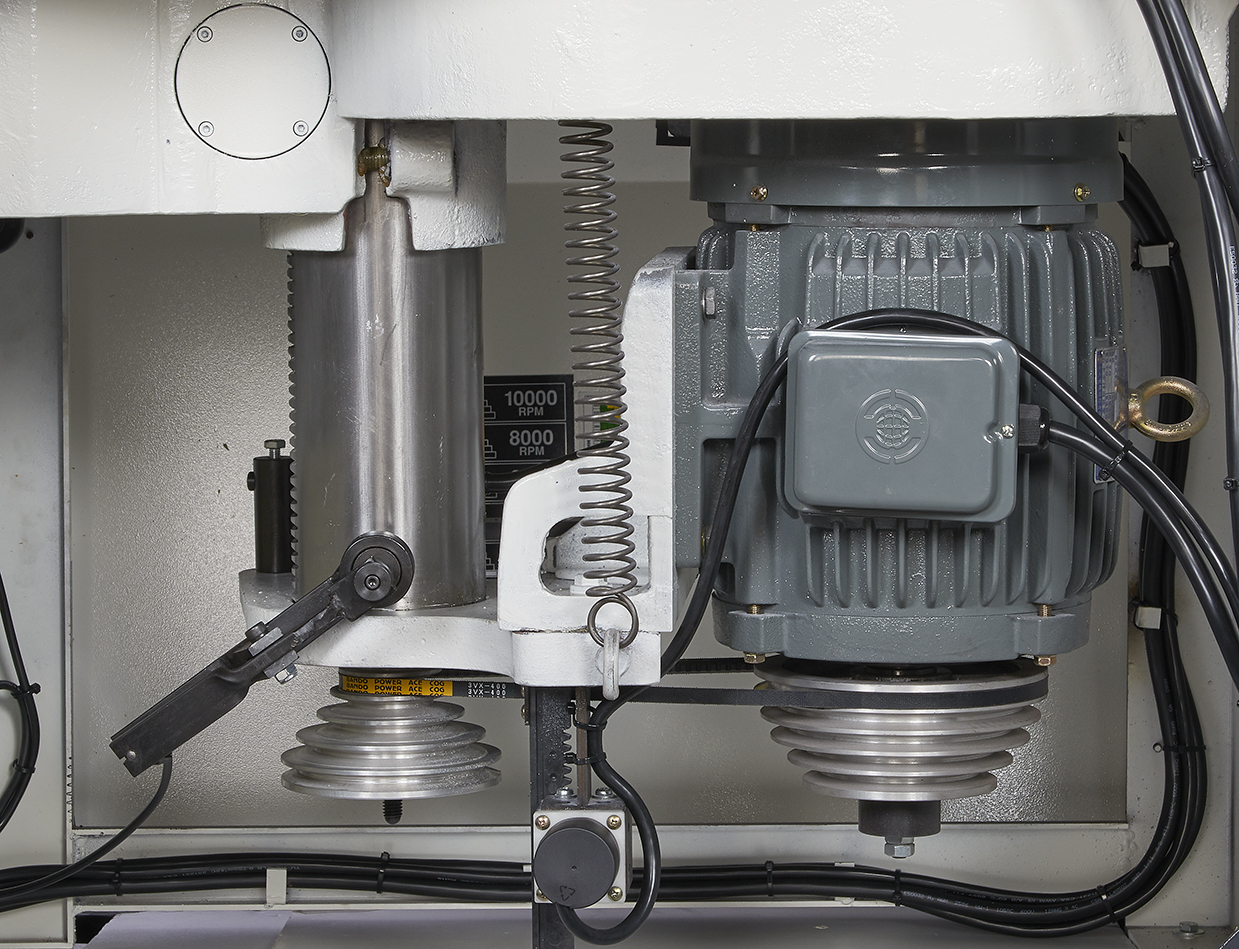

Motor 5.5 HP

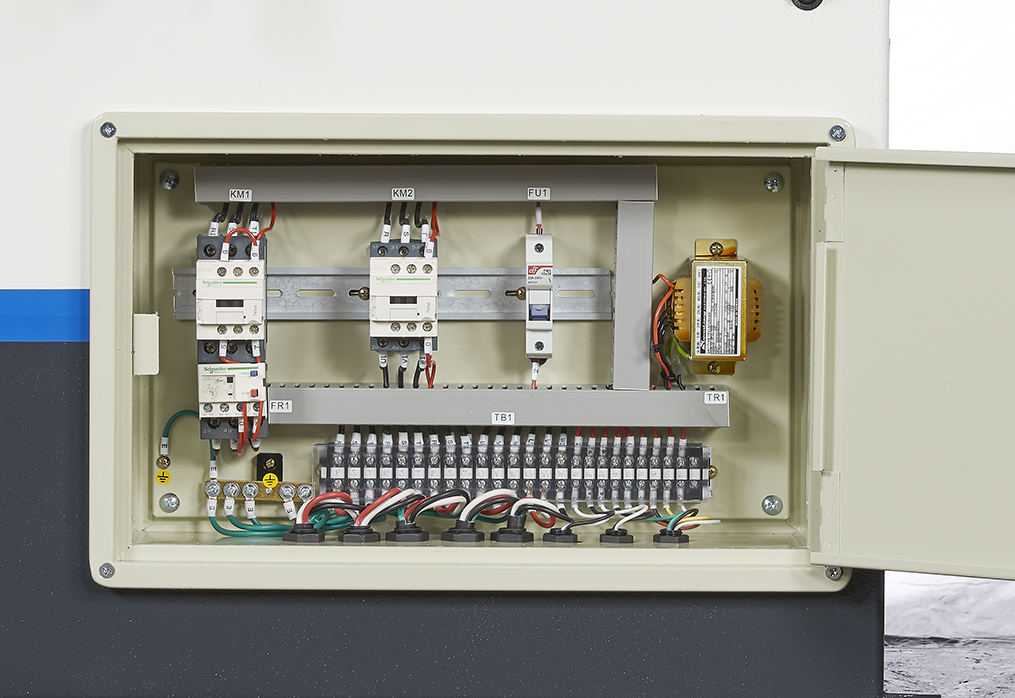

Electrical Connections 230V or 460V | 3Phase | 60Hz.
Amperage 230V: 14A | 460V: 7
Machine Weight 925 lbs. (420 kg)
Shipping Size (L x W x H) 42.9” x 35.43” x 43.3” 1090mm x 900mm x 1100mm



Weight 925 lbs
Dimensions 42.9 × 35.43 × 43.3 in
