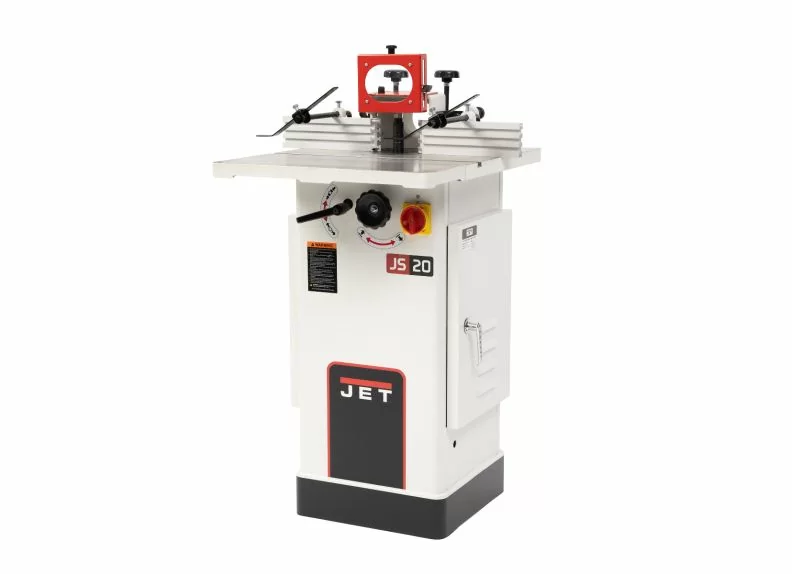

Jet JWS-20CS, 20-Inch Spindle Shaper, 1.5 HP, 1Ph 115/230V

Jet JWS-20CS, 20-Inch Spindle Shaper, 1.5 HP, 1Ph 115/230V


In stock!

If you’re looking for a space-saving shaper for your shop, the JET JWS-20CS Shaper is what you need. This compact powerhouse features an 8,000 and 10,000 RPM reversing 1-1/2HP motor. The sleek 18″(L) X 20″(W) precision-ground cast iron table provides a durable work area for various projects. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independent left and right fences feature micro-adjustment, and a built in 4” dust port. When add the new JET JWS-20CS Shaper in your shop today, you’ll know why JET products are “Built Better to Build Better”.

SKU: JT9-724020 Categories: ,
Powerful 1-1/2HP motor delivers dependable power, even on heavy jobs

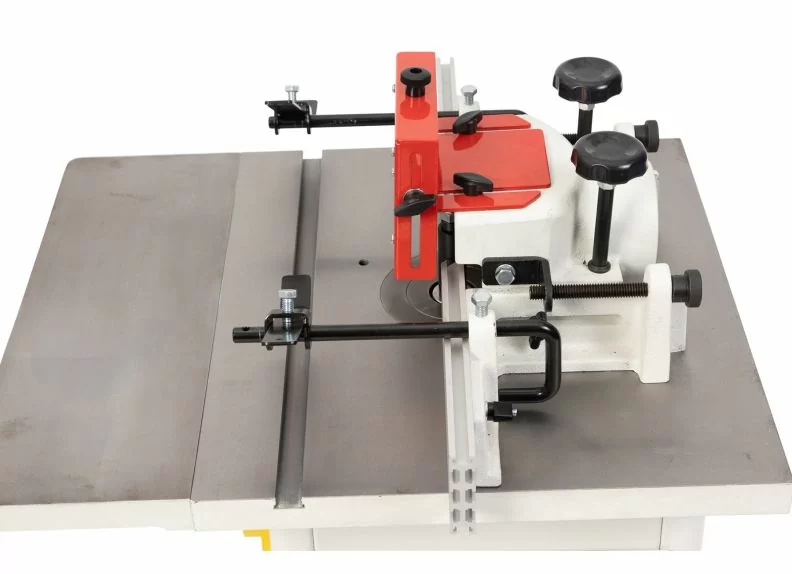

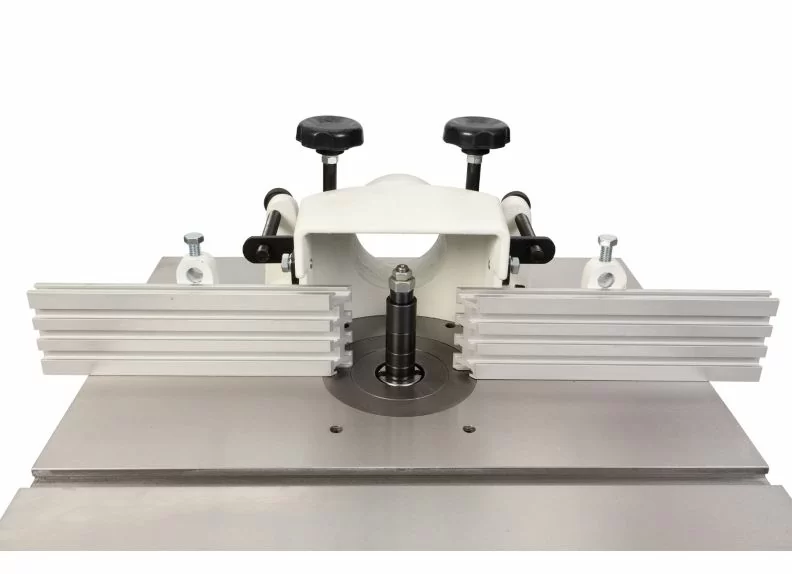

Independent left and right fences feature micro-adjustment and have zero-clearance capability
Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access
Forward/reverse switch for left and right hand operation
Extra-large handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
1/2″ and 3/4″ interchangeable spindles and router bit collets for use with shaper cutter and router bits

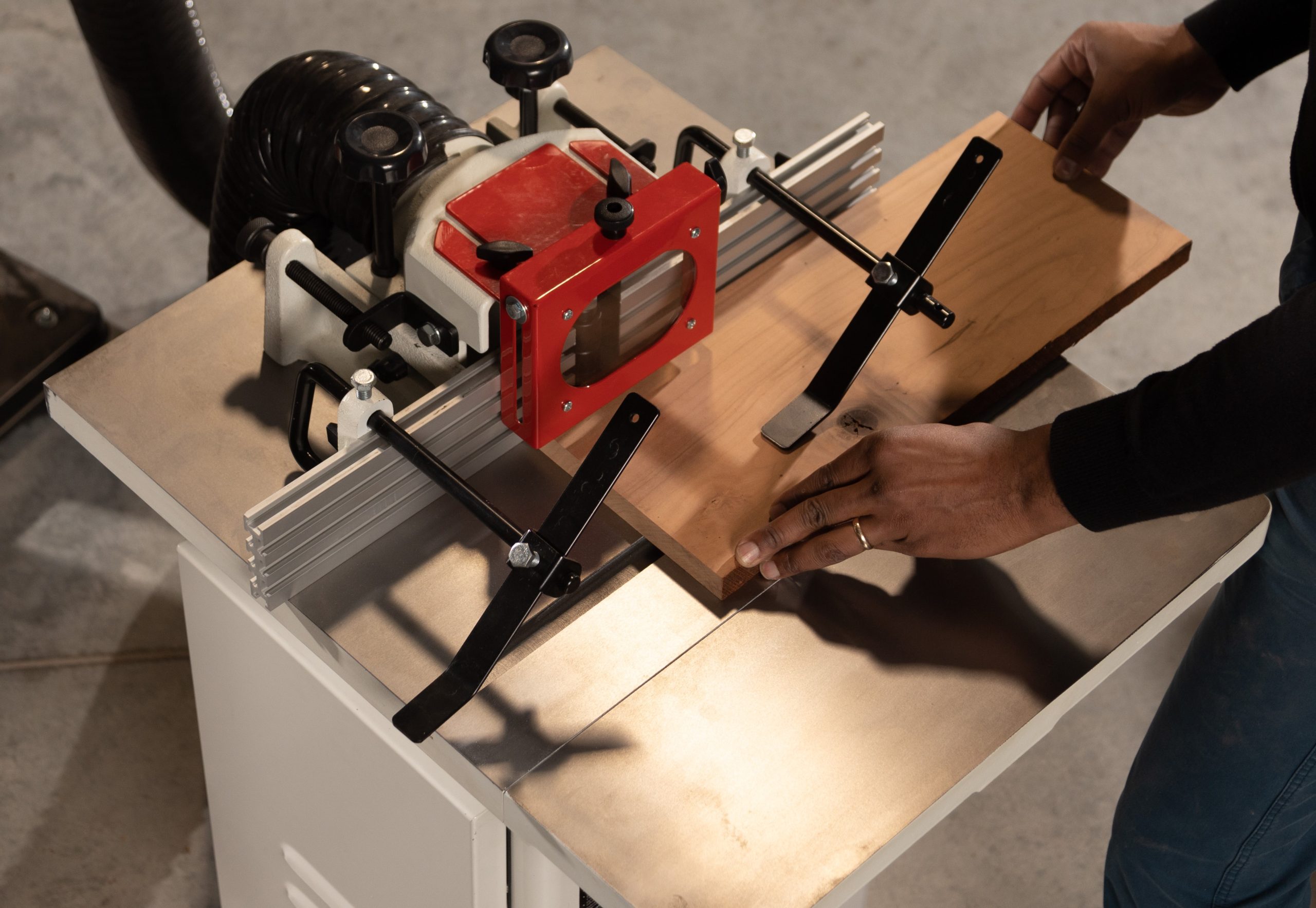

Two adjustable work hold-downs to secure your work while shaping
Two reversible spindle speeds lets you select the best speed and torque for different cutter diameters

Dust Collection Minimum CFM Required (CFM) 300
Dust Port Outside Diameter (In.) 4
Electrical Controls Manual
Motor Amps 15/7.5
Motor Power (HP) 1-1/2
Motor Voltage (V.) 115/230
Prewired Voltage (V.) 115
Reversible Yes
Style (Type) Floor standing Model
Table Height from Floor (In.) 33-1/2
