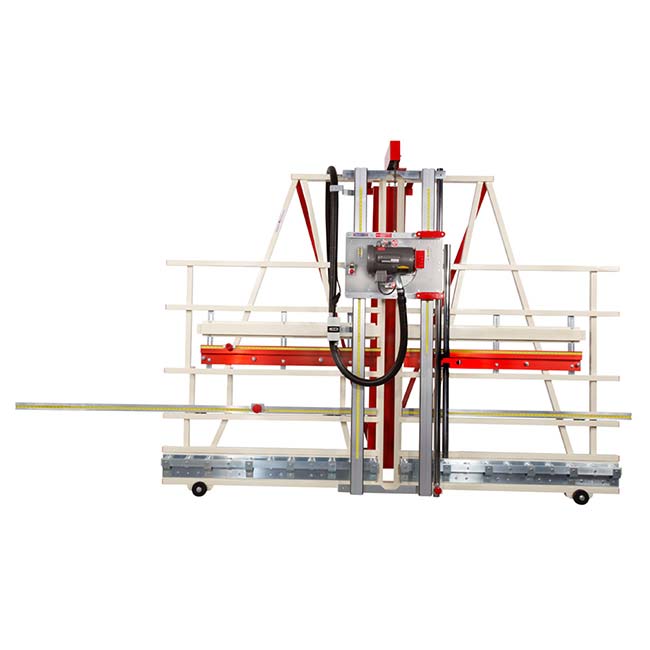

Safety Speed 7400XLM Vertical Panel Saw

Safety Speed 7400XLM Vertical Panel Saw


In stock!

Ships for $649

The only major difference between this machine and the 7400 Panel Saw is that the 7400XL features a 13′ frame

Accessories built onto this machine and incorporated in the price include:

  • Quick stop gauges (8′ left, 5′ right)
  • Wheels
  • MID-WAY FENCE® for processing panels at waist level
  • Dust kit
  • 864NRATB saw blade
  • Hold Down Bar
  • and Stand integrated within the machine


High production panel processing is now a reality. Cut material 2 1/8″ deep for 8+ hours per day and within .005″ straight and square. Every component of this saw represents quality and performance. Featuring three different motor configurations, heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these top of the line woodworking tools will boost your shops production. The 13′ frame is  only difference between this machine and the 7400-M panel saw.

Standard Equipment:

  • Continuous usage induction saw motor.
  • Welded steel frame and integrated stand system.
  • Dual V-track precision guide system.
  • Adjustable vertical and horizontal rulers.
  • Floating pressure saw foot.
  • Solid aluminum material rollers.
  • Enclosed counterweight system.
  • Dust collection ready.
  • 3 year warranty.
  • TUV certified to UL/CSA standards


Machine Specs

Additional information
Weight : 1050 lbs
Dimensions : 160 × 98 × 48 in
Max. Crosscut : 64"/1625mm
Max. Rip Cut : Unlimited
Cut Depth : 2 ⅛"/55mm
Cut Accuracy : .005"/.125mm
Frame Length : 156"/3950mm
Daily Usage : Continuous (8+ Hours)
Rollers : 28
Saw Blade Diameter : 8"/210mm
Motor : 2HP, 1~ 230V, 3HP, 3~ 230V, 3HP, 3~ 460V
