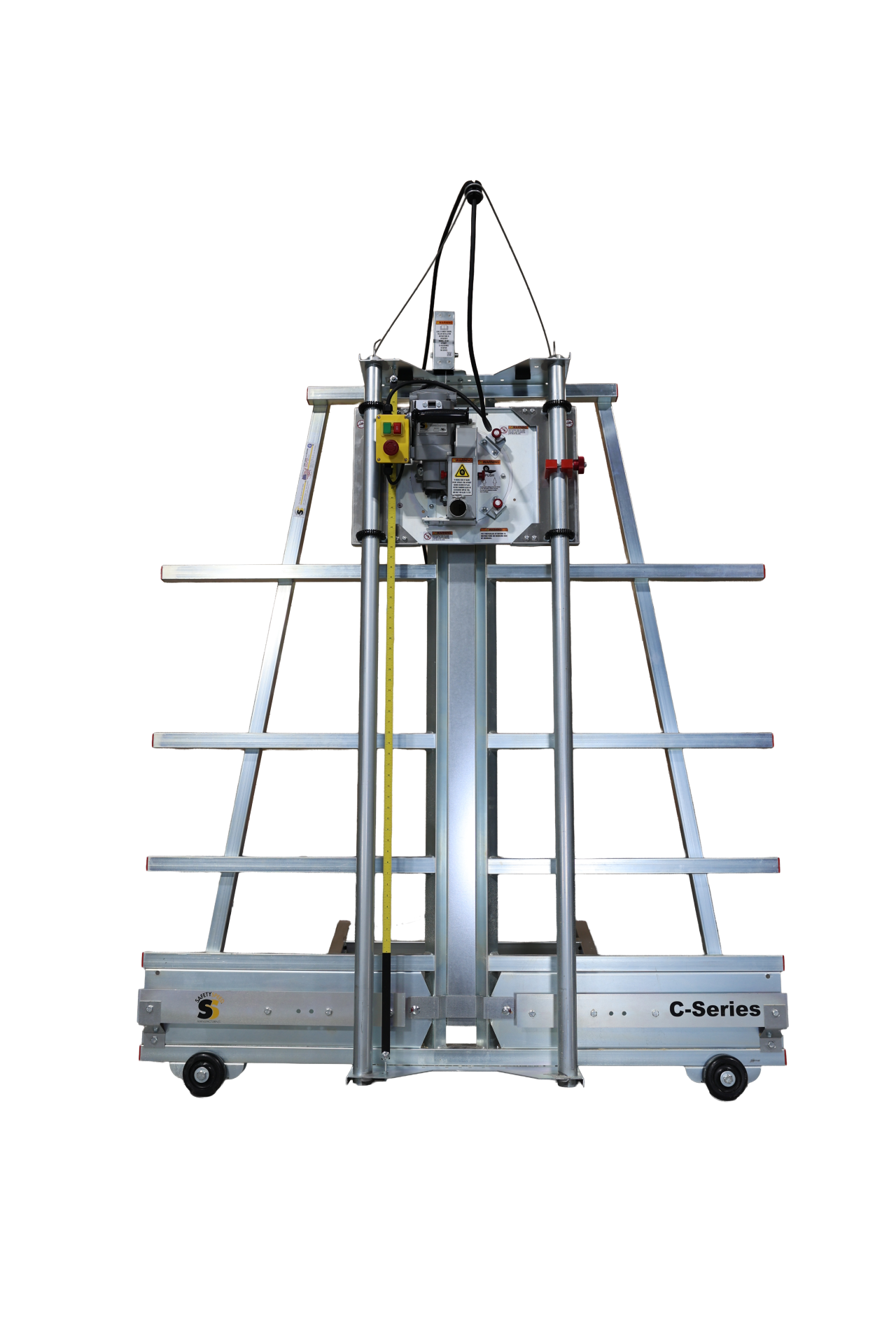

Safety Speed 6480-20C5 Vertical Panel Saw

Safety Speed 6480-20C5 Vertical Panel Saw

$2,569.00

In stock

- +

*Package Includes UPGRADED SKIL Worm Drive Motor, Stand, and Wheels

The 6480-20C4 is a compact panel saw with a 5’ frame, and a 50” maximum crosscut with a 96” rip cut capacity. Featuring a cut accuracy of 1/32″, and a 1.75″ cut depth. Effective August 1, 2026, this panel saw includes an upgraded SKIL® 3 HP, 120-Volt Worm Drive Motor with an integrated emergency stop.

Accessories included as standard equipment on the 6480-20C4  include:

  • A portable folding stand and wheels allowing for moving the panel saw around your shop as your day-to-day operations change,
  • General-purpose saw blade.
  • a dust bonnet allowing you to set your machine up for collecting dust





Ships for $189

The 6480-20C5 Vertical Panel Saw is an essential tool for any professional woodworking shop. Engineered for precision and efficiency, this vertical panel saw allows you to cut large panels with ease and accuracy. Its robust construction ensures durability and long-lasting performance, while the vertical design saves valuable floor space in your workshop.

Equipped with advanced features such as adjustable cutting depth and a powerful motor, the 6480-20C5 delivers clean, smooth cuts on a variety of materials, including plywood, MDF, and other wood-based panels. The easy-to-use controls and ergonomic design make it a user-friendly choice for both seasoned professionals and those new to woodworking.

Whether you’re working on cabinetry, furniture, or other large-scale projects, the 6480-20C5 Vertical Panel Saw provides the reliability and precision you need to achieve professional results every time.

Weight 189 lbs
Dimensions 60 × 11 × 70 in
Machine Specs

Additional information
Weight 189 lbs
Dimensions 60 x 11 x 70in
Max. Crosscut 64"/1625mm
Max. Rip Cut 96"/2450mm
Cut Depth 1 ¾"/45mm
Cut Accuracy 1/32"/.8mm
Frame Length 60"/ 525mm
Saw Blade Diameter 8"/210mm
Saw Blade Bore Size 5/8"
Daily Usage 1-3 Hours
Rollers 8
Motor volt and amperage 15 amp, 120V
Motor Manufacturer SKIL
Machine Footprint 15sqft
Machine Length 60"/1525mm
Machine Height 75"/1900mm
Machine Width with stand attached 36"/915mm
Circular Saw Motor Revolutions Per Minute (RPM) 5,800 RPM
Country of Origin USA

Brand

Safety Speed

Motor

3 HP

Phase

Single Phase

Voltage

120
