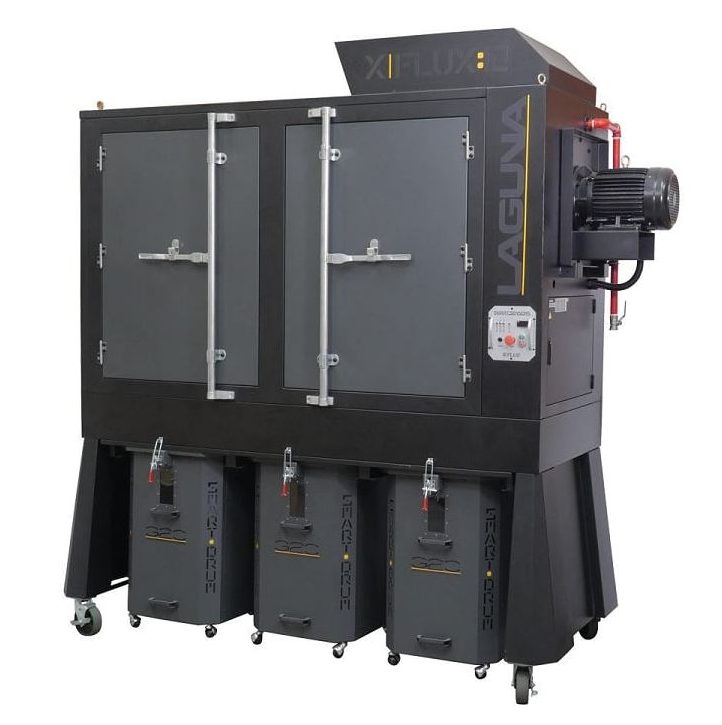

Laguna X|Flux 10 Industrial Dust Collector

Laguna X|Flux 10 Industrial Dust Collector

$13,999.00

In stock!

Ships for $699

The Laguna X|Flux: 10 Industrial Dust Collector is a powerhouse designed for large shops and enclosed areas. It features a hefty 10 HP motor, operating at 220V (3-phase). With an impressive airflow of 8070 CFM, it effortlessly captures dust from multiple machines simultaneously. The high-efficiency 1-micron white canister filter, rated MERV 12, traps even the finest particles, ensuring cleaner air and compliance with stricter regulation.

The X|Flux: 10 Industrial Dust Collector is your solution for high filtration efficiency. Its 10 HP motor generates a whopping 8070 CFM airflow, making it ideal for large workshops. The innovative canister filter, with a surface area of 409 ft², filters 99.97% of particles from 0.2 to 2 microns. This ensures excellent air quality and compliance with industry standards. The three 54-gallon “smart” octagonal drums alert you when they’re full, and the automatic canister cleaning system keeps performance optimal.

Weight 1113 lbs
Dimensions 75 × 39 × 80 in
Machine Specs

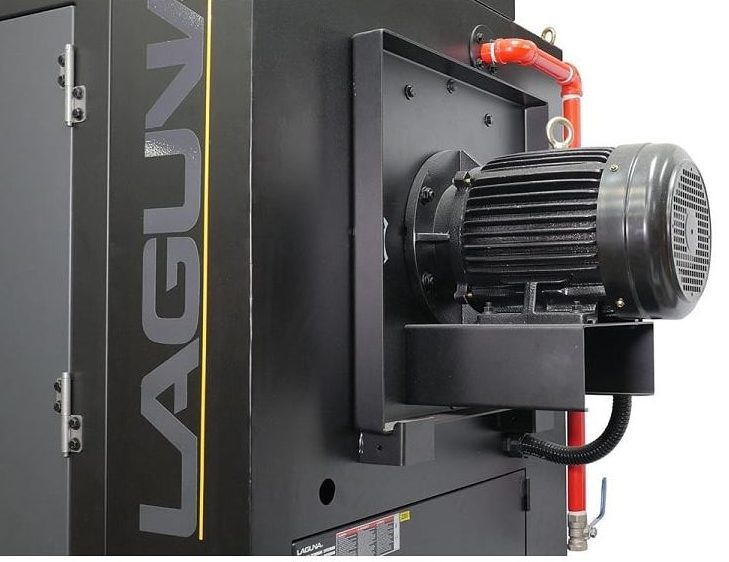

Motor HP: 10 HP
Phase: 3
Voltage : 220V
Amps: 28 Amps
Hertz: 60
Plug: No
RPM: 3450
Main Motor Switch: Radio Frequency

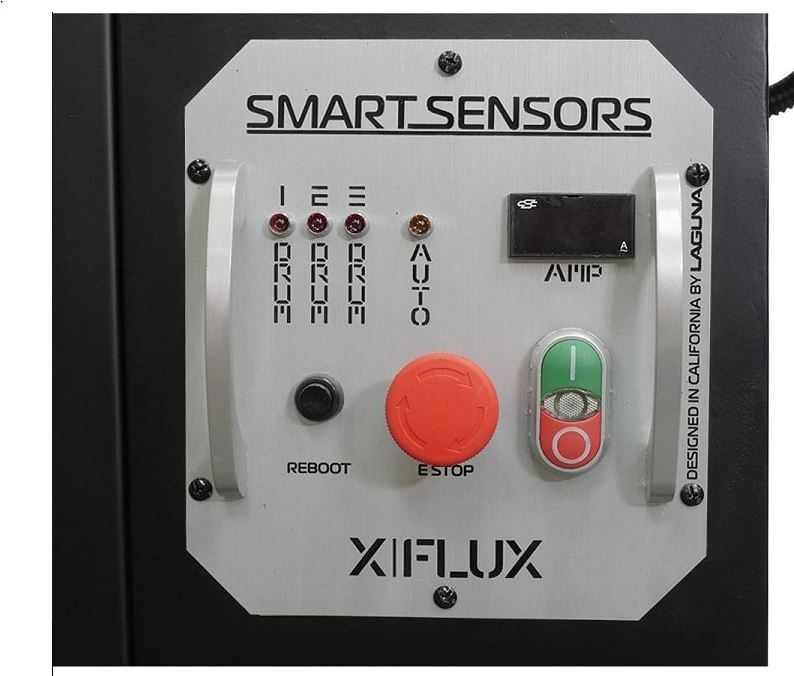

Control Panel: Anodized Aluminum
Hand Held Remote Control: HF (High Frequency)
LED Warning Light Empty Drum: Yes
Canister Auto Clean controlled by Timer: Yes
Shop Setting CFM: 4700
Inlet CFM: 8070
Max Static Pressure (inches of water): 11
Impeller/Fan Size: 15.5
Impeller Material: Steel
Impeller Type: Radial Fin
Balancing of Fan: ISO 1940
Inlet Diameter: 12
Drum Capacity: 54 Gal. X 3
Octagon Drum: Low pressure suction, swiveling casters
Drum collection Bag (Dia. x L): Plastic bag 29 x 51 L

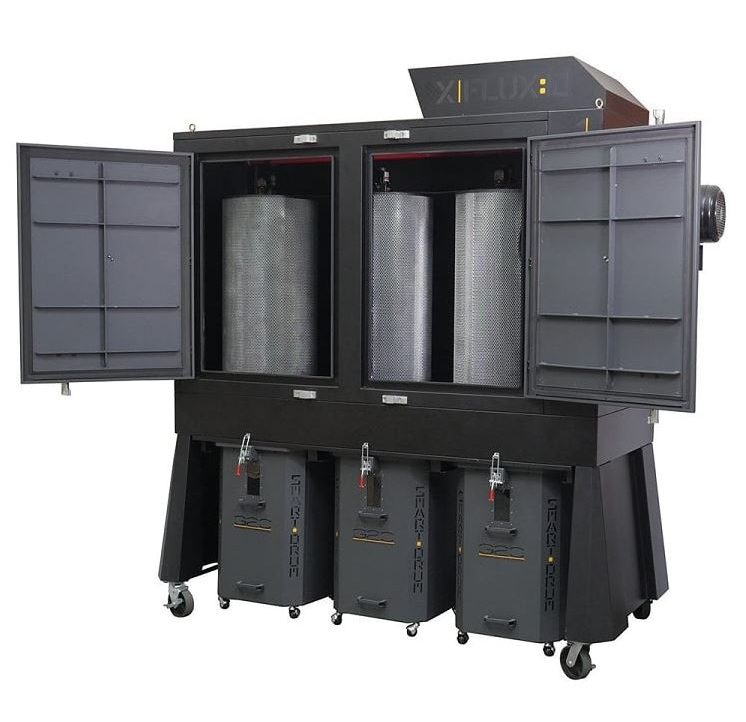

Canister Filter Type: Black 1 Micron
Filtration Efficiency: 0.2-2micron @99.97%
MERV Rating: 12
Canister Diameter: Ø500mm (19.69 )
Canister length: 900mm (35.43 )
Filter Surface Area: 24.3m2 , 261.6 ft2 (can you get RIGHT square in place here pls)
Canister Cleaning: Timed auto clean 2 x 10 seconds pr. work hour
Canister Filter Lower: Plastic bag Ø29 x 24 L
Wheels: 6 industrial swiveling
US/CSA Approved : Yes
Decibel Reading: 80 d B(A) (@9.8ft)
Assembled Dimensions (L x W x H) 104 x 49 x 106
Machine weight: 750kgs, 1653 Lbs.
Shipping weight: 830kgs, 1829 Lbs.
