Laguna – FUSION F1 1-1/2HP 110/220V

Laguna - FUSION F1 1-1/2HP 110/220V
Laguna - FUSION F1 1-1/2HP 110/220V - Image 2
Laguna - FUSION F1 1-1/2HP 110/220V - Image 3
Laguna - FUSION F1 1-1/2HP 110/220V - Image 4
Laguna - FUSION F1 1-1/2HP 110/220V - Image 5

Laguna – FUSION F1 1-1/2HP 110/220V

$1,199.00

In stock!

Ships for $150

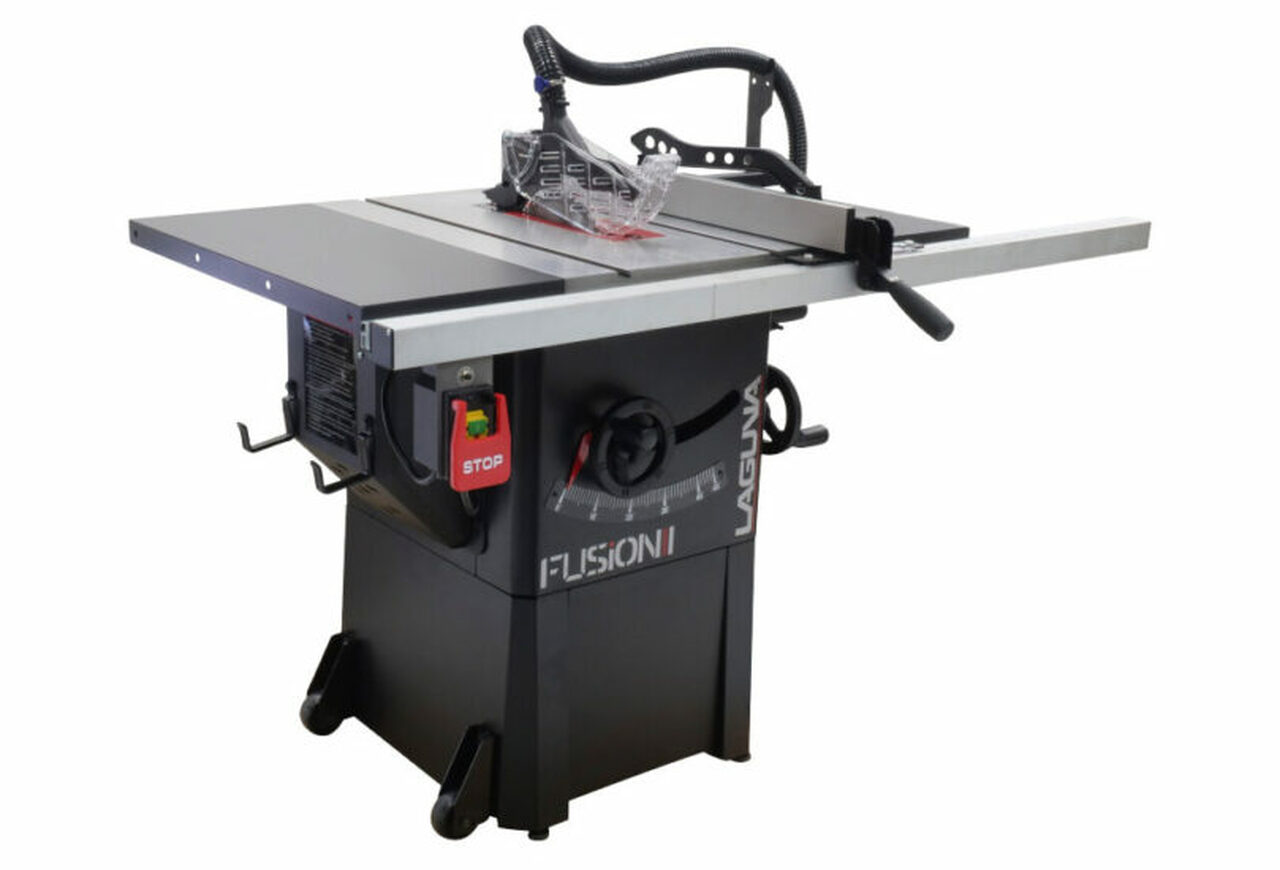

F1 Fusion Tablesaw

The new Laguna Fusion Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the new fusion line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years.

SKU: MTSF132110150-0130 Categories: , , Tags: , , , , , , , , , , , , , , ,

Features

  • 1.5HP TEFC Motor
  • Fusion Dust Collection System
  • Polished Cast Iron Table
  • Included Tools & Integrated Tool Storage
  • Included 10 x 60T Carbide-Tipped Blade

 F1 FEATURES

  • Fusion Hi-Lo Dust Collection
  • Fusion Over-Under Trunnions
  • Polished Cast Iron Table
  • Reset Switch
  • Quick-Release Blade Guard and Spreader
  • Riving Knife Included
  • Push Stick Included
  • Mitre Gauge Included
  • Blade Changing Tool Included
  • Integrated Tool Included
  • Premium Handles
  • Included 10 x 60T Carbide-Tipped Blade
  • Premium Arbor and Motor Bearings
Machine Specs

Electrical:
Power Requirements:110V-1PH-60HZ*
Amperage (FLA): 12 AMP
Motor Power: 1.5 HP
Motor Speed: 3450 RPM
Starter Switch: Magnetic
Plug Included: 5-15
Circuit Breaker Req.: 110V – 20 AMP
Receptacle Req.: 5-15

General :
Certification: CSA C/US 175370
Net Weight: 200 lbs
Shipping Weight: 280 lbs
Shipping Dimensions: L30″ W40″ H30″
Overall Size: L39-3/4″ W59-5/8″ H38″

Tablesaw:
Rip Capacity: 30″
Blade Size: 10″
Vertical Cut Height: 3 1/8”
45° Cut Height: 2 1/8″
Tilt: 0-45° Left
Min. Kerf: 3mm ~1/8″ (actual: 0.1875″)
Max. Kerf (Dado Blade): 13/16″
Arbor Speed: 4000 RPM
Arbor Diameter: 5/8″
Mitre Slot: 3/4″ to 1″ T
Throat Plate: Zero Clearance Square Die- Cast, w/ adjustment

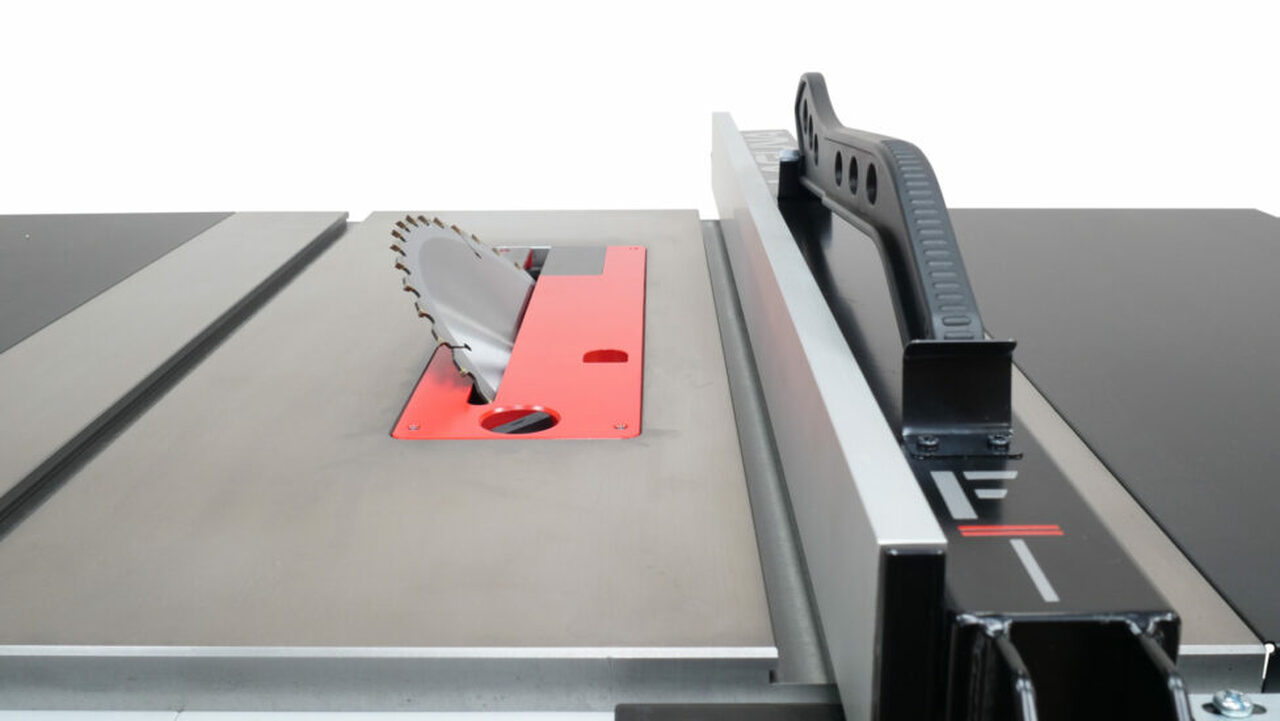

Fence: Single Rail Cam Action

Dimensions:
Overall Size: L39-3/4″ W59-5/8″ H38″
w/ 52″ Extension: +16″ to W in Overall Size
Base: L19″ W20″
Floor to To Table: H34-3/4″
Table: L27″ W20″
Extension Wing: L27″ W12″ (x2)
Throat Plate: L14-5/8″ W4-1/16″ th1/2″

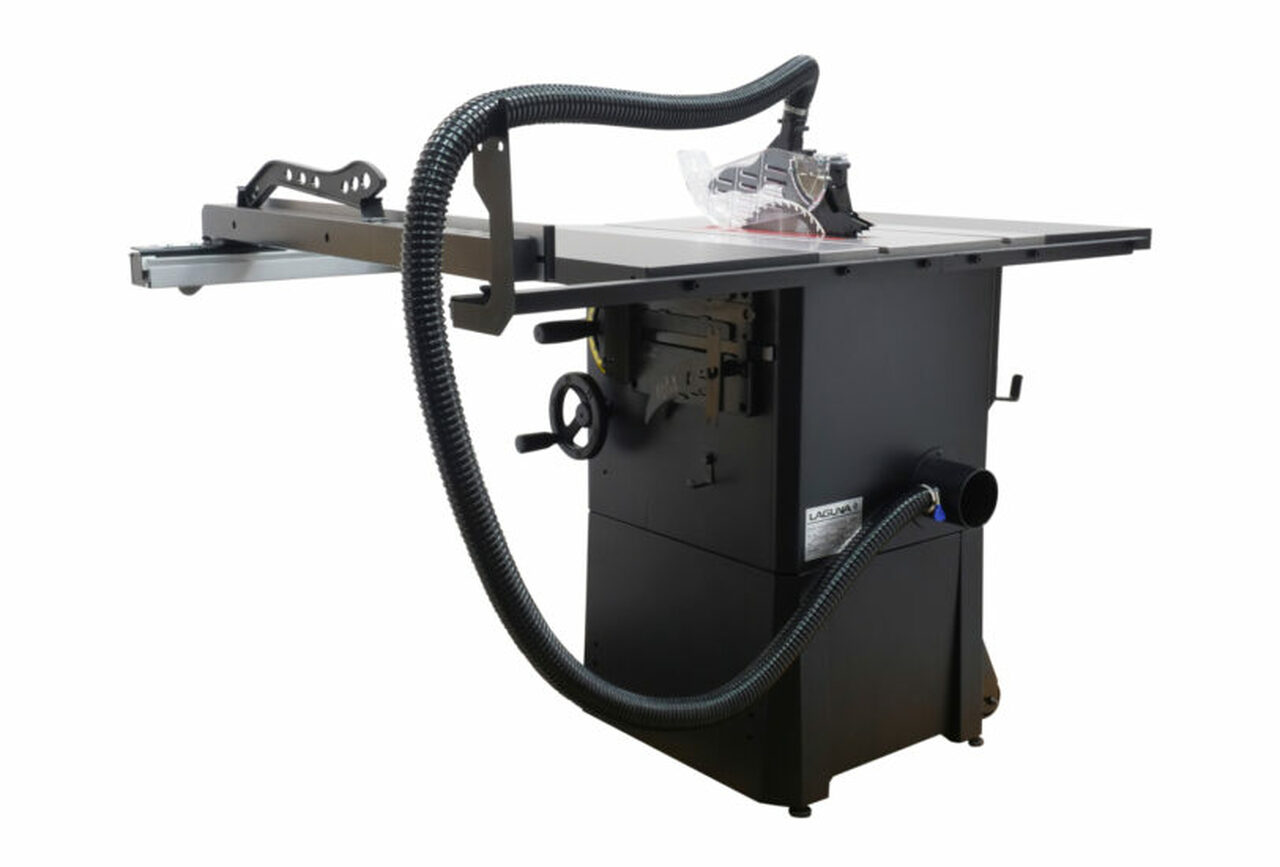

Dust Collection:
Dust Port Outer Diameter: 3-7/8″
CFM Requirement: 350 CFM
Dust Port Outer Diameter: 3-7/8″

Materials:
Table: Cast Iron
Table Wing: Sheet Steel
Cabinet : Sheet Steel
Throat Plate: Die Cast Iron
Arbor Wheels: Die Cast
Fence: Aluminum Rail, Steel Body
Upper Trunnion : Cast Aluminum Alloy
Lower Trunnion: Cast Aluminum Alloy
Brand

Laguna
Motor

1-1/2
Phase

Single Phase
Voltage

110
