Jet 13″ Benchtop Planer with Helical Style Head, JWP-13BT


In stock!

The New JET 13” Benchtop planer delivers the power and efficiency that woodworkers demand in the shop. The JET 13″ Planer produces a smooth and consistent cut surface thanks to its Helical Style Cutter head with 6 rows of 24 individual quick change inserts which can be easily rotated or replaced if damaged or worn. This helical style cutter head design helps reduce noise as its 2HP motor is turning at an impressive 10,000 RPM. Features include a rugged 4 post design, adjustable folding tables, 2 infeed speeds and a sturdy Cast Iron base which helps reduce snipe.

SKU: JT9-722130 Categories: , ,

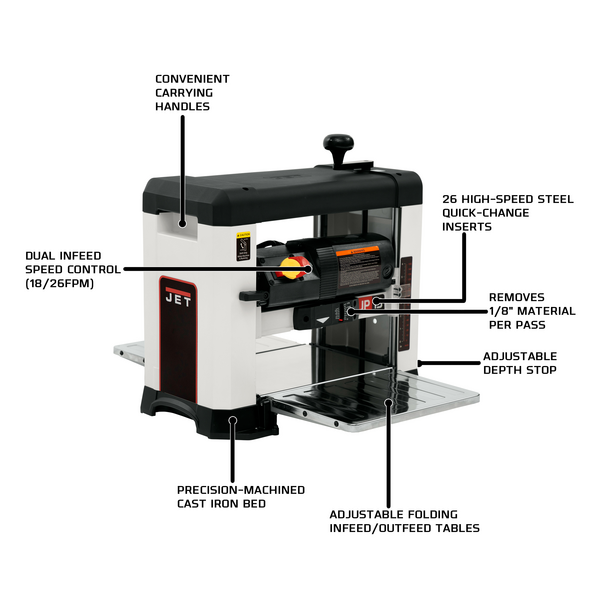

• Helical Style Cutter head with 6 rows of 24 individual quick change inserts, provides a clean and smooth cut with easy to change blades
• Precision machined Cast Iron Bed and Steel cover assists in keeping boards flat and reduces snipe
• Four post design for maximum control and support of cutter head in reference to work piece and cast table
• Powerful 2HP 15 Amp Motor turns the cutter head at 10,000 RPM
• Dual infeed speed control for 18fpm or 26fpm, maximizes cut efficiency on different wood material types
• Maximum depth of cut 1/8″, 6″ depth and 13″ width capacity
• Adjustable folding infeed/outfeed tables for leveling to bed and saves shop space when stored
• Dust Port hooks up to dust management system and helps keep shop clean
• Toggle switch with removable safety key
• Adjustable depth stop for consistent repetitive cuts

Machine Specs

Style (Type) Benchtop
Type of Cutterhead Helical Style
Cutterhead Speed (RPM) 10,000
Cutterhead Diameter (In.) 2″ (46mm)
Cuts Per Minute 20000
Number of Knives 24
Maximum Depth of Cut (In.) 1/8″
Maximum Full Width Depth of Cut (In.) 1/8″
Maximum Planing Width (In.) 13″
Maximum Planing Thickness (In.) 6″
Feed Rate (FPM) 18 and 26
Number of Speeds 2
Table Size (L x W) (In.) 13 x 9.8
Dust Port Outside Diameter (In.) 4″ (102mm)
Motor Power (HP) 2
Motor Phase (PH) 1
Motor Voltage (V.) 115
Motor Amps 15
