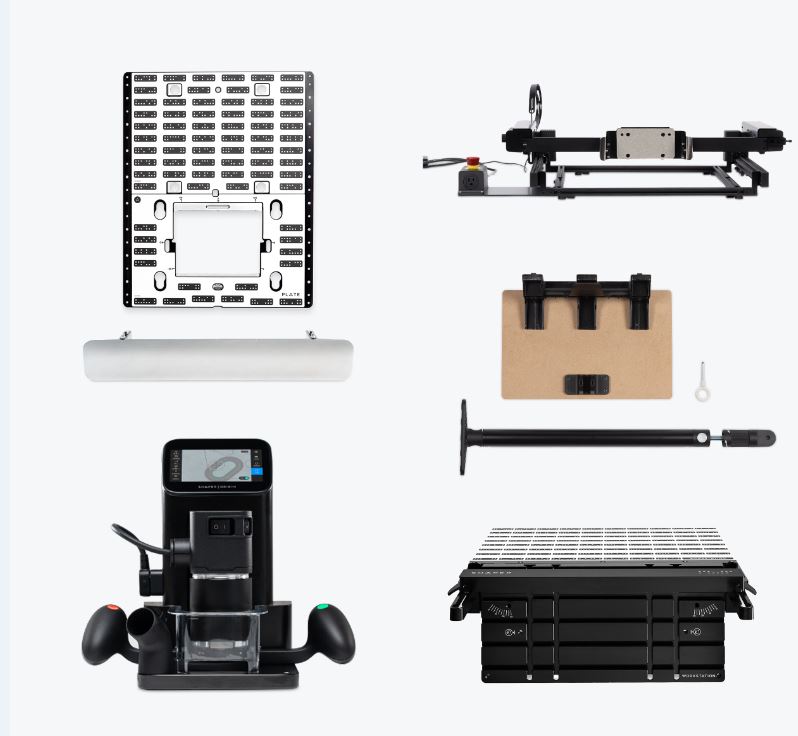

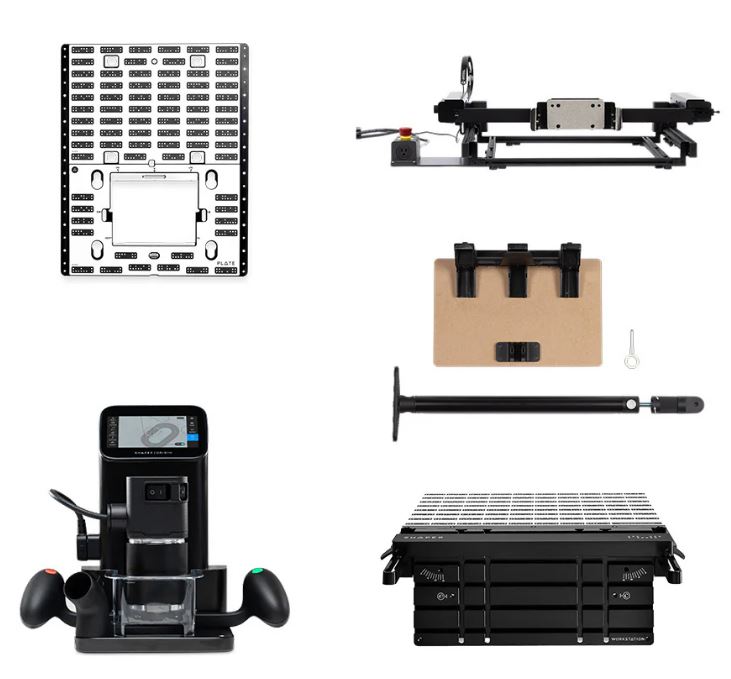

Shaper Origin + Workstation + Plate + BenchPilot + Shelf Upgrade Kit

Name: Shaper Origin + Workstation + Plate + BenchPilot + Shelf Upgrade Kit
SKU: SO2-NN-OWP-BP-SUG
Availability: InStock

Original price was: $5,447.00.Current price is: $5,097.00.

In stock!

The Shaper Origin is the world’s first computer-assisted handheld router. It works much like a traditional CNC, with X, Y and Z axes, but since it is handheld, with no table and gantry, it’s both portable and exceptionally space-efficient for small shops. Simply follow the toolpath on the screen as you cut. As long as you stay in the general cutting area, the spindle will auto-correct 100X/second to keep the cutter in exactly the right position to within 1/100”. If you happen to wander too far off track, the bit will automatically retract, preventing damage to your workpiece. You can cut out precision shapes without the need for physical templates. Origin’s intuitive touch screen interface lets you place designs in your workspace and set cut dimensions on the fly, and it automatically calculates toolpaths for you—no programming required. Load designs via WiFi from the ShaperHub website, from a computer with the included USB stick, or design your project right on the screen. With the optional clamping Workstation (see below), the Origin is capable of machining advanced joinery, small parts and much more. Go from cutting out panels, to routing hinge mortises, to cutting joinery with just a few taps on the screen.

SKU: SO2-NN-OWP-BP-SUG Categories: Brands, Shaper Origin & Packages, Shaper Tools

Description
Reviews (0)

Workstation

Workstation is our ultimate workspace and fixturing solution for your benchtop cutting operations. It’s designed to streamline and expand upon Origin’s abilities, offering rapid, repeatable and precise fixturing of a wide range of stock configurations.

Workstation features a reusable tape field, easily adjustable shelf for small or difficult-to-fixture workpieces, and intuitive indexing pins for alignment and registration. This greatly reduces setup time and makes it easier than ever to get cutting straight out of the box.

BenchPilot

Enables automated, hands-free cutting for Origin so you can focus on other tasks at hand. Clip Origin into BenchPilot and let it drive Origin from point A to point B, while Origin continues to handle the small precision movements. Think of it like autopilot for Origin.

Drives Origin Automatically
Variable feed rate control knob
Clip and unclip Origin easily
Display shows cut time remaining
Cut vertically or horizontally

Plate

Shaper Plate is the universal template for Origin

Shaper Plate brings efficiency and precision to your projects when installing hardware, inlaying in slabs, corner rounding, routing system 32 holes in cabinetry, and much, much more.

Shelf Upgrade Kit

Increase cuttable area and provide a flat, rigid surface when cutting with Workstation. Fine tune the height using the adjustable support leg.

11” X 16.125” / 280 X 410mm
MDF top
Replaces small shelf included with Workstation

Origin

Shaper Branded Systainer³ M437 Carrying Case
Two rolls of ShaperTape (150-ft each)
Tool change accessories
Reusable transport locks
USB A/C dual flash drive
1/4-inch up-spiral flat router bit
1/8-inch up-spiral flat router bit
60 degree engraving router bit
