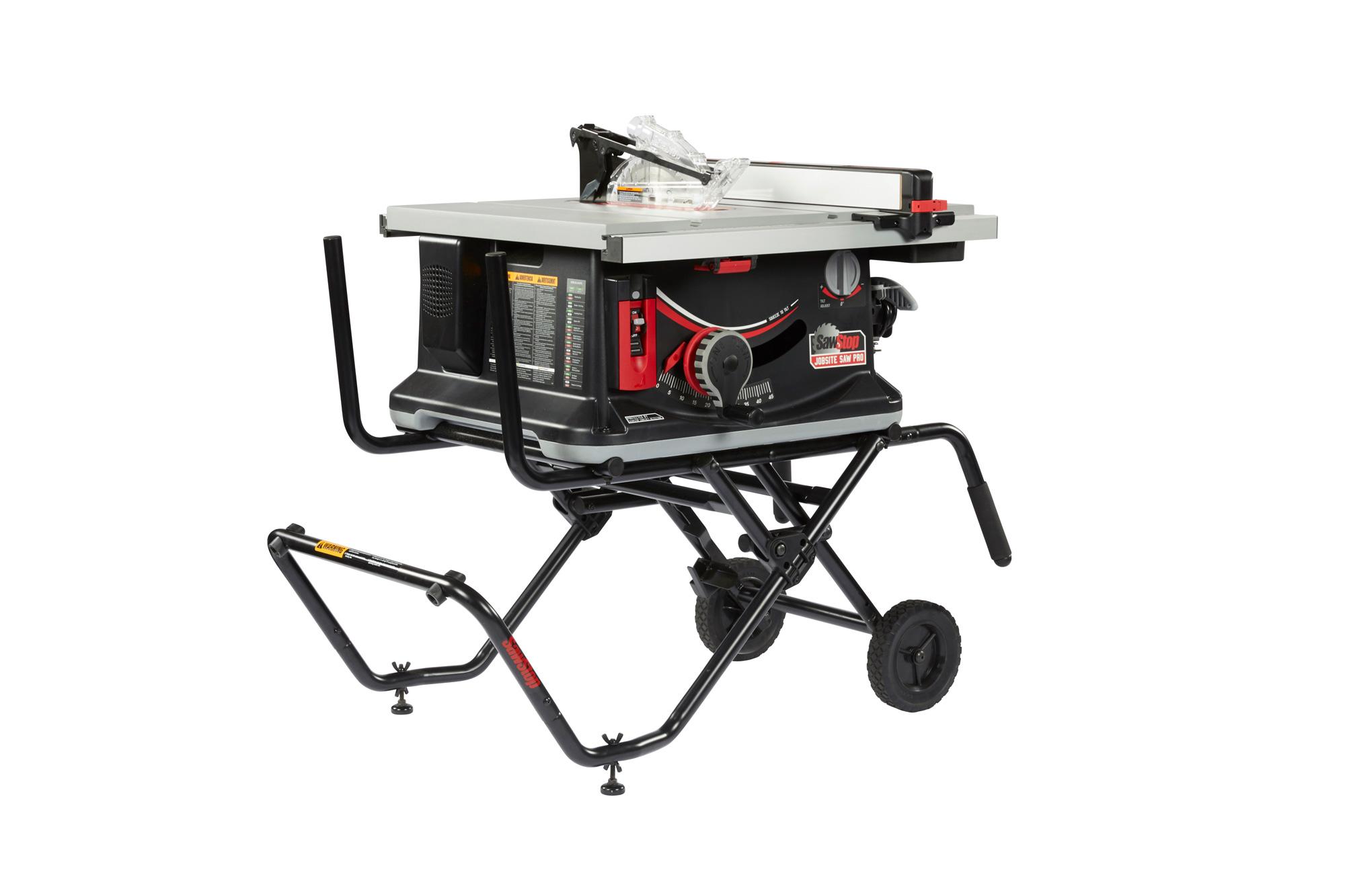

SawStop Jobsite Saw PRO with Mobile Cart Assembly – 15A,120V,60Hz

SawStop Jobsite Saw PRO with Mobile Cart Assembly – 15A,120V,60Hz

$1,599.00

In stock!

Ships for $200

The SawStop® Jobsite Saw Pro delivers durability, innovation and precision with a design that’s built for the worksite. The JSS Pro has the following features:

SAWSTOP’S PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch.

CLASS-LEADING FEATURES: 24 5/8” table depth allows a larger surface to make safe and accurate cuts from. Included Active Dust Collection Guard for class-leading dust management. One-turn elevation allows the user to raise and lower the blade in a single turn, and the Quick-Tilt adjustment tilts the blade easily and quickly to the ideal angle in 1-degree increments.

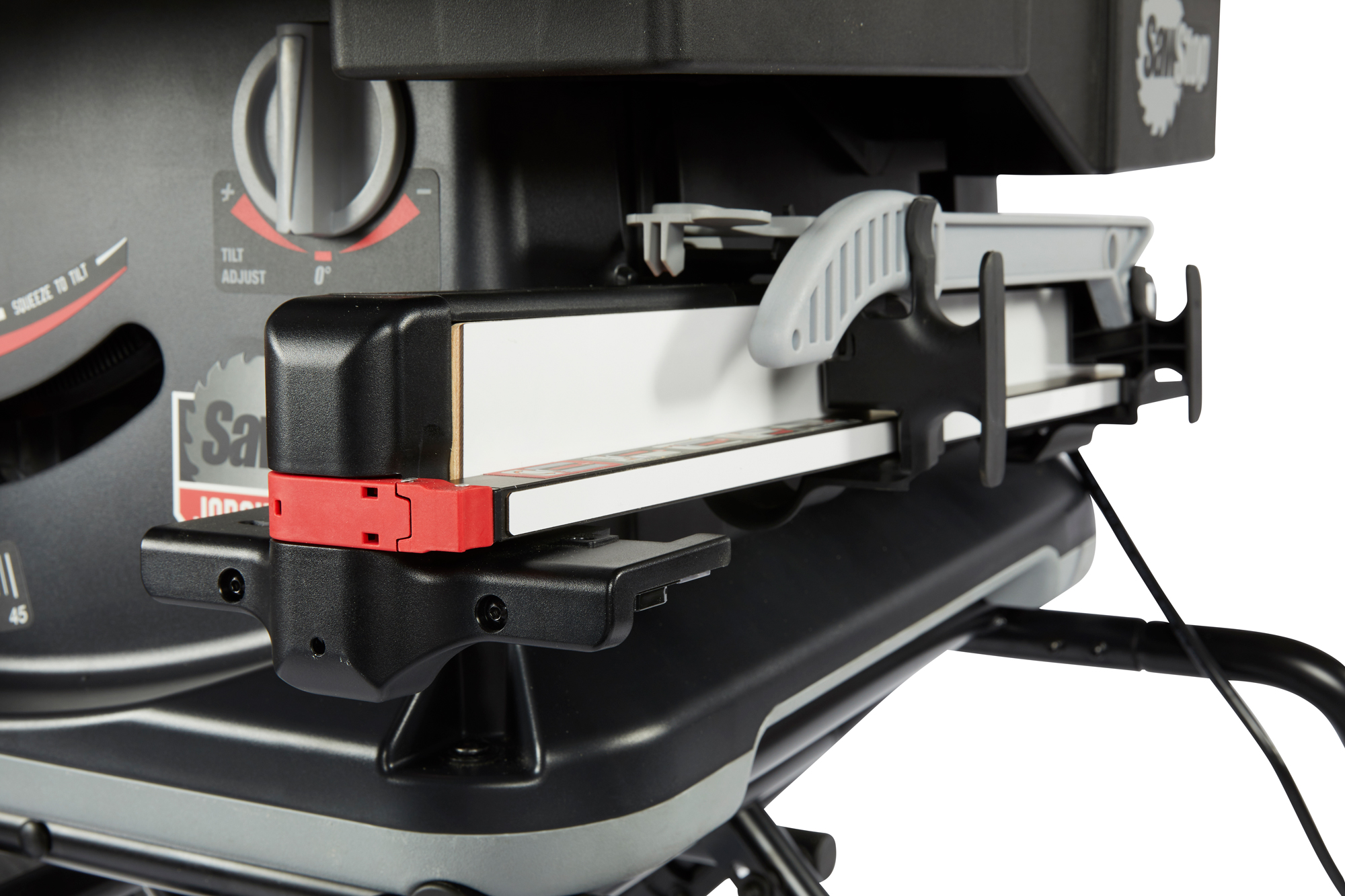

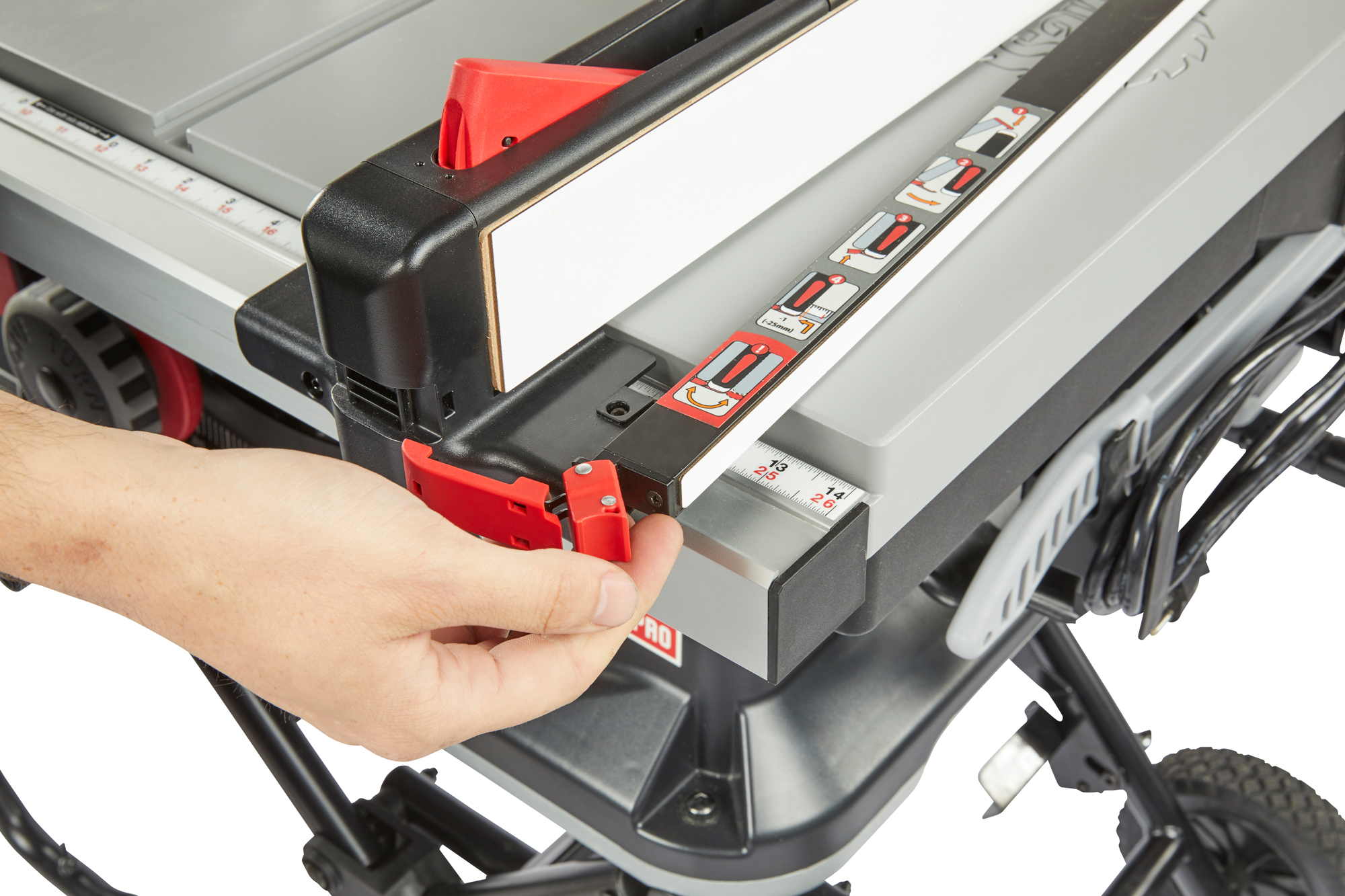

HIGH-LOW T-STYLE FENCE WITH ERGOLOCK: The updated Jobsite Saw T-Style Fence slides smooth and lock firm with one touch. Extend the On-Demand shelf for added support, and use the low fence face for safer cutting of thin work pieces.

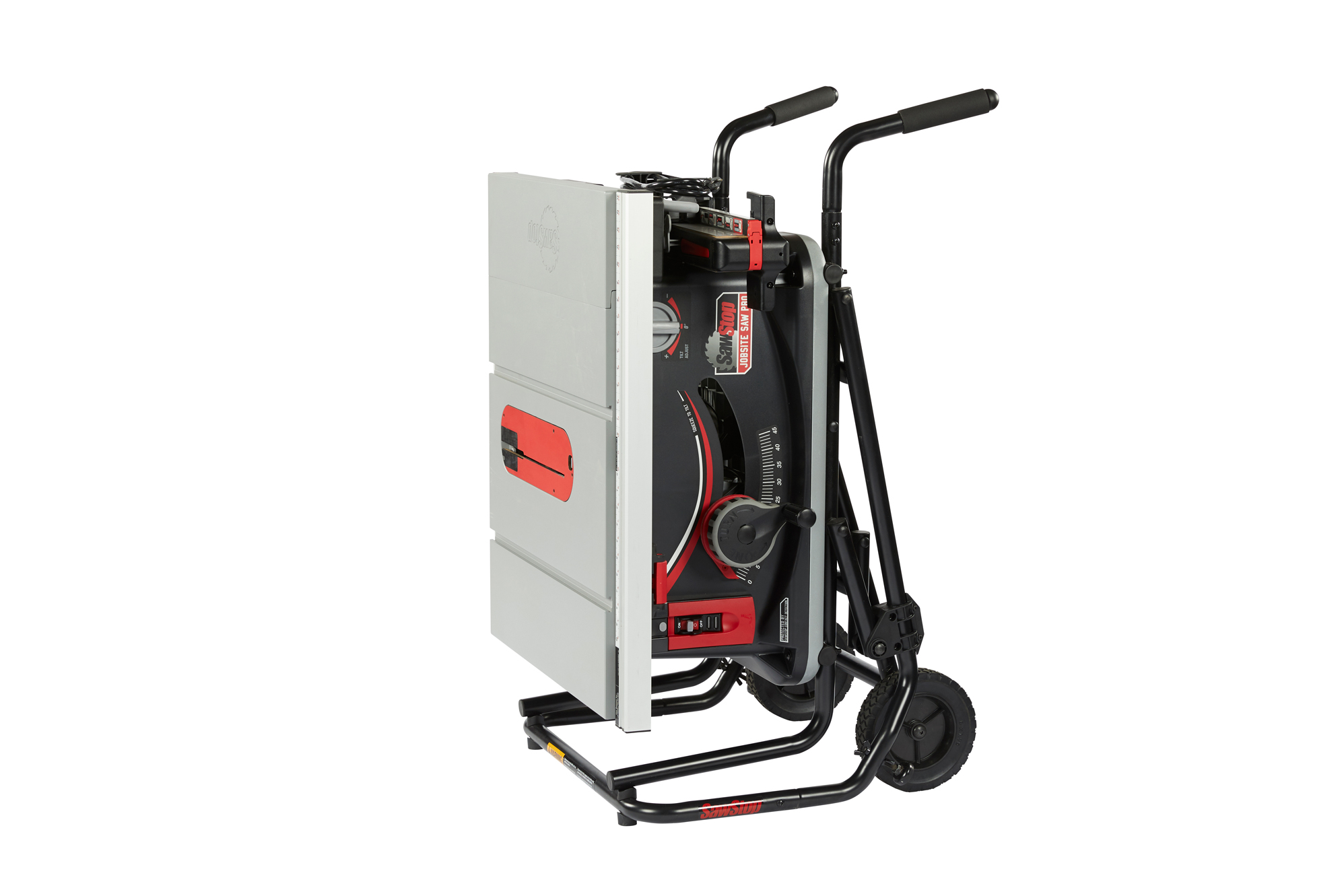

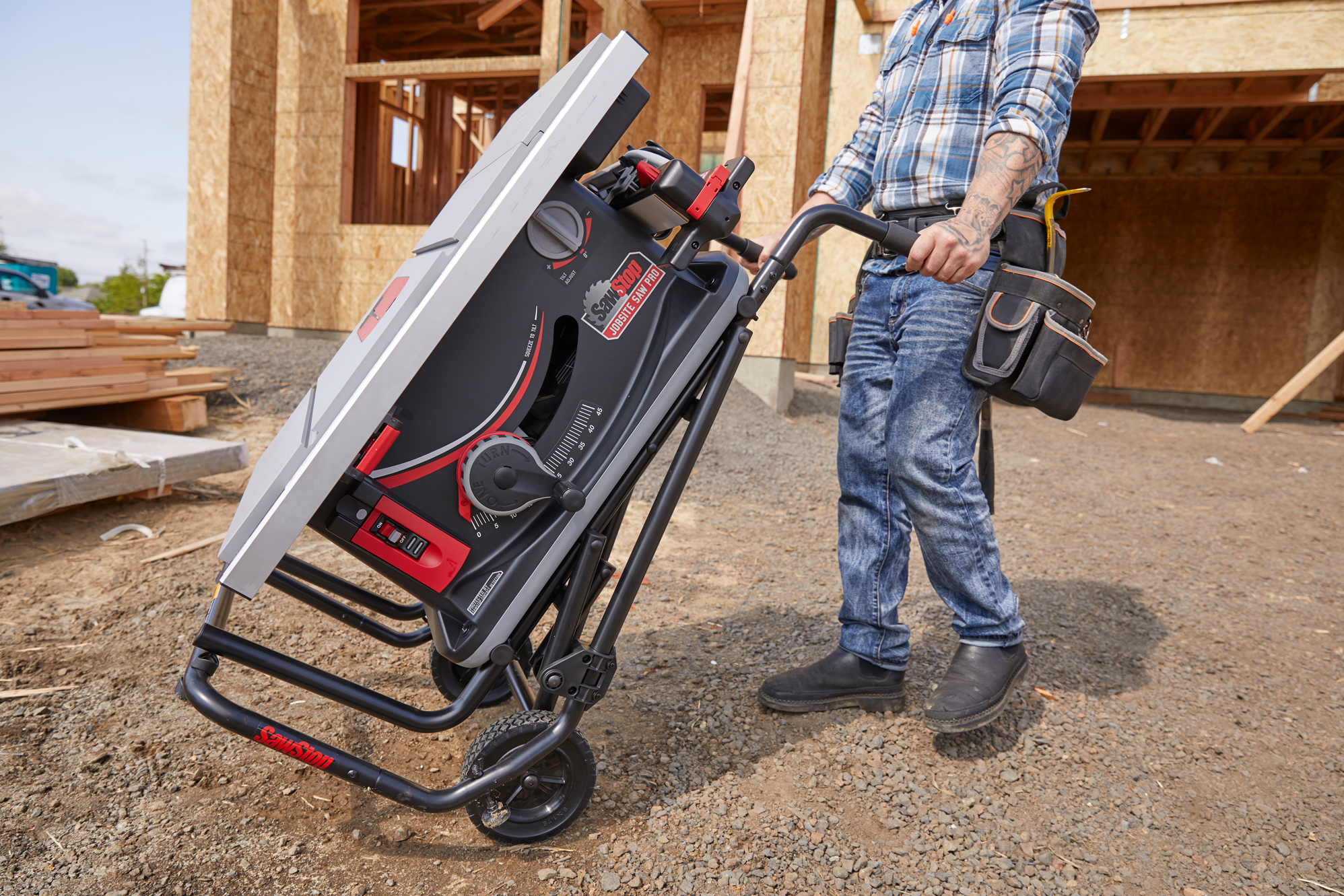

EASY MOBILITY: Simple, intuitive foot pedal extends the mobile cart for use and collapses the cart for transport.

ONBOARD STORAGE: Keep the accessories contained and protected in the onboard storage drawer. Find the Active Dust Collection Guard, riving knife, miter gauge and more, all ready for quick use.

RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.

Features

  • Stowed Dimensions: 26 1/2″ L x 29″ W x 45″ H
  • Class-Leading Table Depth: 24 5/8” table depth allows a larger surface to make safe and accurate cuts from

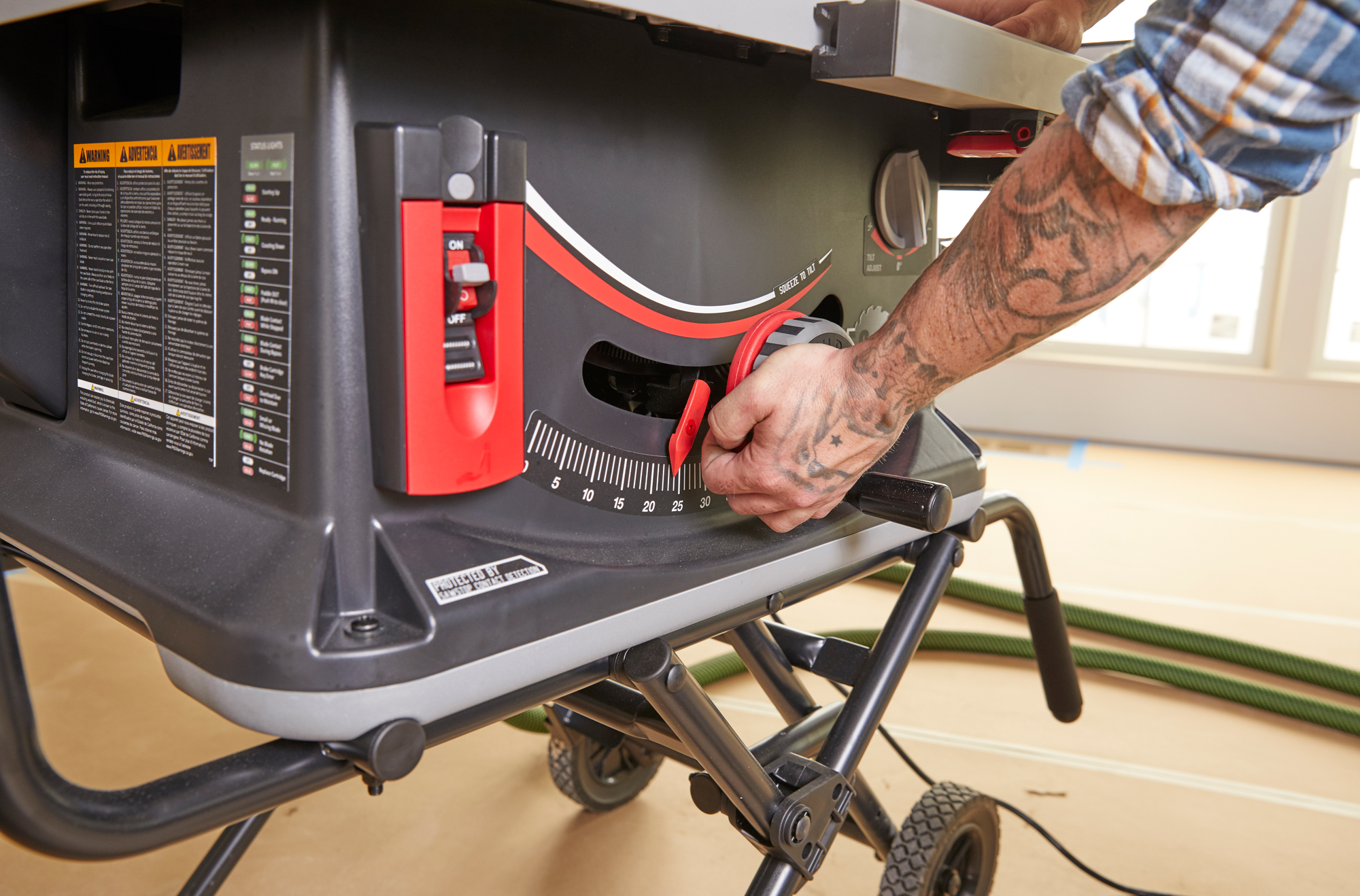

  • One-Turn Elevation: Raise and lower the blade in just one turn on the handwheel
  • Solid Hi-Low T-Style Fence with Ergolock: Slides easily and locks firm with the push of the innovative Ergolock. 25 1/2” rip capacity

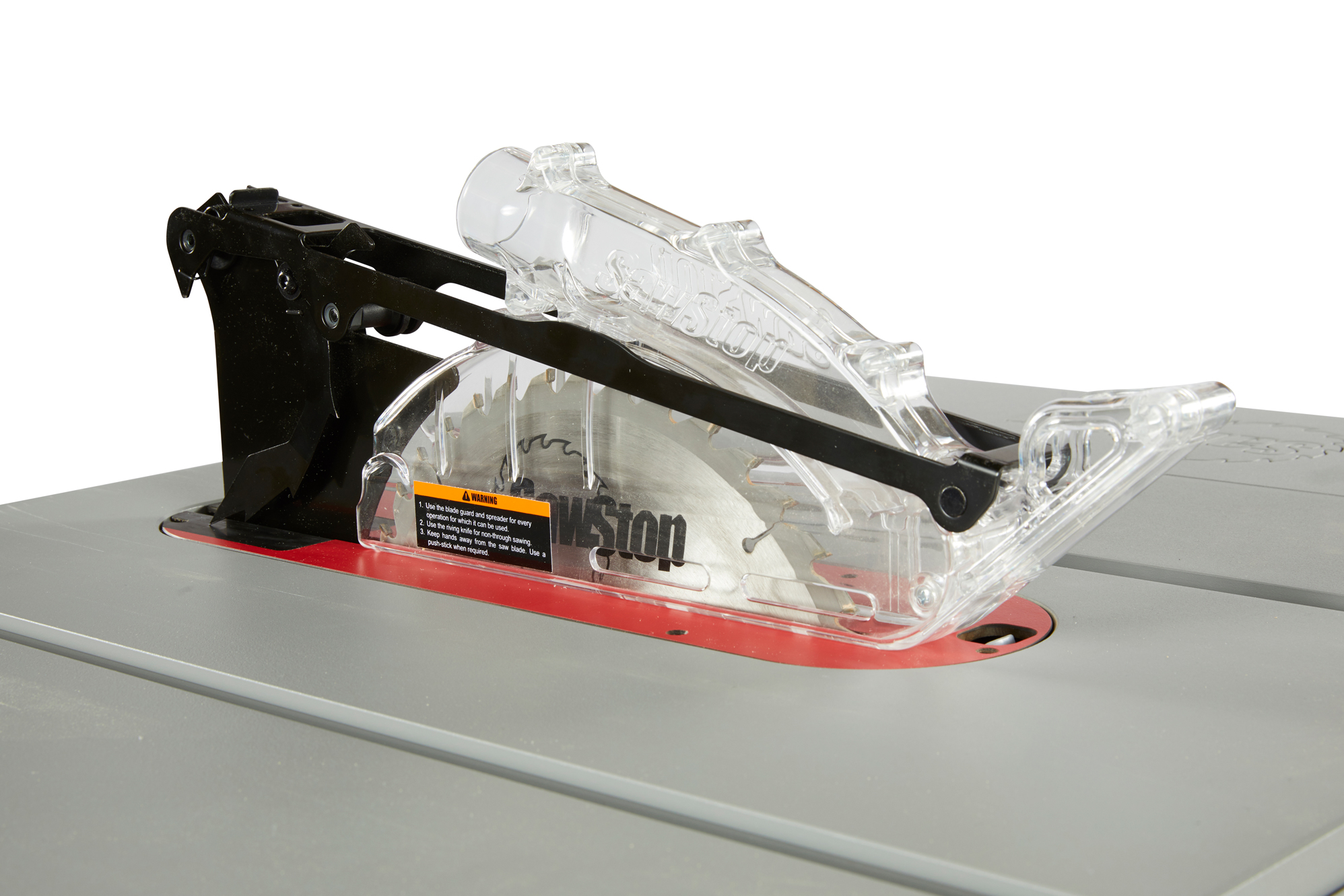

  • Active Dust Collection Blade Guard: Captures above table dust, helping to ensure a safer and cleaner workspace
  • Internal Dust Collection Shroud: Designed to provide superior dust collection capabilities.
  • Easy Mobility: Simple, intuitive action extends the Mobile Cart for use and collapse the cart for transport
  • 1 year warranty
Machine Specs

Motor: 120 VAC 60 Hz, Universal, 15A, 116" cord
Motor Continuous HP: 1.5HP
Motor Peak HP: 4HP

Saw Dimensions without Cart (Body only): 31-3/4" W x 28-3/4" D x 15-1/2"
Saw Dimensions with Open Cart (ready to use): 48" W x 29" D x 36" H
Saw Dimensions with Closed Cart (on End/stored position): 26-1/2" W x 29" D x 45" H
Table Dimensions (Retracted): 31-1/4" W x 24-5/8" D
Table Dimensions (Extended): 43-3/8" W x 24-5/8" D

Weight (Saw Only): 84 lbs.
Weight (with Cart): 113 lbs.

Blade Diameter: 10"
Dado Diameter: 8"
Dado Max. Width: 13/16"
Bevel Angle Range: -1 to 46
Max. Depth of Cut, Blade at 0º: 3-1/8"
Max. Depth of Cut, Blade at 45º: 2-1/8"
Max. Rip Right of Blade (Extended): 25-1/2"
Max. Rip Left of Blade: 9-3/4"

Blade Tilt: Left
Arbor Diameter at Blade: 5/8"
Table in Front of Blade (Max Elev): 7-7/8"
Table Behind Blade (Max Elev): 7-3/8"
Miter Slots T-shaped Dimensions: 0.754" W x 0.413" D; "T" 0.956" W x 0.157" THK
Main Bearing Size: 62 mm OD x 30 mm ID x 16 mm W
Second Bearing Size: 52 mm OD x 25 mm ID x 15 mm W

Riving Knife/Splitter Thickness: 2.3 mm (.090")
Hand Wheel: Effective diameter 6.3"
Belts: Poly-V static dissipative belt
Table Flatness Measured Diagonally: 0.033" Inches
Dust Collection Port Diameter: 2-9/16" Outside, 2-1/4" Inside
Active Dust Collection Blade Guard: polycarbonate, extends 1" right of blade
Blade Guard (Dust Collection) Port Diameter: 1-11/16" Outside, 1-3/8" Inside
