SawStop 3HP, 1ph, 230v Industrial Cabinet Saw with 36” Industrial T-Glide fence system, rails & extension table

SawStop 3HP, 1ph, 230v Industrial Cabinet Saw with 36” Industrial T-Glide fence system, rails & extension table

$4,859.00

In stock!

Ships for $425

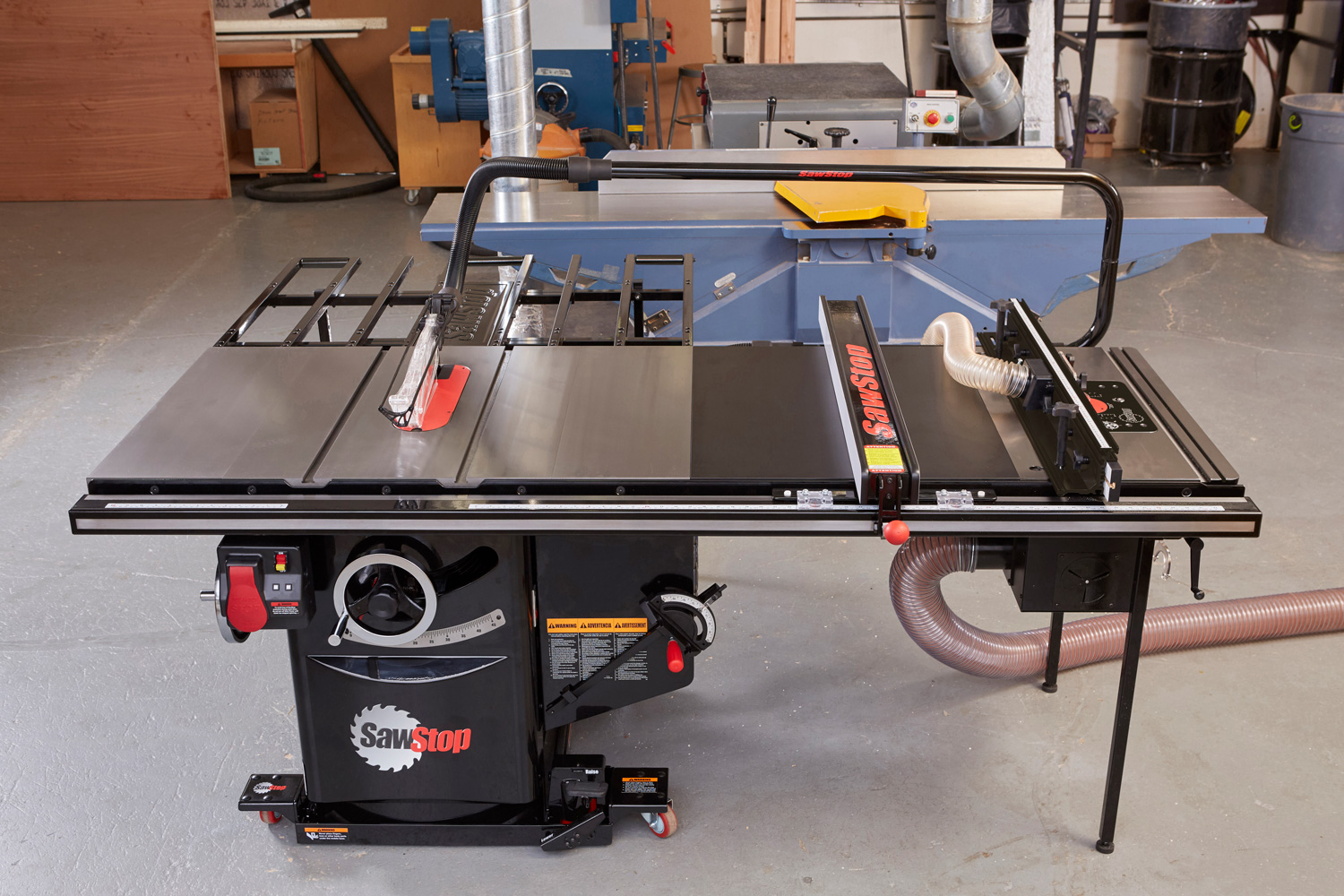

The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10″ cabinet saw available. The 3HP, 1ph, 230v configuration with a 36″ Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop’s patented safety system can provide.

The SawStop 3HP Industrial Cabinet Saw is the heaviest, most powerful, and highest-quality 10-inch cabinet saw available. Designed for maximum stability and precision, this saw is built to handle high-volume cutting cycles with ease.

Key Features:

  • SawStop Patented Safety System – Stops the blade instantly upon skin contact, minimizing injury risk.
  • 36-Inch T-Glide Fence System
    • Heavy-gauge steel construction ensures secure lockdown and reliably square cuts.
    • Smooth operation and precision measurement for consistent accuracy.
  • Strength & Stability
    • Nearly 700 lbs of iron and steel provide exceptional durability and vibration resistance.
    • Expansive tabletop offers a large, stable cutting surface for oversized materials.
  • Advanced Dust Collection
    • 99% dust collection efficiency with under-table shrouding and a dust collection blade guard.

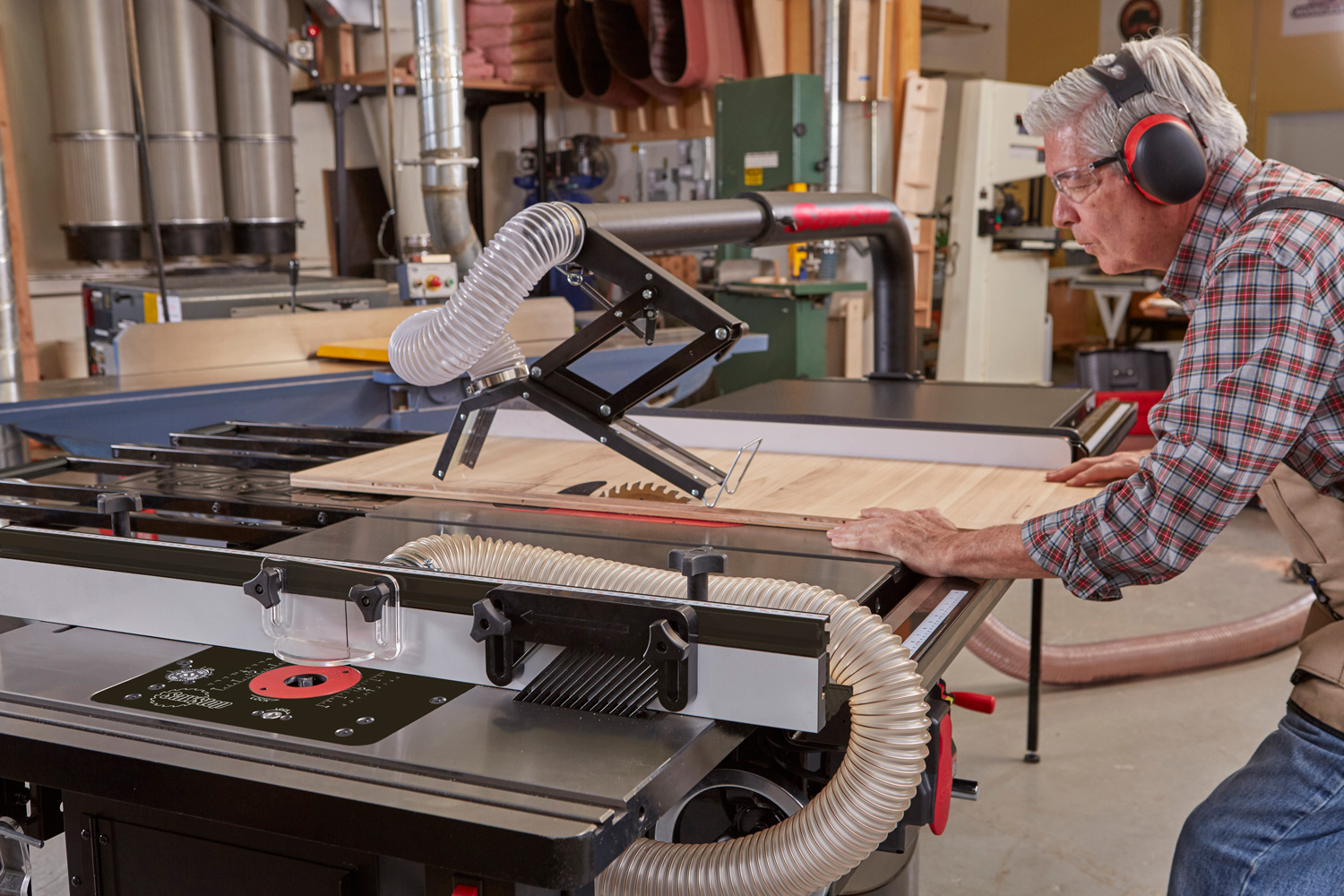

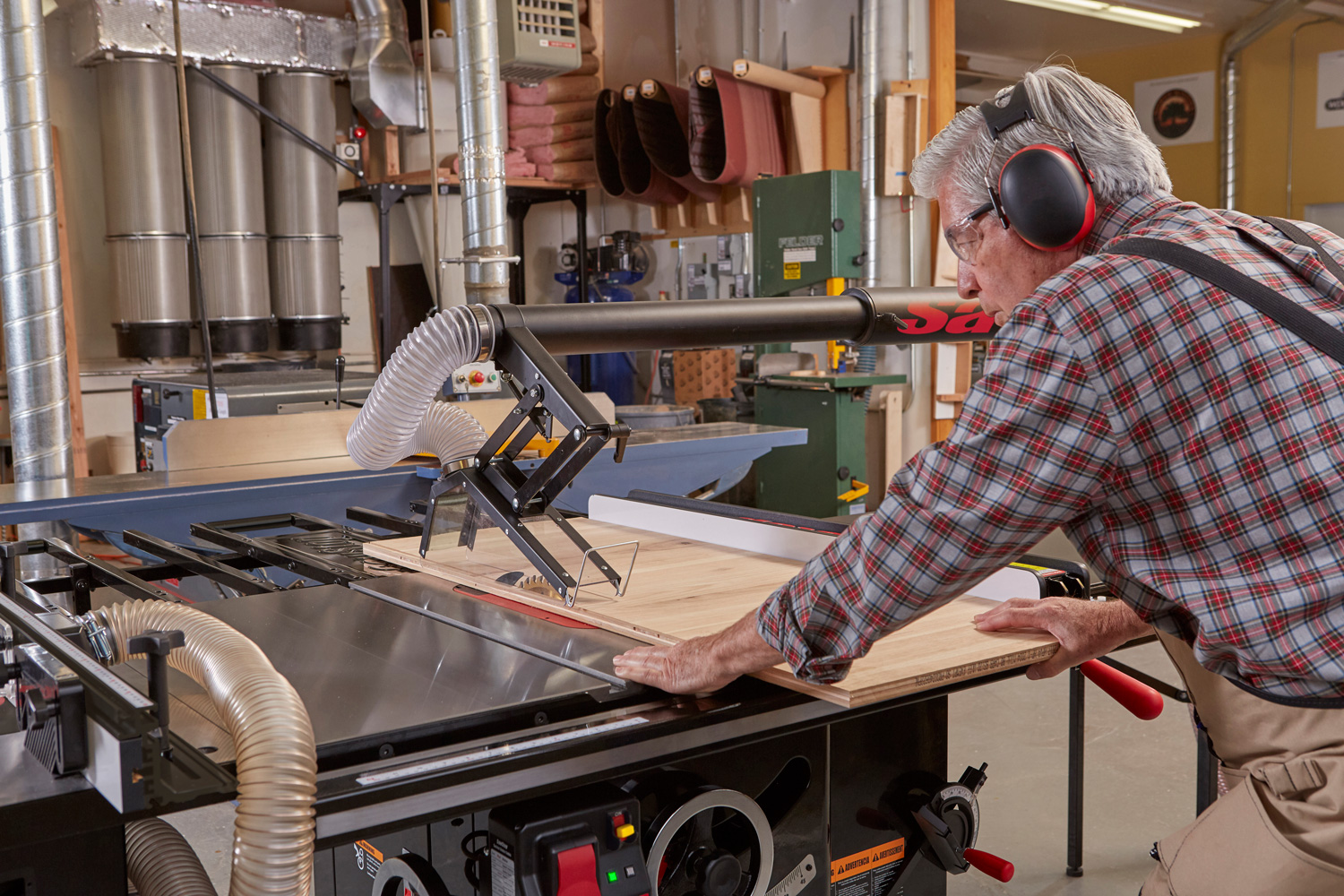

    • Optional Overarm Dust Collection system (sold separately) enhances dust removal.
  • Industrial-Grade Reliability
    • Integrated Lock-Out Tag-Out switch ensures only authorized operators can use the saw.
    • Interlock switches prevent operation if motor access panels are unlatched.
    • Control Box with onboard diagnostics continuously monitors system functionality.

With unparalleled safety, stability, and precision, the SawStop 3HP Industrial Cabinet Saw is the cornerstone of any professional workshop, delivering consistent, high-performance cutting for years to come.

Specifications

Specifications: Industrial Cabinet Saw 3HP 1ph 230v with 36" T-Glide Fence Assembly
36" Rip Capacity: ICS31230: 36" T-Glide Fence Assembly
Motor Option(s) (60Hz TEFC): 3, 5, 7.5 HP available
Overall saw dimensions 36 in: 69 1/4" W x 36 1/2" D x 34" H
Motor configuration 1: ICS31230: 3 HP, 1 phase, 230v, 13 A, 60Hz, TEFC
Saw body footprint: 20" W x 25" D (Cabinet)
Cast iron table: 24" W x 30" D
Cast iron table (w/ extension wings): 44" W x 30" D
Extension wings: 10" W x 30" D each
Extension table 36 in: 24" W x 30" D
Shipping weights – w/ 36 in fence systems: 755 lbs (4 boxes)
Shipping dimensions (saw body only): 40" W x 40" D x 40" H
Shipping weight (approx.): 640 lbs (table saw only)
Assembled weights – w/ 36 in fence systems: 635 lbs. (approx weight, actual weight varies by motor size)
Weights – table saw only: 530 lbs. (approx weight, actual weight varies by motor size)
Blade: 40-tooth Titanium, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0º: 3 1/8″
Max. depth of cut, blade at 45º: 2 1/4"
Max. rip, right of blade – 36 in: 36 1/2" (w/ optional 36" rails)
Max. rip, left of blade: 12 1/2"
Dado diameter: 8" (requires dado brake cartridge & insert)
Dado max. width: 29/32”
Arbor diameter at blade: 5/8"
Arbor Runout 0.001" Maximum allowable runout
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10 3/4"
Table behind blade (max. elevation): 10"
Arbor Runout: 0.001" Maximum allowable runout
Table flatness measured diagonally: 0.010" Maximum gap
Belts: 2 V-ribbed belts – arbor b. static dissipative
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25º
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11 1/8" center-to-center
Miter slots info: 5 1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Dust collection blade guard: polycarbonate, extends only 1-3/16" to right of blade
Blade guard: (dust collection) port diameter 1-1/2" Outside, 1-1/4" Inside
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 8" diameter, cast iron w/ chrome handle
Riving knife / splitter thickness: 0.090" (2.3 mm)

Included Items

Included Items

(2) Cast Iron Extension Wings
(1) Miter Gauge
(1) Dust Collection Blade Guard
(1) Riving Knife
(2) Blade Wrenches
(1) Push Stick
(1) 10” Blade
(1) Standard Lockdown Insert
(1) Standard Brake Cartridge
(1) Owner’s Manual
(2) Hardware Packs
(1) 3mm Hex Key
(1) 5mm Hex Key
(1) 8mm Hex Key
(1) Blade Spacing Adjustment Gauge
(1) Extension Table Board
