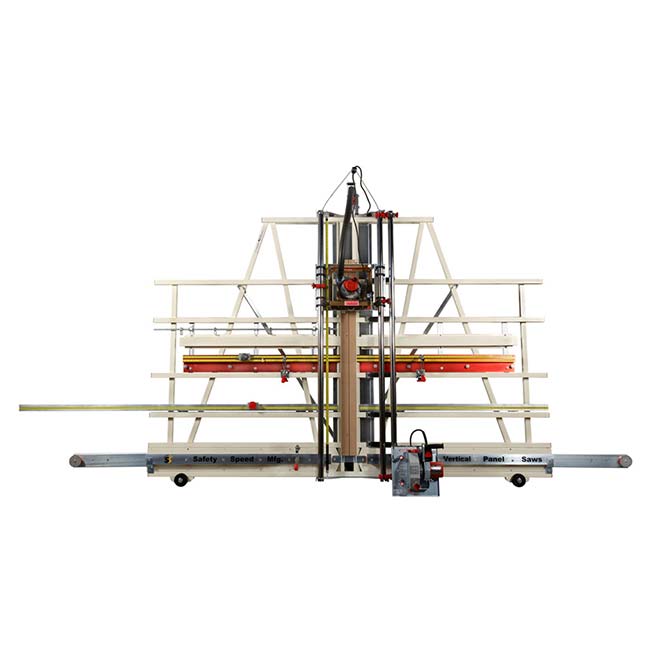

Safety Speed SR5A ACM Panel Saw and Router Combo

Safety Speed SR5A ACM Panel Saw and Router Combo

$8,199.00

In stock!

Ships for $499

The SR5A is a fully accessorized machine including the following components that are considered accessories on our other offerings:

  • MID-WAY FENCE™ with stop.
  • 4 material clamps.
  • 2 blind dado stops.
  • Wheels
  • Fixed Stand
  • Pair of 22″ extensions
  • Left and right quick stop gauges.
  • MID-WAY FENCE™ flip stop.
  • Dust kit
  • Hold down bar
  • Specialty saw blade and router bit for v-grooving

Routing capabilities include making plow and cross dados as well as rabbet’s. Routing features include a floating router head allowing the router to plunge into, and raise out of the panel at any time. Additionally routing accessories include four clamps, and blind dado stops.

The unique design of this unit allows for accurate cutting and V-Grooving of ACM (Aluminum Composite Material) panels. Features a unique floating router with a nylon guide guaranteeing a consistent depth of cut. The saw can also be switched over to a router in less than one minute. It also features a dust system in place to collect debris while cutting and routing.

Description

The SR5A panel saw/router combo allows operators to saw and rout on one vertical steel frame.

Standard Equipment

  • 3 ¼ Hp, 15 amp industrial duty saw motor.
  • 1 ¾ Hp, 11 amp industrial duty router motor.
  • 10 ft. Welded steel frame.
  • Chrome plated 1 ¾” guide tubes.
  • 8 Nylatron roller bearing systems.
  • Adjustable vertical and horizontal rulers.
  • Quick change from vertical and horizontal cutting.
  • Thin material pressure guard.
  • Injection molded plastic material rollers.
  • Counterweight system.
  • Adjustable floating router head.
  • MID-WAY FENCE™ with stop.
  • 4 material clamps.
  • 2 blind dado stops.
  • Wheels.
  • Fixed Stand.
  • Extensions.
  • Left and right quick stop gauges.
  • MID-WAY FENCE™ flip stop.
  • Dust hood and hose kit.
  • Hold down bar.
  • Specialty saw blade and router bit for v-grooving
  • 1 year parts warranty.
Machine Specs

Additional information
Weight : 636 lbs
Dimensions : 120 × 17 × 92 in
Max. Crosscut : 62"/1575mm
Max. Rip Cut : Unlimited
Max. Cut Thickness : 1 3/4"/45mm
Cut Accuracy, Straight and Square : 1/64"/.4mm
Saw Blade Diameter : 8"/210mm
Motor : 15 amp, 120V
Router Motor : 11 amp, 120V
Frame Length : 120"/3050mm
