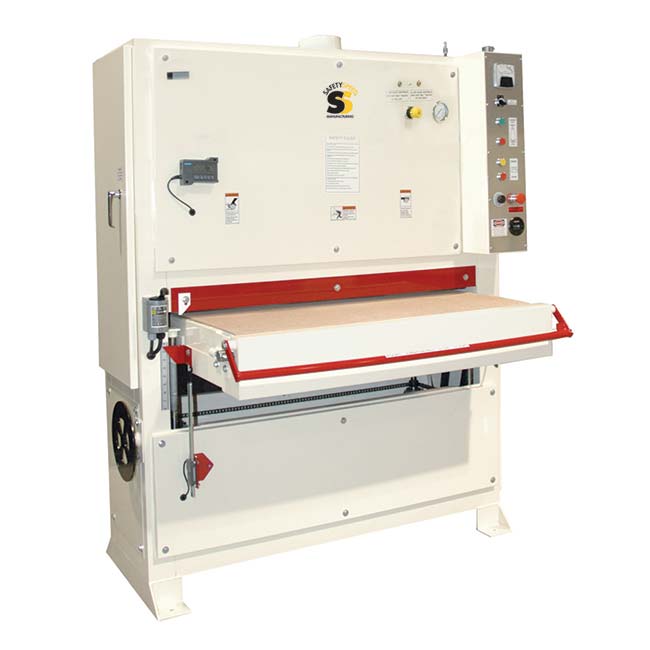

Safety Speed 43″ Widebelt Sander 20 hp – 3 phase

Safety Speed 43″ Widebelt Sander 20 hp – 3 phase

$20,949.00

In stock!

Ships for $549

Offering woodworkers a maximum sanding width 43″, and available in single or three phase power, this American Made Wide Belt Sander will likely outlive you. Don’t take our word for it! Jeff Roltgen of Roltgen Woodworks, had the following to say “Even the fussiest of finishes only need a cursory random orbit sanding after coming out of this machine.

SKU: WBS4375203 Categories: ,

Description

The 43″ Wide Belt Sander features a 75” belt, providing 25% more abrasive surface than the smaller 60” belt machines. The larger belt translates to increased capacity, less heat accumulation, less maintenance and fewer belt replacements. With a fully adjustable platen these sanders will deliver a perfect smooth finish every time.

Standard Equipment

  • Photo electric belt tracking.
  • Pneumatic belt tension.
  • 2 ½” graphite covered felt pad and adjustable platen.
  • 2 rubber-covered pinch rollers 2 ½” OD.
  • 2 machined idler rollers 4 ¼” OD with 1″ bearings.
  • Rubber-covered contact roller 5 ¼” OD with 1 ⅝” drive bearing.
  • Conveyor table set on four 1″ acme thread jackscrews.
  • 2 height adjustment indicators.
  • 6″ internal dust chute.
  • 5 emergency stops.
  • 3 year warranty.



Machine Specs

Machine Specs

Additional information
Weight : 1946 lbs
Dimensions : 60 × 62 × 71 in
Max. Working Length : Unlimited
Min. Working Length : 12"/305mm
Main Motor Options : 20 Hp, 3 Phase (3~), 208 Volt / 230 Volt
Max. Working Width : 42"/1070mm
Max. Working Thickness :7 1/4"/184mm
Min. Working Thickness : 1/8"/3mm
Vacuum Requirement : 1000 CFM
Conveyor Speed : 0-18 FPM
Durometer of Contact Roller : 60
Sanding Belt Size : 43" x 75"
