Laguna T|Flux: 5 Cyclone

Laguna T|Flux: 5 Cyclone

Laguna T|Flux: 5 Cyclone

$5,899.00

In stock!

Ships for $599

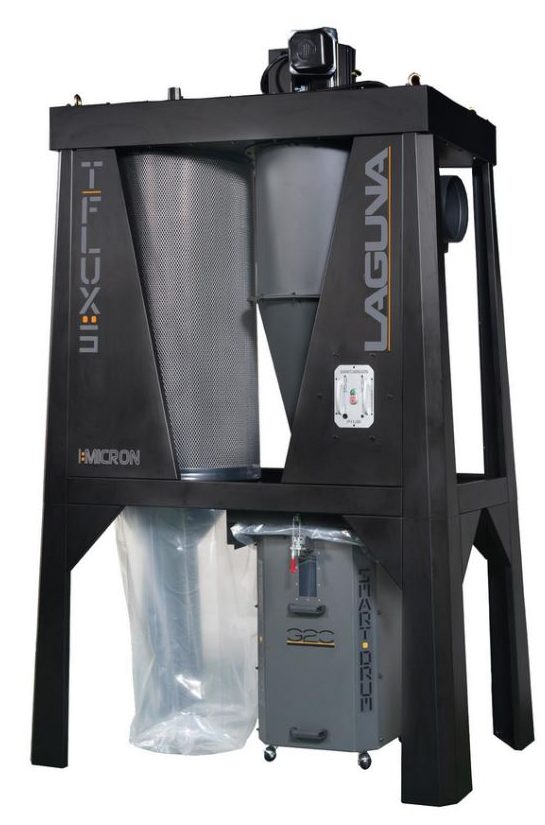

The Laguna T|Flux: 5 Cyclone is part of the T|Flux series, designed for serious woodworking and metalworking shops. It features a 5 HP motor running at 220V, with a 10″ port that splits into 3 x 4″ outlets. This allows you to set up a large-diameter pipe system throughout your shop, connecting to individual workstations. The cyclone also includes a sunken radio frequency remote switch, LED full drum, and LED filter dirt detection.

SKU: MDCTF52201 Categories: , , , Tags: , ,

The Laguna T|Flux: 5 Cyclone Dust Collector is a powerful solution for dust extraction in professional workshops. With its 5 HP motor, this cyclone provides robust performance, efficiently capturing dust and debris. The 10″ inlet port splits into three 4″ outlets, allowing you to create a comprehensive pipe system that reaches every corner of your shop. Whether you’re working with wood or metal, the T|Flux: 5 Cyclone ensures a clean and healthy work environment.

Notable features include a sunken radio frequency remote switch for convenient control, an LED full drum indicator, and LED filter dirt detection. The cyclone’s 1-micron canister filters out particles ranging from 0.2 to 2 microns, ensuring excellent air quality. If you’re serious about dust collection, the T|Flux: 5 Cyclone is a reliable choice for your shop.

Weight 430 lbs
Dimensions 75 × 39 × 80 in
Machine Specs

Specs:

Motor HP 5 HP
Phase 1
Voltage 220V
Amps 22.4 Amps
Hertz 60
Plug No
RPM 3450
Switch Type Sunken Radio Frequency Remote switch
with LED Full drum detection & LED Filter dirty detection
Hand Held Remote Control High Frequency
Real CFM 2450
Nominal CFM 4295
Max Static Pressure (inches of water) 12.1
Impeller/Fan Size 16
Impeller Material Steel
Impeller type Radial Fin
Balanced ISO 1940
Inlet Diameters 10
Drum Capacity 54Gal.
Octagon Drum Low Pressure Suction
Drum Collection Bag (Dia. x L) Plastic bag (Ø740 x 1300mmL)
Canister Filter Type Black 1 Micron
Filtration Efficiency 0.2-2micron @99.97%
MERV Rating 12
Canister Diameter Ø600mm (23.62 )
Cansiter Length 1200mm (47.24 )
Filter Surface Area 15m²
162ft²
Canister cleaning Auto Clean (gear motor)
Cleans every hour 10 sec clockwise, 10 sec counter-clockwise
Canister filter lower dust collection Plastic bag (Ø610 x 600mmL)
Wheels None
US/CSA Approved Yes
Decibel Reading 76 d B(A) (@9.8ft)
Machine weight 325kgs
717Lbs
Shipping weight 430kgs
948Lbs
Assembled Dimensions (L x W x H) 1845 x 989 x 2810 mm
