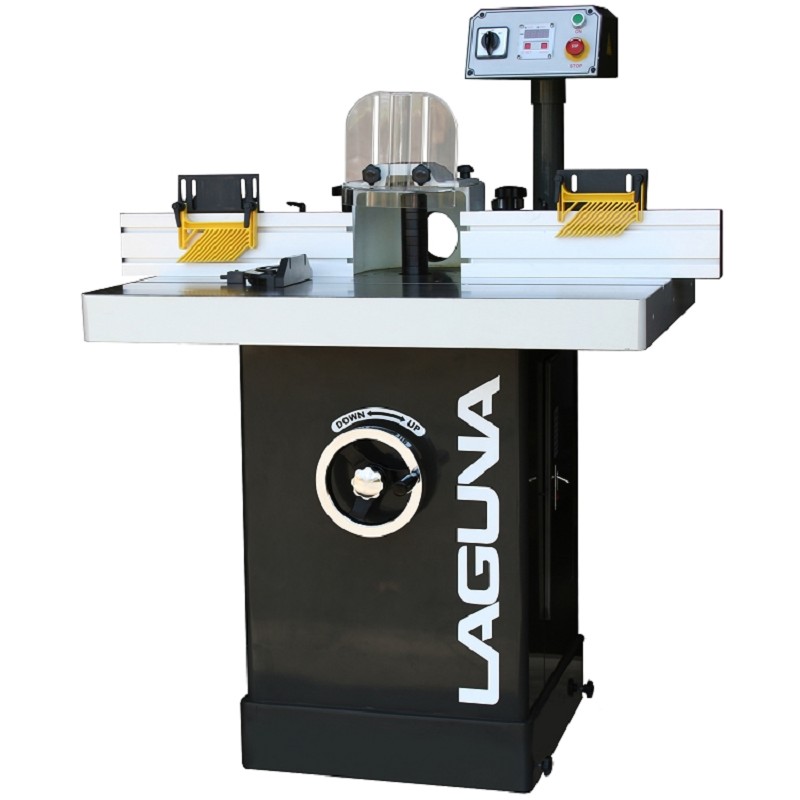

Laguna – Pro Shaper 7.5HP 220V 3 Phase


Laguna – Pro Shaper 7.5HP 220V 3 Phase

Original price was: $4,499.00.Current price is: $4,049.10.

In stock!

Ships for $199

The Laguna Pro Shaper combines a precision shaper with features normally found only in many higher-priced machines.

SKU: MSHAP5030-0130 Categories: , ,

For starters, the table measures an impressive 31 x 39 and is predrilled to accept most power feeders.The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16 adjustment to the fence.Inside you will find a heavy-duty motor available in either 5HP 220 volt single phase or 7.5 HP 220 volt three phase. Each offers 3 speeds with a unique quick change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height.

The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel. The fit and finish on this machine is top notch and even includes a wheel kit built right into the base.

The Laguna Pro Shaper is designed to give you years of trouble free performance without breaking the bank.

Machine Specs

Motor: 7 1/2 HP 3 Phase 220/440V 60 HZ Prewired 220V 3 Phase
Table Size:39-5/16 X 31-7/16 X 3-1/2
Spindle Travel: 4
Spindle Size: 3/4 and 1-1/4
Capacity Under Nut: 6 (for 1-1/4 ) & 4 (for 3/4 )
Spindle Speeds: 5000 / 7000 / 10000 rpm
Table Opening Diameter: 7-5/16
Digital Readout: Standard
Direction: Forward/Reversing Switch
Fence: Micro Adjustment
Weight (Net/Ship): 640/720 Lbs.
