Laguna P12|5 Panelsaw

Laguna P12|5 Panelsaw

$8,499.00

In stock!

Ships for $599

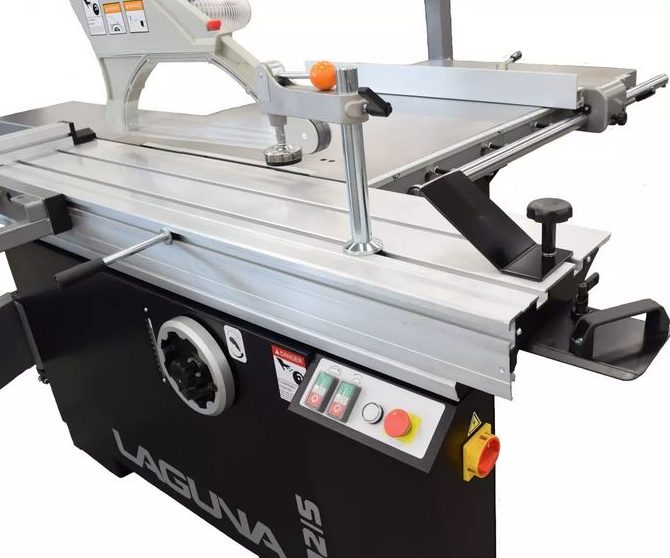

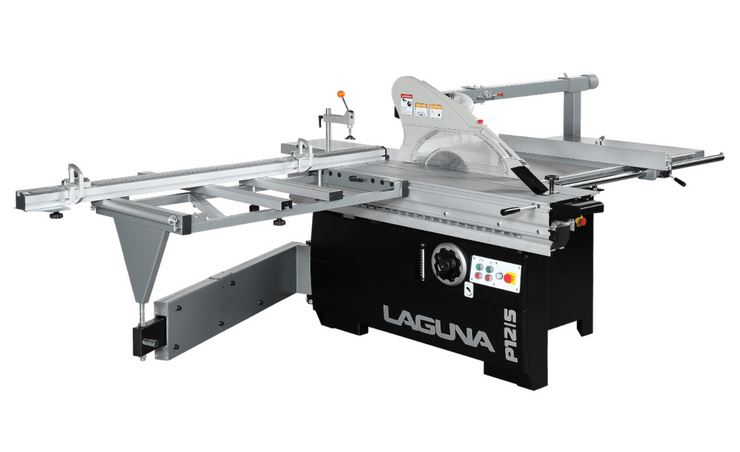

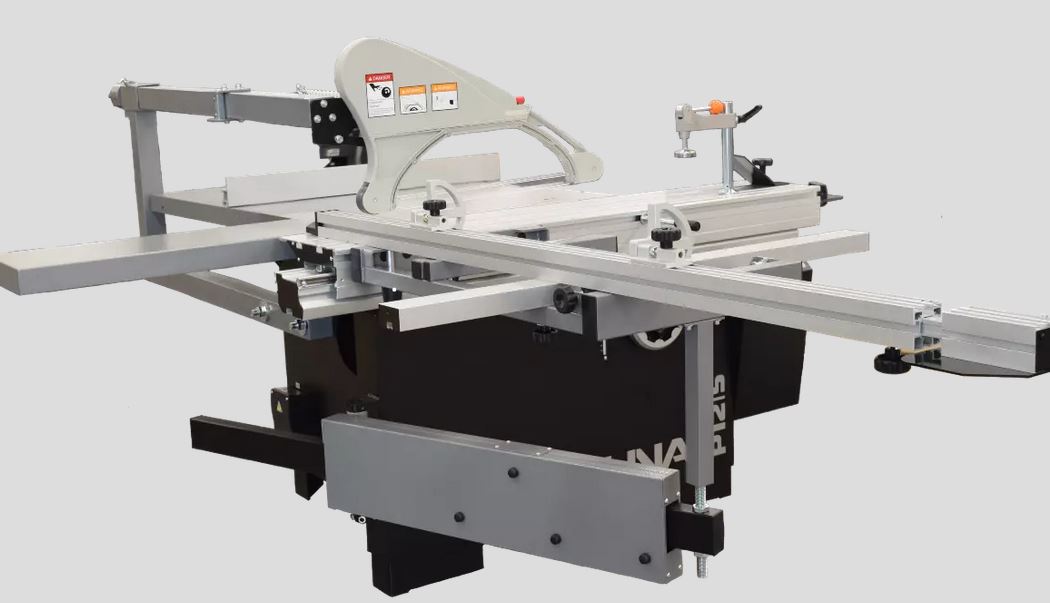

The Laguna P12|5 Panelsaw was designed as a more compact version of the popular P12|8 and P12|10 panelsaws. It features a 63″ sliding table design, a 5HP main motor, a 3/4 HP scoring motor, and a swing-away overhead guard. The telescoping cut-off fence extends to 134″, and it has a 51″ rip capacity. The 63″ sliding table is constructed of anodized aluminum, ensuring smooth movement and durability.

SKU: MPSP12-5-0135 Categories: , Tags: ,

The Laguna P12|5 Panelsaw caters to demanding professional shops. It retains all the features and qualities of the larger P12|8 but with a more compact cabinet. The 63″ dumbbell sliding table design allows precise cuts, while the 5HP main motor ensures powerful performance. Additionally, the 3/4 HP scoring motor enhances accuracy. The swing-away overhead guard provides safety during operation. With a telescoping cut-off fence extending up to 134″ and a 51″ rip capacity, the P12|5 is a versatile choice for woodworking professionals.

Weight 1045 lbs
Dimensions 66 × 47 × 43 in
Machine Specs

Specs:

Motor: 5HP Main
Motor: 3/4 HP Scoring
Volt: 220, 1 phase, 60 Hz.
Blade Capacity: 12 , 14 /300mm, 355mm
Max. Blade: 14 /355mm (minimum height when lowered: 1 /25mm)
Max Scoring Blade: 4 3/4 /120mm
Scoring Adjustment: T-Handle through Cast Top
Arbor: 30mm Main, 20mm Scoring
Max Cutting Height 90° 14 /355mm Blade: 4 1/2 /115mm
Max Cutting Height 90° 12 /305mm Blade:3 1/2 /90mm
Max Cutting Height 45° 14 /355mm Blade: 2 3/4 /70mm
Max Cutting Height 45° 12 /305mm Blade: 2 3/8 /62mm
Main Blade Speed: 4000 RPM
Scoring Blade Speed: 8000 RPM
Dust Collection Port Saw: 4 /100mm
Dust Collection Port Guard: 2 1/2 / 63mm
Sliding Table: 63 /1600mm
Sliding Table Width: 14.88 /378mm
Main Cast Table: 21 1/2 x 35 1/4
Rip Fence: 51 /1300mm
Rip Fence Micro Adjust: Included
Rip Fence Bar: 1 5/8 /40mm Solid Steel Micro Polished
Push Handle: Included
Rip Shoe: Included
Hold Down Clamp: Included
32 x 12 Steel Extension Table: Included
Crosscut Fence 2 x Flip-Stops
Crosscut Fence Readout: Inch/Metric
Crosscut Fence Max. Collapsed: 77
Crosscut Fence Max. Extended: 140
Table Lock Positions: 2 Tabs, 20 Notches = 40 Total
Ship Dimensions : 66 x 47 x 43
Weight (Net/Ship): 1405/1525 lbs
