Laguna I|Flux: 10 Elite Dust Collector

Laguna I|Flux: 10 Elite Dust Collector

$13,999.00

In stock!

Ships for $699

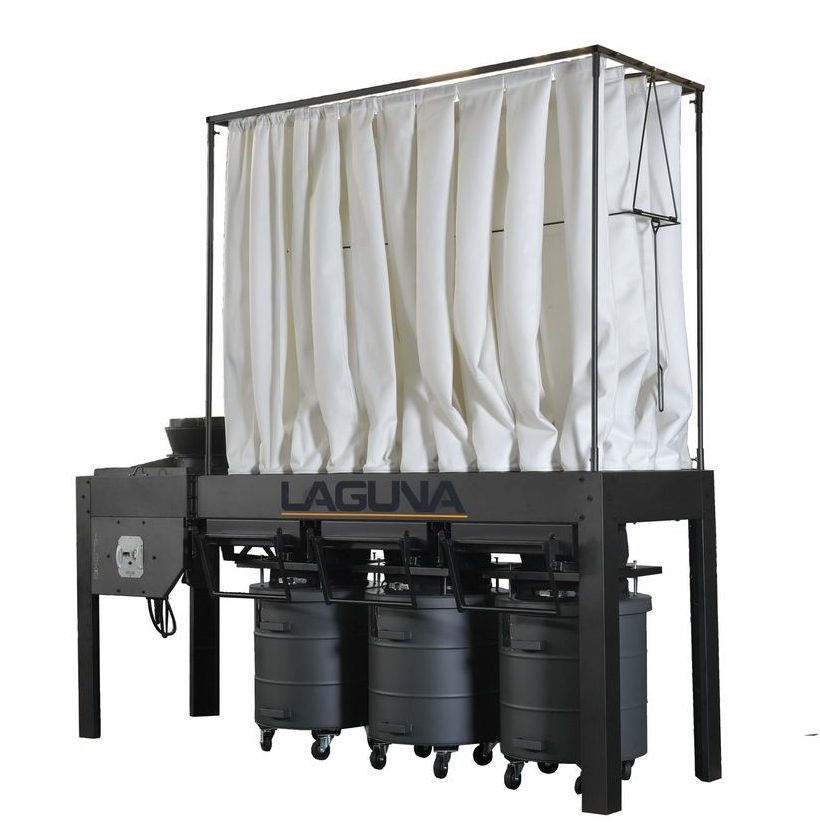

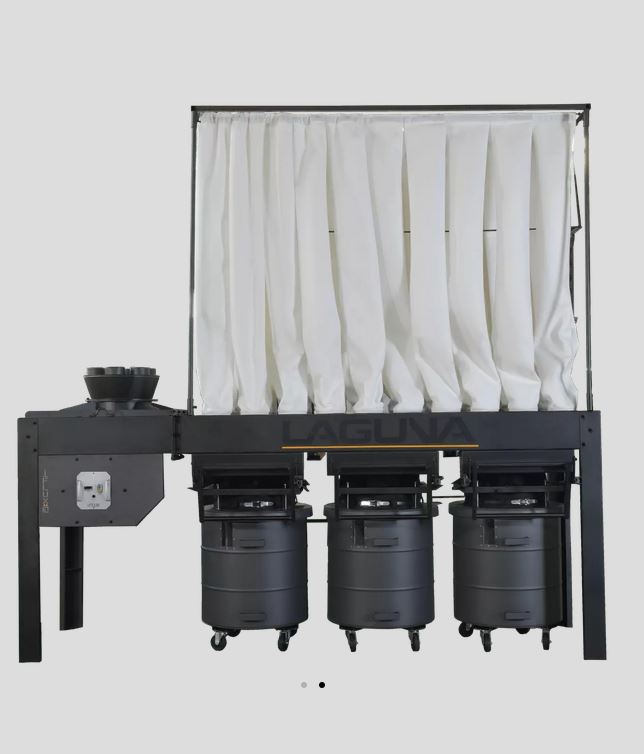

The Laguna I|Flux: 10 Elite is part of the I|Flux Elite series, designed for serious woodworking and metalworking applications. It features a powerful 10 HP motor operating at 220V (3-phase). The 15″ inlet splits into three 4″ outlets, allowing you to set up an extensive pipe system throughout your shop. With a net airflow of 5000 CFM at a static pressure of 6″wc, this dust collector is ideal for CNC routers and wide belt sanders. The innovative filter arrangement provides 409 square feet of surface area—double that of typical 10HP collectors. The manual shaker system keeps the filters clean, ensuring efficient performance.

The Laguna I|Flux: 10 Elite is a fine dust collector that excels in maintaining a clean workshop environment. Its 10 HP motor delivers robust suction power, making it suitable for various tools. The 12″ inlet splits into three 4″ outlets, allowing comprehensive coverage. The key feature lies in the filter arrangement, which boasts an impressive 409 ft² of surface area—significantly more than standard 10HP collectors. This increased filter area translates to excellent airflow, making the I|Flux: 10 Elite ideal for fine dust applications.

The positive pressure chamber pushes air through the filters, while the dust falls into the EZ Lift waste bins. As dust accumulates, a shaking mechanism helps release caked-on particles. The control panel displays motor amperage, allowing real-time monitoring. Additionally, a high-frequency remote enables convenient on/off operation within a 60-meter range. Safety standards, such as NFPA 664, ensure proper installation and use in woodworking facilities.

Weight 1113 lbs
Dimensions 75 × 39 × 80 in
Machine Specs

Specs:

Power Requirements: 220V/ 60Hz/ 3Ph

Amperage: 24.8 Amps

Floor Space (W x L): 3424mm x 1140mm

Machine Weight: 1069 lbs (485 kgs)

Motor HP: 10

Motor RPM: 1720

Air Flow: 5000 CFM @ 6?wc

Inlet Diameter: 15?

Filter Area: 409 ft²

Filter Bag (L x D x H): 40 x 168 x 1800mm

Filter Bag Material: Polyester

Filter Cleaning: Manual Shaker

Waste Bin: EZ-Lift Metal Bin 64 Gal. x 3

Shipping Weight: 1113 lbs

Shipping Dimensions (L x W x H): 75" x 39" x 80"
