Laguna Edgebander Bandit 3/2

Laguna Edgebander Bandit 3/2

$12,999.00

In stock!

Ships for $599

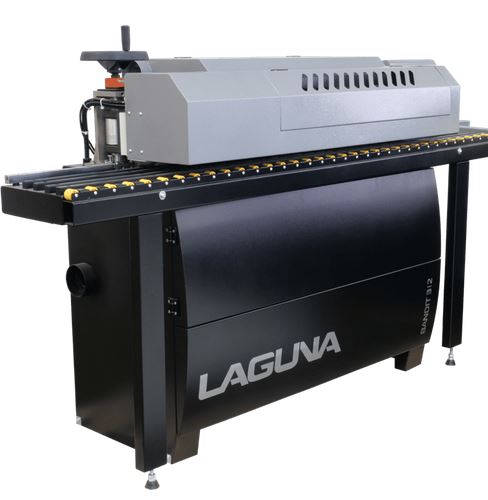

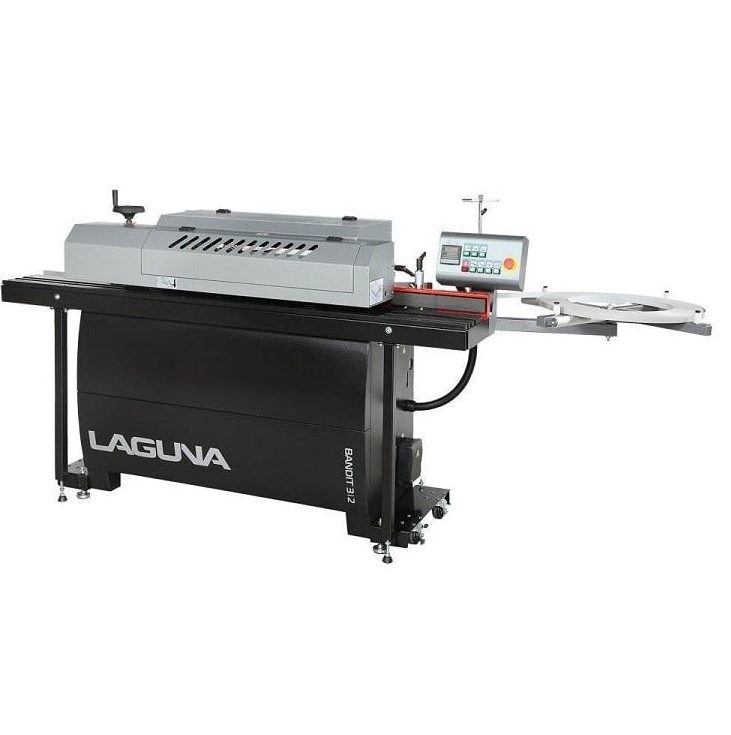

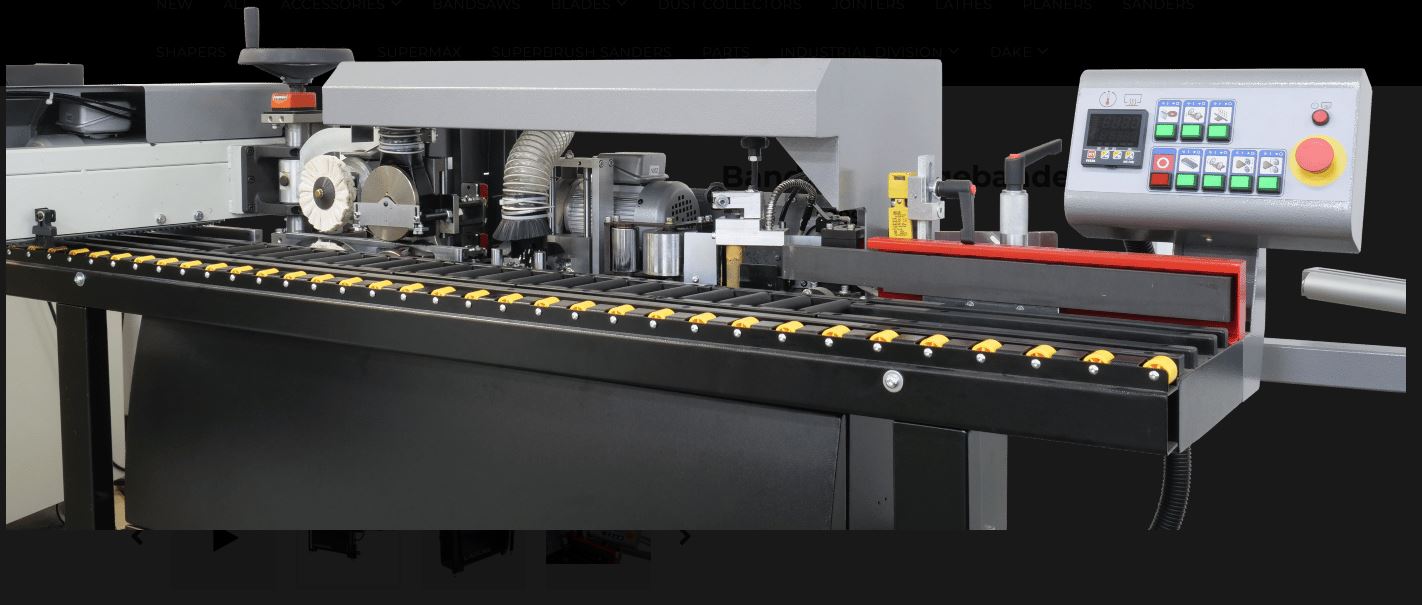

The Laguna Edgebander Bandit 3/2 is the compact heavy-weight in Laguna’s line of automatic edgebanders. Designed for everyday professional use with all 2mm materials, it offers maximum flexibility for working with PVC, wood tape, laminate, and wood strips. Key features include automatic end trim with dual blade end cutting units, edge trimming using dual high-frequency motors, a buffing unit, an adjustable overhead control panel, pull-out support rollers for wide panels, and electronic temperature control with a digital readout.

The Laguna Edgebander Bandit 3/2 is a reliable choice for professional woodworkers. Its 10 HP motor operates at 220V (1 phase, 40 Amps), providing robust performance. The gluepot system allows versatility in material usage, accommodating PVC, wood tape, laminate, and wood strips up to 2mm thick. The machine features automatic end trimming with dual blade units, edge trimming using dual high-frequency motors, and a buffing unit for a polished finish.

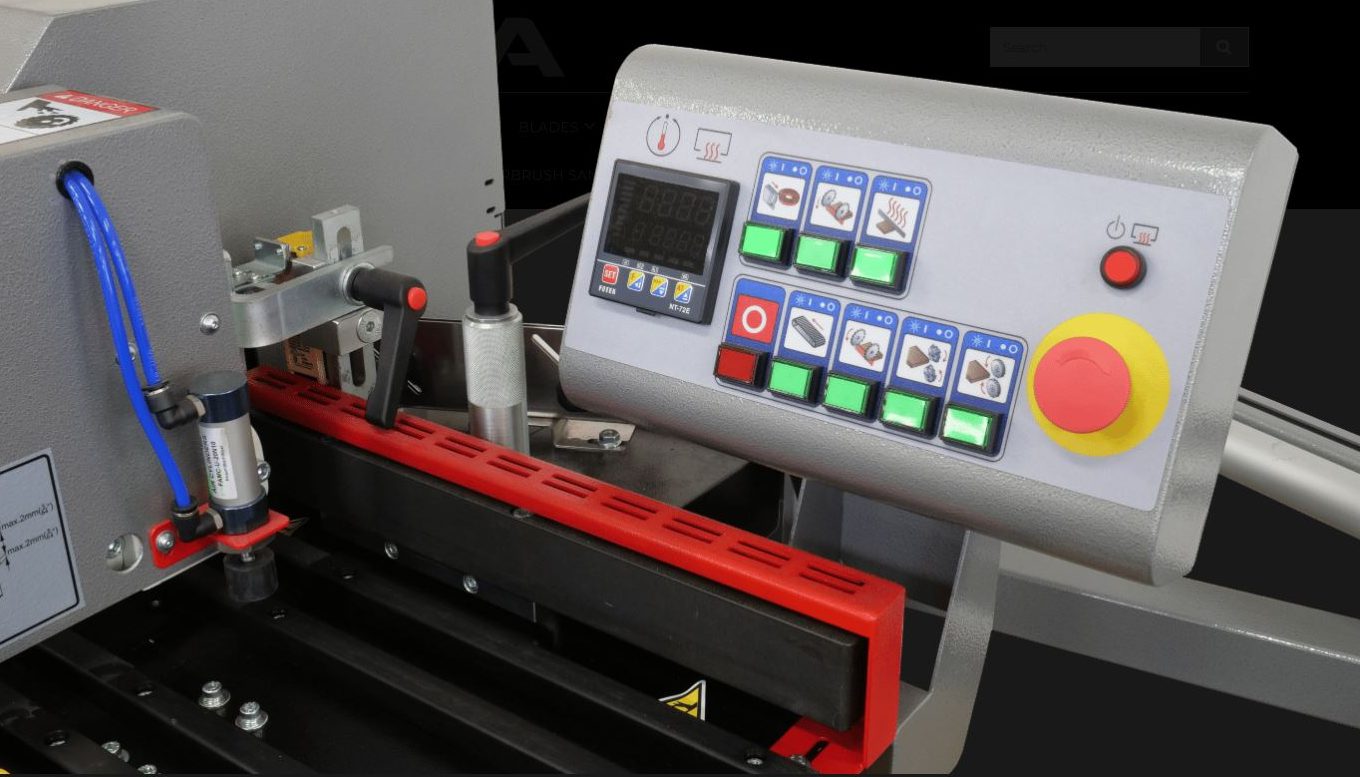

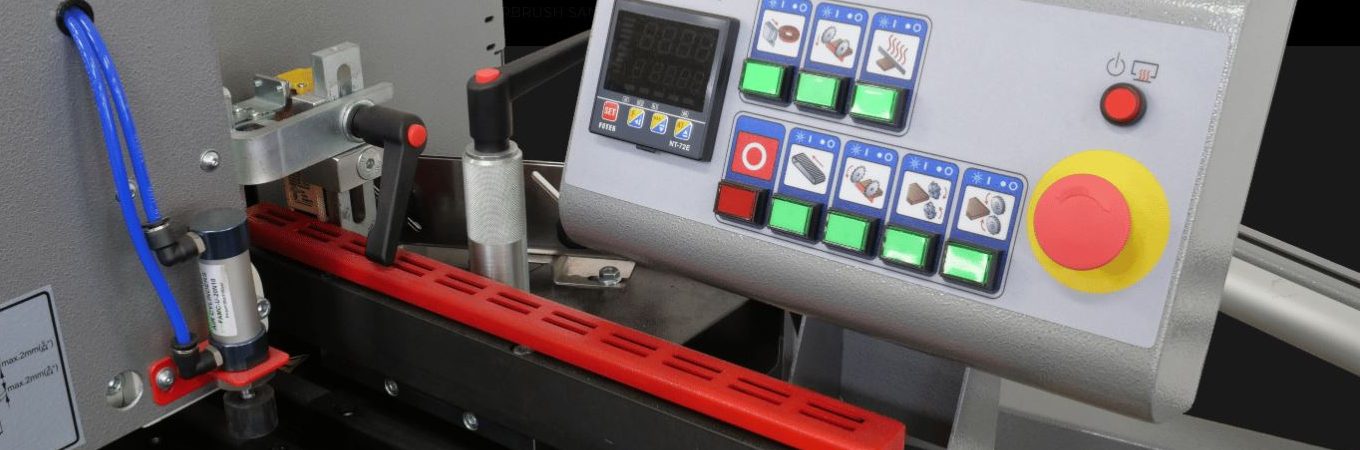

The adjustable overhead control panel ensures ease of operation, while pull-out support rollers facilitate handling of wide panels. The electronic temperature control with a digital readout ensures precise glue application. Whether you’re edging cabinets, furniture, or other woodworking projects, the Bandit 3/2 delivers consistent results.

Weight 1200 lbs
Dimensions 84 × 29 × 52 in
Machine Specs

Specs:

Power: 220 Volt, 1 phase 40 Amp
Compressed Air Required: 87 PSI Clean dry air
Tape Thickness (min-max): 0.4 mm 2 mm
In-feed Fence: Heated
Glue Tank Capacity: 30 oz Teflon Coated
Glue Heating: 5 Elements with Auto Temp Control
Glue Application: Micro-adjustable
Pressure Rollers: Dual
Panel Feed: Automatic Belt Feed
Work Table Length: 79
Minimum Panel Length: 9.44
Minimum Panel Width: 4 3/4
Panel Thickness (min-max): .47 1.77
Dust Collection Port: 4
Edgebanding Coil Capacity: 31.5 diameter
End Trim: Saw blade Front and Rear Automatic
Edge Trim: Carbide Insert Shaper Cutters Top and Bottom
Buffing: Top and Bottom
Weight: 1200 LBS
Shipping Size: 84 x 29 x 52 (LWH)
Pull-out support: Standard
Centralized Controls: PLC Standard
Mobility Kit: Optional
