Jet JWS-35X5-1 Industrial Shaper 5HP, 1Ph

$3,699.99

In stock!

This heavy-duty JET Shaper is available with a powerful 5HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.

SKU: JT9-708326 Categories: , , Tags: , , , , , ,

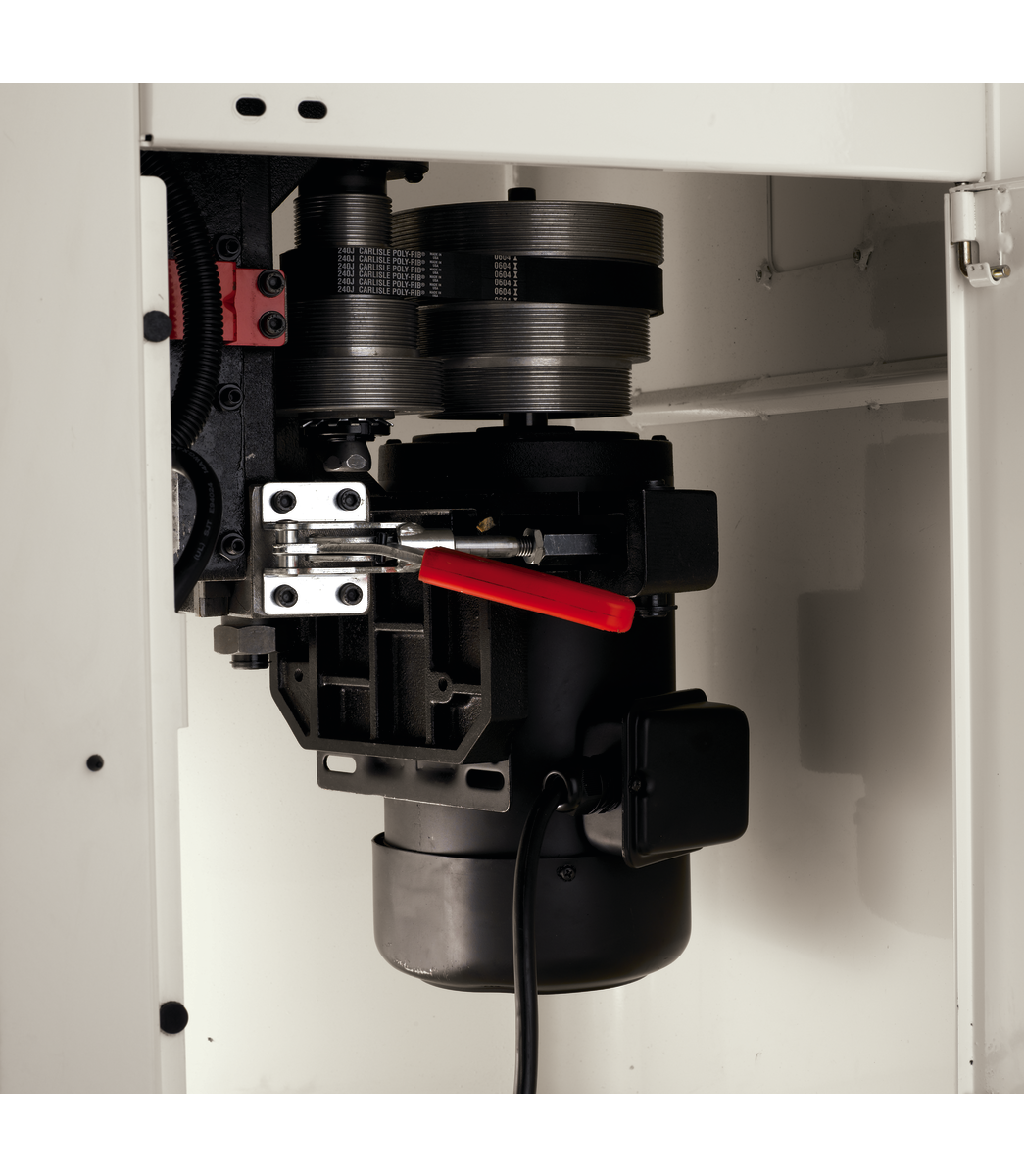

• Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
• Powerful 5HP, 1Ph motor with magnetic controls
• Poly-V-belt transfers maximum power to the spindle

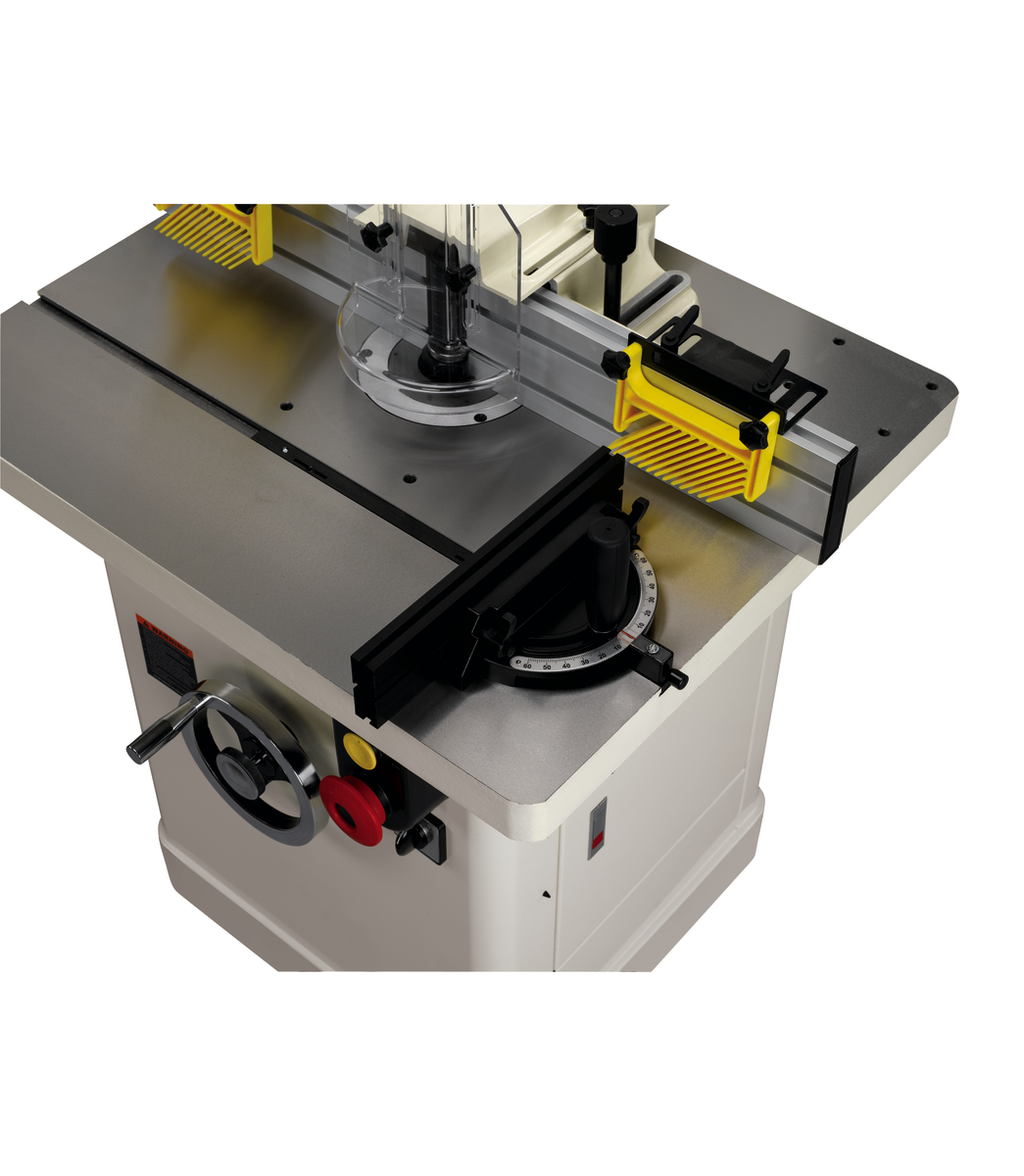

• Large 26-3/4” X 32-1/4” precision ground cast iron table provides a durable work area, predrilled for power feeder
• Spindle height scale
• Starting pins for irregular shaping

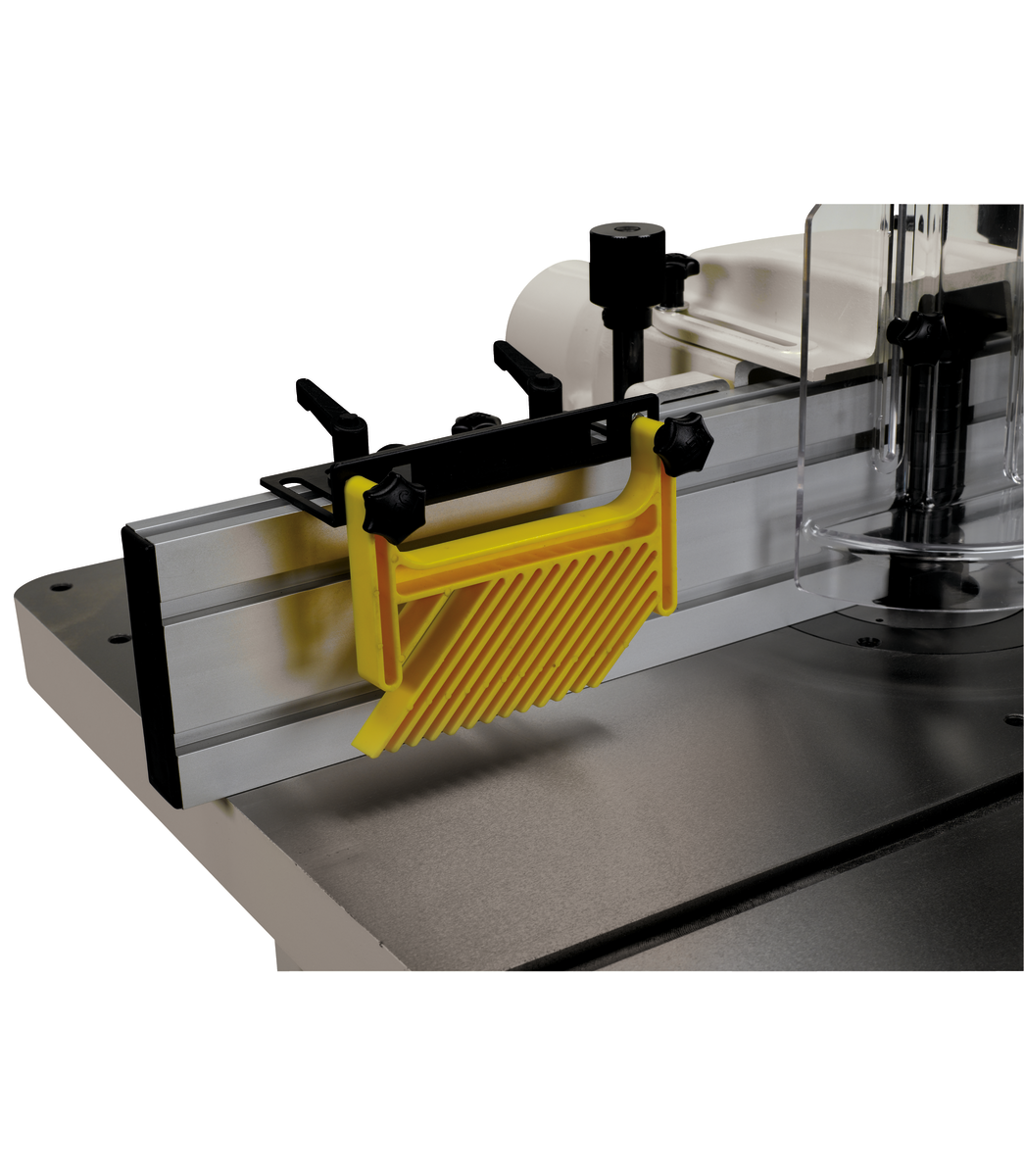

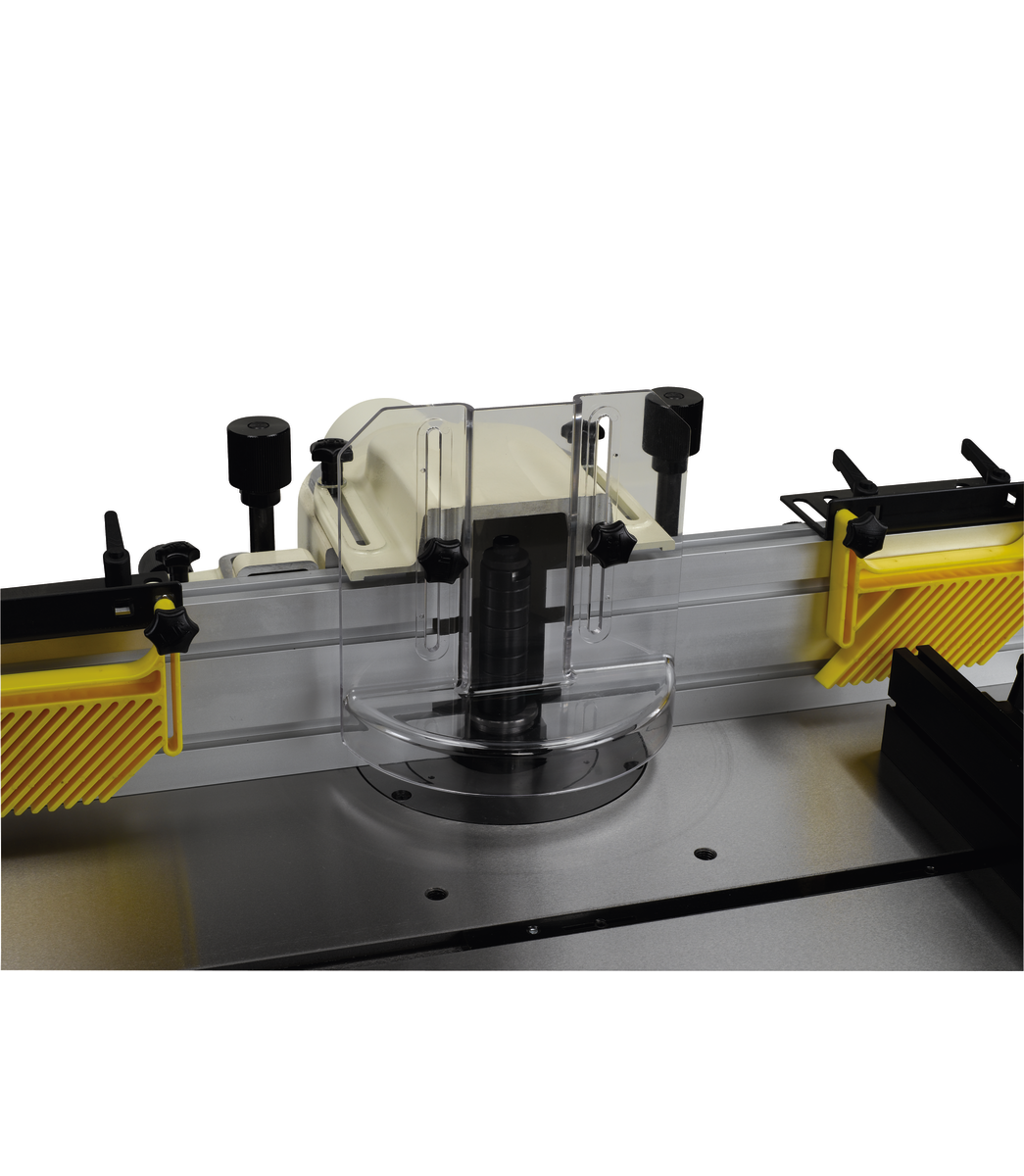

• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
• Reversible spindle speeds for diverse shaping jobs
• 4″ Dust port built into fence for convenient hookup to any dust collection system

Machine Specs

Spindle Speed (RPM) 4000/6000/8000/10000
Maximum Spindle Diameter (In.) 1-1/4
Spindles Included 1-1/4″
Spindle Size Under Nut (In.) 4
Spindle Travel (In.) 4
Reversible Yes
Maximum Diameter Cutter Above Table (In.) 7-1/2
Maximum Diameter Cutter Below Table (In.) 6
Table Opening Diameter (In.) 6-19/64
Table Inserts (In.) 2
Table Insert Opening Diameter (In.) 2-9/16, 4-5/16
Table Size (L x W) (In.) 32-1/4 x 26-3/4
Table T-Slot (In.) 3/4 x 3/8
Table Height from Floor (In.) 33-1/4
Fence Size (L x H) (In.) 16 x 4-3/4
Fence Travel (Major and Minor) (In.) 4, 1
Dust Port Outside Diameter (In.) 4
Dust Collection Minimum CFM Required (CFM) 600
Electrical Controls Yes
Motor Power (HP) 5
Motor Phase (PH) 1
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Motor Amps 17
