Jet JWS-25X, JET Shaper, 3HP, 1PH

Jet JWS-25X, JET Shaper, 3HP, 1PH


In stock!

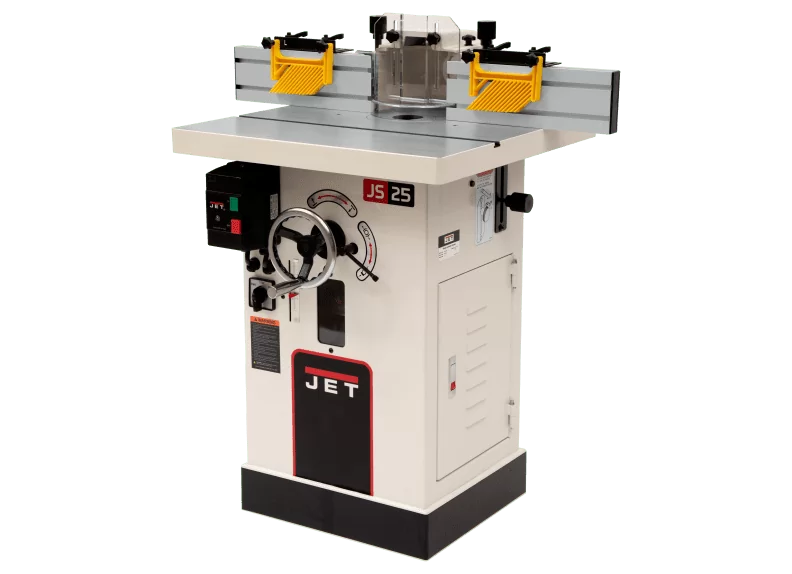

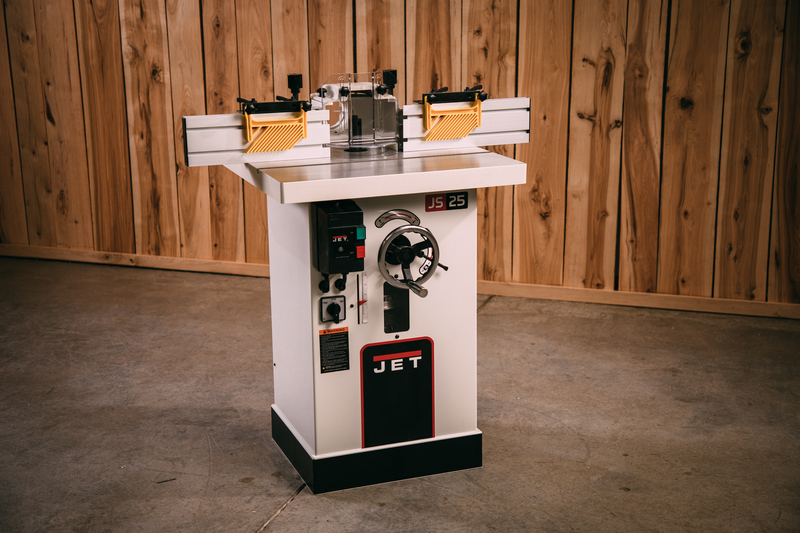

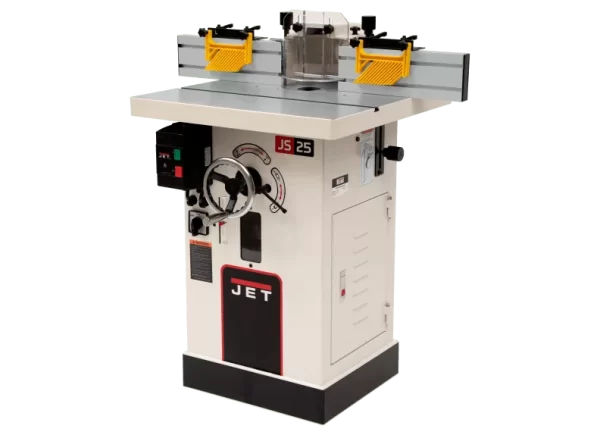

The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25”x 25-1/2” precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4” dust port.

SKU: JT9-708309 Categories: , ,

• Two-speeds let you select the best speed and torque for different cutter diameters

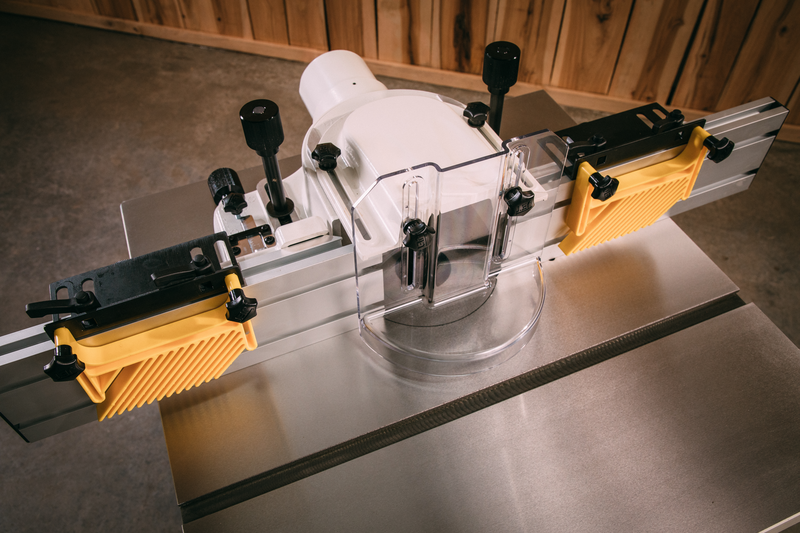

• Independently adjustable left and right fences, standard with a micro adjust control for precise positioning

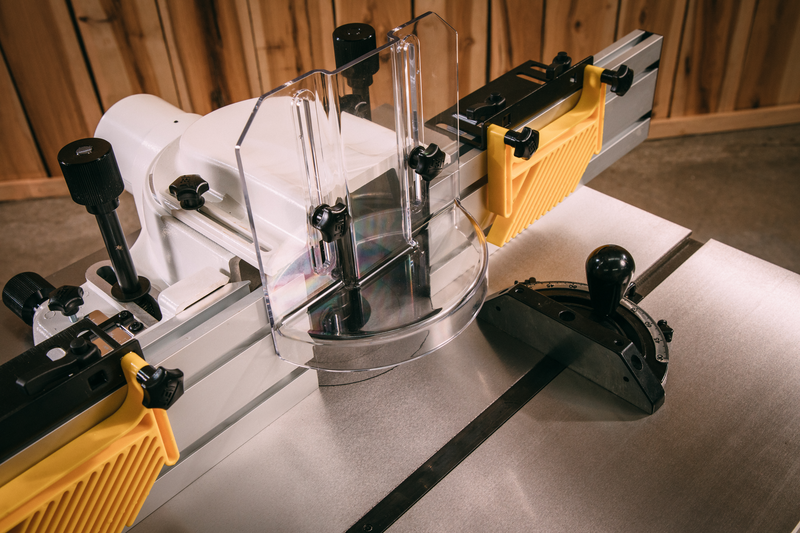

• Large 25” X 25-1/2” precision ground cast iron table provides a durable work area
• V-belt transfers maximum power to the spindle
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Reversible spindle speeds for diverse shaping jobs
• Powerful 3HP, 1Ph motor with magnetic controls
• Starting pins for irregular shaping
• Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
• 4” Dust port built into fence for convenient hookup to any dust collection system

Machine Specs

Spindle Speed (RPM) 7500/10000
Maximum Spindle Diameter (In.) 1/2, 3/4
Spindle Size Under Nut (In.) 2-13/64, 3-3/16
Spindle Travel (In.) 3-1/2
Reversible Yes
Router Bit Collet Included No
Maximum Diameter Cutter Above Table (In.) 7
Maximum Diameter Cutter Below Table (In.) 6

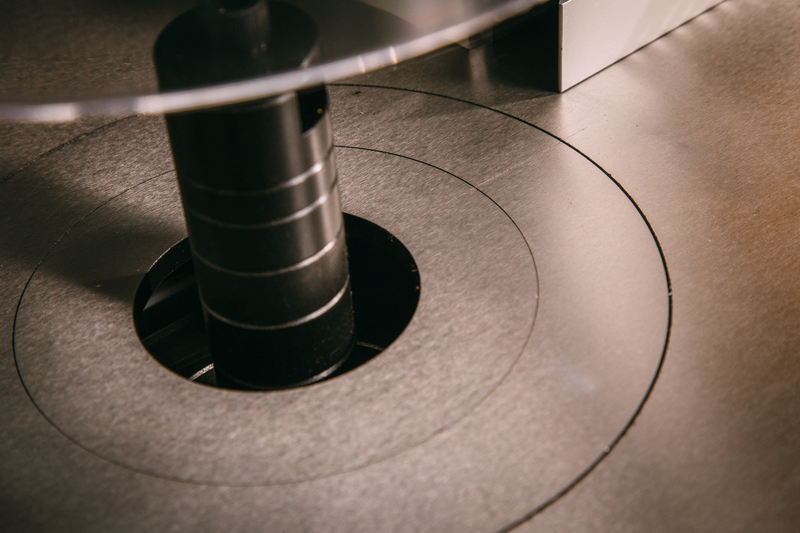

Table Opening Diameter (In.) 6-9/32
Table Inserts (In.) 2
Table Insert Opening Diameter (In.) 2-9/16, 4-21/64
Table Size (L x W) (In.) 25-1/2 x 25
Table T-Slot (In.) 3/4 x 3/8
Table Height from Floor (In.) 33
Fence Size (L x H) (In.) 14-1/2 x 4-3/4
Fence Travel (Major and Minor) (In.) 4-1/4, 15/16
Dust Port Outside Diameter (In.) 4
Dust Collection Minimum CFM Required (CFM) 600
Electrical Controls Yes
Motor Power (HP) 3
Motor Phase (PH) 1
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Motor Amps 16
Recommended Circuit Size (Amps.) 30
