Jet JWP-208-1, 20″ 3HP, 1Ph Planer

Jet JWP-208-1, 20″ 3HP, 1Ph Planer


In stock!

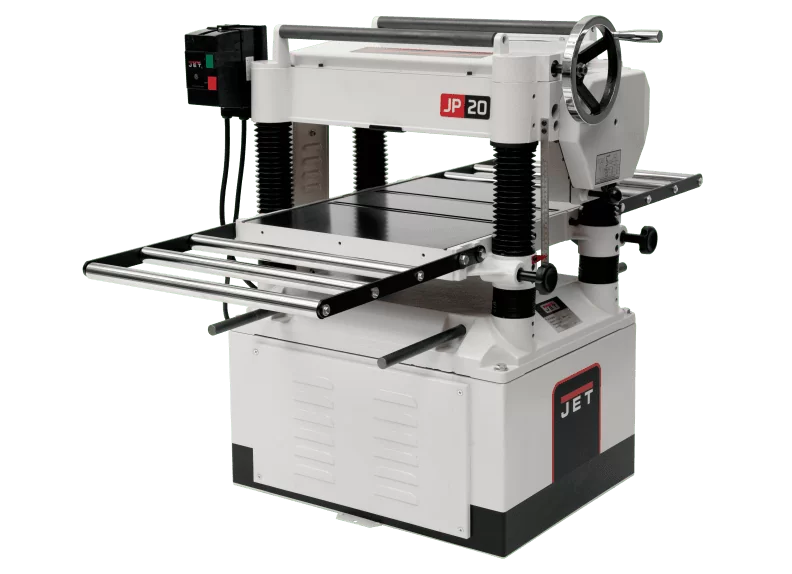

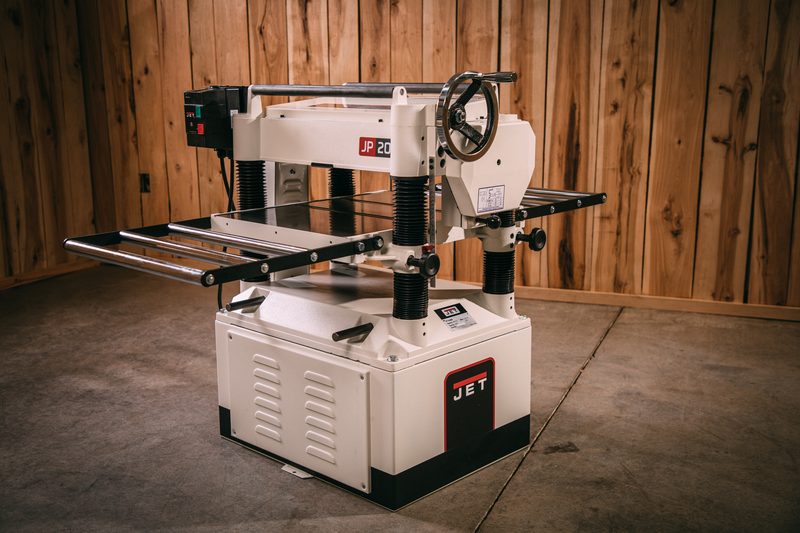

The JET JWP-208-1 planer quickly and quietly transforms rough lumber into smooth boards, with a full 20” planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments. This machine means business with a powerful 3 HP induction motor. You’ll appreciate the sets of three steel infeed and outfeed rollers to help prevent annoying snipe. A large cast-iron table with smooth-as-glass surface makes this planer a beautiful addition to the shop. And since planers kick up a lot of dust, we made dust collection easy with an exclusive angled 4″ dust port to keep your hose out of the way.

SKU: JT9-708528 Categories: , ,

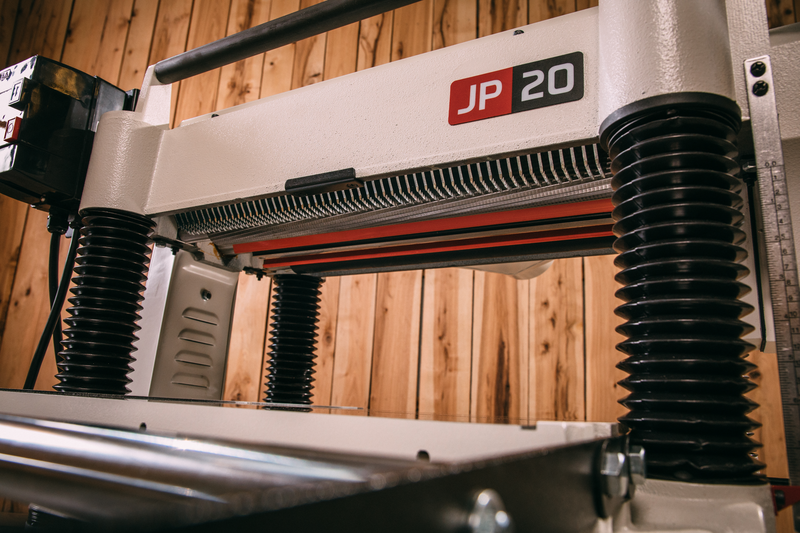

• Four high-speed steel cutter knives produce faster, smoother cutting
• Heavy-duty cast iron and steel construction for added strength and durability

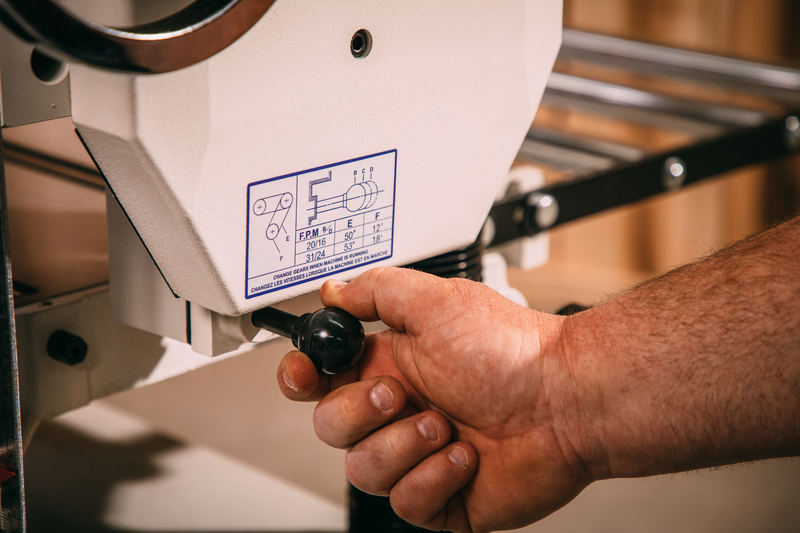

• Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
• Large, cast iron, precision ground table for precise workpiece support
• Powerful 3 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
• Sets of three steel infeed and outfeed rollers to help in the prevention of snipe
• Positive gear drive moves table quickly and accurately
• Work table is precision-ground and polished for consistently smooth operation
• Large handwheel with positive gear drive allows for quick and accurately table adjustments

Machine Specs

Style (Type) Floorstanding Model
Cutterhead Speed (RPM) 5000
Cutterhead Diameter (In.) 3-3/16
Number of Knives 4
Maximum Full Width Depth of Cut (In.) 3/32
Maximum Planing Width (In.) 20
Maximum Planing Thickness (In.) 8
Minimum Planing Length (In.) 6-3/4
Feed Rate (FPM) 24/31
Table Size (L x W) (In.) 25-3/4 x 20
Dust Collection Minimum CFM Required (CFM) 400
Dust Port Outside Diameter (In.) 5
Motor Power (HP) 3
Motor Phase (PH) 1
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Motor Amps 14
