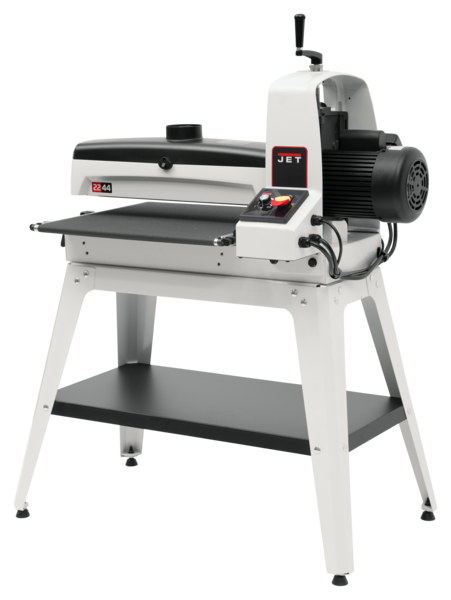

Jet JWDS-2244 22″ Drum Sander With Stand

Jet JWDS-2244 22″ Drum Sander With Stand


In stock!

Introducing the newly designed JWDS-2244 Drum Sander from JET. The 1.75 horsepower motor delivers plenty of power to handle just about any sanding task. The innovative tool-less parallelism system keeps adjustments simple. The worktable is easily positioned by a turn of the parallelism dial. The variable-speed rate permits you to choose the optimal feed rate for a full range of projects, while the Sandsmart™ feature continuously monitors the load on the drum motor to prevent an overload situation. The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish. The JET JWDS-2244 Drum Sander delivers everything you need for an effortless finish.

SKU: JT9-723540OSK Categories: , ,

• Sandsmart™ control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload

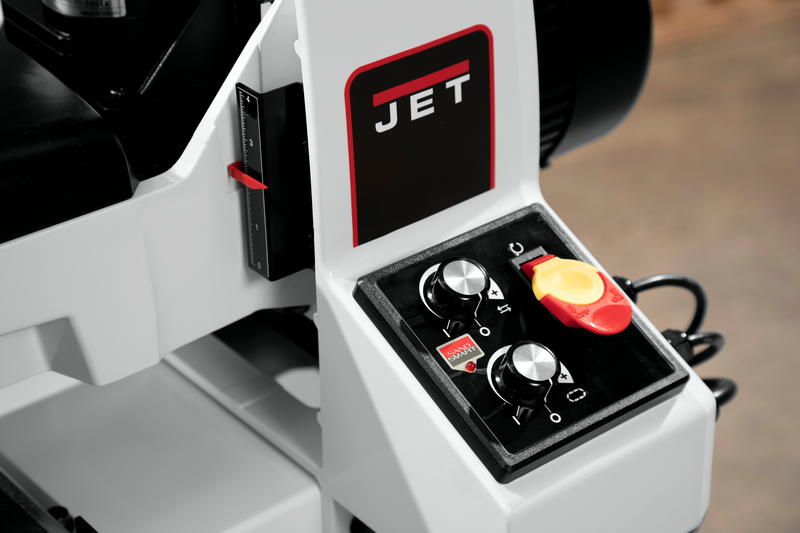

• Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed – no tools required
• Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position

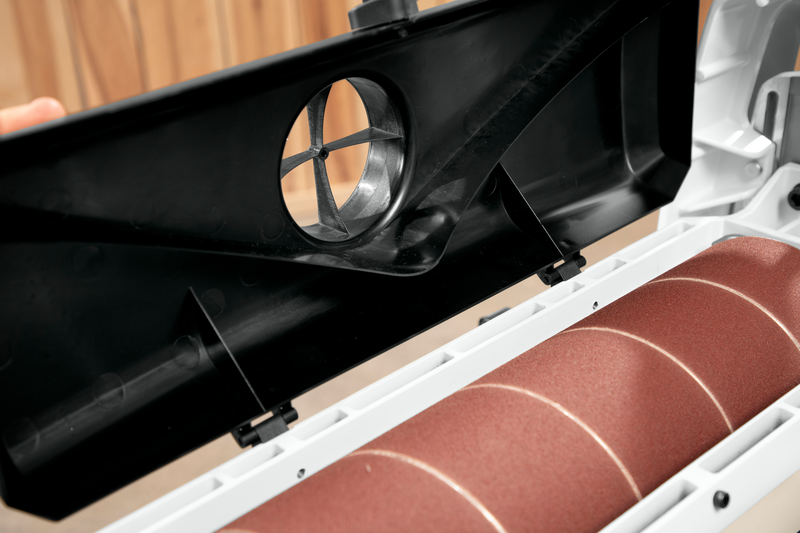

• Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4″ collection port
• Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
• Precision-flattened reinforced steel conveyor bed
• Redesigned conveyor system pulls the workpiece through the sander instead of pushing
• One rotation of the top-position handwheel adjusts the drum height by 1/16″
• The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
• Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate

Machine Specs

Style (Type) Floorstanding Model
Drum Length (In.) 22
Drum Speed (RPM) 1,720
Drum Diameter (In.) 5
Conveyor Motor 43 in.-lbs. torque, direct drive, dc
Conveyor Speed (FPM) 0 – 10
Maximum Board Thickness (In.) 4
Maximum Board Width (In.) 44 (two passes)
Minimum Board Length (In.) 2-3/8
Minimum Board Thickness (In.) 1/32
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 1-3/4
Motor Phase (PH) 1
Motor Voltage (V) 115
Motor Amps 15
