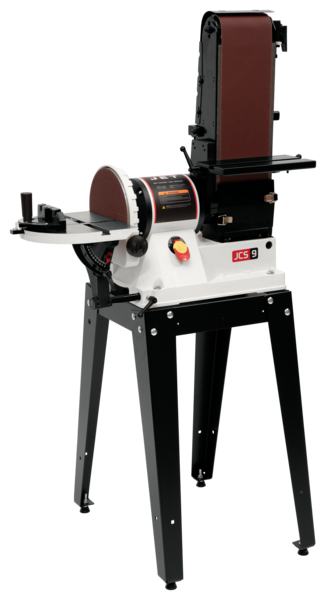

Jet JSG-96OS, 6″ x 48″ Belt / 9″ Disc Sander with Open Stand, 3/4HP 1Ph, 115V

Jet JSG-96OS, 6″ x 48″ Belt / 9″ Disc Sander with Open Stand, 3/4HP 1Ph, 115V

$1,099.99

In stock!

The unique JSG-96OS Sander combines a 9″ disc and 6″ x 48″ belt for workshop versatility. While small and compact, the JSG-96 offers industrial 3/4 HP power while taking up a small footprint in your shop. A quick-release belt tension lever makes belt changes fast and easy while a quick-lock dust cover allows fast disc changes.

SKU: JT9-708596K Categories: , ,

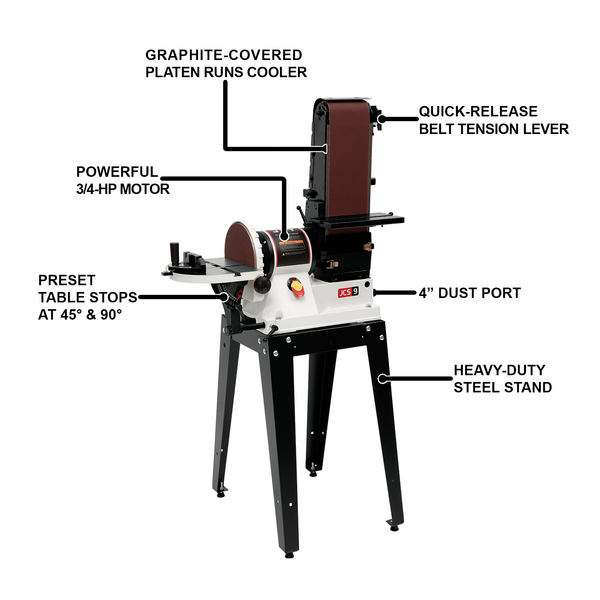

• Large cast iron table has preset stops at 90° and 45° to let you use the belt sander vertically, horizontally or anywhere in between
• Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
• Graphite covered steel platen runs cooler increasing machine and belt life
• Specially designed belt guard allows full use of the 6″ belt width and length
• Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
• Tracking adjustment knob with quick-lock handle keeps belt on track during use
• Quick-release belt tension lever makes belt changes fast and easy
• Quick-lock dust cover allows fast disc changes
• Single 4″ dust port on the back of the base collects dust effectively from both the belt and disc
• Powerful 3/4HP motor easily handles the toughest sanding operations

Machine Specs

Style (Type) Open Stand
Disc Diameter (In.) 9
Disc Speed (RPM) 1725

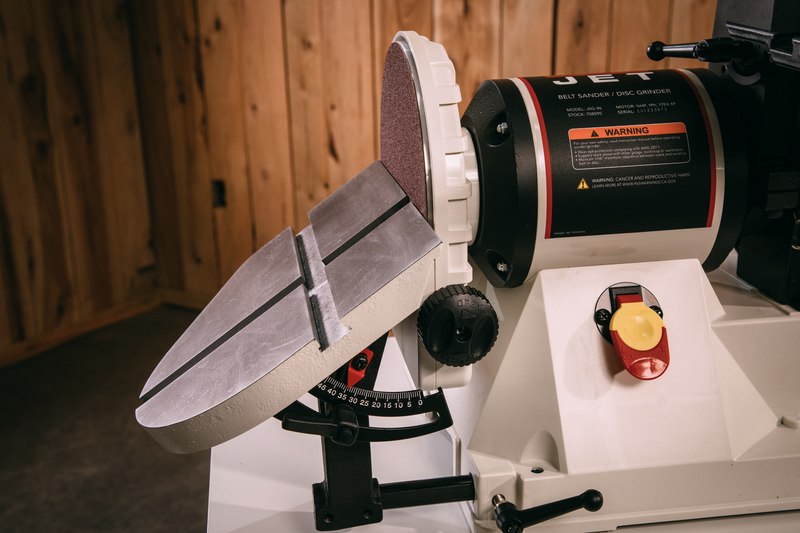

Disc Table Tilt (Deg.) 10 Up, 45 Down
Disc Table Size (L x W) (In.) 12 x 7-1/2
Sanding Belt Size (L x W) (In.) 48 x 6
Belt Speed (RPM) 2258

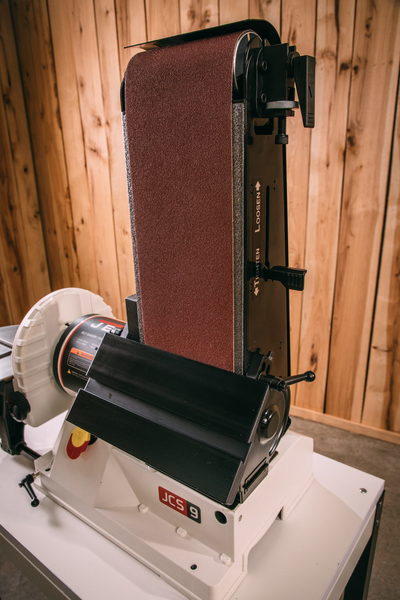

Belt Table Tilt (Deg.) 10 Up, 45 Down
Belt Table Size (L x W) (In.) 11 x 5-1/2
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 3/4
Motor Phase (PH) 1
Motor Voltage (V) 115
Prewired Voltage (V) 115
Motor Amps 11
