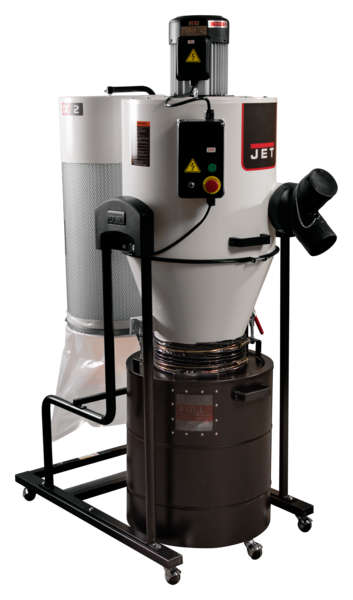

Jet JCDC-2 Cyclone Dust Collector, 2HP, 230V

Jet JCDC-2 Cyclone Dust Collector, 2HP, 230V


In stock!

Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.

SKU: JT9-717520 Categories: , ,

• The cyclone’s two stage separation provides more working CFM than comparable horsepower single stage units
• Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
• Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends

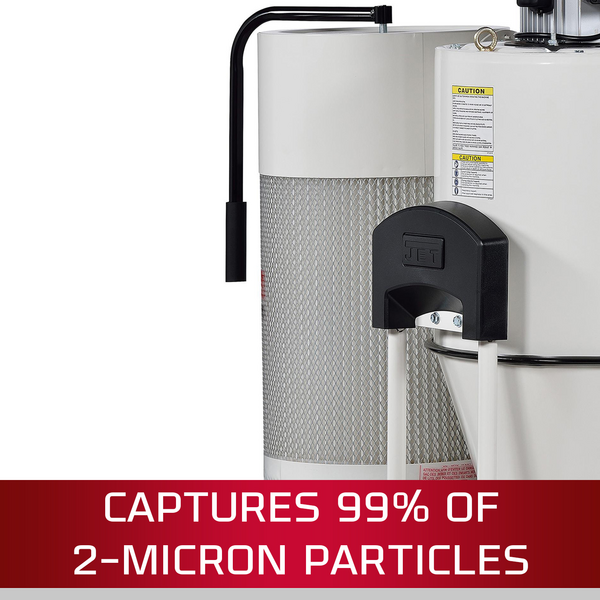

• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
• Heavy debris is captured in a 30 gallon drum with quick release levers and independent casters for quick emptying
• Included radio frequency remote control works from up to 50 feet away
• Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff

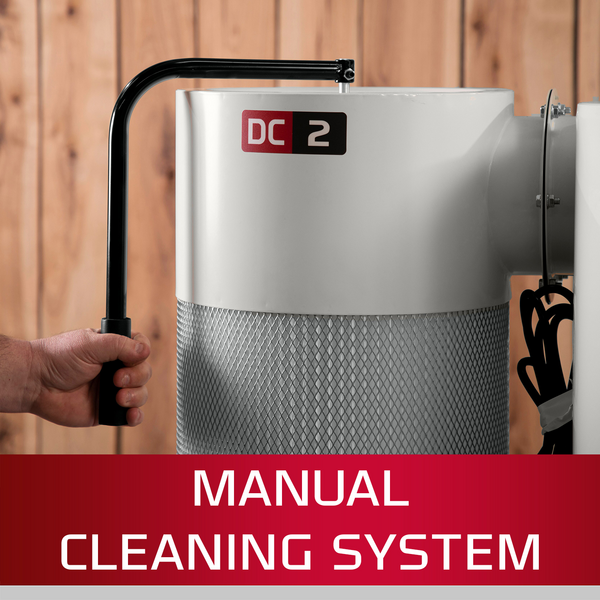

• Double paddle manual cleaning system quickly cleans the pleated filter
• Swivel casters make it easy to move the unit around the shop

Machine Specs

Air Velocity (US Method) @ 6″ (FPM) 4,763 (24.2 m/s)
Air Velocity (EU Method) @ 6″ (FPM) 7,813 (39.7 m/s)
Static Pressure Loss (US Method) (Wc.) 2.520
Static Pressure Loss (EU Method) (Wc.) 3.780
Max. Static Pressure (Wc.) 10.079
MERV Value 13
Filter Efficiency (Micron) 1
Efficiency (Micron) 99% of 2 micron particles
Canister Filter Length (In.) 22-5/8
Canister Filter Diameter (In.) 14-9/16
Canister Collection Bag (Dia. x L/In.) 23-5/8 x 19-11/16
Filter Bag/Canister Length
Collection Bag Capacity
(Cu. Ft.)
Collection Bag Length (In.)
Bag Diameter (In.)
Collection Drum Capacity (gal.) 30

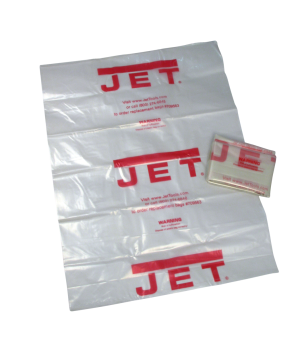

Drum Collection Bag (Dia. x L/In.) 30-11/16 x 32-11/16
Impeller Material Steel
Impeller Diameter (In.) 14-1/2
Impeller Fins Radial
Sound Rating (Db.) 76
Motor Speed (RPM) 3,450
Motor Power (HP) 2
Motor Phase (PH) 1
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Motor Amps 9
Recommended Circuit Size (Amps.) 15 A
Wiring Remarks
Footprint (L x W/In.) 50-5/8 x 25-7/8
Assembled Dimensions (L x W x H/In.) 25-7/8 x 50-5/8 x 72-1/4
