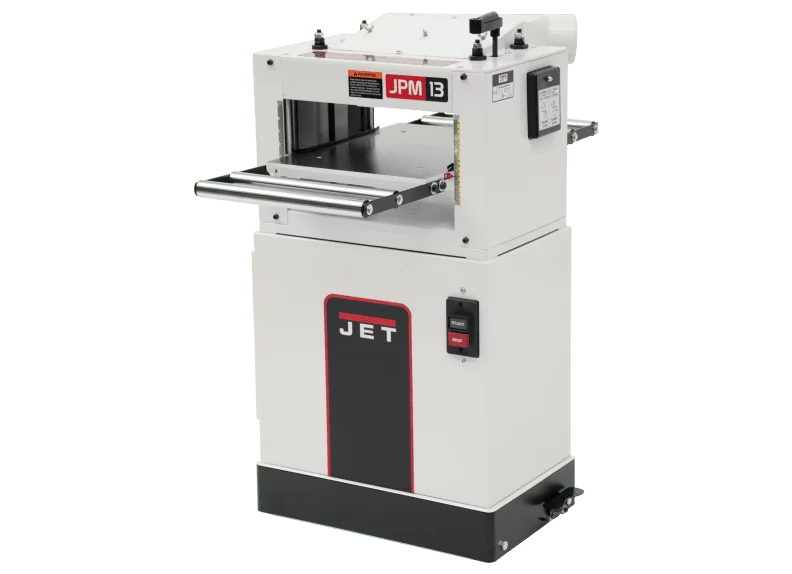

Jet JPM-13CS, 13″ Closed Stand Planer / Molder, 1-1/2HP, 1Ph, 115/230V

Jet JPM-13CS, 13″ Closed Stand Planer / Molder, 1-1/2HP, 1Ph, 115/230V

$1,699.99

In stock!

The JET JPM-13CS 13″ Closed Stand Planer / Molder boasts a 1.5 HP motor. The sturdy cast iron table and base provide strength and reduce vibration during use. The Three cutter head design produces a superior finish. Built in lockable caster add support and stability to the machine while allowing it to be maneuverable.

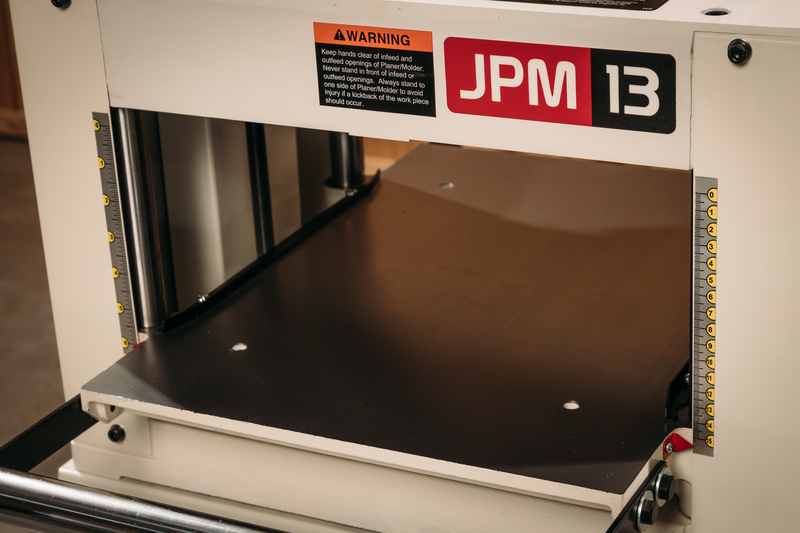

• Cast iron table and base provide strength and reduce vibration during use
• Four precision-ground column design feature adds stability when raising and lowering the table

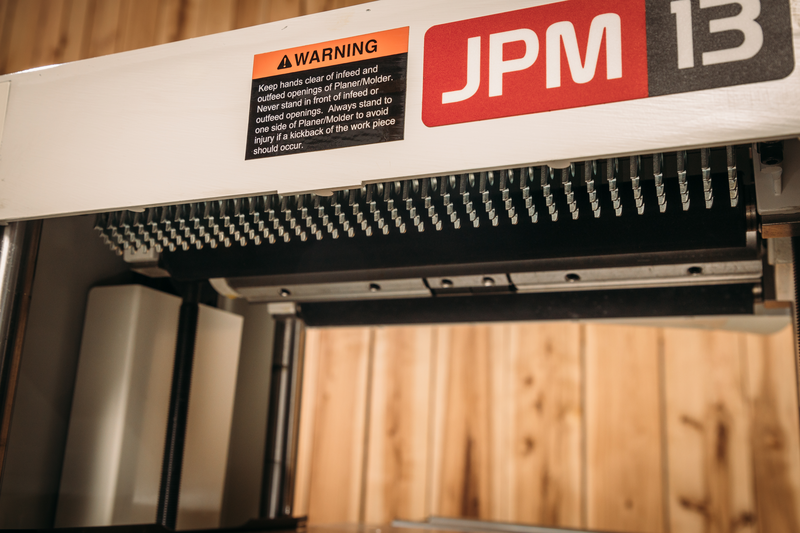

• Three cutter head design produces a superior finish in either application
• Two speed gear box has feed rates set for optimum planing and molding results
• Molding cutter head accommodates over 40 standard molding cutter sets; most 2″ or smaller heads can be installed without removing the planning knives to save you set-up time
• Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood
• Top-mounted height adjustment handle is easy to use for quick table height changes
• Totally enclosed fan-cooled 1-1/2HP motor uses two matched V-belts to deliver smooth, consistent power to the cutter head
• Exclusive angled 4″ dust port keeps the dust hose out of the way while providing efficient chip and dust removal

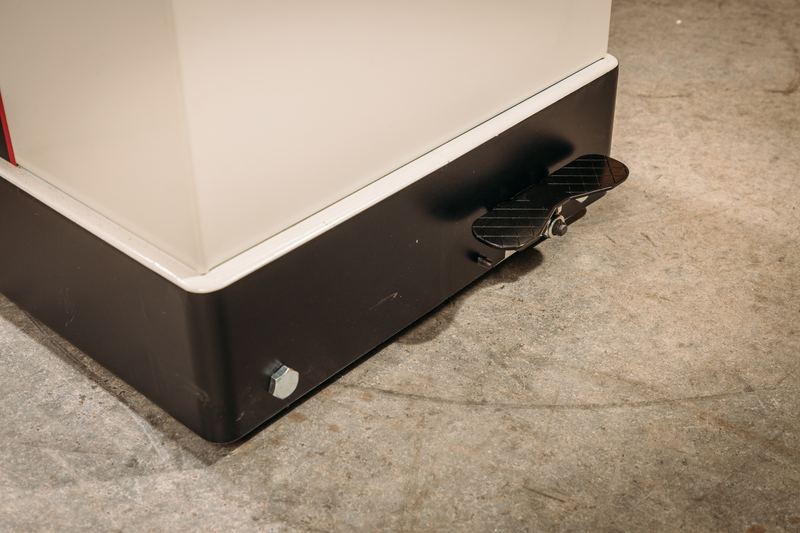

• Built-in lockable casters add support and stability to machine while in use

Machine Specs

Style (Type) Planer/Molder
Maximum Planing Width (In.) 13
Minimum Planing Length (In.) 14
Maximum Planing Thickness (In.) 6-1/8
Number of Knives 3
Cuts Per Minute 13500
Cutterhead Diameter (In.) 2-9/16
Cutterhead Speed (RPM) 4500
Feed Rate – Planing (FPM) 20
Feed Rate – Molding (FPM) 10
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 1-1/2
Motor Phase (PH) 1
Motor Voltage (V.) 115/230
Prewired Voltage (V.) 115
Motor Amps 15/7.5

Voltage

115, 230

Phase

Single Phase
