Jet JWDS-1632OSC, 16″ x 32″ Oscillating Drum Sander, 10 FPM, 1Ph 115V

Jet JWDS-1632OSC, 16″ x 32″ Oscillating Drum Sander, 10 FPM, 1Ph 115V


In stock!

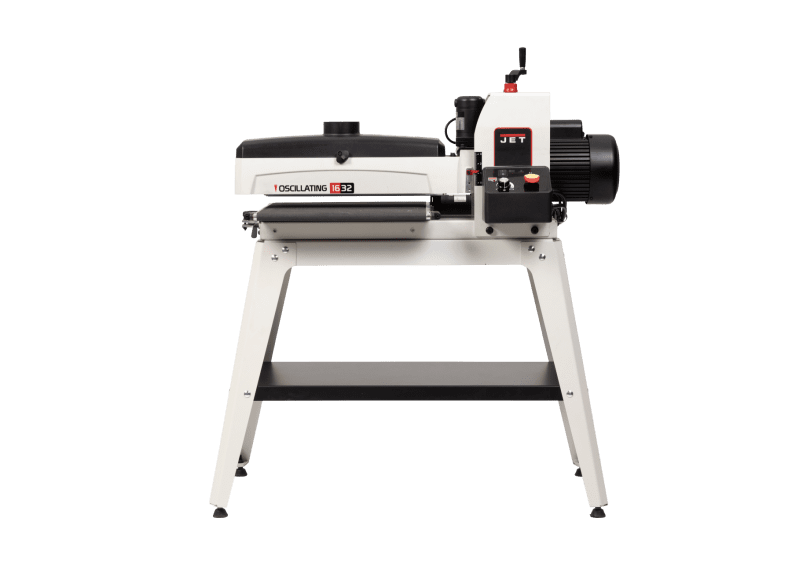

The JET 1632 Oscillating Drum Sander produces an unbeatable sanding finish, with its exclusive variable speed oscillating drum moving from left to right—minimizing visual scratch patterns in workpieces and increasing the lifespan of abrasive paper. Its patent-pending hood design extracts 97% of the dust that the sander creates. Additional features such as Sandsmart™ feed control technology, tool-less parallelism adjustment, and Heavy Duty Steel Stand make this popular sander the most innovative in its class.

SKU: JT9-723525 Categories: ,
  • Self-Cooling Drum

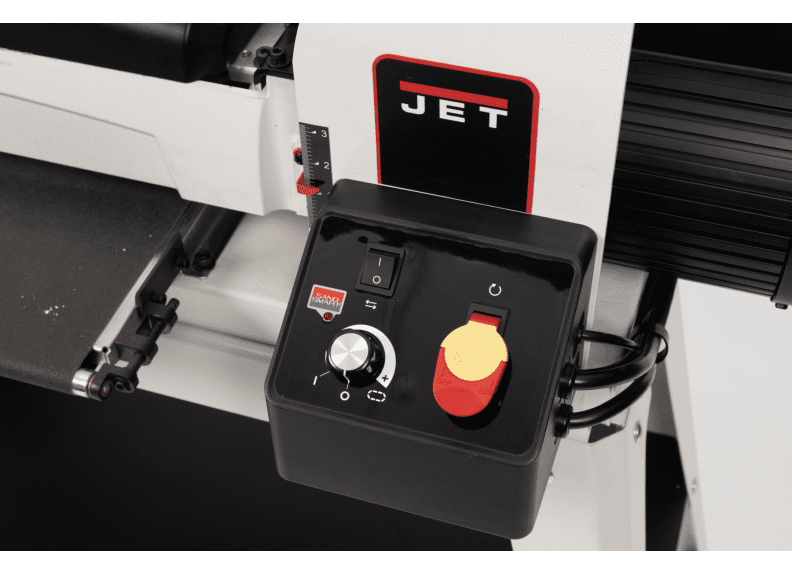

  • Sandsmart™ control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
  • Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 in. collection port

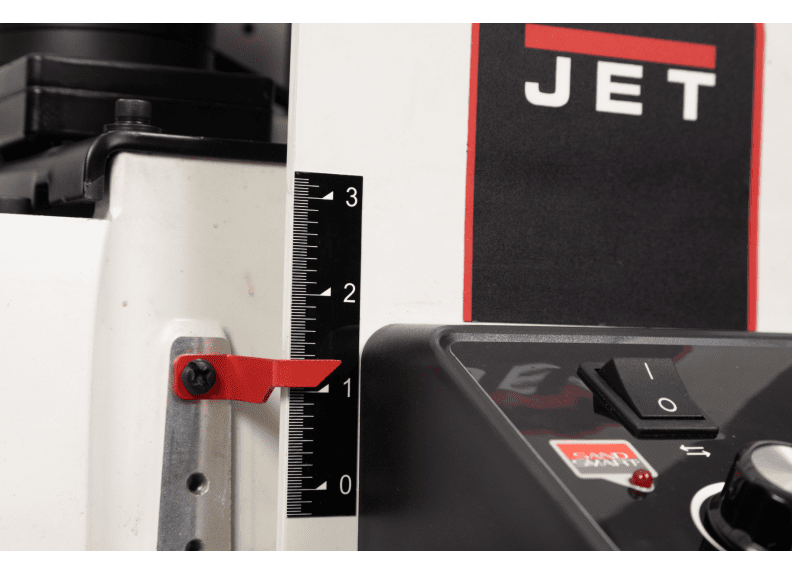

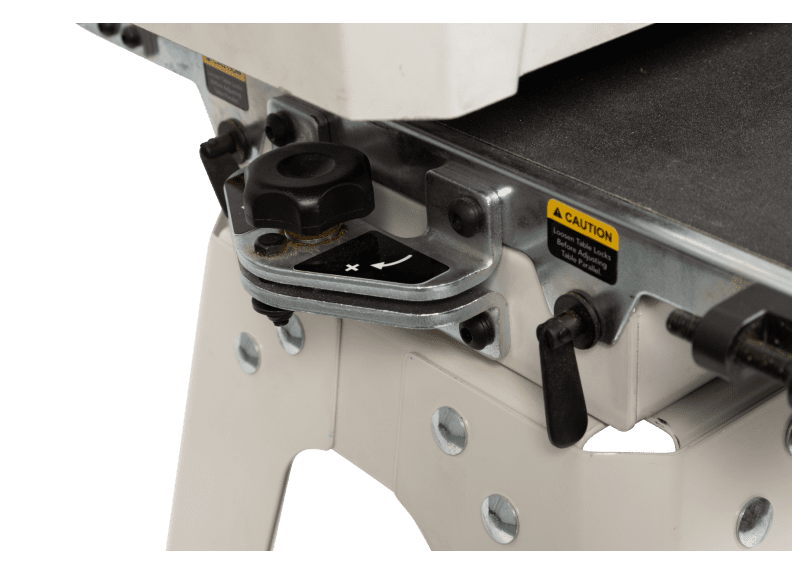

  • Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed – no tools required
  • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and has 3/4″ of oscillating stroke
  • Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
  • Conveyor belt TRACKERS™ reduce the need for manual belt adjustments
  • Tool less abrasive take-up clips make changing abrasives quick and easy
  • Separate feed and drum motors provide independent control, optimizing the performance of the sander
  • Dust hose hanger for added ease of use

Stock Number 723525
Conveyor Speed (FPM) 0 to 10
Drum Bearing Diameter (In.) 1
Drum Diameter (In.) 5
Dust Port Outside Diameter (In.) 4
Maximum Board Thickness (In.) 3
Maximum Board Width (In.) 16
Minimum Board Length (In.) 2-3/8
Minimum Board Thickness (In.) 1/32
Motor Amps 14
Motor Power (HP) 1-1/2
Number of Sanding Drums 1
Prop 65 Cancer and Reproductive Harm
Recommended Circuit Size (Amps.) 20
Style (Type) Drum Sander
Weight (Lbs.) 191
Wiring Remarks 115v input only
