Jet JWDS-1020 10″ Benchtop Drum Sander

Jet JWDS-1020 10″ Benchtop Drum Sander


In stock!

The compact JWDS-1020 benchtop sander from JET packs a powerful 1HP motor that will sand boards up to 3″ thick and 20″ wide. The innovative patented dust hood ensures dust is funneled to the 4 inch dust port that easily connects to a Dust Collector. Adjusting the table back to parallel is convenient with just the turn of a dial. The self-cooling extruded aluminum sanding drum protects the sanding surface from heat damage, preventing waste.

SKU: JT9-723510 Categories: , ,

• Heavy duty die-cast aluminum and steel body provides rigidity for consistent quality

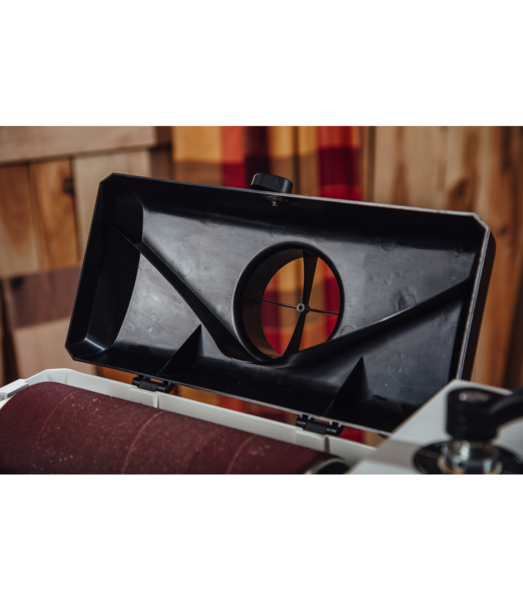

• Patented dust hood incorporates an integrated channel that directs dust to a 4″ collection port.

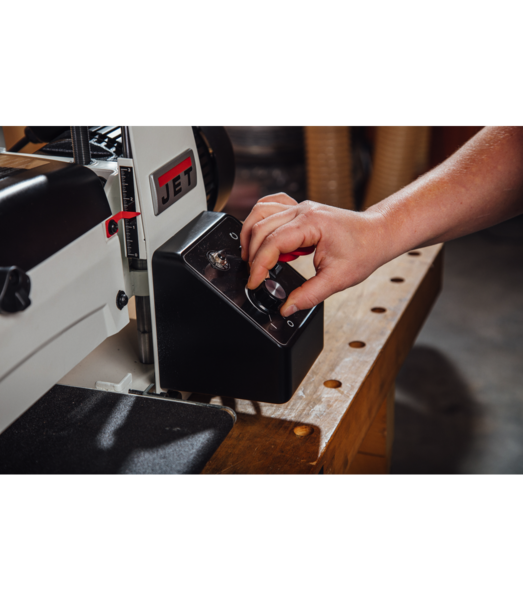

• Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
• Infinitely variable-speed control allows the user to choose the optimal feed rate
• Open ended design allows for up to 20″ of sanding capacity with 2 passes
• Extruded aluminum drum is designed to dissipate heat and protect wood from heat-damage
• Redesigned conveyor system pulls the workpiece through the sander instead of pushing
• Toolless abrasive take-up fasteners make changing abrasives quick and easy
• Precision-flattened reinforced steel conveyor bed supports the boards passing under the sanding drum
• Control system with integrated circuit breaker protects motor from over heating

Machine Specs

Style (Type) Benchtop
Drum Length (In.) 10
Number of Sanding Drums 1
Drum Speed (RPM) 1725
Drum Diameter (In.) 5
Conveyor Motor Totally Enclosed DC
Conveyor Speed (FPM) 0 to 10
Maximum Board Thickness (In.) 3
Maximum Board Width (In.) 20
Minimum Board Length (In.) 2-1/4
Minimum Board Thickness (In.) 1/32
Dust Collection Minimum CFM Required (CFM) 550
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 1
Motor Phase (PH) 1
Motor Voltage (V) 115
Prewired Voltage (V) 115
