Jet 12″ Benchtop Drill Press with DRO

Jet 12″ Benchtop Drill Press with DRO

$599.99

In stock!

When is a Drill Press powerful enough to tackle the big jobs, and portable enough to do it anywhere? When it’s the all-new JET 12 Variable Speed Drill Press. A powerful 1/2 HP induction motor that pushes through almost anything you throw at it; over 3-1/8″ spindle travel for maximum depth cutting, and our innovative X-shaped XACTA Laser that ensures drilling accuracy; makes this workhorse the best choice for in your shop or on the go.

SKU: JT9-716000 Categories: , ,

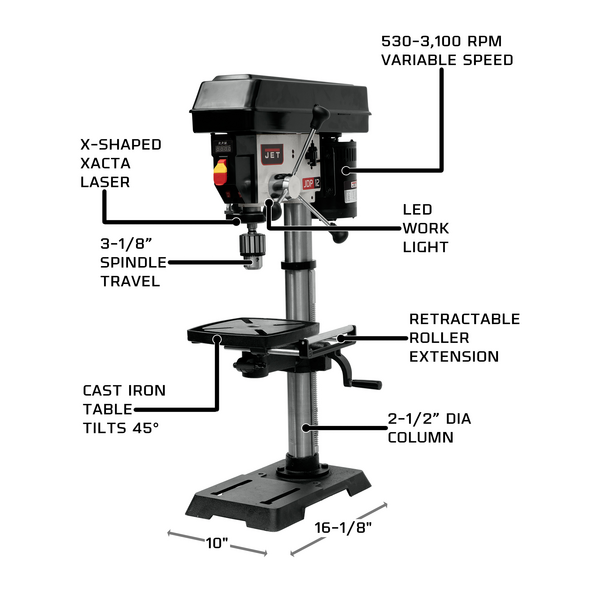

• Compact bench top design allows for easy transport
• 10″ x 16-1/8″ cast iron base fits neatly on work benches with limited space”
• Stable base design allows for easy re-positioning on work bench
• Heavy Duty 1/2 HP induction motor for various drilling applications
• Mechanical variable speed drive system for easy speed changes
• Industrial 5/8″ drill chuck for multiple drilling applications”
• Oversized, ergonomic knobs provide ease of use and maximum control

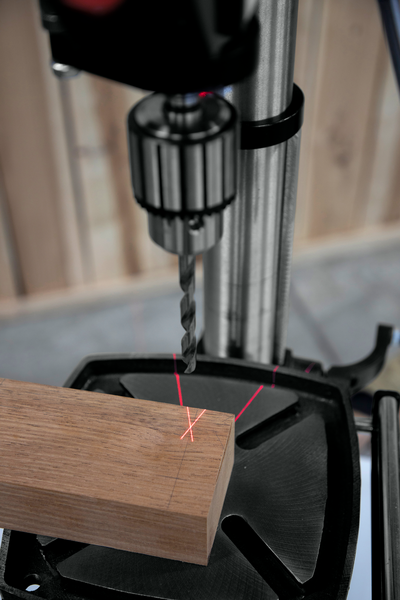

• X-shaped XACTA Laser™ ensures drilling accuracy
• Digital read out displays spindle speed for different drilling applications
• LED work light increases visibility for intricate applications

Machine Specs

Swing (In.) 12
Spindle Travel (In.) 3-1/8
Number of Spindle Speeds Variable
Spindle Taper MT-2
Spindle Speed Range (RPM) 530 – 3100
Spindle Distance to Table (Max.) (In.) 17
Spindle Distance to Base (In.) 23-3/8
Table Size (L x W) (In.) 9-1/2 x 9-1/2
Table Size Fully Extended (L x W) (In.) 9-1/2 x 16-1/2
Table Tilt (Deg.) -45 to 45
Chuck Size (In.) 5/8
Column Diameter (In.) 2-1/2
Base Size (In.) 10 x 16-1/8
Motor Power (HP) 1/2
Motor Phase (PH) 1
Motor Voltage (V.) 115 Only
Motor Amps 5
Weight (Lbs.) 85
