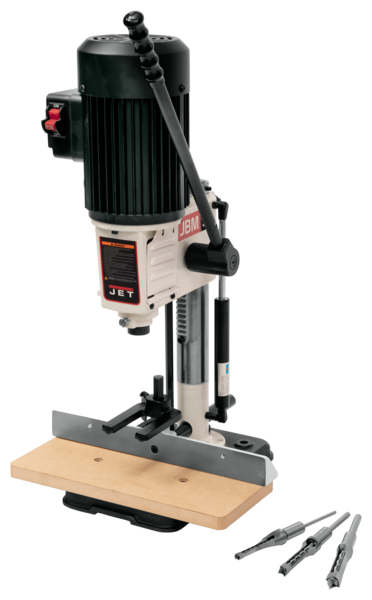

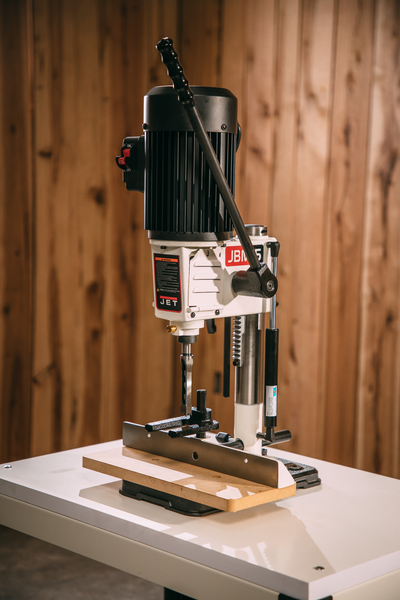

Jet JBM-5 Benchtop Mortise Machine, 1/2Hp, 1/2″ Capacity, 1725 RPM


In stock!

This conveniently sized, but powerful machine can be used on a bench or an independent stand. Heavy duty construction provide the durability, consistency and stability needed to produce quality results every time.

SKU: JT9-708580 Categories: , ,

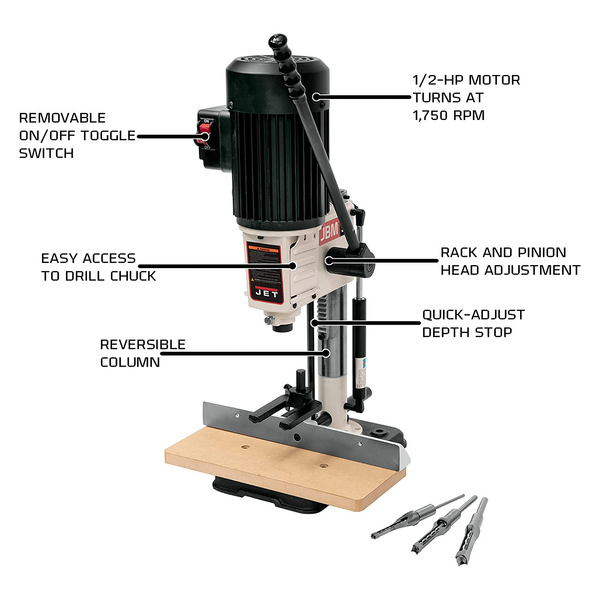

• Heavy-duty cast iron and steel construction provides durability and stability during use
• Dependable rack-and-pinion head adjustment gives you accurate position control
• Long, multi-position mortising handle let you reposition the feed handle for easier operation and optimum handle position

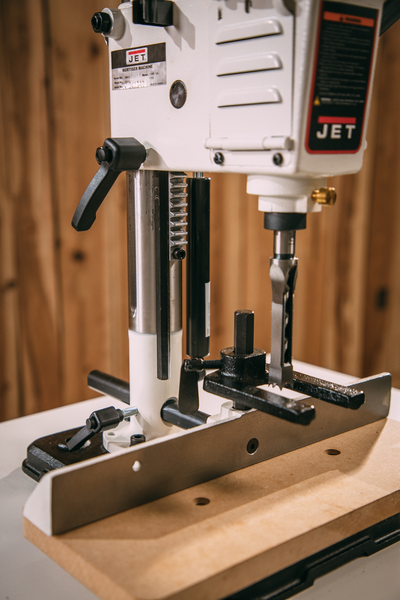

• Three-jaw drill chuck keeps a positive grip on mortising bits with up to 3/8″ diameter shanks

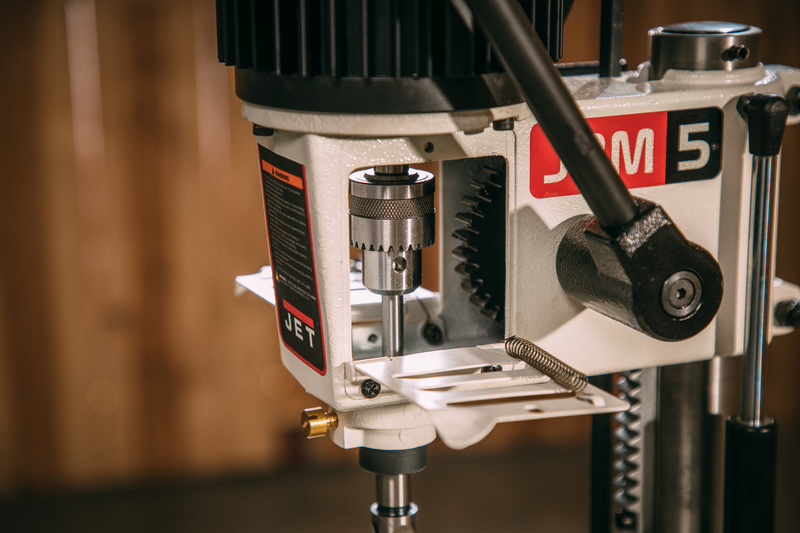

• Two hinged side doors allow easy access to the drill chuck
• Quick adjust depth stop for uniform mortise depths
• Column is reversible for mortising larger stock
• Removable On/Off toggle switch prevents accidental or unauthorized use of the tool
• Powerful 1/2HP motor provides consistently smooth performance

Machine Specs

Style (Type) Benchtop
Chisel Center to Fence (In.) 3-1/2
Chisel Shank Capacity (In.) 5/8, 3/4
Chisel Stroke (In.) 4-3/4
Bushing Size (In.) 5/8 & 3/4
Chuck Size (In.) 3/8
Spindle Speed (RPM) 1725
Under Hold-Down (In.) 4
Fence Size (L x H) (In.) 1-9/16 x 13-3/4
Base Size (In.) 7-5/8 x 12-3/16
Motor Power (HP) 1/2
Motor Phase (PH) 1
Motor Voltage (V.) 115
Prewired Voltage (V.) 115
Motor Amps 6
