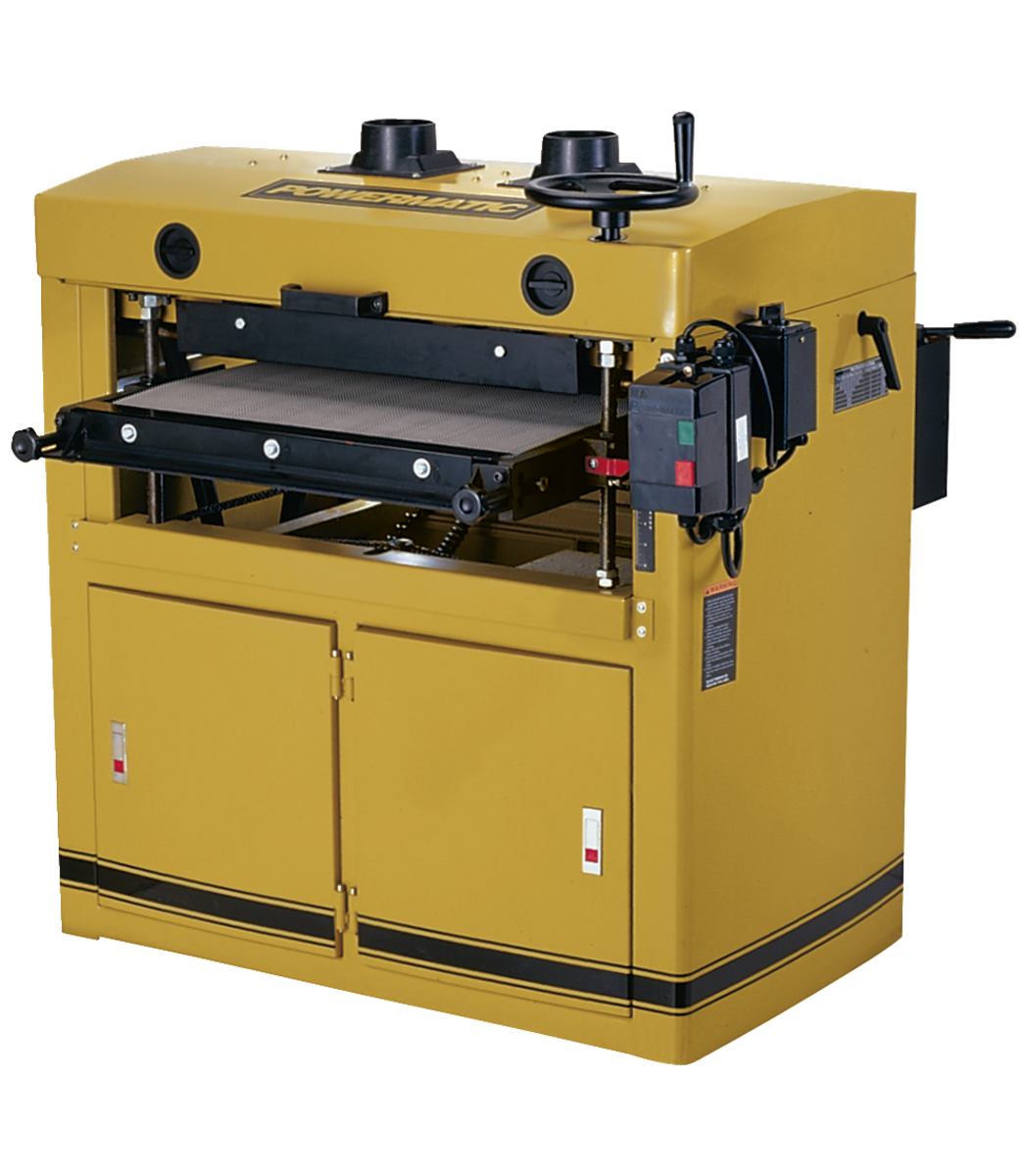

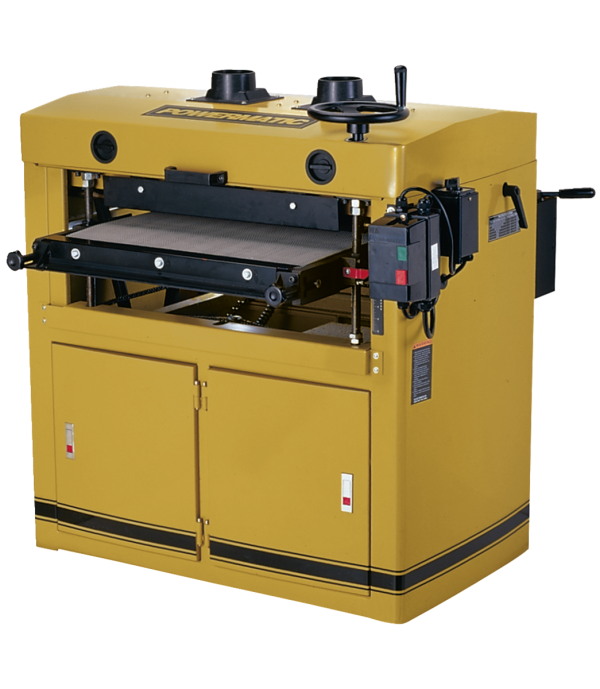

DDS225 25″ Dual Drum Sander, 5HP, 1PH, 230V

Sale!

DDS225 25″ Dual Drum Sander, 5HP, 1PH, 230V

Original price was: $5,999.99.Current price is: $5,399.99.

In stock!

Finally, a production class Dual Drum Sander that is loaded with features. This machine features a 5HP motor to power the twin poly V-belts. The dual steel drums have a hard durometer rubber coating to assure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides years of vibration free sanding, with plenty of storage space underneath.

• Dual drum head for superior finish
• Two-speed gearbox for wide range of sanding projects.
• Forward/reverse conveyor belt grips stock evenly
• Independently adjustable rear drum for fine tuning
• Hard durometer rubber coating on steel drums provides flat, smooth finish
• Full size cast iron table for solid support
• Dual dust ports with directional baffles for more efficient dust removal

Machine Specs

Style (Type) Drum
Drum Length (In.) 25
Number of Sanding Drums 2
Drum Speed (RPM) 1,700
Drum Diameter (In.) 6
Conveyor Motor (HP) 1/4
Conveyor Speed (FPM) 8 and 12
Maximum Board Thickness (In.) 5-1/4
Maximum Board Width (In.) 25
Minimum Board Length (In.) 9
Minimum Board Thickness (In.) 1/32
Dust Collection Minimum CFM Required (CFM) 600
Dust Port Outside Diameter (In.) Two @ 4″
Motor Power (HP) 5
Motor Phase 1
Motor Voltage (V.) 230 Only
Prewired Voltage (V.) 230
Wiring Remarks Magnetic Switch / Must purchase DDS237-322B for 460V
operation
Recommended Circuit Size (Amps.) 40
