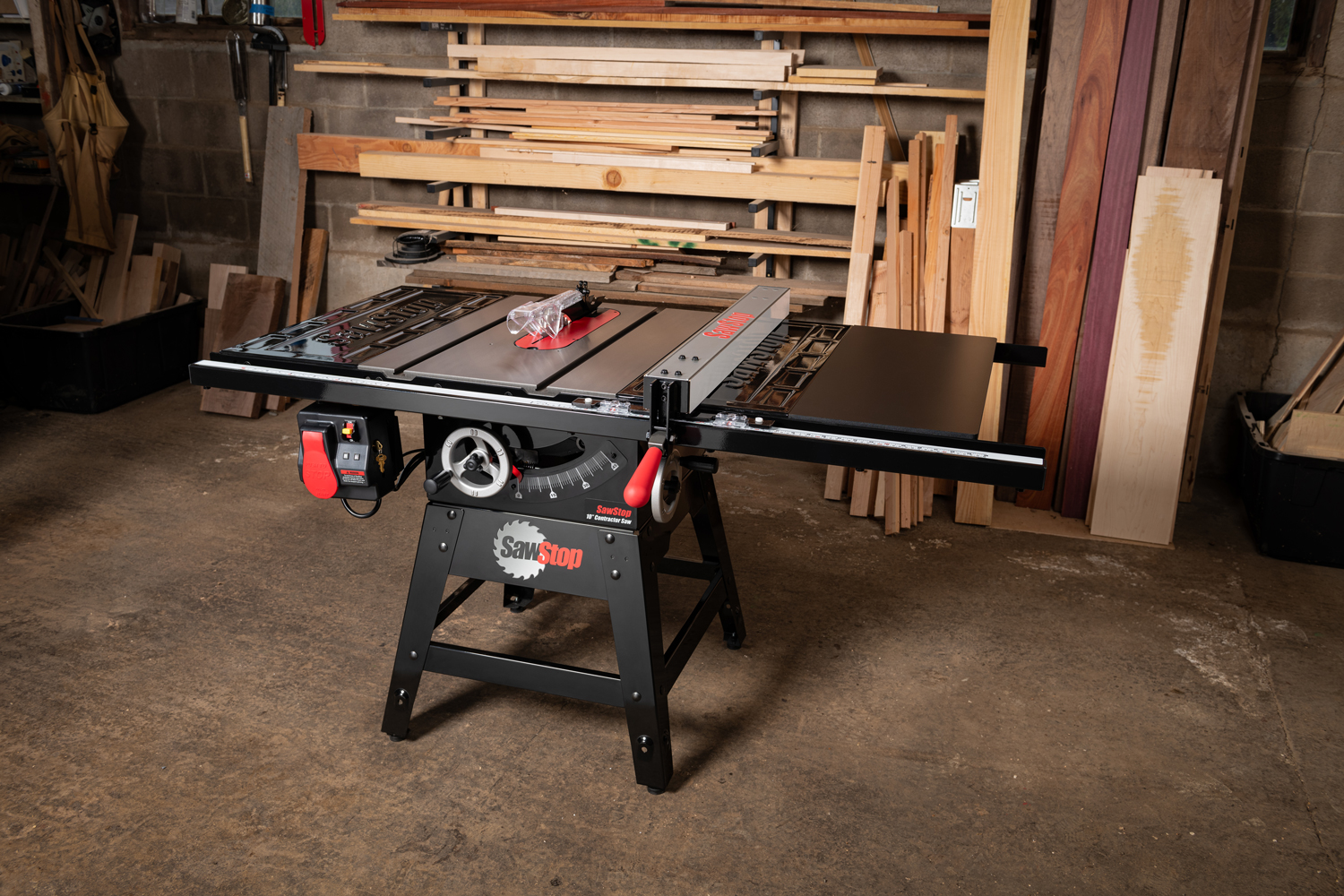

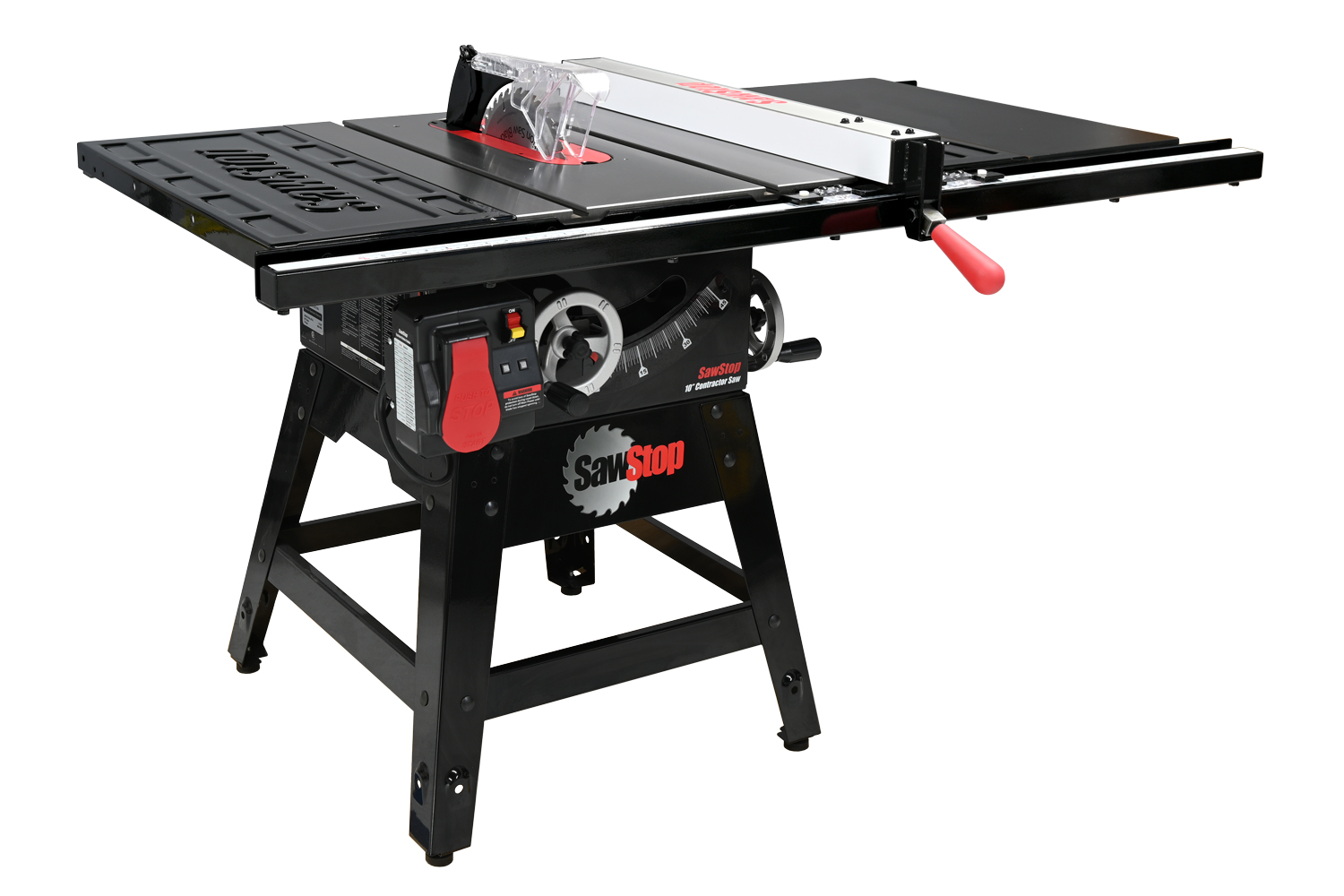

SawStop 1.75HP Contractor Saw with 30” premium fence & rail kit

SawStop 1.75HP Contractor Saw with 30” premium fence & rail kit

$1,999.00

In stock!

Ships for $250

The SawStop® Contractor Saw offers versatility and safety. Better-than-hybrid performance in the shop, and stability and mobility on the jobsite. It delivers the performance you need with the peace of mind only SawStop’s patented safety system can provide.



Designed for professionals and serious hobbyists, the SawStop Contractor Saw blends mobility, stability, and precision performance to fit your needs, whether on the job site or in the shop. Built with SawStop’s groundbreaking safety system, this saw ensures protection while delivering unmatched versatility.

Key Features:

  • Patented Safety System – Stops the blade instantly upon skin contact, minimizing injury risk.

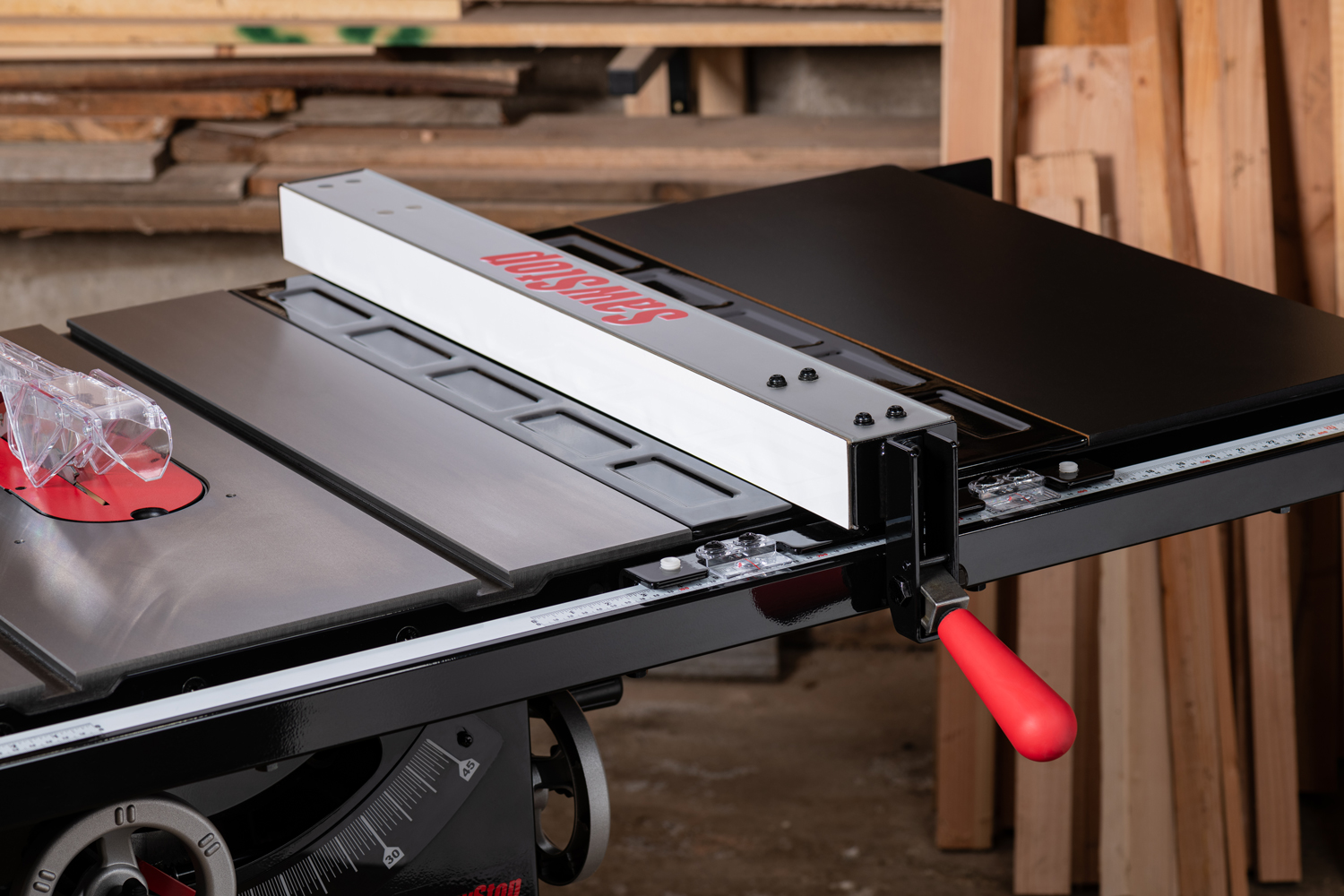

  • 30” Premium Fence – Lightweight, smooth-traveling, and secure clamping for accurate cuts.
  • Dust Collection System – Under-table shrouding and multiple port configurations (2.5” & 4”) for efficient dust removal. Optional dust collection blade guard enhances above-table collection.
  • Premium Construction & Performance
    • 1.75 HP Motor – Compact yet powerful for smooth cutting.
    • Poly V-Ribbed Belt – Transfers more power to the blade while reducing vibration.
    • Powder-Coated Steel & Cast Iron Components – Rust-resistant and durable for long-term reliability.
    • Zero Clearance Insert – Reduces chip-out and tear-out for cleaner cuts.
    • Vertical Slide Elevation System – Ensures consistent and precise blade alignment while minimizing binding and kickback.

With superior safety, mobility, and durability, the SawStop Contractor Saw is designed to meet the demands of professionals and serious woodworkers, ensuring reliable performance in any environment.



Weight 245 lbs
Specifications

Specifications: Contractor Saw 1.75 with 30" Premium Fence
30" Rip Capacity: CNS175-PFA30: 30" Premium Fence Assembly
Motor Option(s) (60Hz TEFC): 1.75 HP available
Overall saw dimensions 30 in: 61 3/4" w, 40 1/2" d, 34 3/4 h
Motor Configuration(s): CNS175: 1.75 HP, 120v, 14 A (user config. to 220v w/optional kit available for purchase).
Saw body footprint: 25 3/4" W x 27" D (w/stand installed)
Cast iron table: 20″ W x 27″ D
Cast iron table (w/ extension wings): 44″ W x 27″ D
Extension wings: 12″ W x 27″ D Stamped Steel (optional cast iron for purchase)
Extension table 30 in: 12" W x 27" D
Shipping weights – w/ 30 in fence systems: 268 lbs (2 boxes)
Shipping dimensions (saw body only): 35" W x 30" D x 20" H
Shipping weight (approx.): 240 lbs (table saw only)
Assembled weights – w/ 30 in fence systems: 256 lbs
Weights – table saw only: 225 lbs
Weights – (optional cast iron wings): 35 lbs each
Blade: 40-tooth, prof. grade, 5/8″ arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118″ (3mm)
Blade plate thickness: 0.078″ (2mm)
Max. depth of cut, blade at 0º: 3 1/8″
Max. depth of cut, blade at 45º: 2 1/4″
Max. rip, right of blade (w/30” Premium Fence) 30"
Max. rip, left of blade (w/30” Premium Fence) 12"

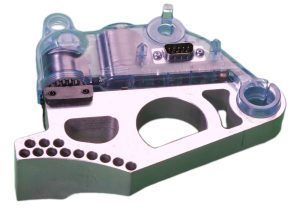

Dado diameter: 8" (requires dado brake cartridge & insert)
Dado max. width: 29/32”
Arbor diameter at blade: 5/8"
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10 5/8"
Table behind blade (max. elevation): 7 1/8
Arbor Runout: 0.001″ Maximum allowable runout
Table flatness measured diagonally: 0.016″ Maximum gap
Blade alignment with miter slot: 0.010″ Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25º
Alignment between splitter and blade: 0.010″ Maximum difference
Miter slots T-shaped: 3/4″ at top, 1″ at bottom, 3/8″ deep
Miter slots center: 11 1/8″ center-to-center
Miter slots info: 5 1/2″ (arbor flange to center of right slot)
Dust collection port diameter: 4"
Riving knife / splitter thickness: 0.090" (2.3 mm)
Blade guard: Standard polycarbonate, extends 1″ right of blade (opt dust guard for purchase)
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 6″ diameter, cast alum. w/ ABS handle
Belts: V-ribbed belt – static dissipative
