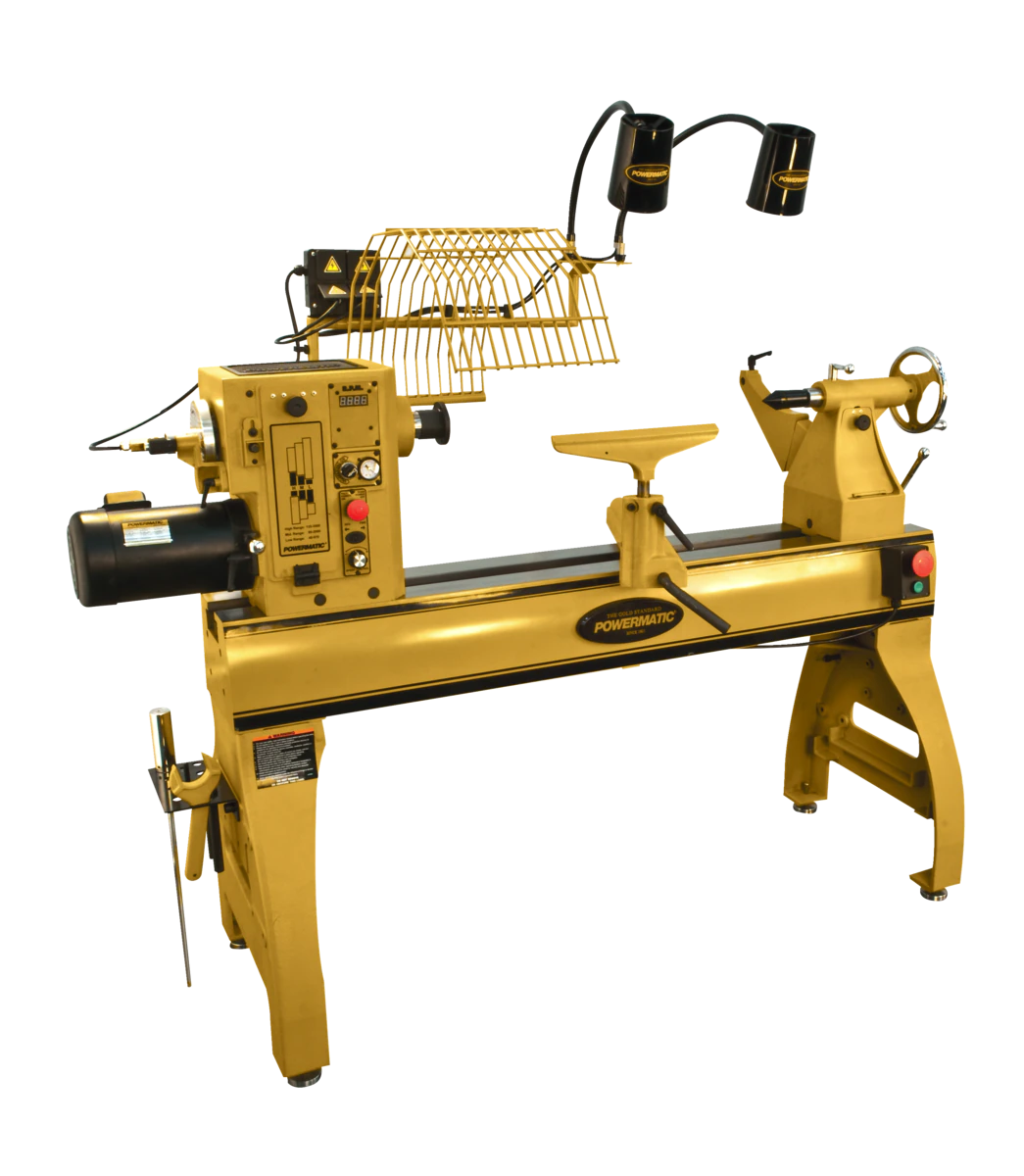

4224B Lathe, 3HP, 1 or 3PH, 220V

4224B Lathe, 3HP, 1 or 3PH, 220V


In stock!

The Powermatic 4224B is the newest member of the industry-leading family of lathes. Over 900 pounds, the 4224B is the biggest, heaviest, and most capable lathe we’ve ever built. It expands the limits of creative possibility, and takes your passion to a whole new level. With newly designed, top of its class features, the 4224B pushes the limits of design, innovation, and durability.

SKU: PM9-1794224K Categories: , , Tags: , , , , , , ,

• Sliding headstock with electronic variable speed and digital RPM readout displays accurate speed
• Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes and other equally spaced features
• 15-amp quad receptacle for easy reach of powered accessories
• Vacuum system provides quick method of chucking bowl blanks
• A variable frequency drive allows this machine to run on single or three-phase power
• Magnetic-backed moveable control box for customizable versatility and safety
• Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
• Air nozzle with quick connect for clearing dust/chips
• Set of dead centers which hold a spindle for visual comparison
• Includes two 100W task lamps to provide ideal lighting and safety guard.

Machine Specs

Style (Type) Leg Stand
Swing Over Bed (In.) 24
Swing Over Tool Rest Base (In.) 19-1/4
Distance Between Centers (In.) 42
Headstock Movement Full Length of Bed
Spindle Bore 5/8
Tailstock Bore 3/8
Spindle Taper MT-2
Quill Taper MT-2
Ram Travel Quill Travel 4-1/2
Spindle Threads (In. x TPI) 1-1/4″ x 8 TPI
Outboard External Threads (In. x TPI) M35 x 1.5 UNF
Spindle Speeds High 135-3500/Med 80-2000/Low 40-970
Speed Range 40-3500
Number of Indexing Positions 98
Centerline of Spindle to Floor (In.) 44
Outboard Turning 88
Bed Construction Cast Iron
Motor Power (HP) 3
Motor Phase 3
Motor Voltage (V.) 230 only
Prewired Voltage (V.) 230 only
Wiring Remarks VFD will accept 1 or 3 phase power
Motor Current (Amps) 10
Recommended Circuit Size (Amps.) 30
