Jet JDP-17 17″ Drill Press

Jet JDP-17 17″ Drill Press


In stock!

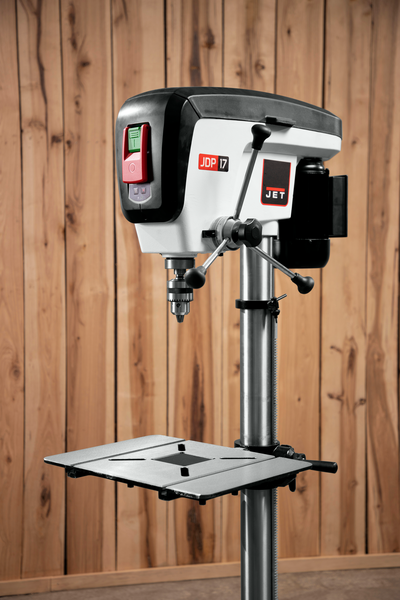

Introducing the new JET JDP-17, 17” Drill Press. From a full 5” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14″ x 19″ work table provides plenty of support with an edge designed for easy clamping.

SKU: JT9-716300 Categories: , ,

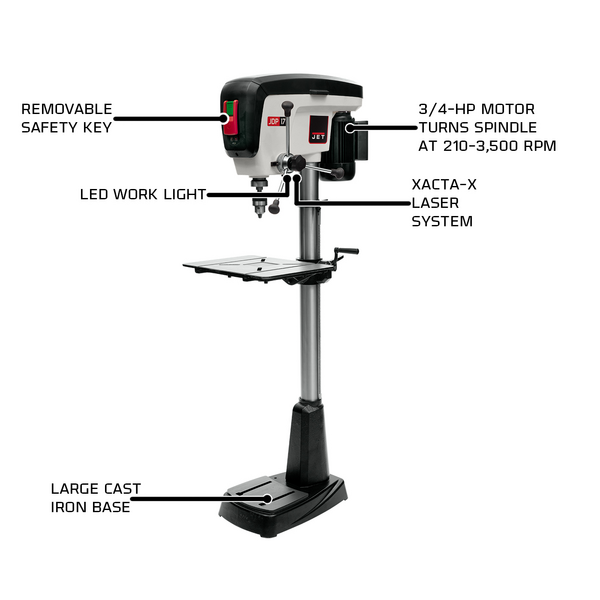

• Spindle travels a full 5” with one revolution of the handle

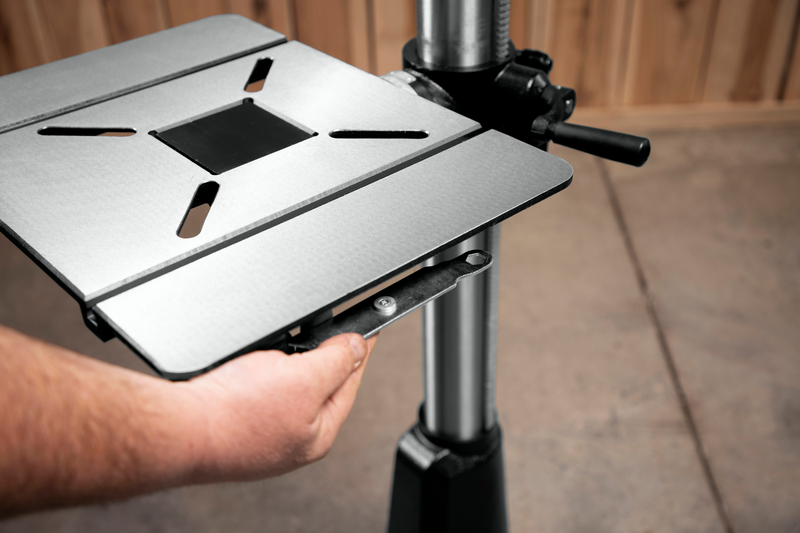

• Large 14″ x 19″ precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
• One-handed belt tensioning allows for rapid speed changes
• Power switch features a safety key and large, paddle-style off button
• Integrated depth stop makes repetitive drilling quick and easy

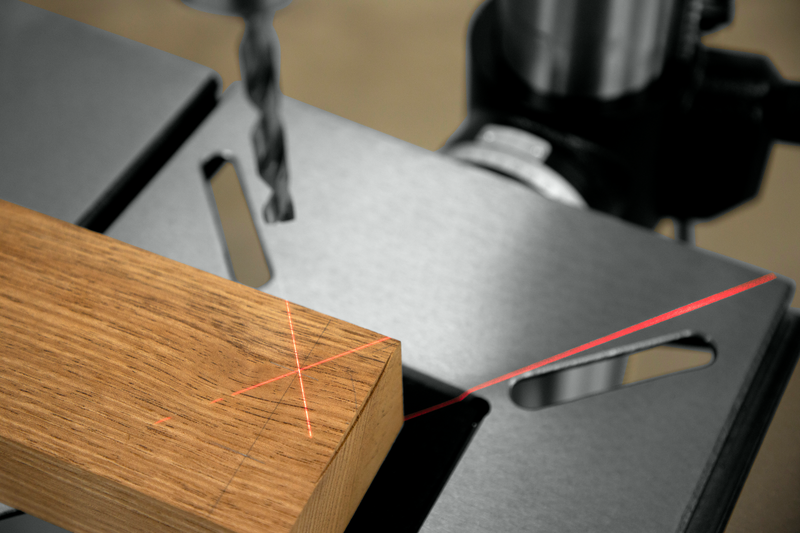

• Xacta-X laser system easily identifies the drill center
• Long-lasting, built-in LED work light reduces shadows
• Table edge lip designed to make clamping easy
• Replaceable MDF table insert
• Large cast iron base provides stability

Machine Specs

Style (Type) Floorstanding Model
Swing (In.) 16-7/8
Spindle Travel (In.) 5
Number of Spindle Speeds 16
Spindle Speed Range (RPM) 210 – 3500
Spindle Distance to Table (Max.) (In.) 30
Spindle Distance to Base (In.) 46-1/2
Table Size (L x W) (In.) 14 x 19
Table Tilt (Deg.) 90 Left and Right
Chuck Distance to Base (In.) 42-7/8
Chuck Distance to Table (In.) 25-7/8
Chuck Size (In.) 5/8
Column Diameter (In.) 3-5/32
Base Size (In.) 20 x 12-5/8
Motor Power (HP) 3/4
Motor Phase (PH) 1
Motor Voltage (V.) 115
Prewired Voltage (V.) 115
Motor Amps 9
Recommended Circuit Size (Amps.) 15
Weight (Lbs.) 187
Assembled Machine Dimensions (L x W x H) (In.) 28-1/2 x 19 x 65
