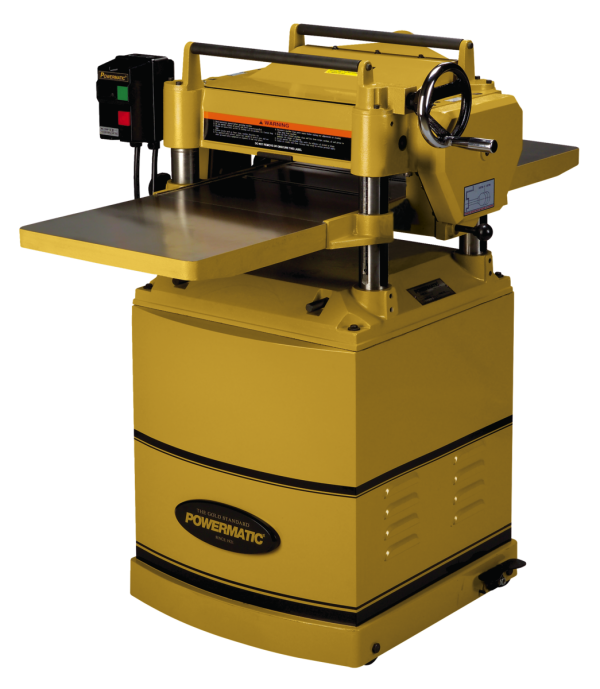

15HH, 15″ Planer, with Helical Cutterhead

$4,319.99

In Stock

The helical cutterhead on this planer provides smoother cutting and a finer finish than conventional knives, and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. Three V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4″ dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8″ maximum depth of cut and trouble-free operation. A 2-speed gearbox features an automatic chain tensioner. The one-piece welded steel stand has built-in lockable casters for easy movement around the shop.

• The helical cutterhead with 74 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
• Three V-belts transfer maximum power to the cutterhead
• Lockable built-in caster system allows for mobility in the shop
• Serrated steel infeed roller and smooth steel outfeed roller allow for 1/8″ maximum depth of cut and trouble free operation
• Two speed gearbox features automatic chain tensioner
• Steel top-mounted return rollers speed repetitive cuts
• Large, precision ground cast iron table and extensions provide maximum workpiece support
• Large cast iron handwheel positions table quickly and easily
• Angled dust chute with 4″ port positions collection hose away from the work area while providing efficient chip and dust collection

Machine Specs

Style (Type) Floor
Type of Cutterhead Helical
Cutterhead Speed (RPM) 4,500
Cutterhead Diameter (In.) 2-7/8
Number of Knives 74 Four Sided Carbide Helical Inserts
Maximum Depth of Cut (In.) 3/16
Maximum Full Width Depth of Cut (In.) 1/32
Maximum Planing Width (In.) 14-7/8
Maximum Planing Thickness (In.) 6
Minimum Planing Length (In.) 8
Feed Rate (FPM) 16/20
Table Size (L x W) (In.) 48 x 15
Table Size with Extensions (L x W) (In.) 15 x 48
Table Support 4 Column
Column Diameter (In.) 2-3/16
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 3
Motor Phase 1
Motor Voltage (V.) 230 Only
Motor Current (Amps) 28
Recommended Circuit Size (Amps.) 30
