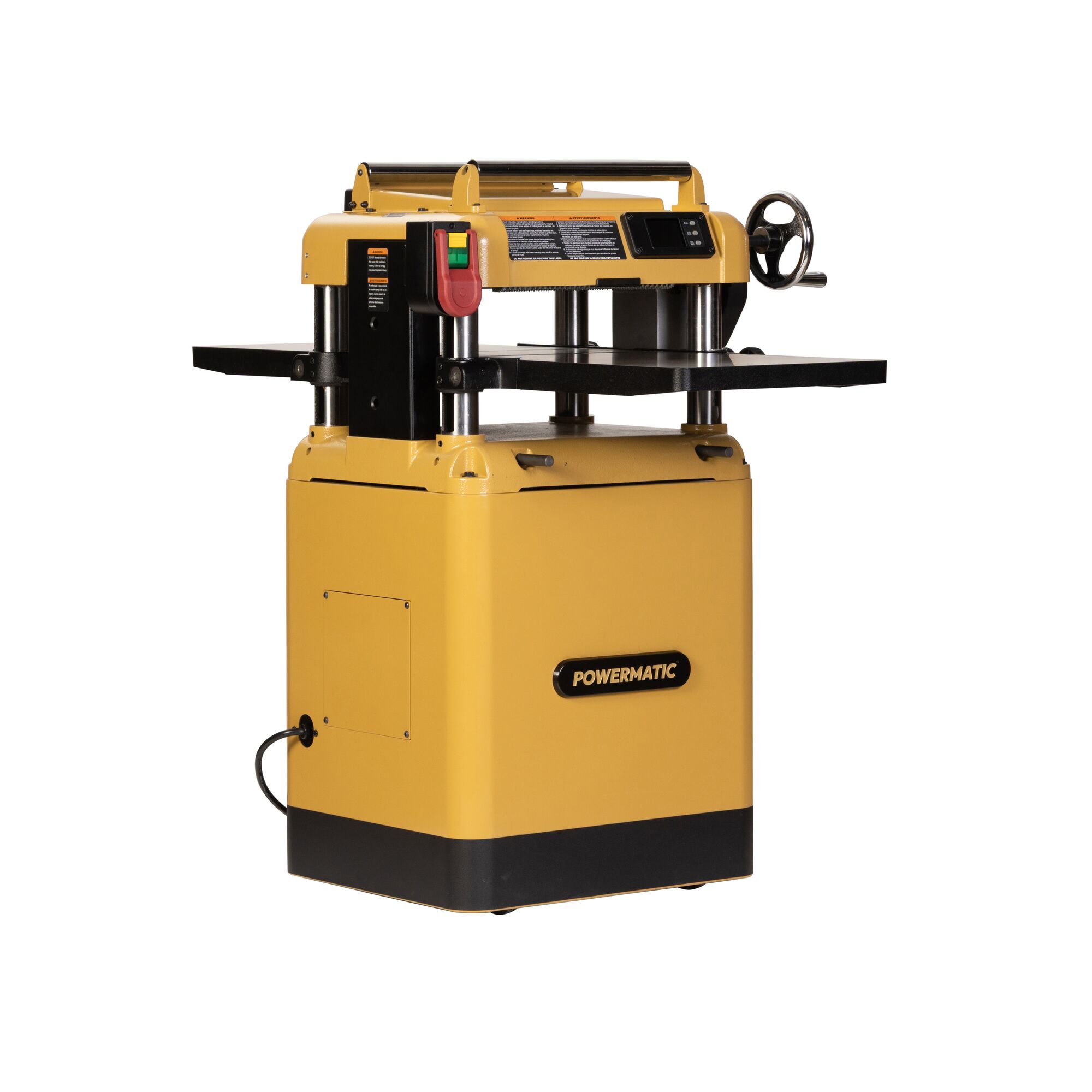

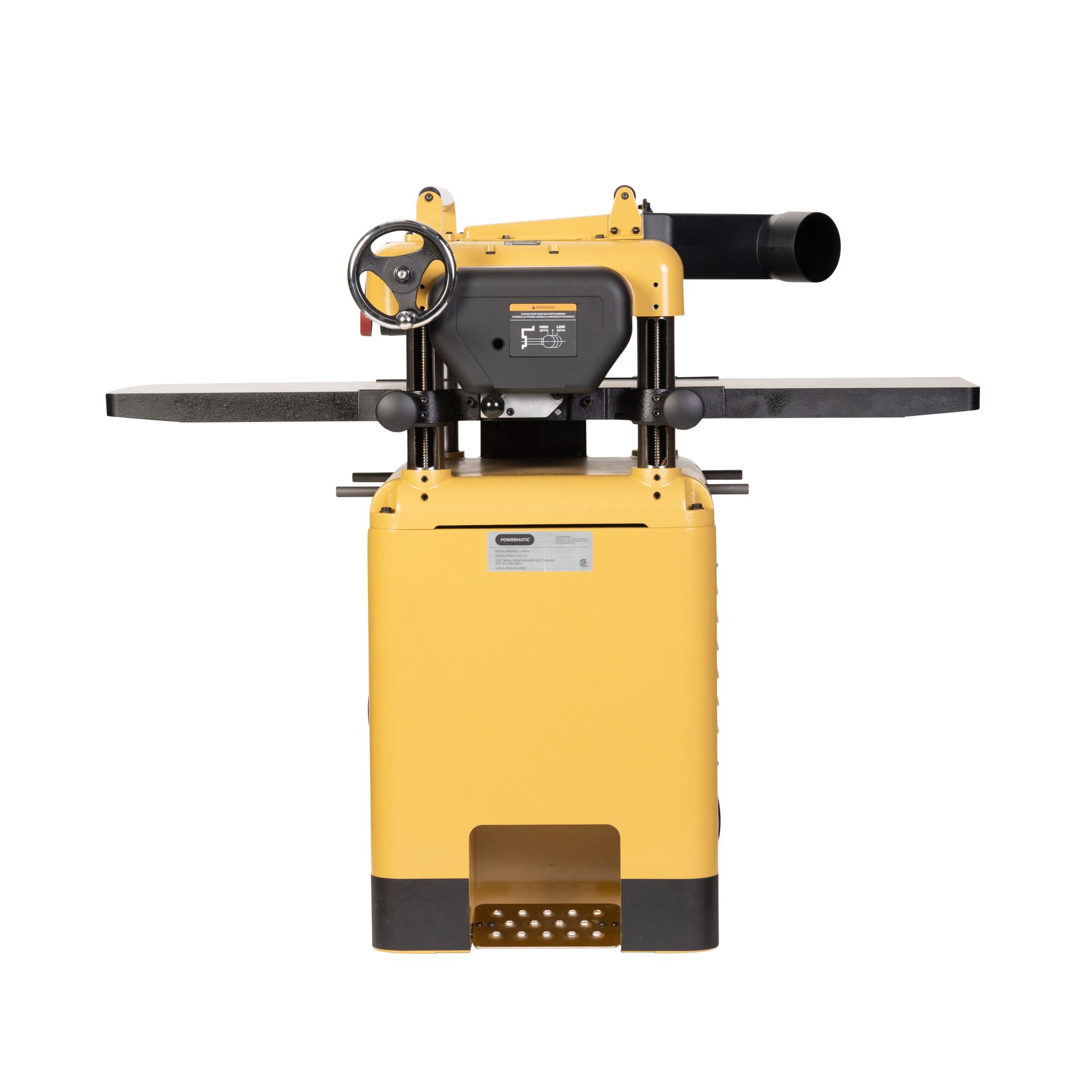

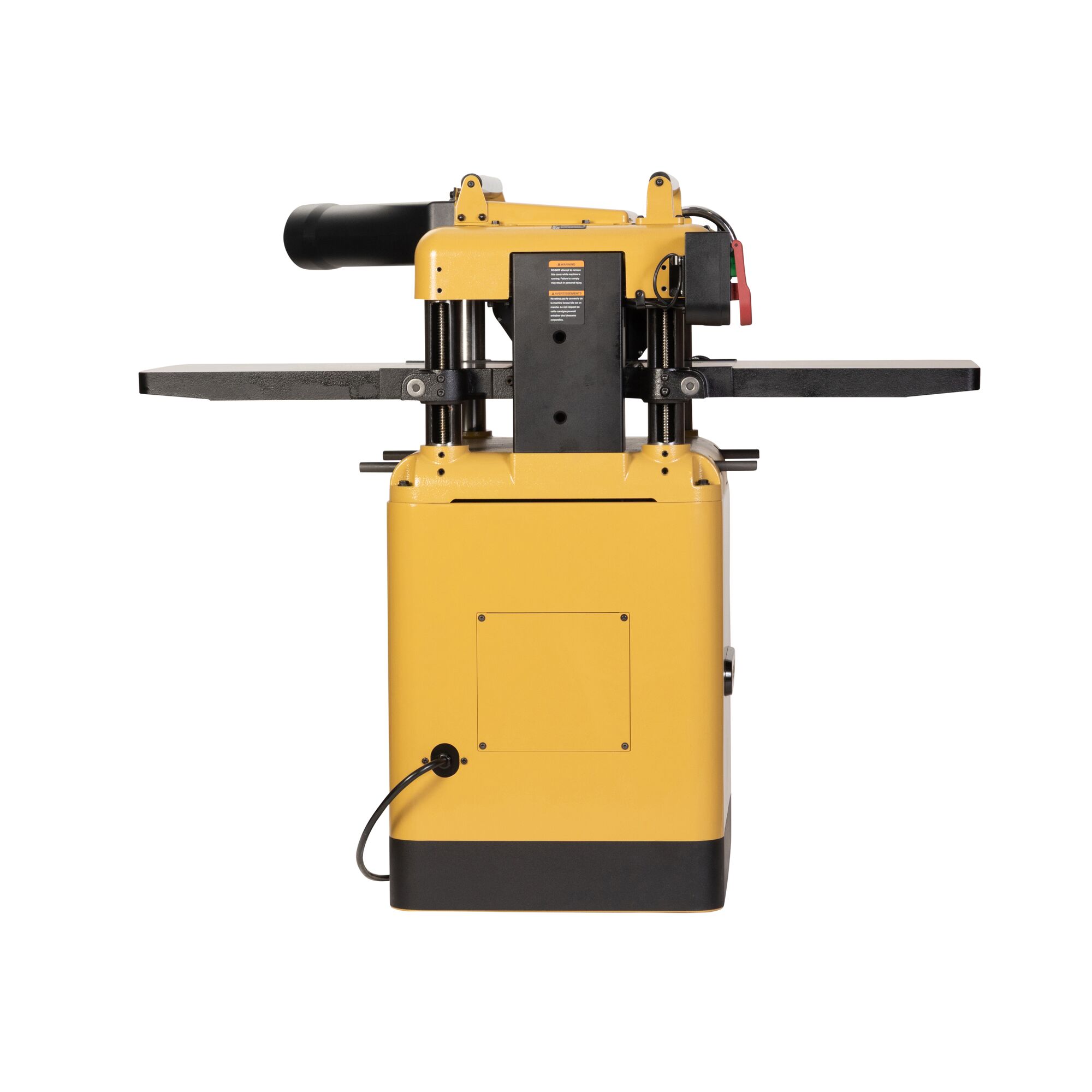

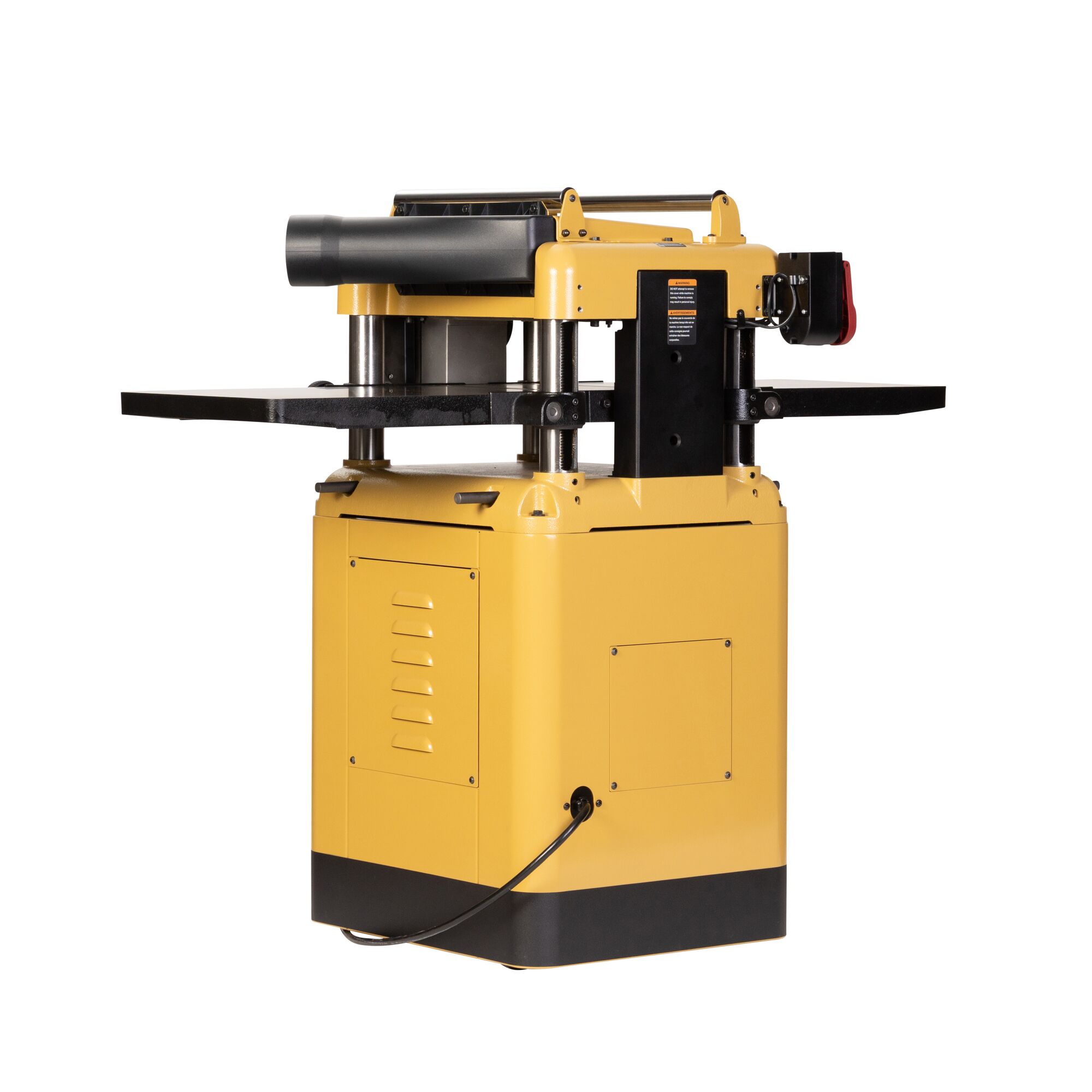

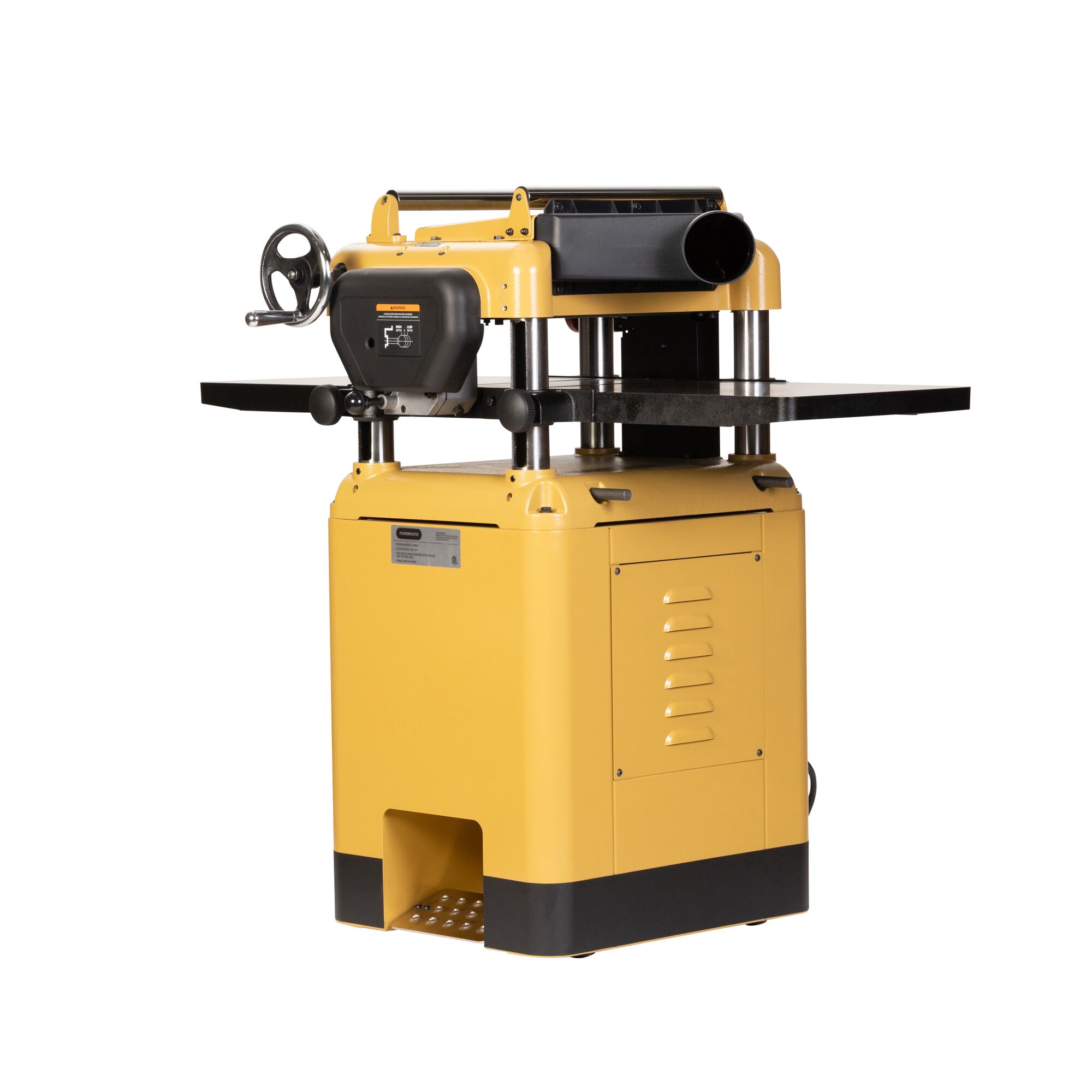

Powermatic 15-Inch Planer, Helical Cutterhead, 3 HP, 1PH, 230V (15BHH)

Powermatic 15-Inch Planer, Helical Cutterhead, 3 HP, 1PH, 230V (15BHH)

$4,399.99

In stock

- +

Exact Thickness. Flawless Finish.
The Powermatic 15BHH 15″ Planer delivers precision, control, and efficiency in every pass. Engineered for smooth, consistent results, it provides exact thickness settings and the stability of heavy-duty
cast iron construction. Built for professional shops and production environments, it also supports serious DIY users and educational programs. The 15BHH gives you the confidence to achieve accurate, repeatable results, project after project.

SKU: PM1-477 Categories: , ,

Precision

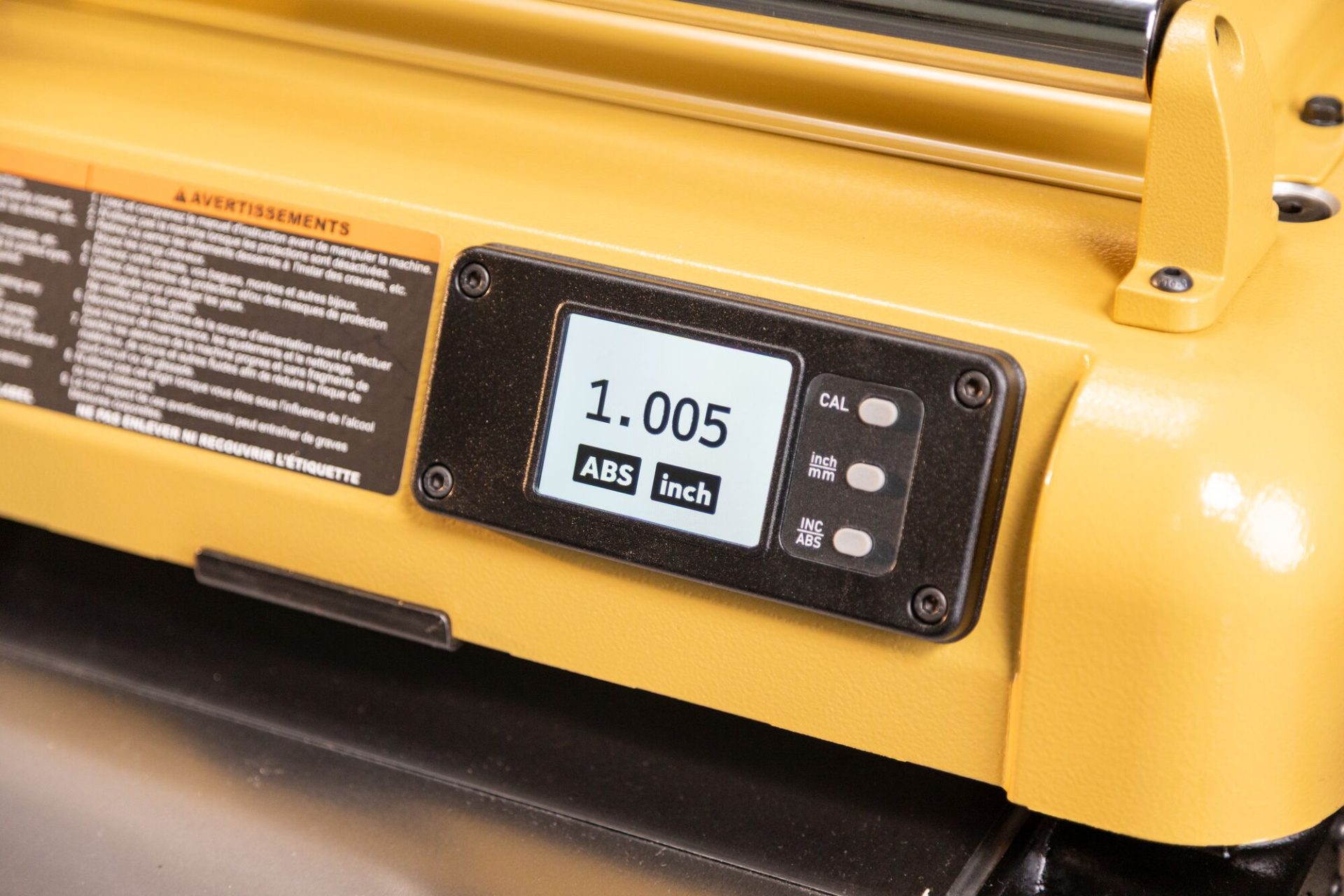

Built for woodworkers who expect every pass to come back exact. The digital readout, helical cutterhead, and rigid cast iron tables work together to deliver a finer finish with repeatable accuracy.

Control

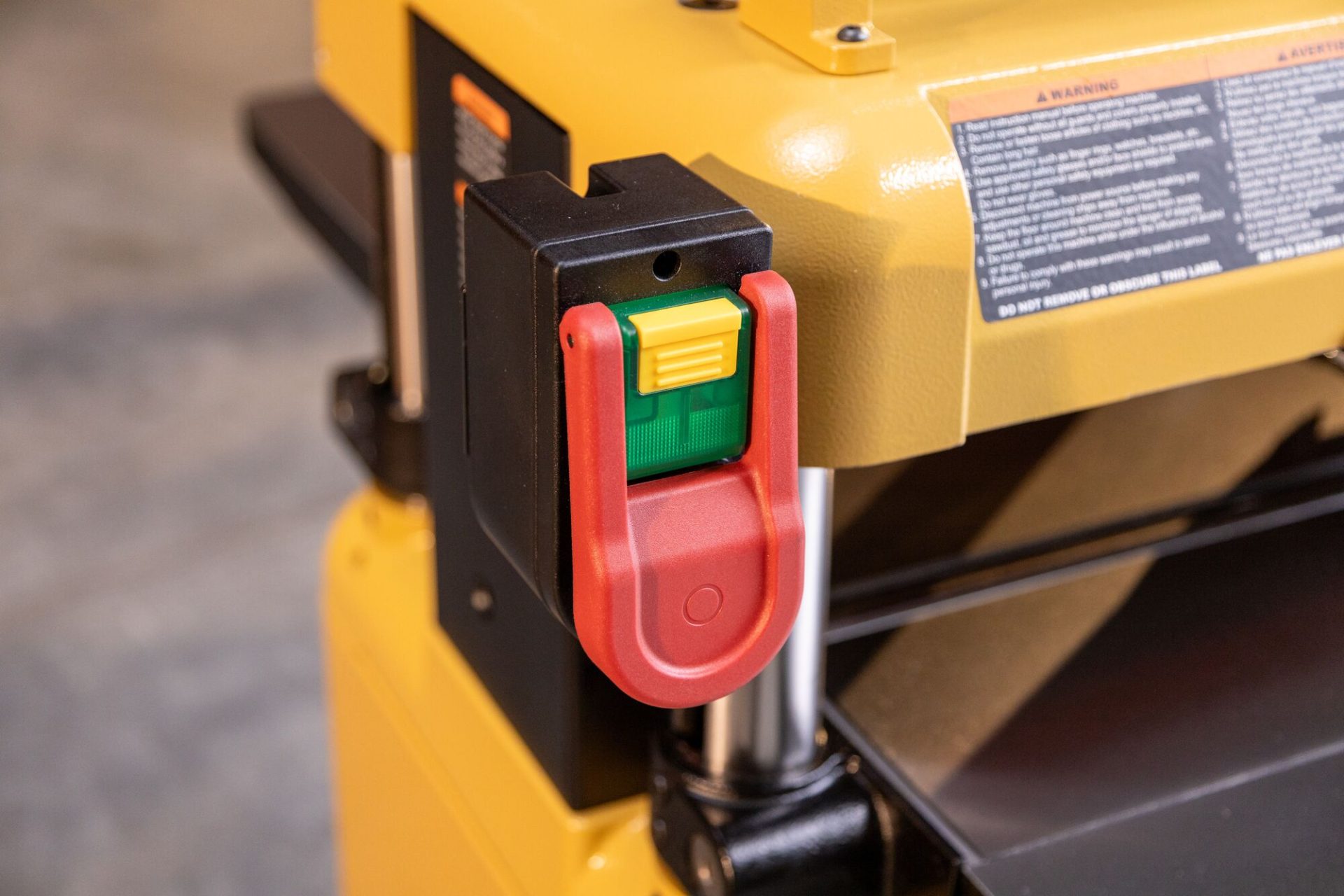

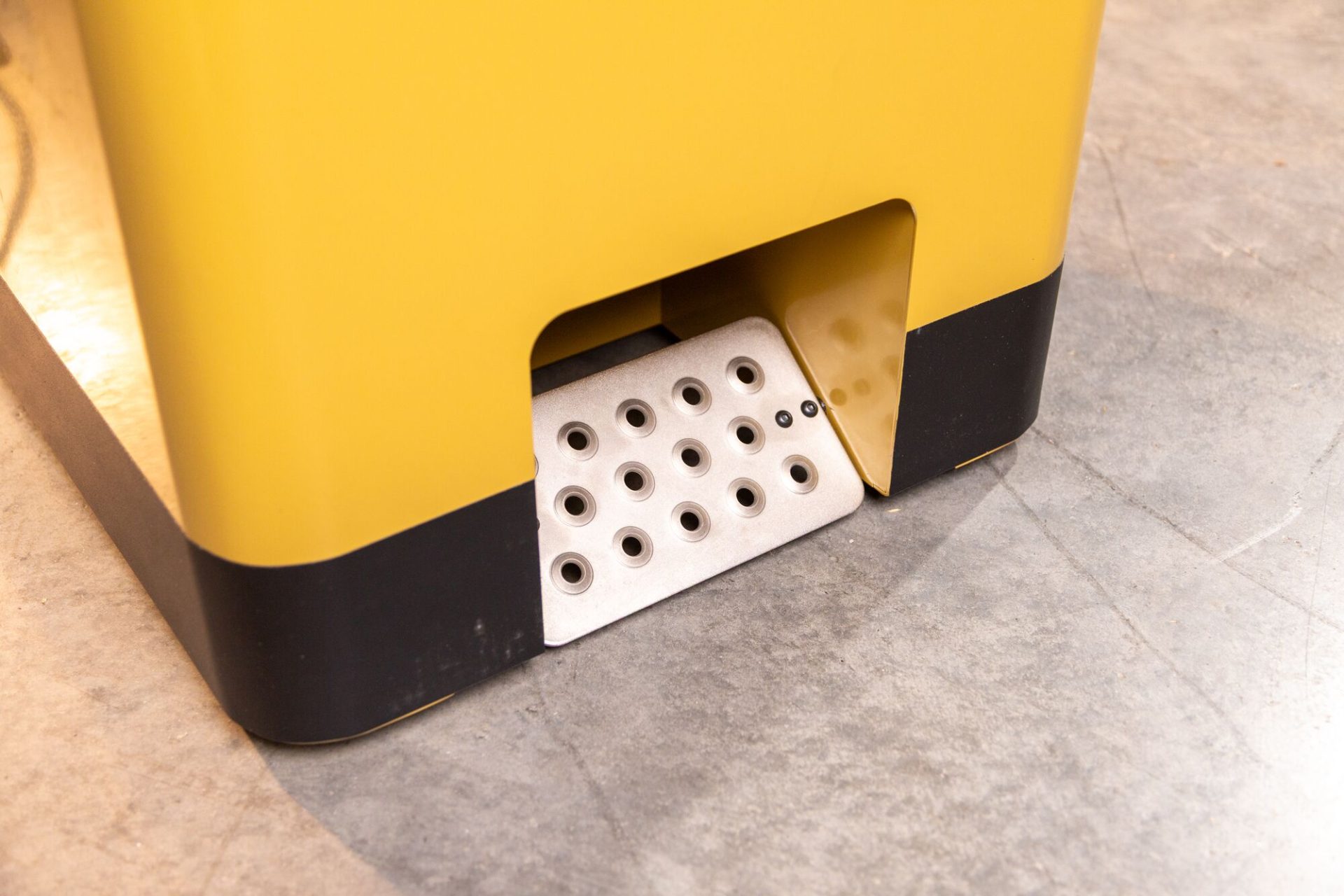

Designed to feel stable, secure, and purpose-built while in use. A larger emergency stop, improved caster locking and braking system, and dual lifting handles give you more command from setup through every pass.

Efficiency
Engineered to keep work moving without breaking rhythm. Faster cutterhead access and a bi-directional 4″ dust port reduce interruption and support a cleaner, smoother workflow.

Confidence
Backed by Powermatic’s Gold Glove Service and an industry-leading 5-year warranty, the 15BHH is built to earn trust long after it is in the shop.

Specifications

MODEL NO. 15BHH
Stock No. PM1-477
Warranty 5 Years
Motor Power 3 HP
Phase 1 PH
Voltage 230V
Recommend Circuit Size (Amps.) 30
Max. Cutting Width 15
Max. Cutting Thickness 6"
Min. Cutting Thickness 1/8"
Full Width Cutting Depth 3/32"
Min. Planning Length 8"

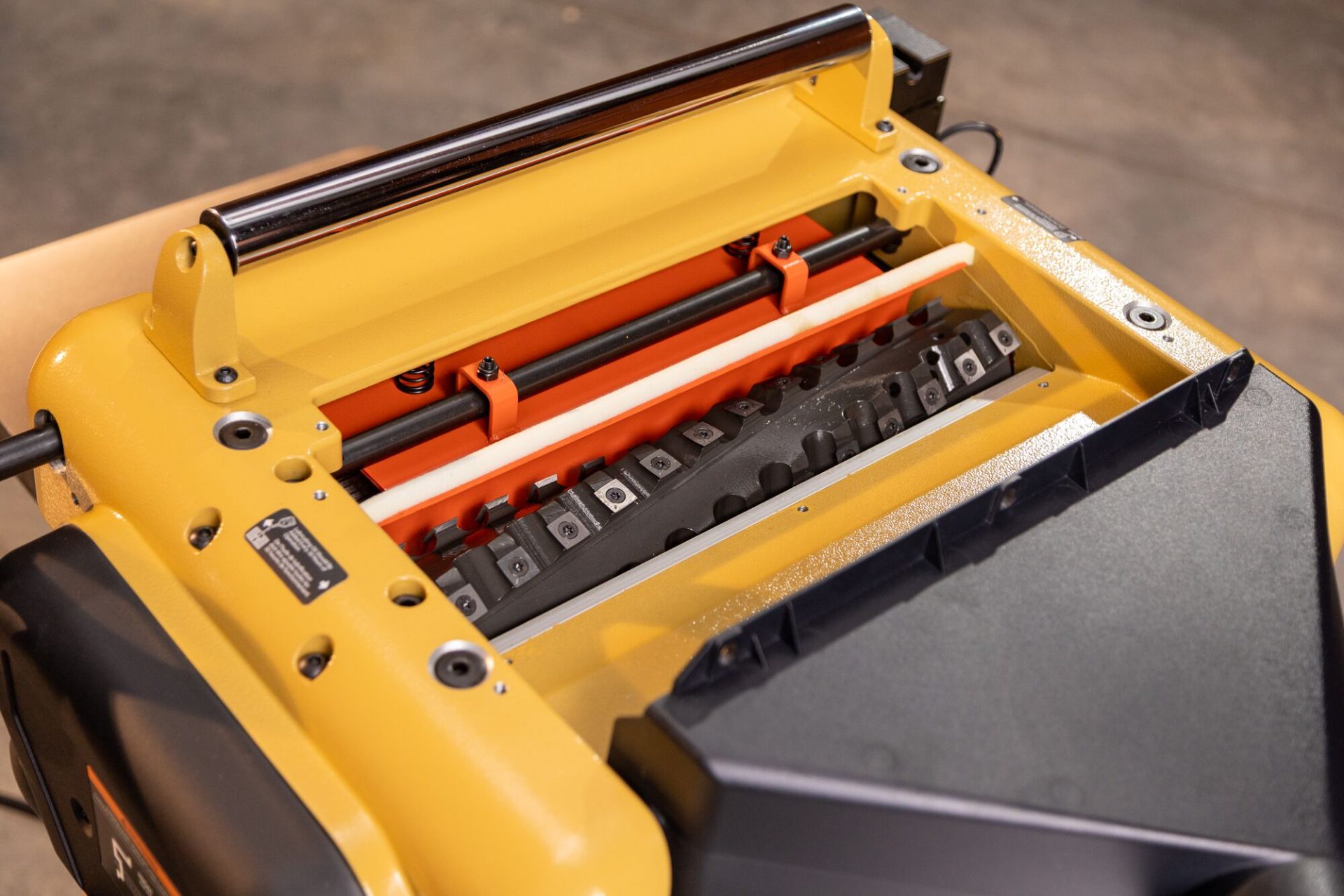

Helical Cutterhead 4 Rows, 48 Four-Sided Inserts
Knives (Insert) Size (L x W x H) 0.59" x 0.59" x 0.10"
Cutterhead Speed 5,200 RPM
Cutterhead Diameter 3"
Minimum CFM Required 900 CFM
Feed Rate 16/28 FPM
Main Table Size 20" x 15"
Full Table Size 48" x 15"
Dust Chute Diameter 4"
Full Assembly Overall Dimension (L x W x H) 48" x 31-1/2" x 42-3/8"
Packaging Overall Dimension (L x W x H) 29-25/32" x 27-9/16" x 48-5/8"
Net Weight (lbs.) 411 lbs.
Shipping Weight (lbs.) 486 lbs.
