Jet 15″ Benchtop Drill Press

Jet 15″ Benchtop Drill Press


In stock!

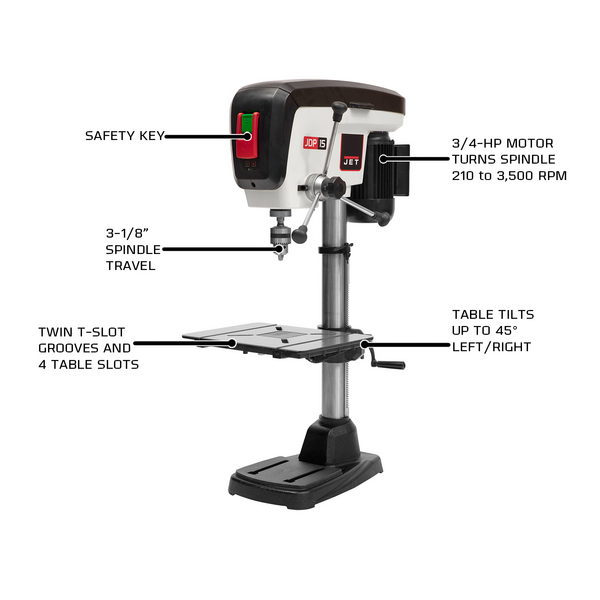

The new JET JDP-15B, 15” Benchtop Drill Press. From a full 3-1/8” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2″ x 17″ work table.

SKU: JT9-716200 Categories: , ,

• Spindle travels a full 3-1/8” with one revolution of the handle
• Large 12-1/2″ x 17″ precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
• One-handed belt tensioning allows for rapid speed changes
• Power switch features a safety key and large, paddle-style off button
• Integrated depth stop makes repetitive drilling quick and easy
• Xacta-X laser system easily identifies the drill center
• Long-lasting, built-in LED work light reduces shadows
• Table edge lip designed to make clamping easy
• Replaceable MDF table insert
• Large cast iron base provides stability

Machine Specs

Style (Type) Benchtop
Swing (In.) 15
Spindle Travel (In.) 3-1/8
Number of Spindle Speeds 16
Spindle Taper MT2/JT3
Spindle Speed Range (RPM) 210 – 3500
Spindle Distance to Table (Max.) (In.) 18-5/16
Spindle Distance to Base (In.) 26-3/4
Table Size (L x W) (In.) 12-1/2 x 17
Table Tilt (Deg.) 45 Left and Right
Chuck Size (In.) 5/8
Column Diameter (In.) 2-3/4
Base Size (In.) 18 x 11-3/8
Motor Power (HP) 3/4
Motor Phase (PH) 1
Motor Voltage (V.) 115
Prewired Voltage (V) 115 only
Motor Amps 9
Weight (Lbs.) 154
Assembled Machine Dimensions (L x W x H) (In.) 27 x 17 x 43-7/8
