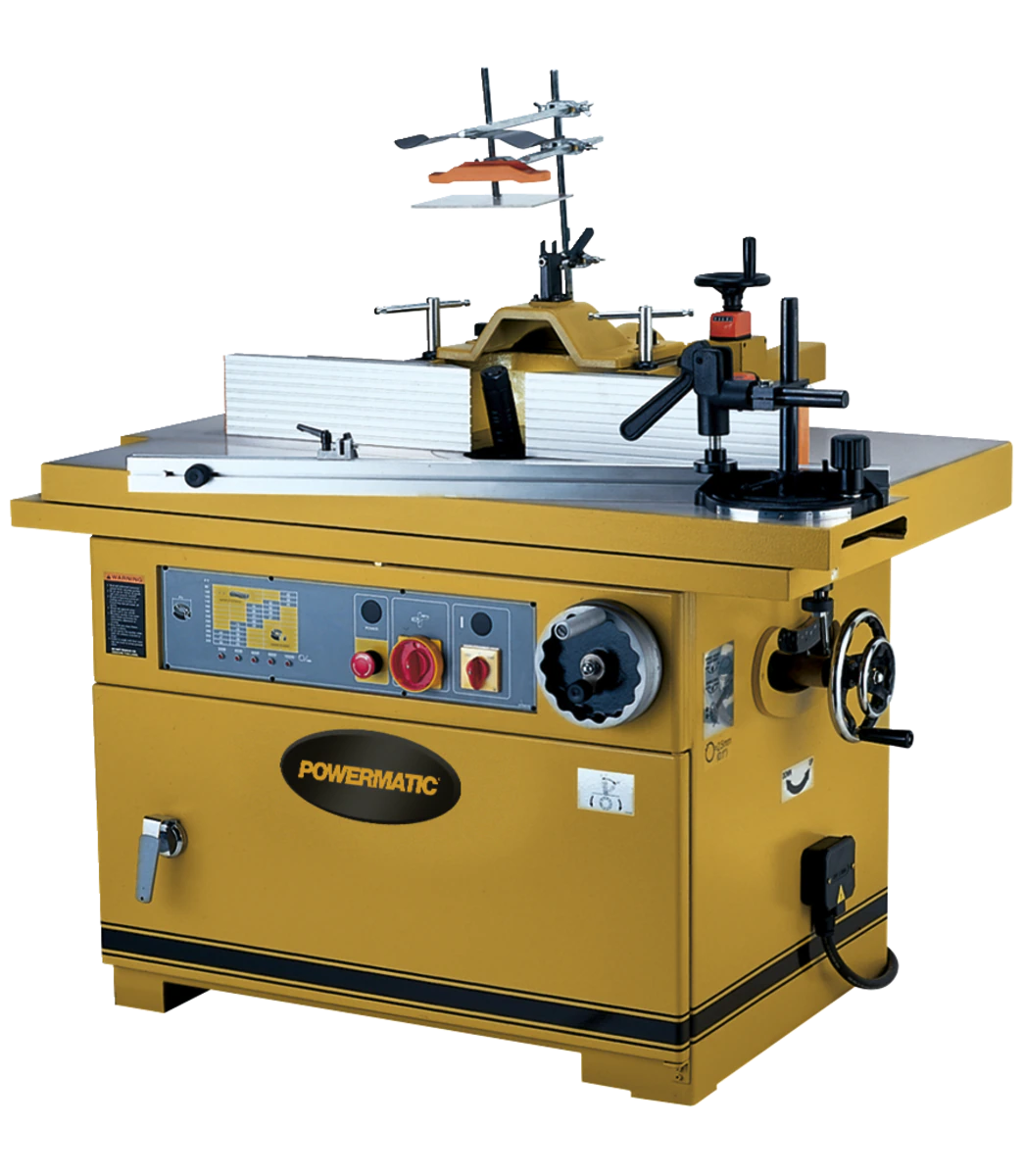

TS29 Shaper, 7-1/2HP 3PH 230/460V with Sliding Table

TS29 Shaper, 7-1/2HP 3PH 230/460V with Sliding Table

$13,199.99

In stock!

The new TS29 Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate set-ups. The full guard includes two stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. Powered by a big 7-1/2HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56″ miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.

• Sliding table travels a full 49-1/4 inches
• Fully adjustable fence has dual digital readout positioning with micrometer adjustments
• Tilting spindle for additional angles
• Large table with built-in slider with room for stock feeder
• Full coverage guard with workpiece hold downs
• Five spindle speeds in forward and reverse with lighted indicator
• Large diameter multiple table inserts accommodate virtually any size cutter
• Includes 3/4″, 1″ and 1-1/4″ spindles

machine specs

Style (Type) Shaper
Spindle Speed (RPM) 3,000, 4,000, 6,000, 8,000, 10,000
Maximum Spindle Diameter (In.) 1-1/4
Spindles Included 3/4, 1, 1-1/4
Spindle Size Under Nut (In.) 3/4″ Spindle (3-1/2), 1″ Spindle (6-1/4), 1-1/4″ Spindle
(6-1/4)
Spindle Travel (In.) 7
Spindle Tilt (Deg.) 45 Forward, 5 Back
Reversible Yes
Maximum Diameter Cutter Above Table (In.) 12
Maximum Diameter Cutter Below Table (In.) 9
Table Inserts (In.) 2-1/5, 5-1/2, Oval (Tilting)
Table Size (In.) 51-1/2 x 33-1/2
Table Travel (In.) 49-1/4
Table Height from Floor (In.) 49-1/4
Sliding Table Size (In.) 11-1/4 x 51-1/4
Fence Size (L x H) (In.) 46 x 5
Fence Travel (Major and Minor) (In.) 5-3/8, 3-5/8
Dust Port Outside Diameter (In.) Two @ 5″
Dust Collection Minimum CFM Required (CFM) 800
Electrical Controls 24 volt
Motor Power (HP) 7-1/2
Motor Phase 3
Motor Voltage (V.) 230/460
Prewired Voltage (V.) 230
Recommended Circuit Size (Amps.) 30/15
