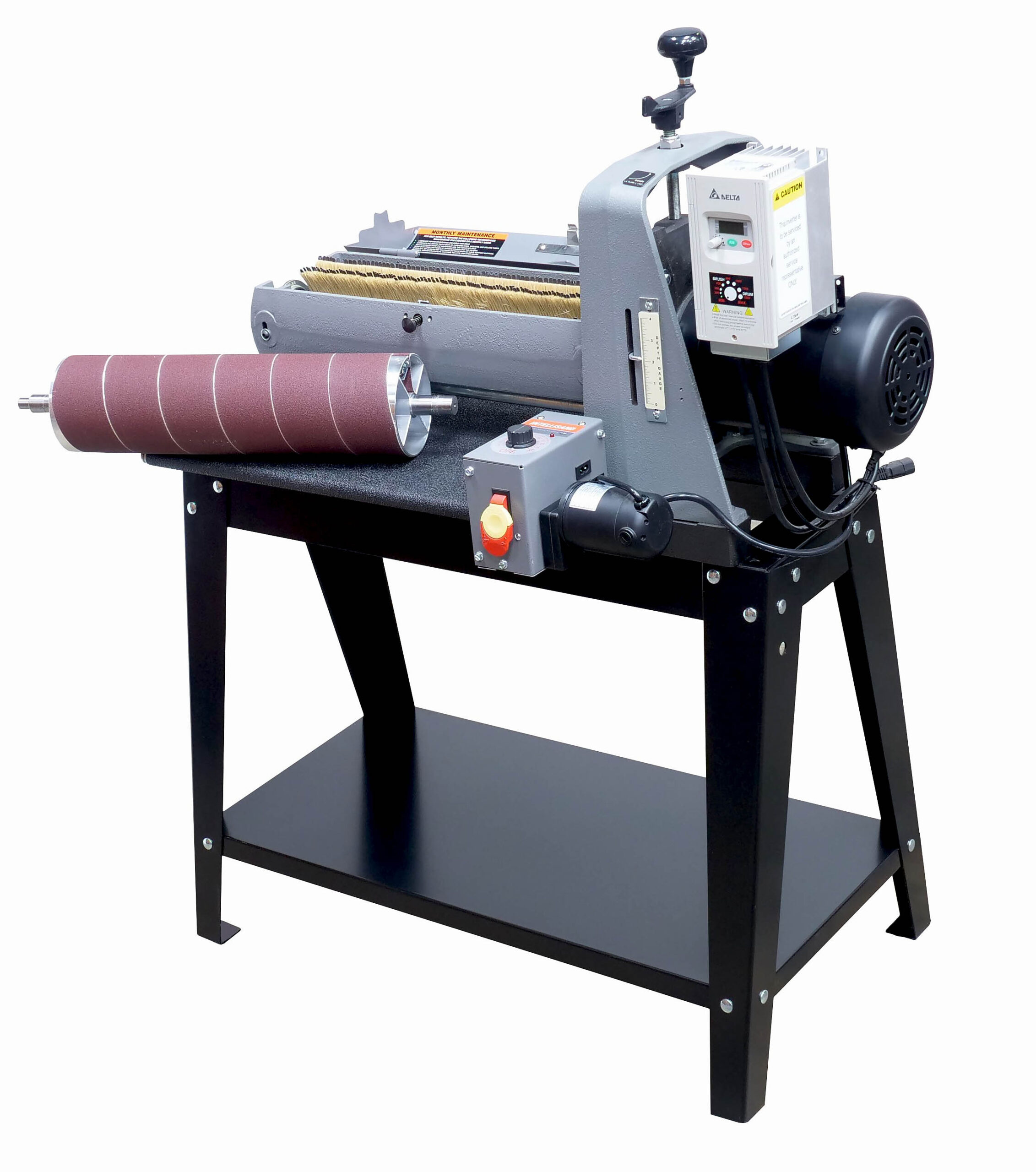

SuperMax 19-38 Combo Brush/Drum Sander With Open Stand


SuperMax 19-38 Combo Brush/Drum Sander With Open Stand

Original price was: $3,199.00.Current price is: $2,879.10.

In stock!

Ships for $99

New model includes: Sanding Head Assembly with Flatter Installed, Conveyor Table Assembly, An Aluminum Drum w/ Two Bearing Sets, A Coupling and one 80 Girt Abrasive Belt, Open Stand Assembly.  Our exclusive technology allows you to drum sand and profile sand on the same machine! Interchangeable drum and brush heads allow for unlimited applications!

Flatter: Produces a hand-sanded finish on profiles like moldings, raised panel doors, and plywood.

Nylon: Scuff sand and defuzz stock.

Wire: Pull the soft grain out from soft woods or clean reclaimed lumber.

Drum: Dimension or finish sand flat stock.

Simple alignment feature Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy. Indexed alignment setting Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 19”, the index lever will properly adjust the conveyor for flawless wide sanding. Easy height adjustments A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments. Extra-wide conveyor to properly support stock over 19” wide. The conveyor table is 22” wide to add support to the workpiece. Excellent dust extraction, as metal dust cover is formed to shape of the drum. Tension rollers are adjustable in height and hold down pressure, eliminating snipe. Heavy-duty cast iron construction for strength, rigidity, and reduced vibration.

SKU: SUPMX-219383 Categories: , ,

Warranty: Two years on parts and labor, limited; Manufacturer’s warranties on conveyor belts, brush heads and abrasives.

Sanding Capacity:
Maximum Width: 38” (two passes)
Minimum Length: 2-1/4” to 3-1/2” (varies with application)
Maximum Thickness: 4” typical (varies with brush/drum style & application)
Minimum Thickness: 1/32” typical (varies with applications)

Length – 36”
Width – 42”
Height – 24” without stand
Brush: 5” diameter typical
Typical bristle length: 1-1/2” (varies)

Brush Speed:
Infinitely variable 200 to 1000 RPM
Brush 1750 RPM

Drum Dust Hood: Hinged back with 4” vacuum port

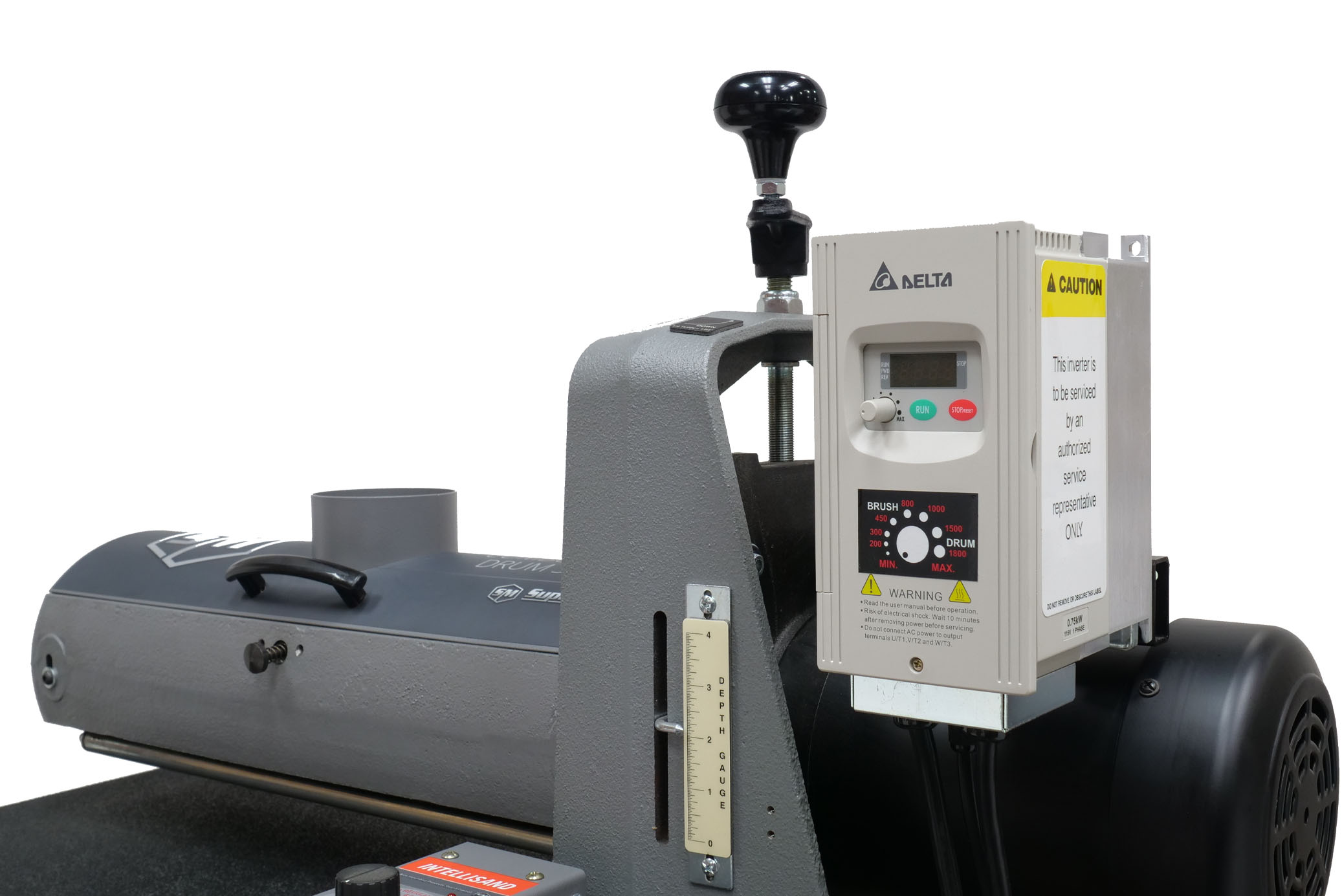

Height Adjustment: 1/16” per revolution, Depth Gauge included Conveyor

Motor: 43”–lb. torque Direct drive D.C. motor Infinitely variable 0–10 feet-per-minute

Drive Motor (TEFC): 1-3/4 HP Continuous-duty

Power Requirements: 110 Volt, Single Phase 20 amp service

Shipping Weight: 242lbs. (weight varies on how equipped) 2 boxes
