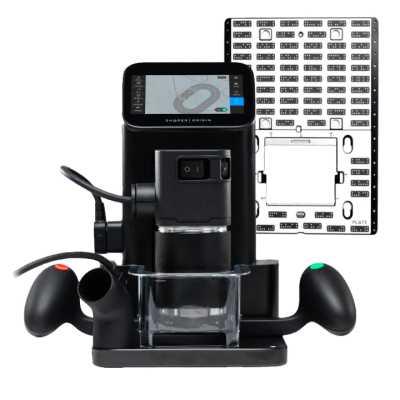

Shaper Origin + Plate

Shaper Origin + Plate

$3,174.00

In stock!

SAVE $100 WITH THIS BUNDLE PACKAGE VERSUS BUYING THESE ITEMS SEPARATELY!

The Shaper Origin is the world’s first computer-assisted handheld router. It works much like a traditional CNC, with X, Y and Z axes, but since it is handheld, with no table and gantry, it’s both portable and exceptionally space-efficient for small shops. Simply follow the toolpath on the screen as you cut. As long as you stay in the general cutting area, the spindle will auto-correct 100X/second to keep the cutter in exactly the right position to within 1/100”. If you happen to wander too far off track, the bit will automatically retract, preventing damage to your workpiece. You can cut out precision shapes without the need for physical templates. Origin’s intuitive touch screen interface lets you place designs in your workspace and set cut dimensions on the fly, and it automatically calculates toolpaths for you—no programming required. Load designs via WiFi from the ShaperHub website, from a computer with the included USB stick, or design your project right on the screen. With the optional clamping Workstation (see below), the Origin is capable of machining advanced joinery, small parts and much more. Go from cutting out panels, to routing hinge mortises, to cutting joinery with just a few taps on the screen.





SKU: SHAPERPACKAGE2 Categories: , ,

Shaper Plate

A universal template designed to install a wide range of hardware, inlay bow ties, round corners, route system 32 holes and so much more. Designed to Integrate with ShaperHub’s Hardware Catalog – a collection of hundreds of vetted digital hardware files – Plate makes it easy to say goodbye to drawers full of hardware templates you may have lying around.

  • Cut with hundreds of digital hardware files from Shaper’s Hardware Catalog
  • Includes custom low-profile clamps in a custom systainer. Low profile clamps provide maximum cutting space and fixturing adaptability
  • Flexible alignment rails for use with custom fixtures
  • Flag and fence system to align virtually anywhere on your work surface
  • System 32 Ready: Use the included System 32 pin to tile Plate in any direction while maintaining 32 mm hole spacing.
  • Anti-slip backing: Plate’s back side is covered in an anti-slip mat, making it easy to cut most jobs without needing to clamp Plate to your workpiece.
  • Built-in ShaperTape: Like Workstation, Plate is made with durable and reusable ShaperTape so you can scan once and reuse Plate again and again.

Includes

Origin

  • Shaper Branded Systainer³ M437 Carrying Case
  • Two rolls of ShaperTape (150-ft each)
  • Tool change accessories
  • Reusable transport locks
  • USB A/C dual flash drive
  • 1/4-inch up-spiral flat router bit
  • 1/8-inch up-spiral flat router bit
  • 60 degree engraving router bit

Plate

  • MINI-Systainer
  • Low Profile Clamps
  • System 32 Pin
  • Leveling Feet
Specs

-Weight (Origin only): 14.9 lbs.
-Weight (Origin packed with accessories in Systainer): 23.5 lbs.
-Origin Height: 12.04”
-Origin Depth: 8.94”
-Origin Width: 13.35”
-Brushed Motor Spindle: 720 Watt (AC), 10,000 – 26,000 RPM with load-compensating speed control
-Input Power: 120 VAC (60HZ) 7A
-Z-axis max depth: 1.7” / 43 mm (digitally adjustable)
-Warranty: 1 year
-Support: Highly-responsive email support or learn about SHAPER PRO
