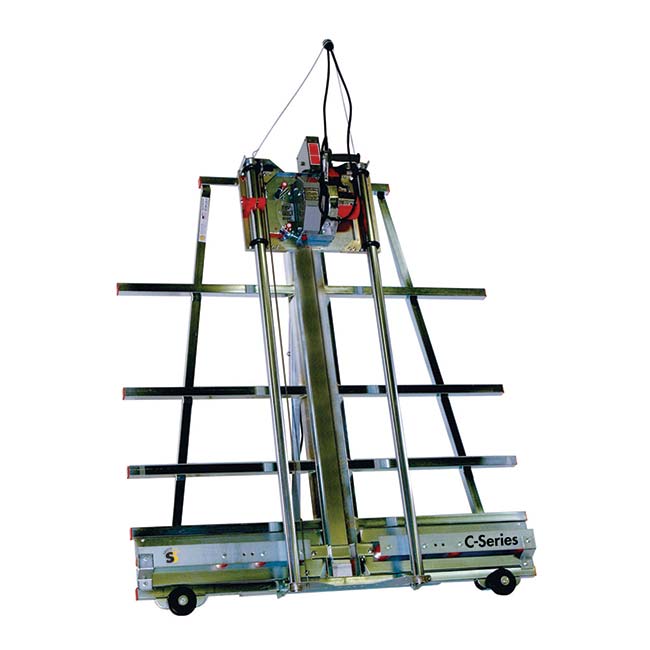

Safety Speed C4 Vertical Panel Saw

Safety Speed C4 Vertical Panel Saw

Safety Speed C4 Vertical Panel Saw

$2,219.00

In stock!

Ships for $189

The C4 model packs all of the features of the full-size saws into a portable 5′ frame and features a 50″ maximum crosscut. The C4 is designed for customers who have limited floor space or require transporting the saw to the work site. Photos are shown shown with a stand and wheels,  which are optional accessories

SKU: C4 Categories: , ,

Description

This panel saw can travel to work sites and fit into shops with limited floor space. The C4 is ideal for cutting 4’X8′ sheets of material. The only difference between this machine and the C5 Panel saw are the maximum crosscuts.

Standard Equipment

  • 3 ¼ Hp, 15 amp industrial duty saw motor.
  • Zinc plated 1 ¾” steel guide tubes.
  • 4 Nylatron roller bearing systems.
  • Adjustable vertical and horizontal rulers.
  • Quick change from vertical to horizontal cutting.
  • Thin material pressure guard.
  • Injection-molded plastic material rollers.
  • Spring loaded counter balance system.
  • Integrated dust collection bonnet.
  • Extended warranty.
  • TUV certified to UL/CSA standards
Machine Specs

Weight :189 lbs
Dimensions : 60 × 11 × 70 in
Max. Crosscut :50"/1270mm
Max. Rip Cut :96"/2450mm
Cut Depth : 1 ¾"/45mm
Cut Accuracy : 1/32"/.8mm
Frame Length : 60"/ 525mm
Saw Blade Diameter : 8"/210mm
Daily Usage : 1-3 Hours
Rollers :8
Motor : 15 amp, 120V, 220V
