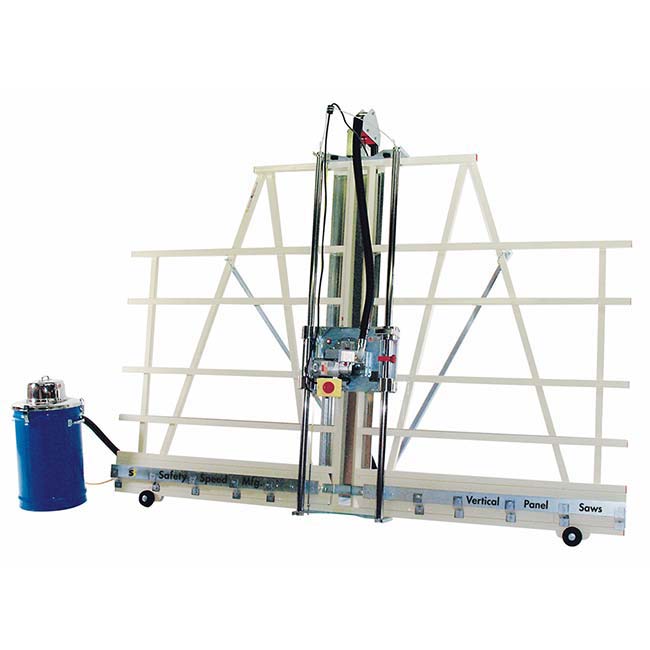

Safety Speed 6800 Vertical Panel Saw

Safety Speed 6800 Vertical Panel Saw

Safety Speed 6800 Vertical Panel Saw

$5,949.00

In stock!

Ships for $369

The 6800 provides a 74″ maximum crosscut capacity. The 6800 Panel Saw feature several upgrades for higher production cutting including an upgraded, heavy duty worm driven motor, additional steel welded on a diagonal plane within the frame, aluminum material rollers, and double the amount of bearings on the guide tubes. The additional steel and double the amount of bearings provide a tighter cutting accuracy, cutting within 1/64” straight and square.

SKU: 6800 Categories: , ,

Features

  • 10’ welded steel frame
  • Heavy-duty, 3 Horsepower, Worm Drive Motor
  • Zinc plated 1.75” steel guide tubes
  • 8 Nylatron roller bearing systems
  • Adjustable vertical and horizontal rulers
  • Quick change from vertical to horizontal cutting
  • Thin material pressure guard
  • Heavy-duty aluminum material rollers
  • Enclosed counter weight System
  • Integrated dust collection bonnet
  • TUV certified to UL/CSA standards
Machine Specs

Weight : 660 lbs
Dimensions : 124 × 17 × 98 in
Max. Crosscut : 74"/1850mm
Max. Rip Cut : Unlimited
Cut Depth : 1 ¾"/45mm
Cut Accuracy : 1/64"/.4mm
Frame Length : 120"/3050mm
Daily Usage : 3-5 Hours
Rollers : 14
Saw Blade Diameter : 8"/210mm
Motor : 13 amp, 120V
