Rikon Model 60-151C: 1.5 HP Dust Collector

Rikon Model 60-151C: 1.5 HP Dust Collector

$760.00

In stock!

The Rikon Model 60-151C: 1.5 HP Dust Collector is a powerful and efficient dust collection system designed for larger workshops. Featuring a 1.5 HP motor and a dual 4” dust intake fitting, this collector ensures clean and breathable air by effectively capturing dust and debris from multiple machines simultaneously

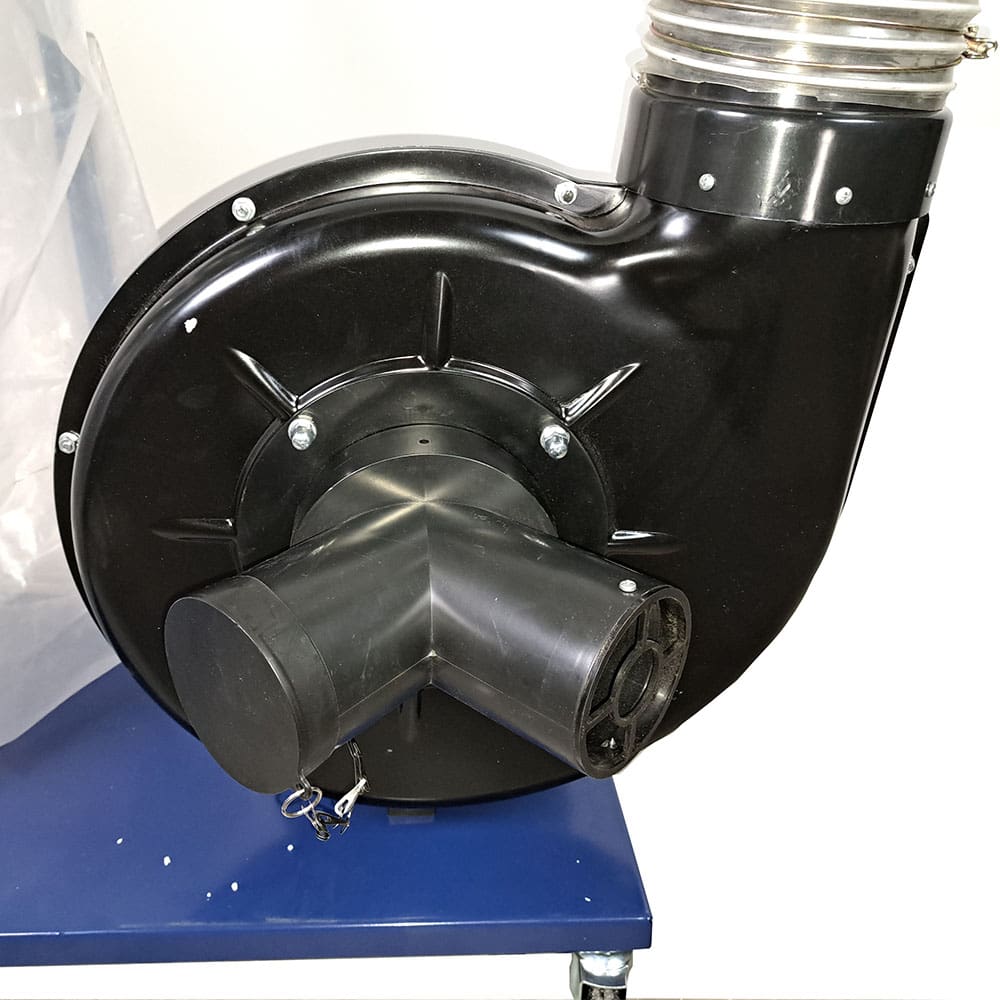

The Rikon Model 60-151C: 1.5 HP Dust Collector is an essential tool for maintaining a clean and safe workshop environment, especially in larger setups. This dust collector is equipped with a robust 1.5 HP motor that delivers powerful suction, drawing 1,046 cubic feet per minute (CFM) through its single 5” dust port. The unit also includes a dual 4” dust intake fitting, allowing it to handle dust and debris from two operating machines at the same time.

Constructed with all-metal components, the Rikon 60-151C ensures durability and long-lasting performance. The sturdy steel base with built-in casters and a handle makes it easy to move around your shop as needed. The system includes a top cloth filter bag and a lower disposable plastic chip bag, both of which are secured with quick-release band clamps for easy maintenance. The filter bag captures particles as small as 5 microns, ensuring that even fine dust is effectively collected.

Designed for user convenience, the Rikon 60-151C includes a safety lock toggle switch to prevent accidental or unauthorized use. The unit is wired for use with standard 115V or 230V outlets, making it easy to integrate into your existing workshop setup. With its combination of power, mobility, and ease of use, the Rikon Model 60-151C: 1.5 HP Dust Collector is an excellent choice for any workshop looking to improve air quality and cleanliness.

Machine Specs

MOTOR 60-151C Horsepower 1.5 HP TEFC Amps 10.4 / 5.2 Volts, Hz 115 / 230V, 60Hz Speed (No Load) 3,450 RPM
DUST COLLECTOR Air Flow @ 4”Diameter 1213 CFM Static Pressure 8.5” (WC) Blower Impeller 12” Diameter,
Aluminum Canister Filtration 2 Micron Filtration Efficiency 98%

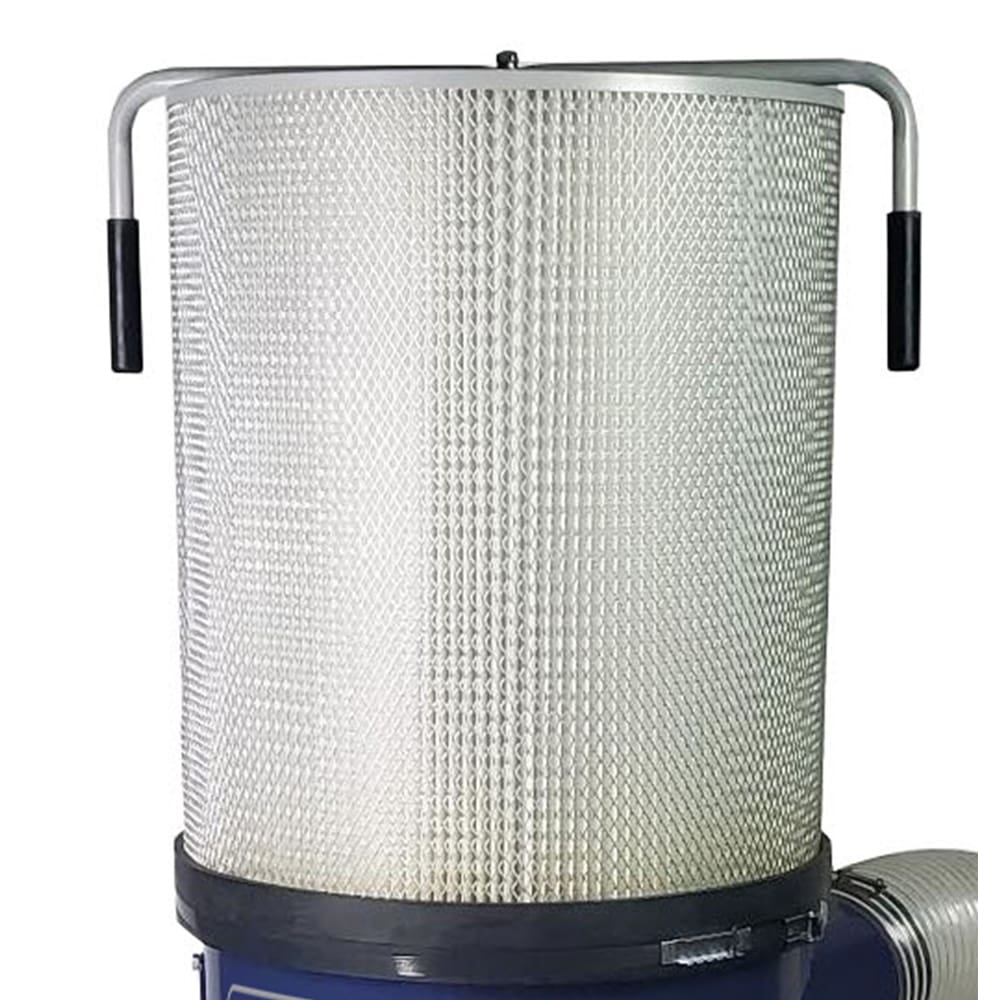

Canister Pleated Filter 20” x 24-7/8”
Bag Diameter 20”
Filter Cleaning Method Hand Cank, Internal
Rotating Flapper
Collection Bag Capacity 5.3 Cu. Ft.
Intake Size 1 @ 6” , 2 @ 4” Dia.
Sound Rating @ 6 feet <89dB
OVERALL
Height 76-1/2”
Width 22”
Length 37”
Net Weight 138 lbs.
Shipping Weight 125 lbs.
Box 1 of 2
Shipping Carton 23” x 22” x 39”
Box 1 of 2
Shipping Weight Box 2 of 2 28.5 lbs.
Shipping Carton Box 2 of 2 27” x 27” x 22 1/2"
