Rikon Model 60-100: 1 HP Dust Collector

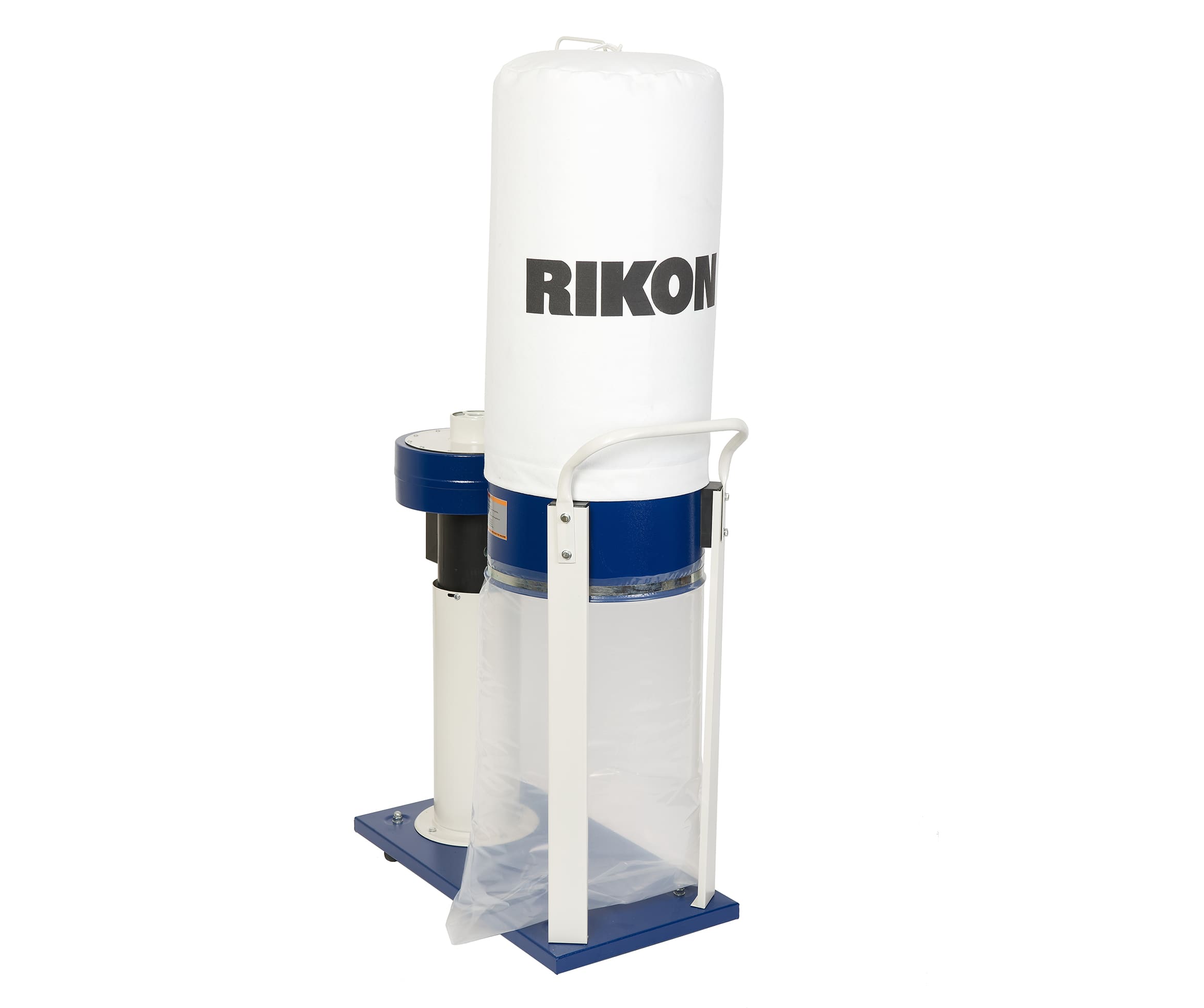

Rikon Model 60-100: 1 HP Dust Collector
Rikon Model 60-100: 1 HP Dust Collector - Image 2

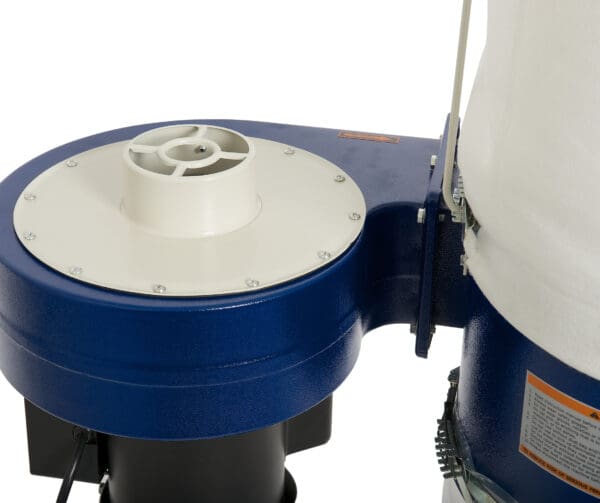

Rikon Model 60-100: 1 HP Dust Collector - Image 3

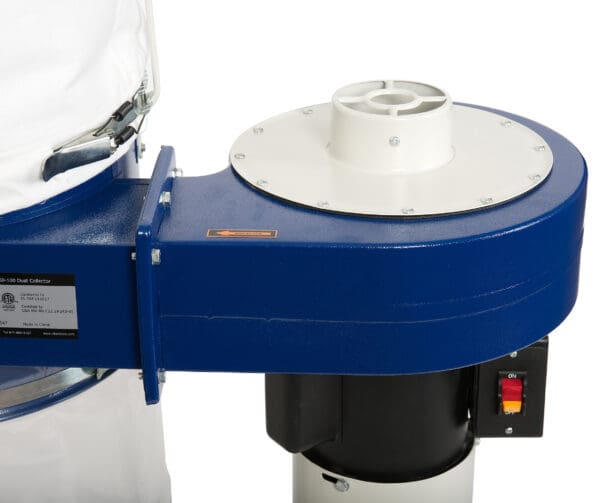

Rikon Model 60-100: 1 HP Dust Collector - Image 4

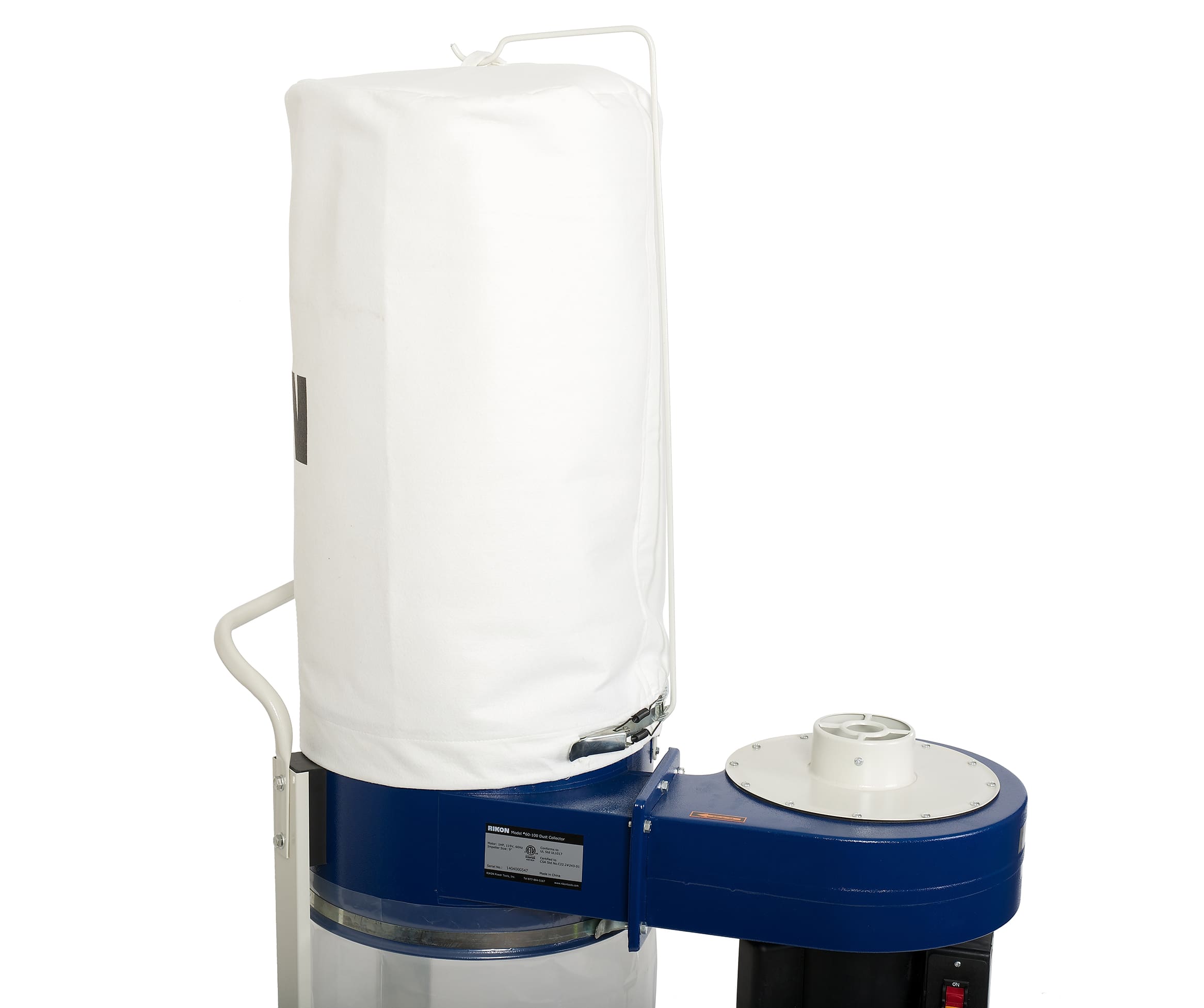

Rikon Model 60-100: 1 HP Dust Collector - Image 5

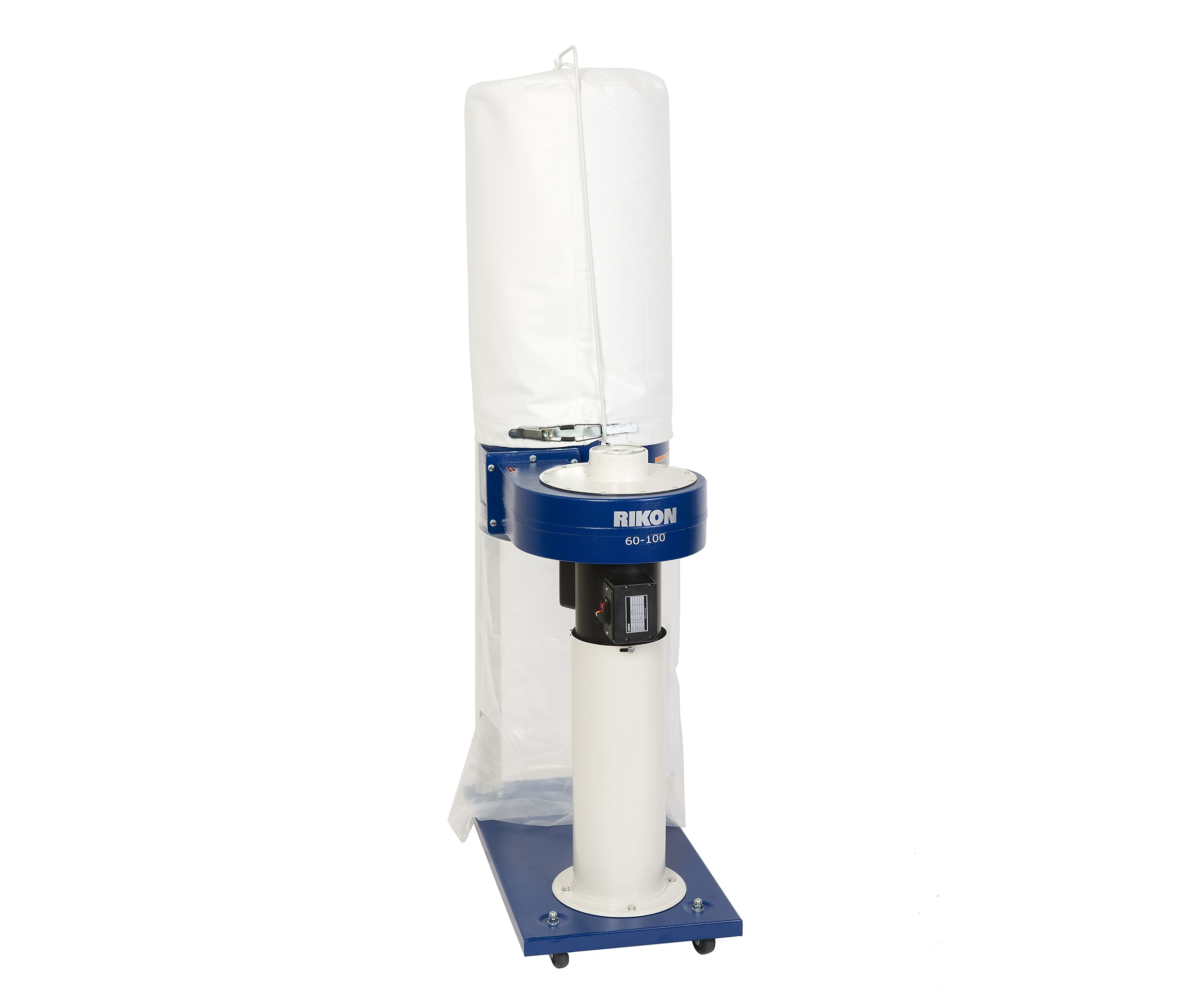

Rikon Model 60-100: 1 HP Dust Collector - Image 6

Rikon Model 60-100: 1 HP Dust Collector

$399.99

In stock

- +

The Rikon 1 HP Dust Collector #60-100 is a great size for use in a small shop. Single 4” dust port draws 624 CFM, more than enough vacuum power for big chip makers, like jointers and planers. Built-in casters and handle make moving it about easy. Includes top cloth filter bag, lower disposable plastic chip bag, quick-release band clamps, and safety on/off switch. Collector is wired for use with 3-wire 120V receptacles.

SKU: 60-100 Categories: , , , , Tags: , , , , , , , , , , , , , , , , ,

1HP Dust Collector

Machine Specs

Motor Horsepower 1 HP
Motor Amps 7
Motor Volts 115V, 60Hz
Motor RPM 3,450
Blower Wheel Diameter 9”
Blower Wheel Material Steel
Air Flow @ 4" Diameter 624CFM
Static Pressure (Water Column) 3.25in.w.c
Sound Rating @ 3 Feet <78 dB
Bag Filtration 5 Microns
Bag Diameter 14-3/4”
Bag Capacity 2.1 Cubic Feet
Bag Length 26”
Hose Connection 1@4”
Overall Length 32-1/4”
Overall Width 15”
Overall Height 60”
Overall Net Weight 60 lbs.
Intake Funnel Size –
Maximum Funnel Height –
Dust Hose Size –
Warranty 5 Years
